Description

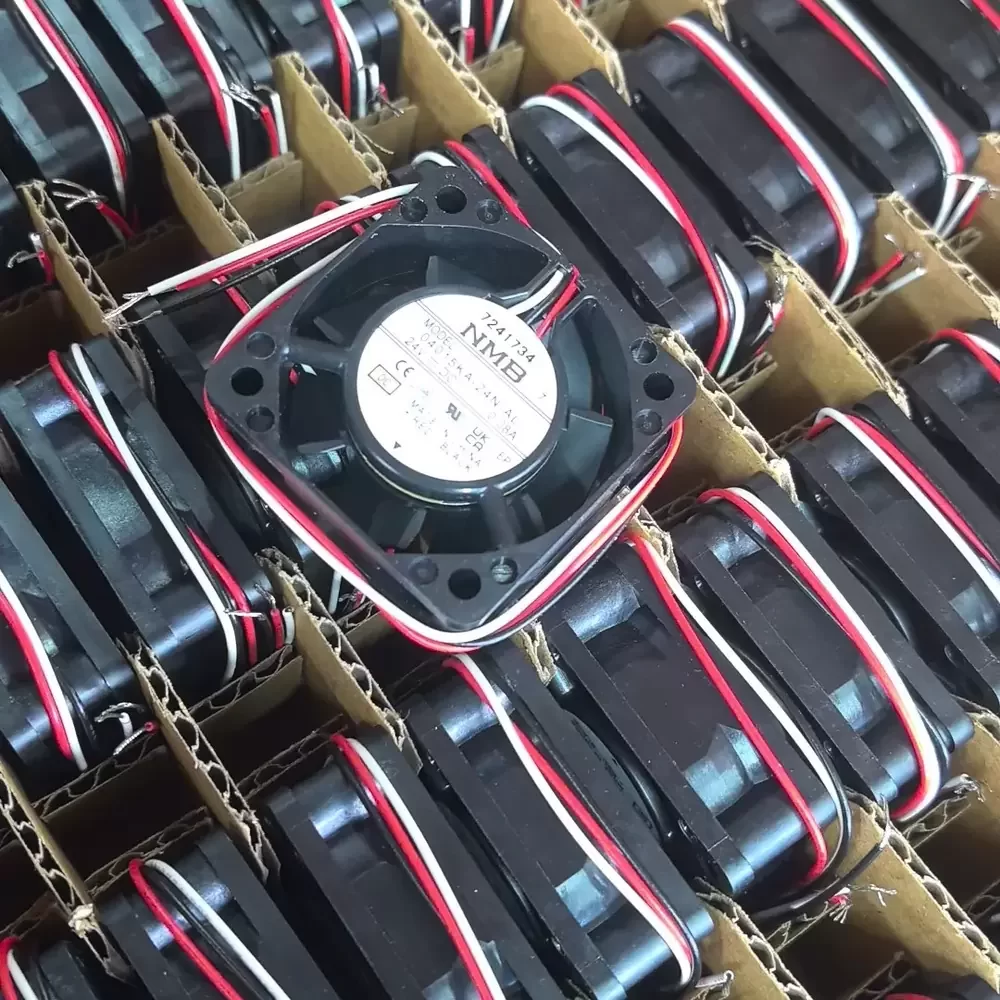

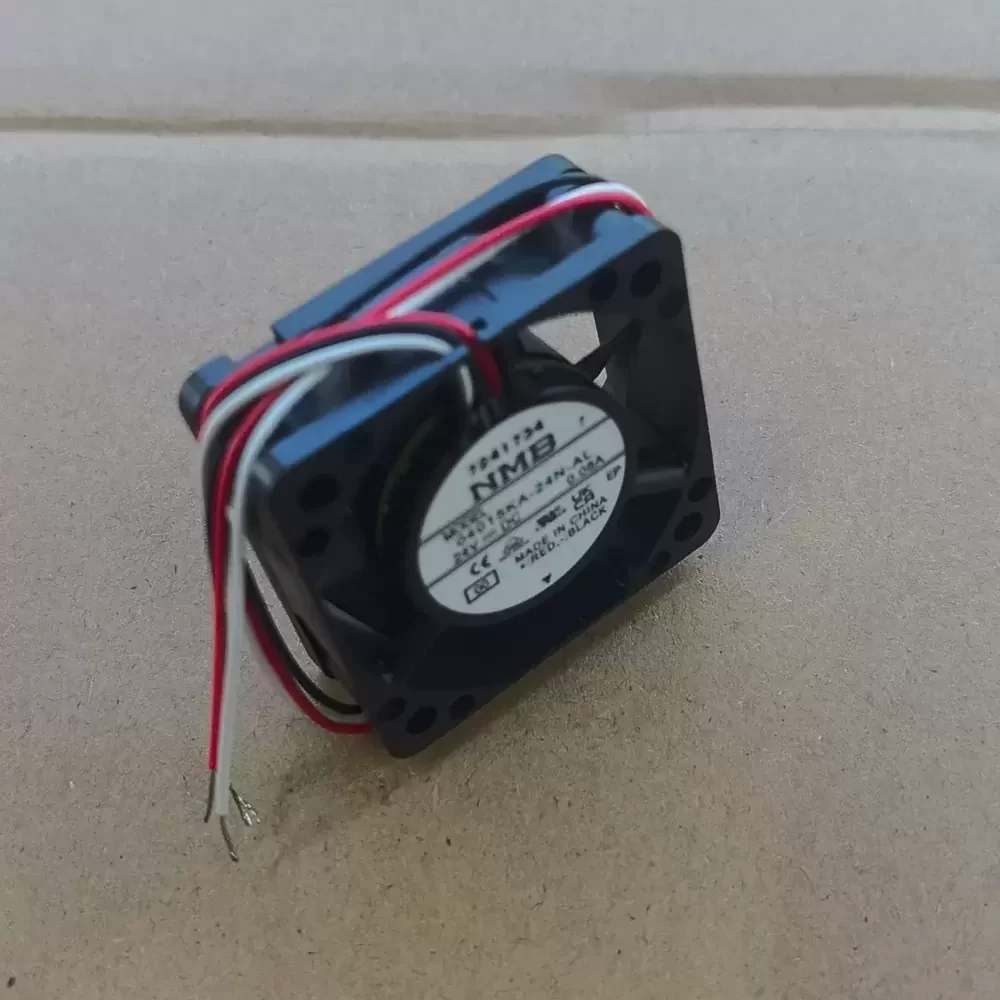

The NMB 04015KA-24N-AL-00 is a precision-engineered DC Axial Fan designed for high-reliability industrial thermal management. Manufactured by MinebeaMitsumi, this unit integrates advanced dual ball bearing architecture to minimize friction and extend Mean Time Between Failures (MTBF) under continuous operation. The aerodynamic impeller is housed within a reinforced PBT frame, optimizing static pressure delivery while maintaining structural rigidity. Engineered for 24VDC systems, it offers a balanced profile of airflow and acoustic performance, making it ideal for mitigating thermal impedance in compact electronic enclosures and critical automation hardware.
Model Number: 04015KA-24N-AL-00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24V DC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.08 A
Power Consumption: 1.92 W
Rated Speed: 8500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 9.0 CFM (15.3 m³/h / 0.25 m³/min)
Max. Static Pressure: 6.35 mmH₂O (62.3 Pa / 0.25 inH₂O)
Dimensions: 40x40x15mm
Weight: 25 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 34.0 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Termination: Lead Wires (Red/Black)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP40
Safety Certifications: UL, CSA, TUV, VDE
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
This cooling solution is extensively utilized in industrial automation environments, specifically serving as a direct replacement for Fanuc industrial equipment cooling modules. The 04015KA-24N-AL-00 excels in compact server racks and telecommunication chassis where space is constrained but airflow reliability cannot be compromised. Additionally, the 04015KA-24N-AL-00 is frequently deployed in CNC machinery control panels and medical instrumentation, ensuring stable operating temperatures for sensitive electronic components.
