Description

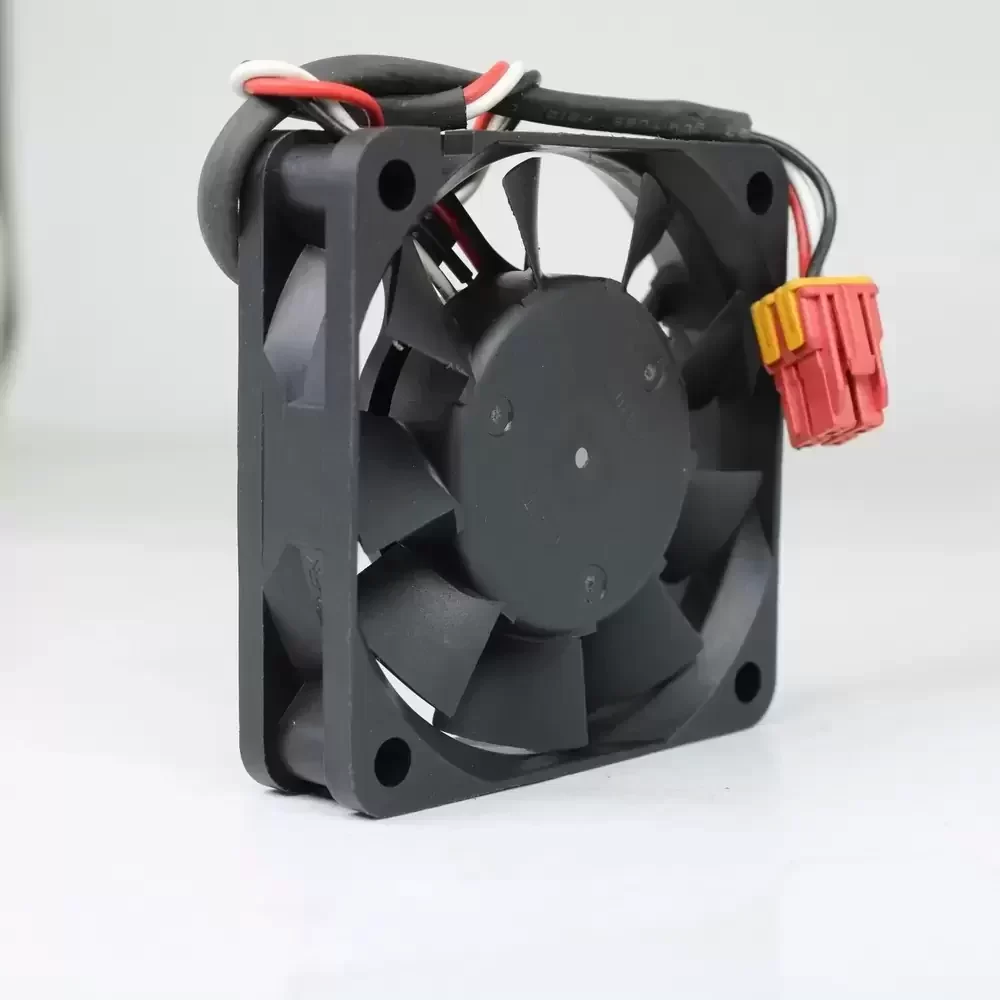

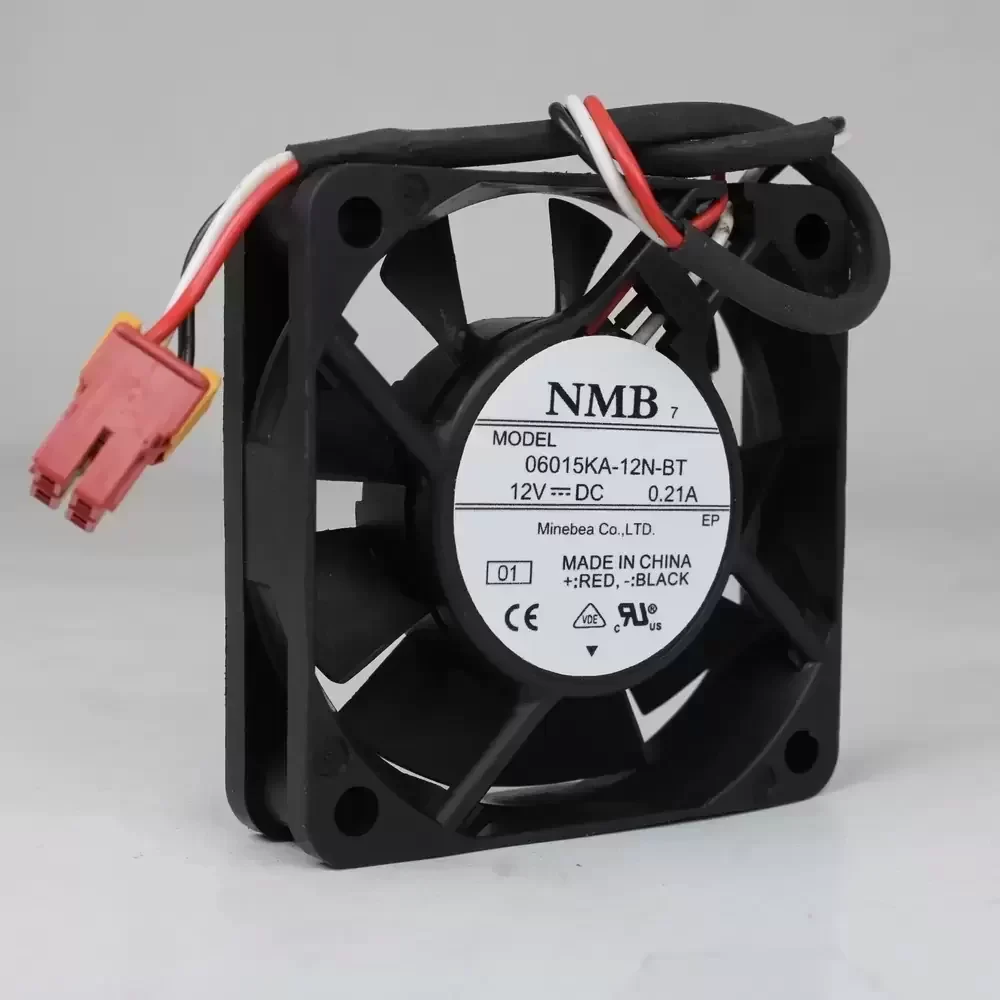

The NMB 06015KA-12N-BT-01 is a precision-engineered axial fan designed for high-reliability thermal management applications. Leveraging NMB’s proprietary MinebeaMitsumi precision machined ball bearing technology, this unit ensures minimal friction and extended operational lifespan under continuous load. The aerodynamic impeller is housed within a reinforced PBT frame (UL94V-0), optimizing airflow dynamics while maintaining structural rigidity against vibration. Engineered for 12VDC systems, it delivers consistent static pressure and efficient heat dissipation, making it an ideal solution for compact electronic enclosures requiring low thermal impedance and acoustic stability.
Model Number: 06015KA-12N-BT-01
Brand: NMB Technologies (MinebeaMitsumi)
Product Type: Axial Fan
Rated Voltage: 12V DC
Voltage Range: 6.0 – 13.8 VDC
Rated Current: 0.21 A
Power Consumption: 2.52 W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.4 CFM (31.2 m³/h / 0.52 m³/min)
Max. Static Pressure: 4.2 mmH₂O (41.2 Pa / 0.16 inH₂O)
Dimensions: 60 x 60 x 15 mm
Weight: 45 g
Life Expectancy: 100,000 Hours @ 25°C
Noise Level: 34.0 dBA
Housing Material: Polybutylene Terephthalate (PBT) UL94V-0
Impeller Material: Polybutylene Terephthalate (PBT) UL94V-0
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ohm Min. at 500VDC
Dielectric Strength: 700VAC for 1 Second
Protection: Auto Restart / Polarity Protection
Safety Certifications: UL, CSA, TUV, VDE
Designed for critical cooling in compact electronics, the 06015KA-12N-BT-01 excels in server rack ventilation, telecommunications equipment, and industrial power supply units. Its slim 15mm profile allows for integration into tight spaces within medical instrumentation and automation controllers where airflow cannot be compromised. The 06015KA-12N-BT-01 ensures reliable thermal regulation, preventing component overheating in 24/7 operational environments.
