Description

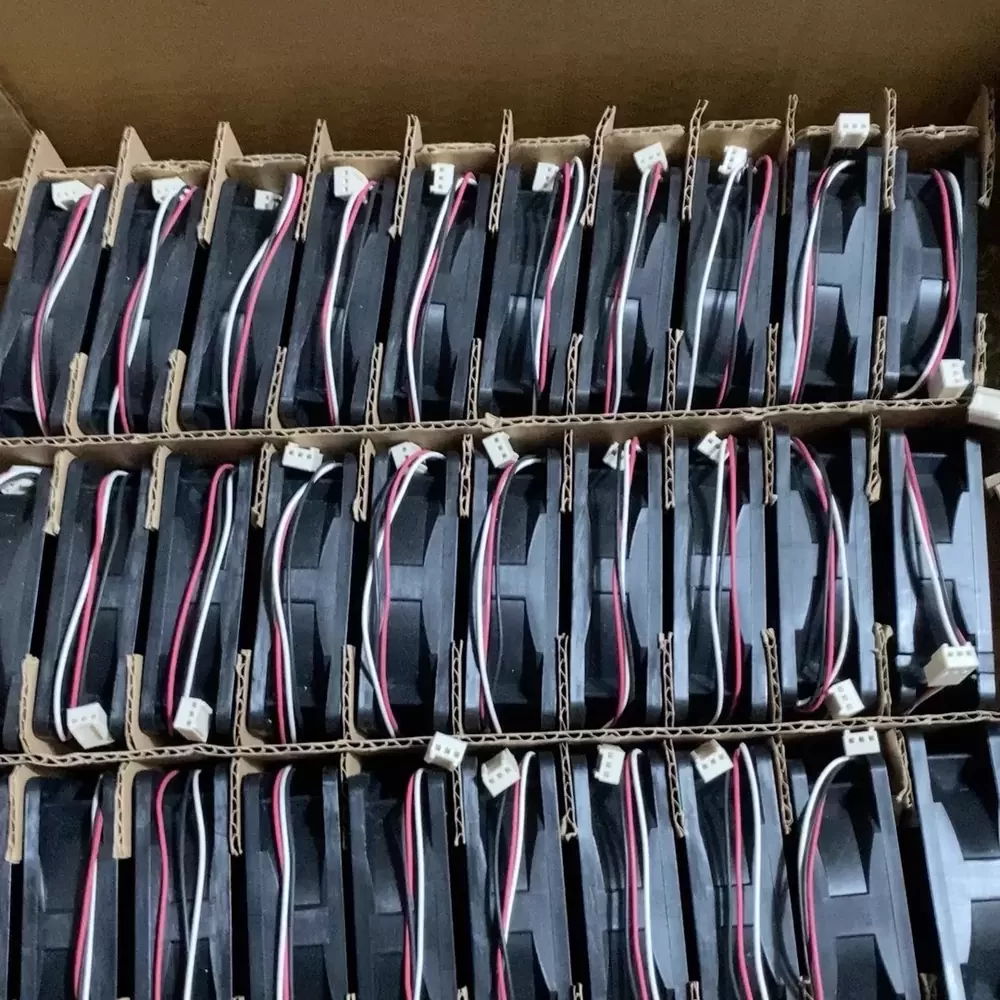

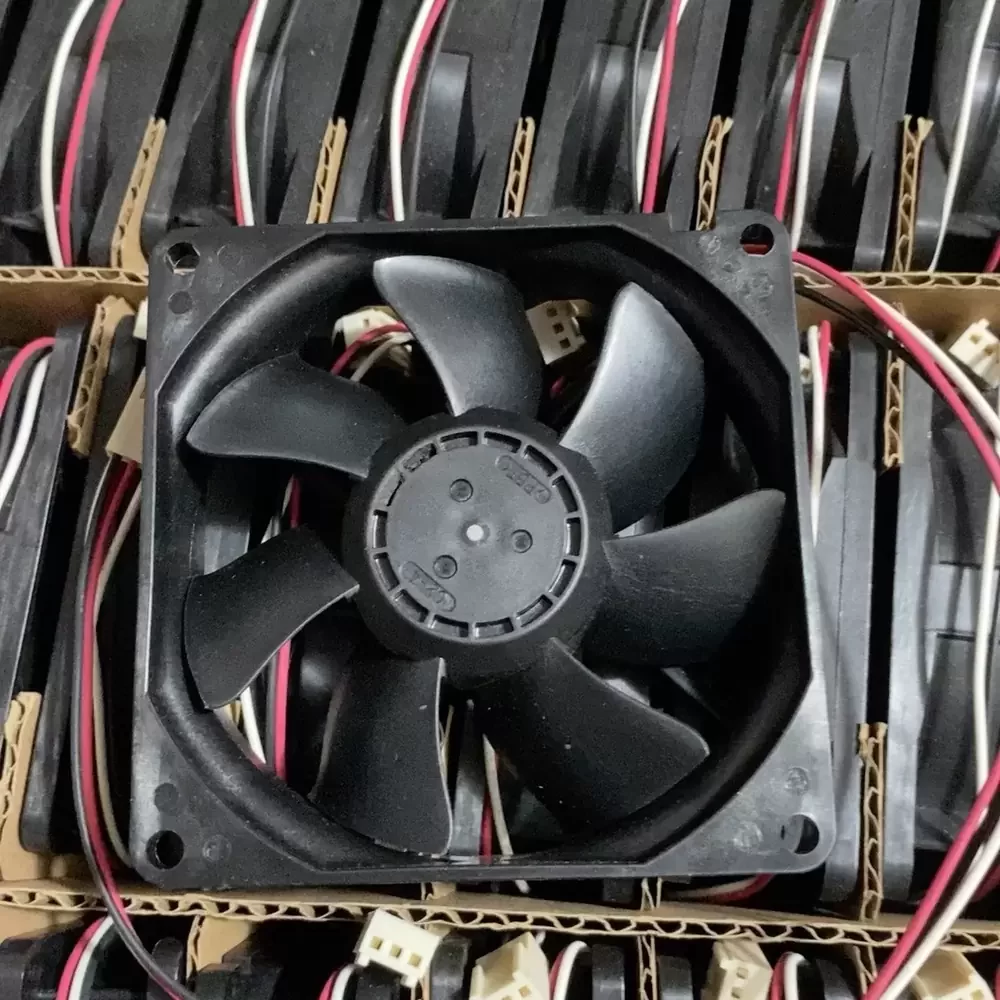

The NMB 08025SA-12R-ET-01 is a precision-engineered DC Axial Fan designed for critical thermal management in high-density industrial environments. Manufactured by MinebeaMitsumi, this unit leverages advanced aerodynamic blade geometry to minimize turbulence while maximizing static pressure delivery, ensuring efficient heat dissipation in restricted spaces. The core architecture features a robust double ball bearing system, ensuring exceptional longevity and reduced frictional coefficients under continuous operation. Constructed with a high-rigidity PBT frame, the fan maintains structural integrity against thermal impedance and vibration. Its 3-wire configuration supports tachometer signal output, allowing for precise speed monitoring in feedback-loop control systems, making it ideal for high-reliability power conversion applications.
Model Number: 08025SA-12R-ET-01
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.50 A
Power Consumption: 6.00 W
Rated Speed: 4500 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 60.0 CFM (101.94 m³/h / 1.70 m³/min)
Max. Static Pressure: 8.00 mmH₂O (78.45 Pa / 0.31 inH₂O)
Dimensions: 80x80x25mm
Weight: 95 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 44.0 dBA
Termination: 3-Wire (Lead Wire)
Speed Control: Tachometer Output (FG Signal)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 700VAC for 3 Seconds
Protection: Auto Restart / Polarity Protection
Mounting Orientation: Any
This cooling solution is specifically engineered for demanding thermal regulation in power electronics and industrial automation sectors. The 08025SA-12R-ET-01 is frequently deployed in photovoltaic power supply units and solar inverters where consistent airflow is required to dissipate heat generated by MOSFETs and capacitors. Additionally, the 08025SA-12R-ET-01 serves as a critical component in server cabinets and telecommunication enclosures, ensuring optimal operating temperatures for sensitive circuitry. Its robust design also suits CNC machinery and medical instrumentation requiring reliable forced convection.
