Description

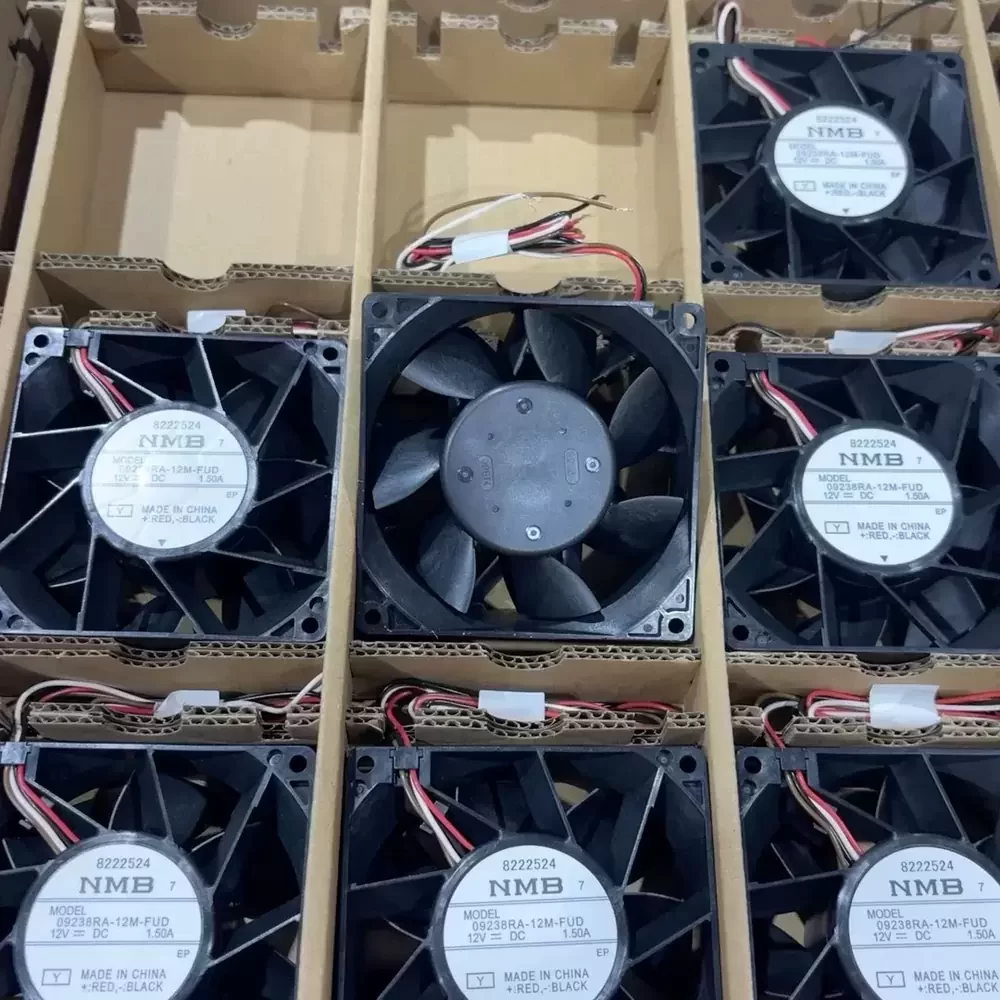

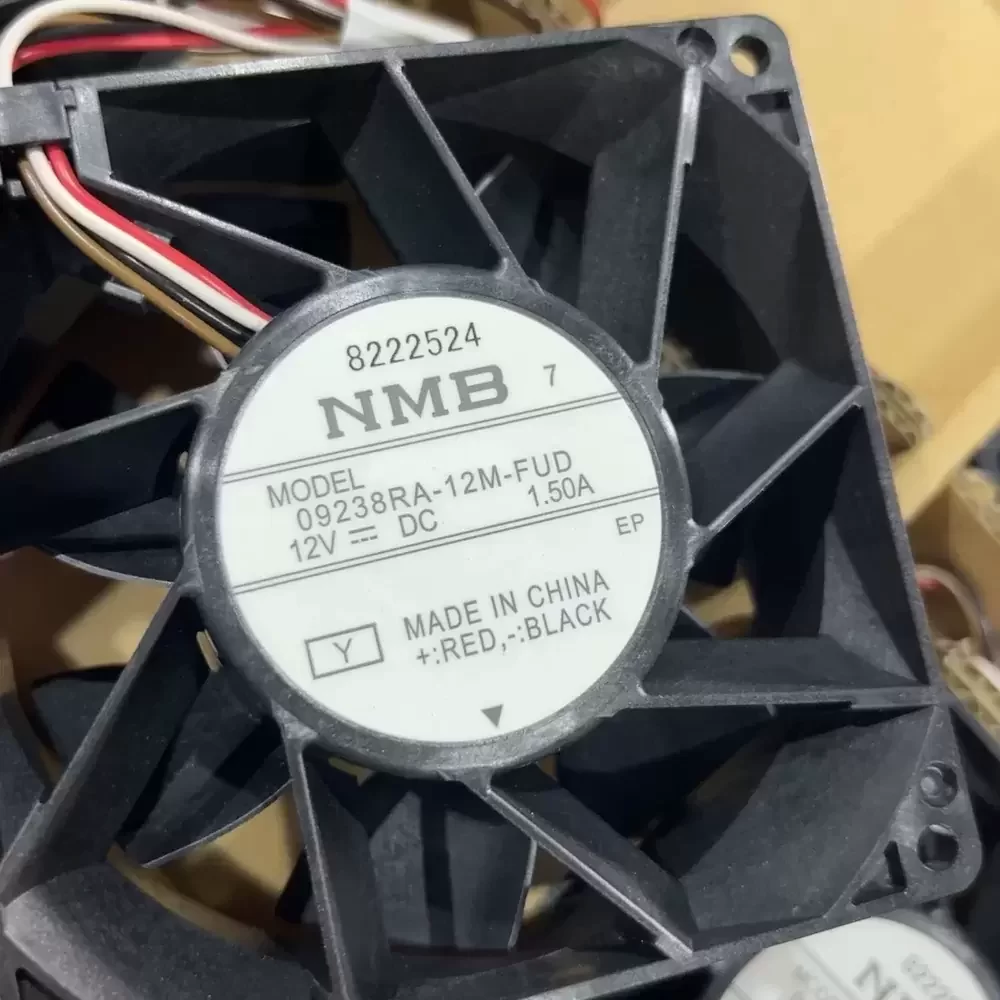

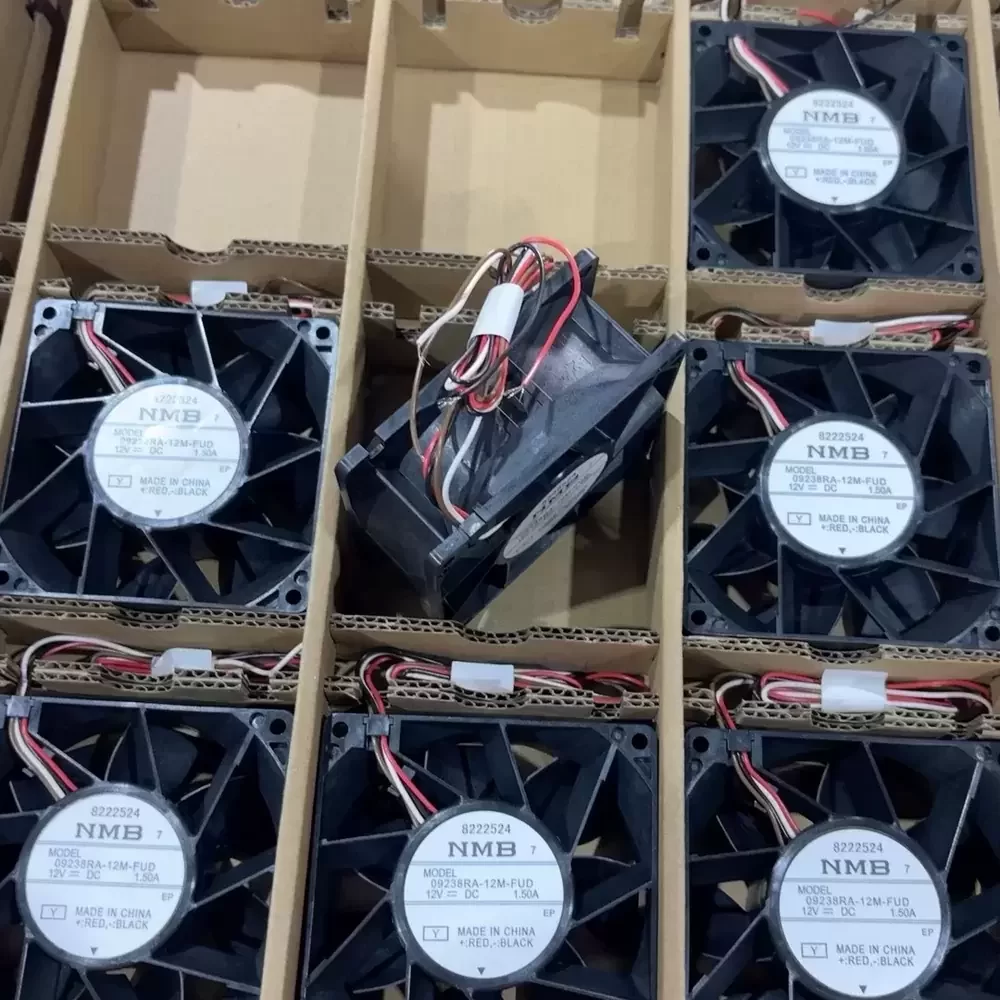

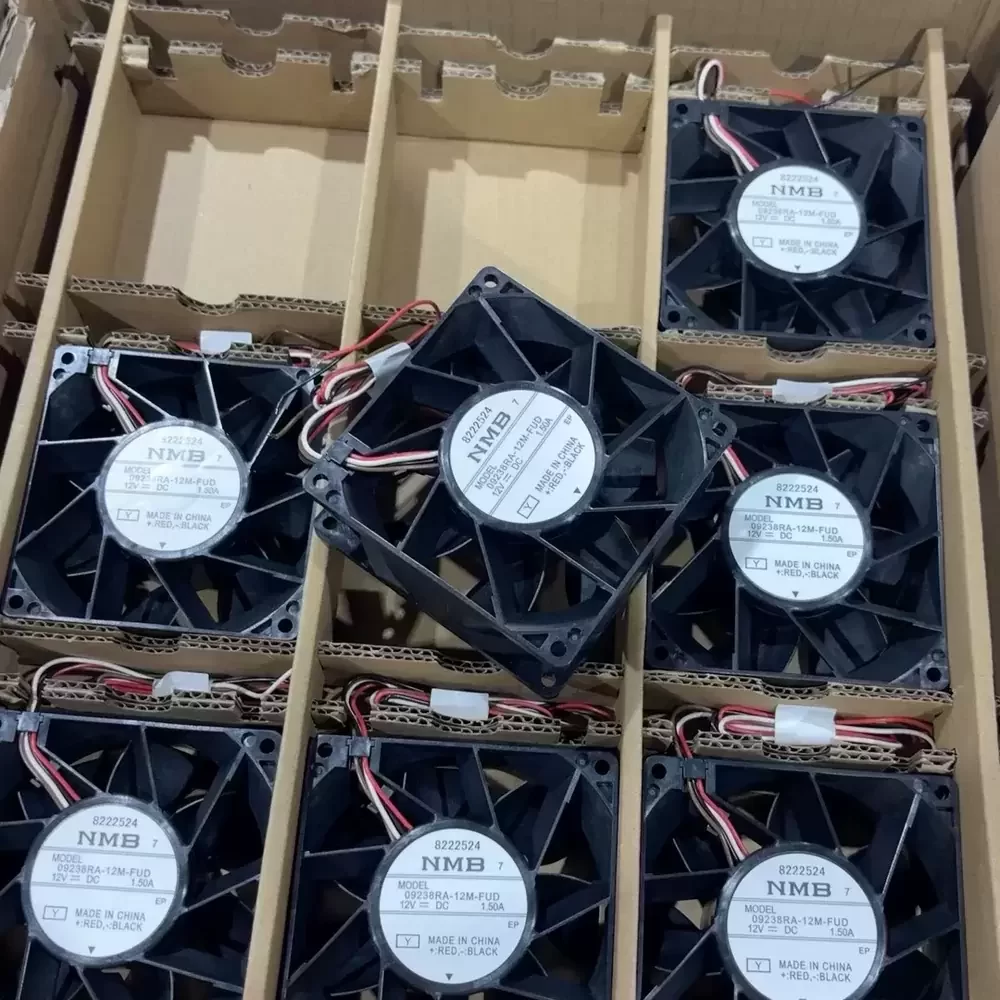

The NMB 09238RA-12M-FUD-Y is a precision-engineered DC Axial Fan designed for high-static pressure environments requiring robust thermal management. Utilizing advanced DC motor technology paired with a durable Dual Ball Bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance in dense electronic enclosures. Engineered for reliability, the 09238RA-12M-FUD-Y integrates Pulse Width Modulation (PWM) for dynamic speed control, allowing for precise thermal regulation and acoustic management in critical industrial applications.
Model Number: 09238RA-12M-FUD-Y
Brand: NMB (NMB-MAT / MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.50 A
Input Power: 18.0 W
Rated Speed: 5500 RPM (Estimated based on current)
Bearing Type: Dual Ball Bearing
Max. Air Flow: 110.0 CFM (186.9 m³/h / 3.11 m³/min)
Max. Static Pressure: 18.5 mmH₂O (181.4 Pa / 0.73 inH₂O)
Dimensions: 92 x 92 x 38 mm
Weight: 210 g
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Leads
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Mounting Orientation: Any
Ingress Protection: Standard
The 09238RA-12M-FUD-Y is specifically engineered for demanding thermal environments such as high-performance computing clusters, variable frequency drives (VFDs), and industrial automation control panels. Its high-pressure output makes it ideal for forcing air through dense heatsinks found in server racks and power supply units. By integrating the 09238RA-12M-FUD-Y into mission-critical hardware, operators ensure consistent cooling performance, thereby protecting sensitive components like inverters and processors from thermal throttling or failure during peak operational cycles.
