Description

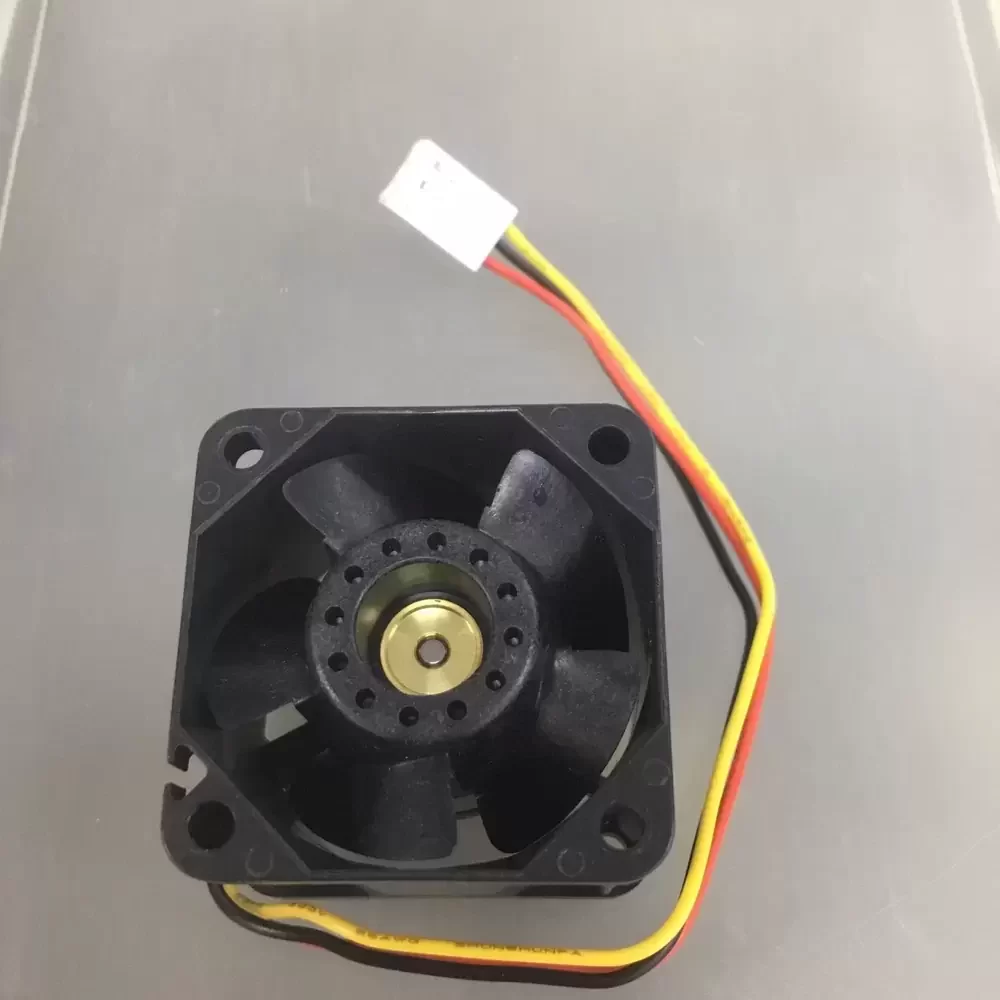

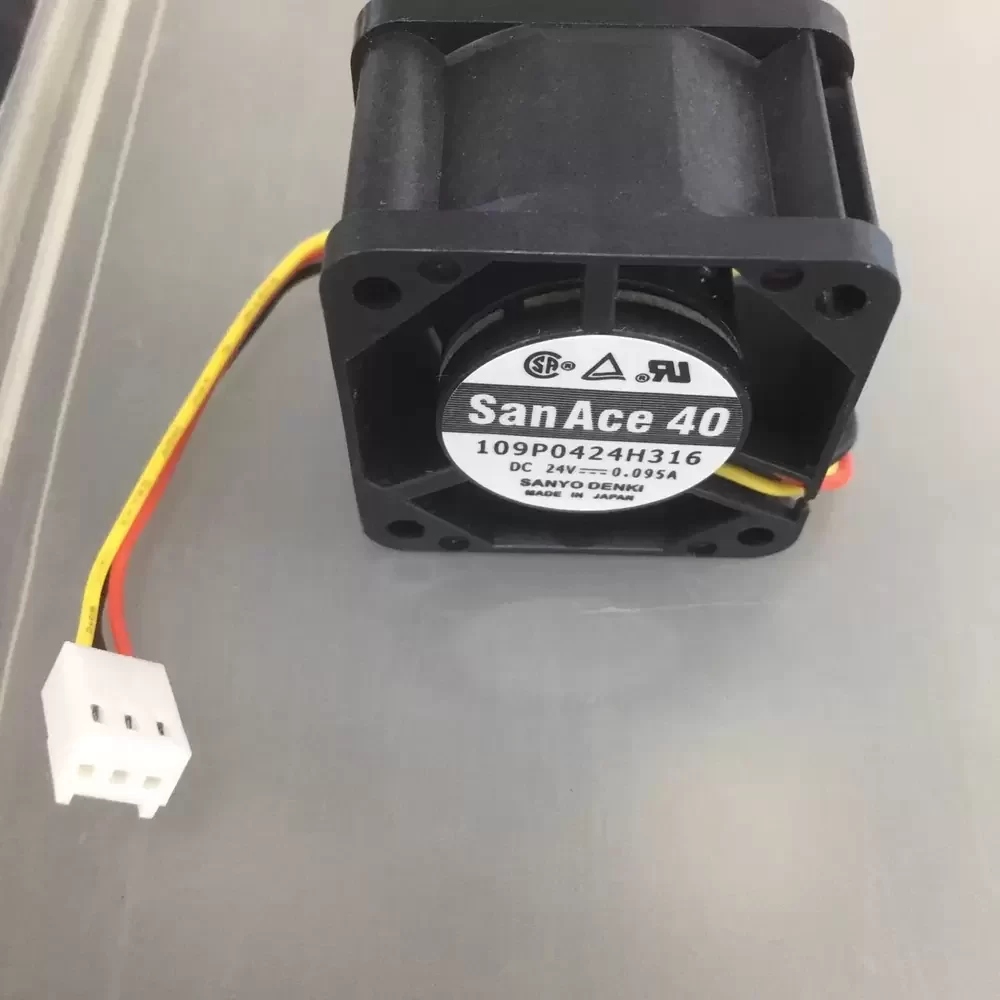

The Sanyo Denki 109P0424H316 is a precision-engineered DC Axial Fan designed for high-density thermal management applications. Part of the renowned San Ace 40 series, this unit utilizes advanced DC brushless motor technology paired with a robust double ball bearing architecture to ensure minimal friction and extended operational longevity. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity under high-speed rotation. Engineered for reliability, the 109P0424H316 delivers consistent cooling performance, effectively lowering thermal impedance in compact electronic enclosures and industrial instrumentation.
Model Number: 109P0424H316
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 40 (9P Type)
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.095 A
Power: 2.28 W
Rated Speed: 7400 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 9.5 CFM (0.27 m³/min)
Max. Static Pressure: 6.0 mmH₂O (58.8 Pa / 0.236 inH₂O)
Dimensions: 40x40x28 mm
Weight: 50 g
Life Expectancy: 40,000 Hours (at 60°C)
Noise Level: 34 dBA
Frame Material: Plastics (UL94V-0)
Impeller Material: Plastics (UL94V-0)
Operating Temperature: -10 to +70°C
Storage Temperature: -30 to +70°C
Termination: Lead Wires
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
This cooling solution is specifically engineered for compact industrial and telecommunications environments where space is limited but thermal loads are significant. The 109P0424H316 is frequently integrated into 1U server racks, network switches, and precision medical instrumentation requiring reliable forced convection. Additionally, the 109P0424H316 serves as a critical component in CNC control modules and power supply units, ensuring component stability by preventing heat accumulation in dense circuit layouts.
