Description

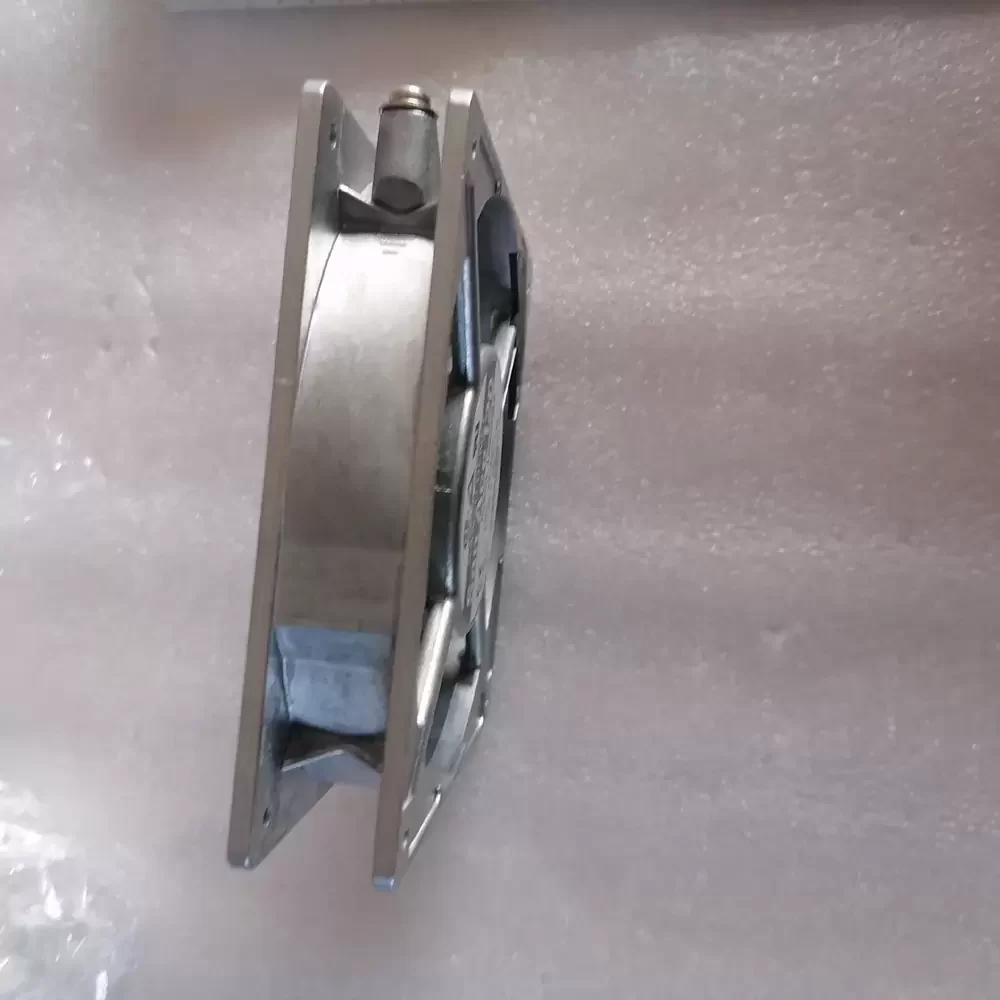

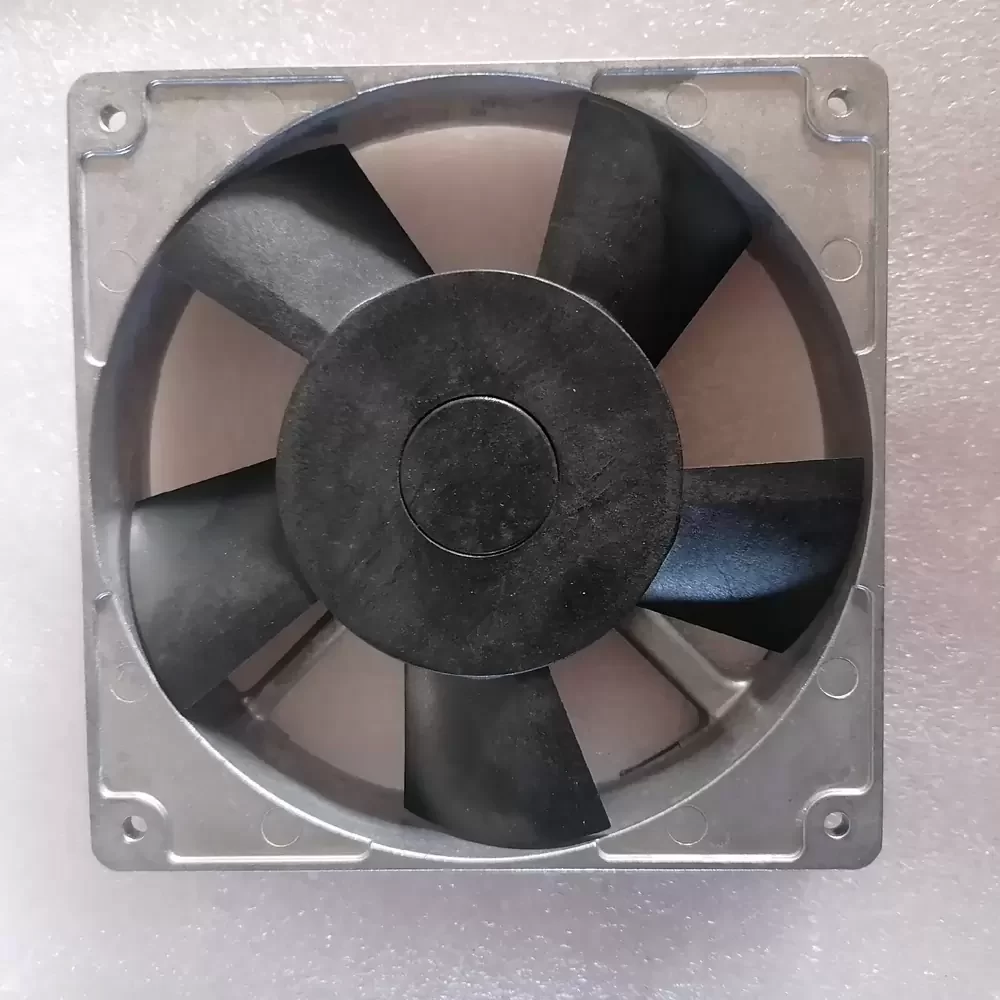

Sanyo Denki 109S085 is a high-performance AC axial fan measuring 120 x 120 x 25 mm, operating at a nominal 100 VAC with a power consumption of 13.5 W and a maximum airflow of 81.3 CFM. The unit features a robust die-cast aluminum frame and a plastic impeller rated UL 94V-1, supported by a precision dual ball bearing system for extended operational life. It utilizes a 2-terminal interface for electrical connection and delivers a maximum static pressure of 51.9 Pa while maintaining a noise level of 41 dB(A) at 60 Hz. The internal motor is designed for continuous duty with an expected life of 25,000 hours at 60 °C.
109S085 Specifications
Model Number: 109S085
Brand: Sanyo Denki
Series: San Ace 120
Category: AC Axial Fan
Rated Voltage: 100 VAC
Operating Voltage Range: 90 to 110 VAC
Frequency: 50/60 Hz
Rated Input: 13.5/12 W
Rated Current: 0.16/0.14 A
Maximum Airflow: 1.95/2.3 m³/min (68.9/81.3 CFM)
Maximum Static Pressure: 48/51.9 Pa (0.193/0.216 inchH2O)
Rated Speed: 2500/2900 RPM
Sound Pressure Level: 38/41 dB(A)
Frame Size: 120 x 120 mm
Frame Thickness: 25 mm
Frame Material: Aluminum
Impeller Material: Plastic (UL 94V-1)
Bearing Type: Dual Ball Bearing
Operating Temperature: -30 to +60 °C
Storage Temperature: -30 to +70 °C
Expected Life: 25,000 hours at 60 °C
Weight: 370 g
Termination: 2 Terminals
Safety Standards: UL, CSA, EN, PSE, CE, UKCA
RoHS Compliant: Yes
109S085 Applications
Primary applications include integration into Panasonic SMT placement machines, industrial control panels, and electrical enclosure cooling systems. Deployed within telecommunications base stations, CNC machine tool cabinets, and server rack thermal management units to ensure stable operating temperatures for sensitive electronic components.
