Description

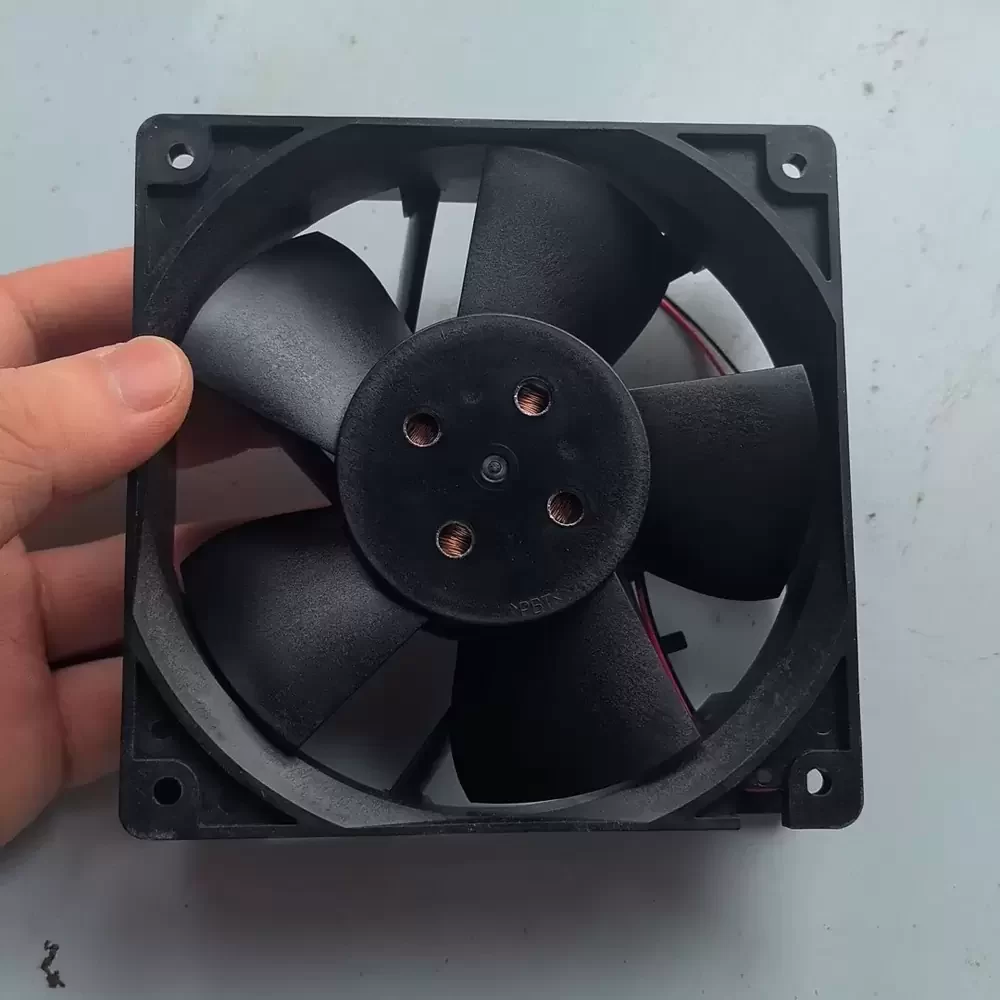

The NMB 12038VA-24Q-FA-04 is a precision-engineered Axial Fan designed for critical thermal management in high-density industrial environments. Manufactured by MinebeaMitsumi, this unit features a robust DC motor architecture integrated with a dual ball bearing system to minimize friction and extend operational longevity under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance in restricted enclosures. This component is specifically calibrated for high-static pressure applications, ensuring reliable heat dissipation for sensitive electronic components.

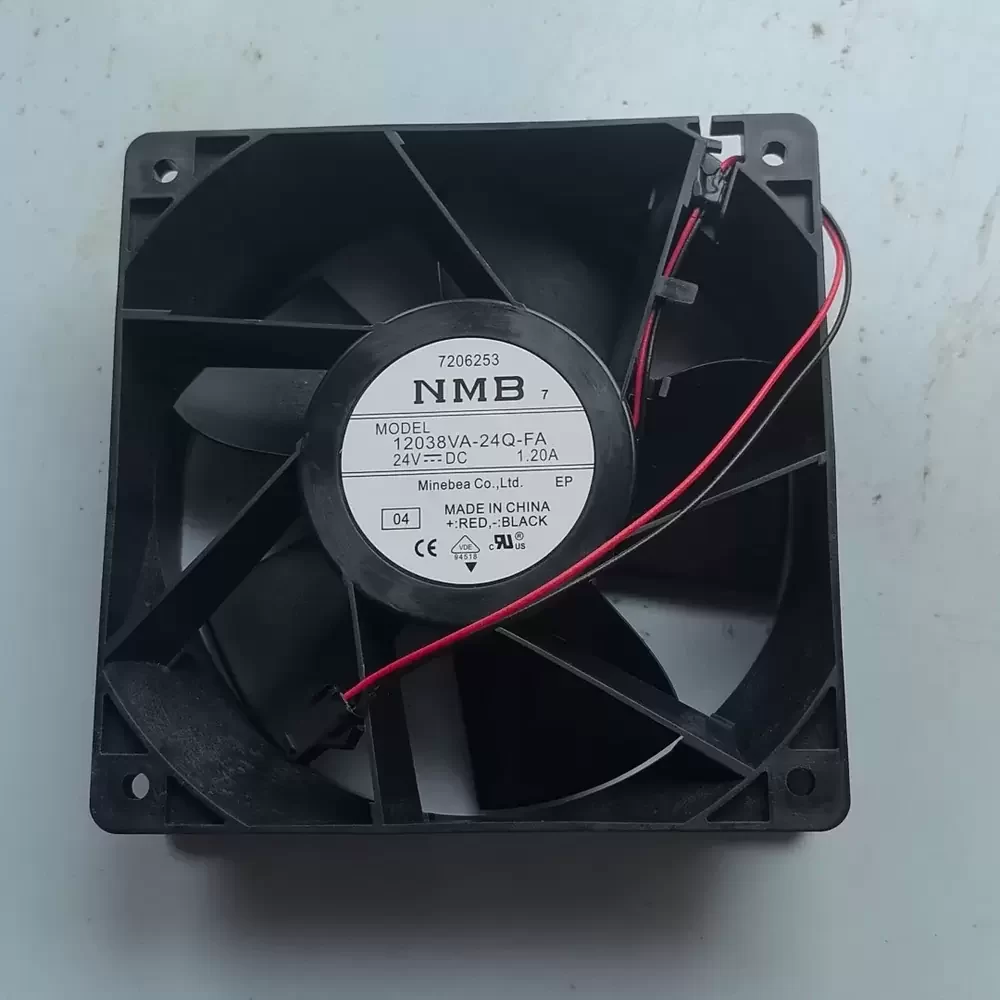

Model: 12038VA-24Q-FA-04
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.20 A
Input Power: 28.8 W
Rated Speed: 4200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 160.0 CFM (271.8 m³/h)
Max. Static Pressure: 18.5 mmH₂O (181.4 Pa / 0.73 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 290 g
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 56.0 dB(A)
Protection: Locked Rotor Protection, Reverse Polarity Protection
The 12038VA-24Q-FA-04 is engineered for demanding cooling scenarios such as rack-mounted servers, telecommunications cabinets, and industrial automation power supplies. Its high-pressure output makes the 12038VA-24Q-FA-04 particularly effective in systems with high impedance airflow paths, such as dense heatsinks or filtered enclosures, ensuring consistent thermal stability for mission-critical hardware.
