Description

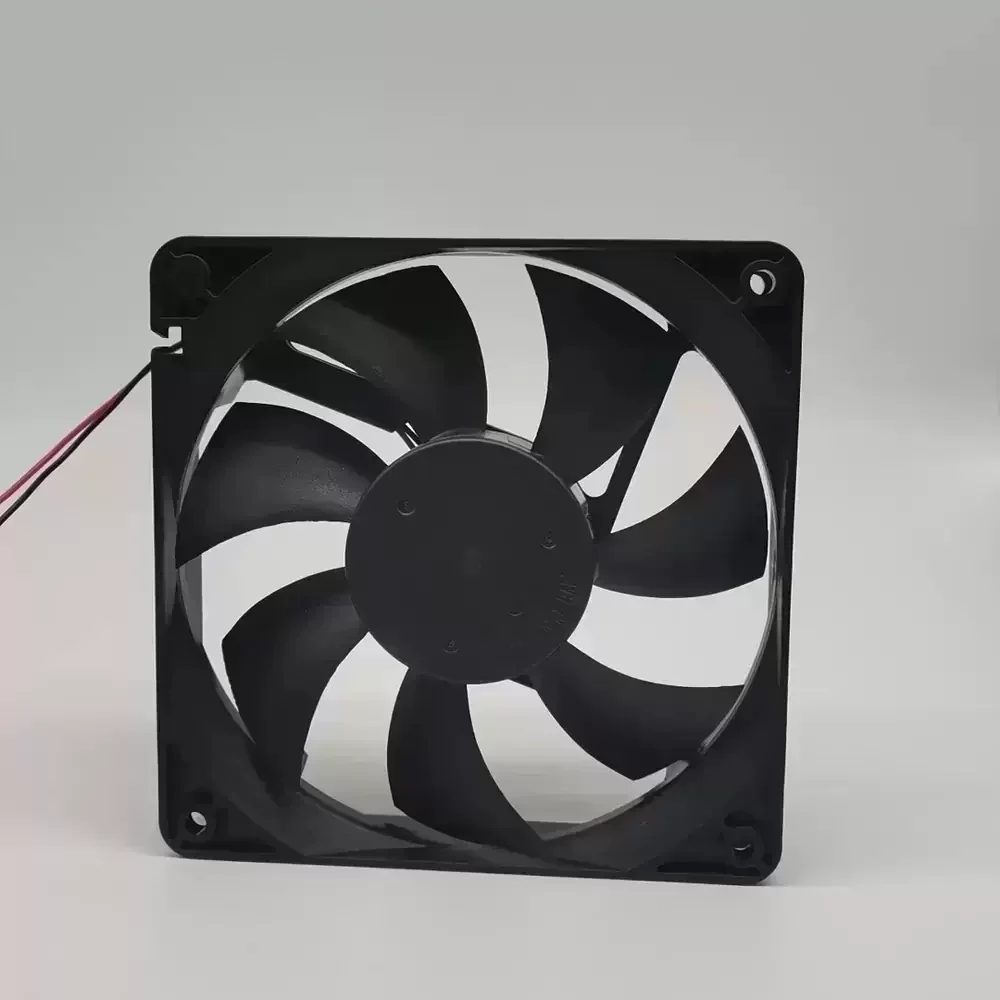

The T&T 1225TL12B-549 is a precision-engineered DC Axial Fan designed for applications requiring a balance between consistent airflow and acoustic performance. Utilizing a robust Double Ball Bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous duty cycles. The aerodynamic impeller design is optimized for low-speed operation, significantly reducing turbulence-induced noise while maintaining adequate thermal exchange. Its structural rigidity and low current draw of 0.10A make it an energy-efficient solution for sensitive electronic environments where thermal impedance must be managed without introducing excessive vibration or decibel levels.
Model Number: 1225TL12B-549
Brand: T&T (Magic Wave)
Product Type: DC Axial Fan
Rated Voltage: 12V DC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.10 A
Power Consumption: 1.20 W
Rated Speed: ~1200 RPM (Low Speed Profile)
Bearing Type: Double Ball Bearing
Max. Air Flow: 44.50 CFM (75.6 m³/h / 1.26 m³/min)
Max. Static Pressure: 1.85 mmH₂O (18.14 Pa / 0.07 inH₂O)
Dimensions: 120 x 120 x 25 mm
Weight: 150 g
Termination: 2-Wire Lead
Wire Length: 600 mm
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Noise Level: Low Noise (Silent Operation)
Operating Temperature: -10°C to +70°C
Mounting Orientation: Any
Ingress Protection: Standard
The 1225TL12B-549 is specifically calibrated for scenarios demanding reliable air circulation with a minimal acoustic footprint. Commonly integrated into computer chassis, server rack enclosures, and home theater PC (HTPC) builds, this fan effectively dissipates heat from sensitive components. The 1225TL12B-549 is also suitable for auxiliary cooling in audio-visual equipment and telecommunications cabinets where maintaining a quiet environment is as critical as thermal regulation.
