Description

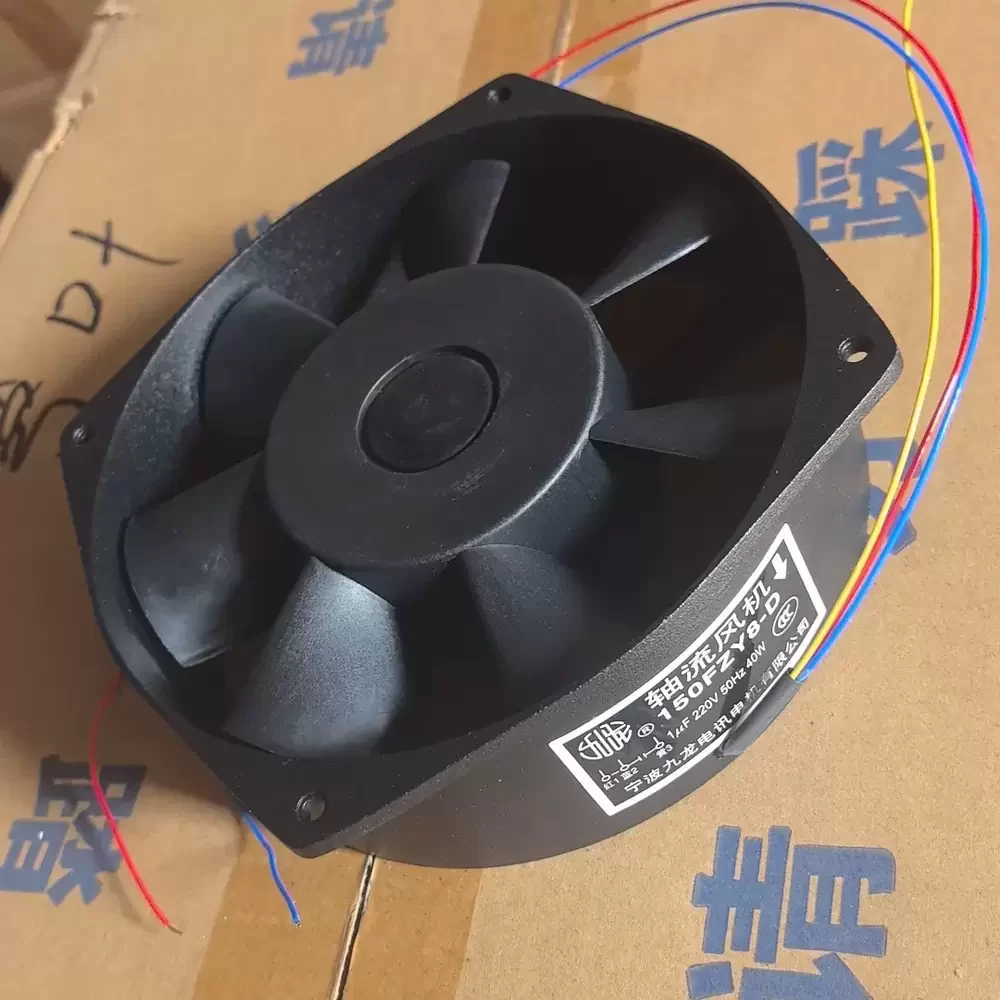

The JiuLong 150FZY8-D is a robust AC Axial Fan engineered for high-demand industrial thermal management applications. Utilizing an advanced external rotor motor architecture, this unit delivers consistent airflow while maintaining optimal thermal impedance under heavy load conditions. The construction features a die-cast aluminum housing which provides superior structural rigidity and effective vibration damping, essential for industrial environments. Equipped with precision ball bearings, the 150FZY8-D ensures extended operational service life and reliable performance. Its aerodynamic blade design minimizes turbulence, optimizing static pressure for dense equipment integration and efficient heat exchange.
Model Number: 150FZY8-D
Brand: JiuLong (Ningbo JiuLong Telecommunications)
Product Type: AC Axial Fan
Rated Voltage: 220 VAC
Frequency: 50/60 Hz
Power Input: 40 W
Rated Current: 0.25 A (Estimated)
Rated Speed: 2600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 195 CFM (331 m³/h / 5.52 m³/min)
Max. Static Pressure: 14.5 mmH₂O (142 Pa / 0.57 inH₂O)
Dimensions: 150mm x 150mm x 60mm
Weight: 0.85 kg
Frame Material: Die-Cast Aluminum Alloy
Blade Material: Thermoplastic PBT (UL94V-0) or Metal
Motor Type: External Rotor Induction Motor
Insulation Class: Class B
Ingress Protection: IP44
Operating Temperature: -10°C to +65°C
Termination: Lead Wires / Terminal Block
Mounting Orientation: Any
Life Expectancy: 50,000 Hours at 25°C
Phase: Single Phase
This cooling solution is specifically calibrated for industrial machinery requiring sustained heat dissipation and reliability. The 150FZY8-D is frequently deployed in telecommunication server racks and electrical control cabinets where space constraints and airflow efficiency are critical factors. Additionally, the 150FZY8-D serves as a primary cooling component in heavy-duty welding machines, CNC controllers, and power supply units, ensuring sensitive electronic components remain within safe thermal operating limits during continuous duty cycles.
