Description

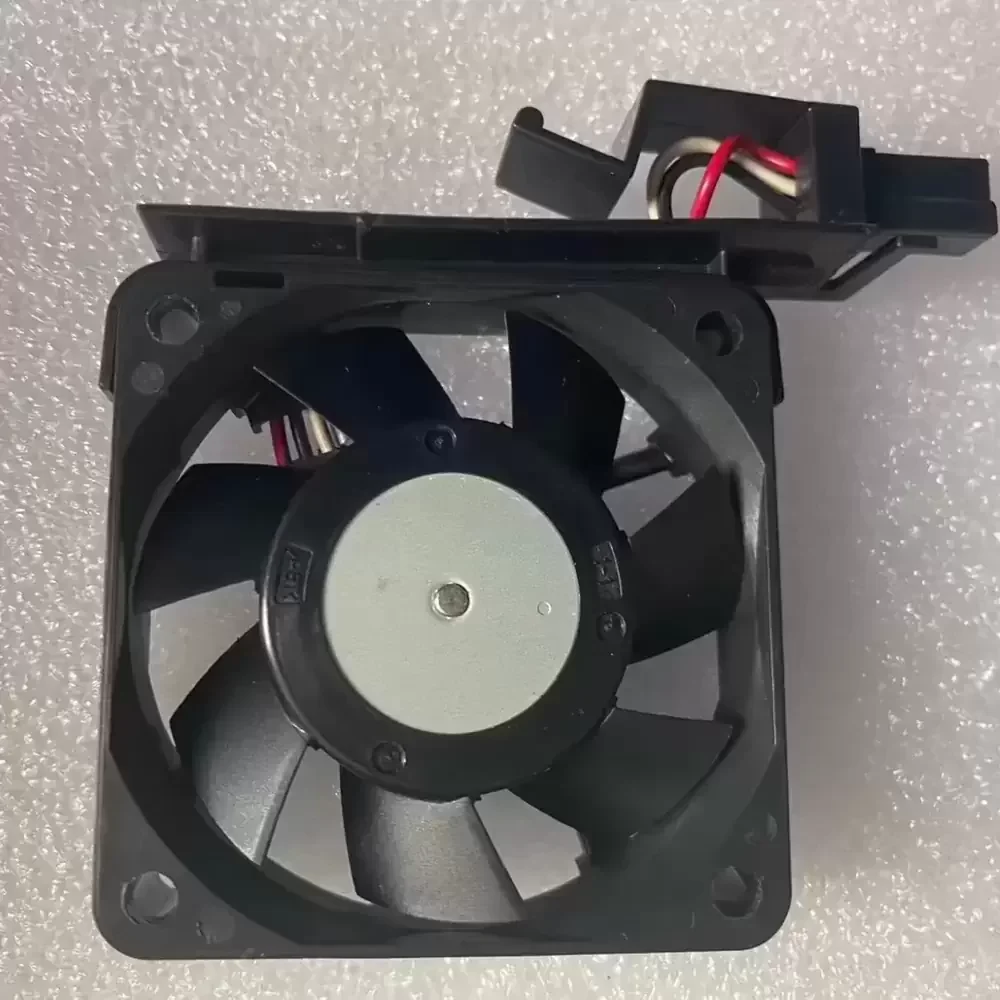

The NMB-MAT 2406VL-05W-B69-BR1 is a precision-engineered axial cooling fan designed specifically for industrial thermal management, often serving as a direct replacement for Fanuc A90L-0001-0552#A components. Utilizing advanced DC brushless motor technology and a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance in high-density electronic enclosures. Its compact form factor allows for integration into space-constrained servo amplifiers and control units, delivering reliable cooling performance critical for maintaining system stability in harsh manufacturing environments.
Model Number: 2406VL-05W-B69-BR1
OEM Part Number: A90L-0001-0552#A
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 12.0 – 27.6 VDC
Rated Current: 0.10 A
Input Power: 2.40 W
Rated Speed: 4600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.3 CFM (31.0 m³/h / 0.52 m³/min)
Max. Static Pressure: 4.8 mmH₂O (47.0 Pa / 0.19 inH₂O)
Dimensions: 60 x 60 x 15 mm
Weight: 45 g
Life Expectancy: 60,000 Hours @ 25°C
Speed Control: Locked Rotor Sensor (Alarm)
Termination: 3-Wire Lead with Connector
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 34.0 dB(A)
Protection: Auto Restart / Polarity Protection
Mounting Orientation: Any
Designed primarily for mission-critical industrial automation, the 2406VL-05W-B69-BR1 is frequently deployed within Fanuc CNC control systems and servo drive units. The 2406VL-05W-B69-BR1 ensures optimal operating temperatures for sensitive electronic components in machining centers, robotic controllers, and power supply modules, preventing thermal shutdown in continuous-duty manufacturing lines.
