Description
The NMB 2406VL-S5W-B79-BE2 is a precision-engineered DC axial fan designed for critical thermal management in industrial environments. Utilizing Minebea’s advanced double ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes static pressure generation while maintaining low acoustic noise, effectively reducing thermal impedance within high-density enclosures. Constructed with a robust frame for structural rigidity, the 2406VL-S5W-B79-BE2 delivers reliable airflow performance, making it an essential component for maintaining system stability in demanding electronic applications.
Model Number: 2406VL-S5W-B79-BE2
Brand: NMB-MAT (Minebea)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.14 A
Input Power: 3.36 W
Rated Speed: 5600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 18.4 CFM (31.2 m³/h / 0.52 m³/min)
Max. Static Pressure: 5.6 mmH₂O (54.9 Pa / 0.22 inH₂O)
Dimensions: 60 x 60 x 15 mm
Weight: 45 g
Life Expectancy: 60,000 Hours (L10 at 25°C)
Noise Level: 36.0 dBA
Termination: 3-Wire with Original Connector
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
Speed Control: Tachometer Output (Sensor)

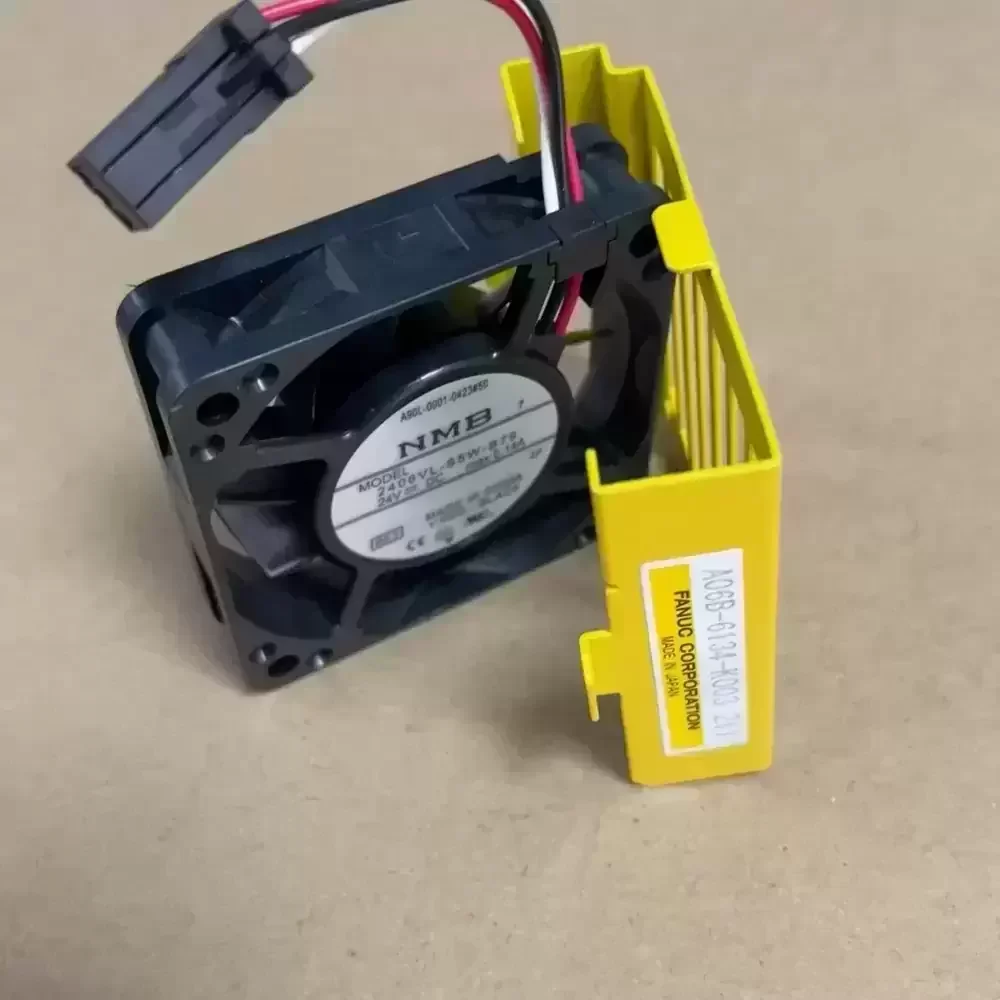

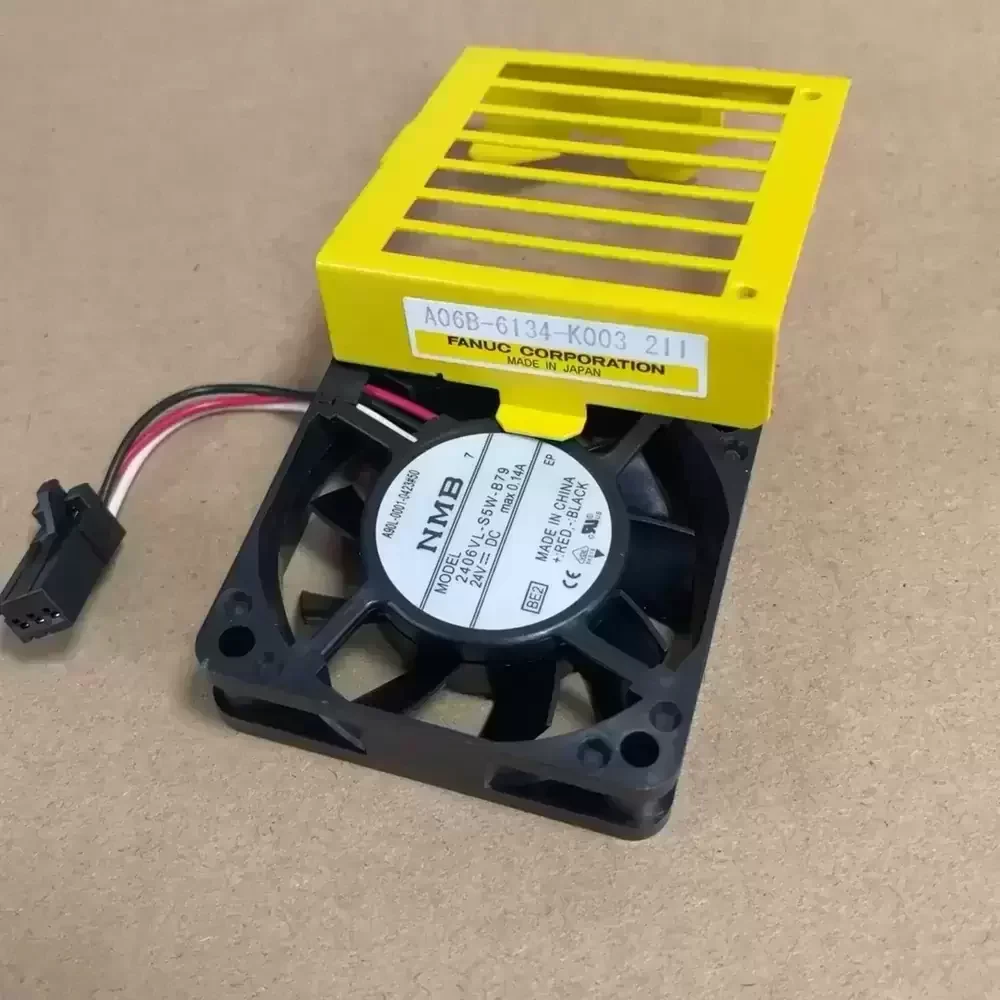

Mounting Configuration: Includes Yellow Fanuc Mounting Bracket
Application: Fanuc System Host Cooling
Engineered specifically for industrial automation, the 2406VL-S5W-B79-BE2 is frequently utilized in Fanuc system host cooling solutions and CNC machinery control cabinets. Its compact form factor allows for seamless integration into tight server racks, telecommunications equipment, and precision medical devices where reliable heat dissipation is paramount. The 2406VL-S5W-B79-BE2 ensures consistent operating temperatures for sensitive electronic components, preventing thermal throttling in mission-critical hardware.
