Description

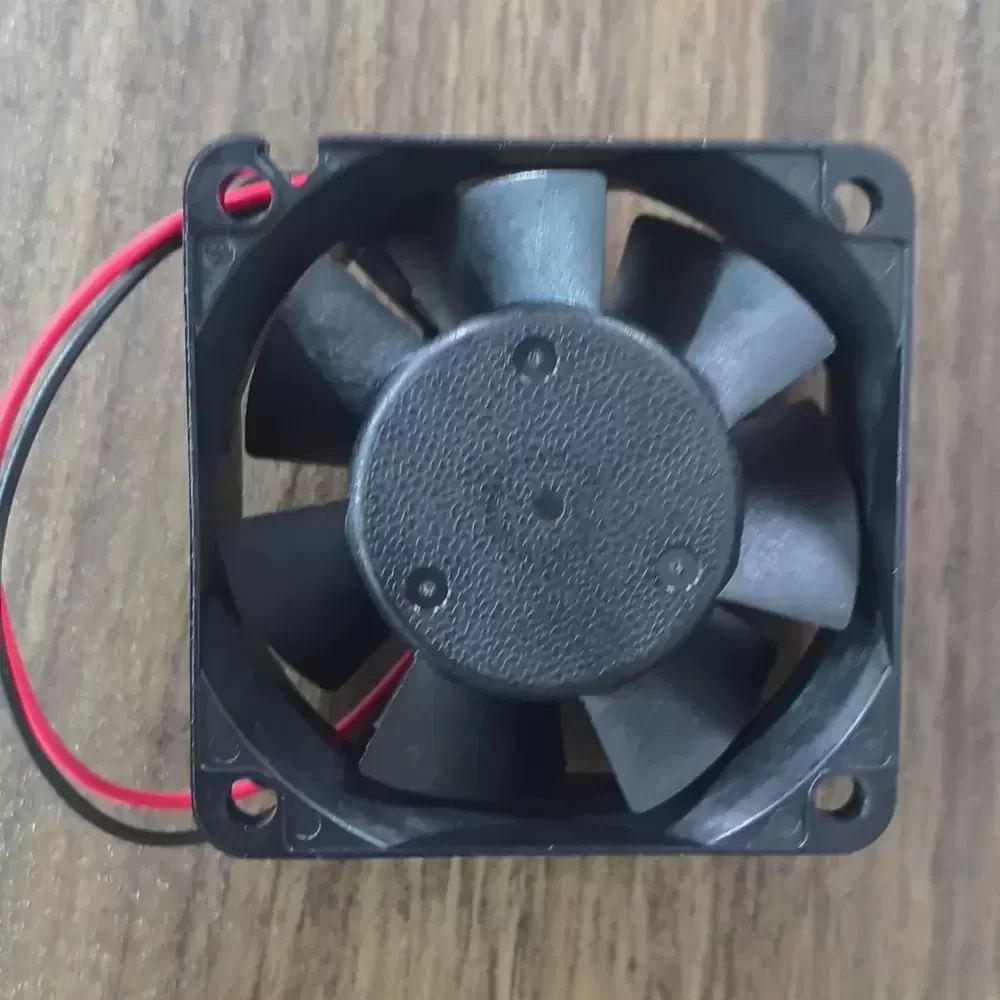

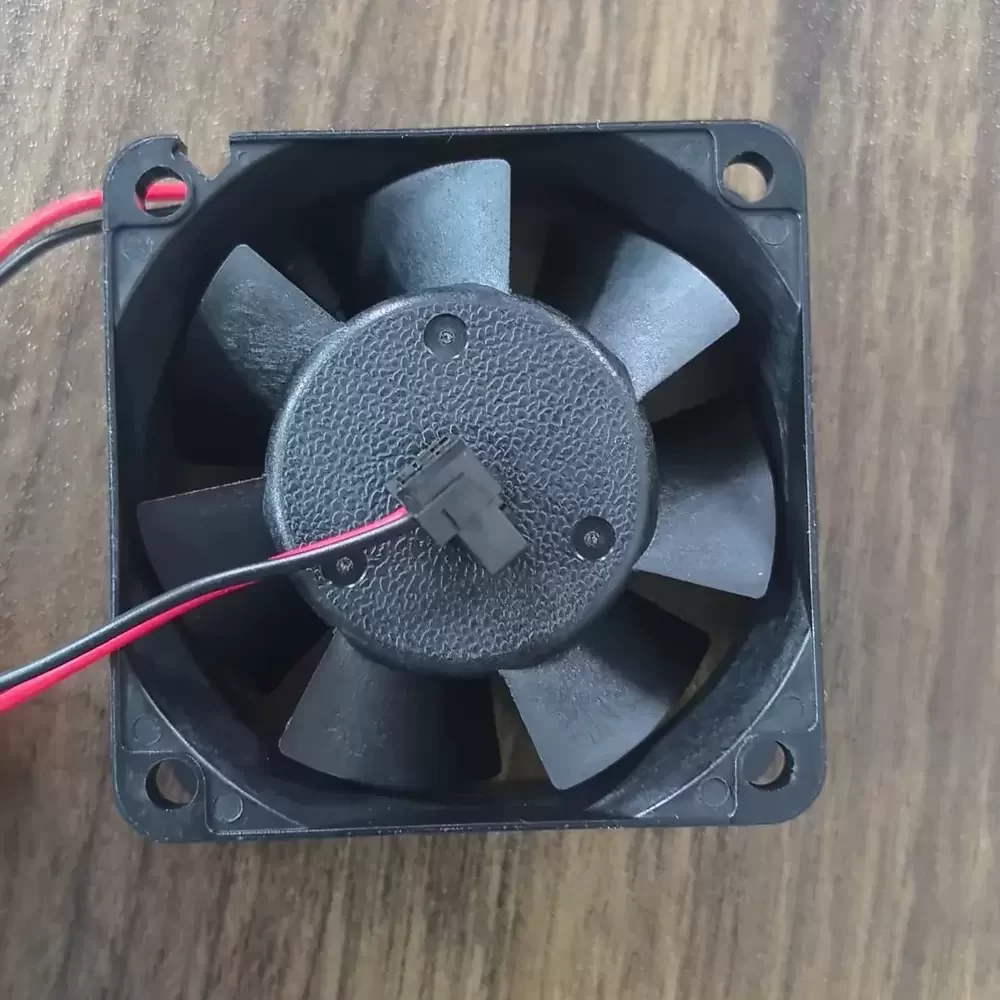

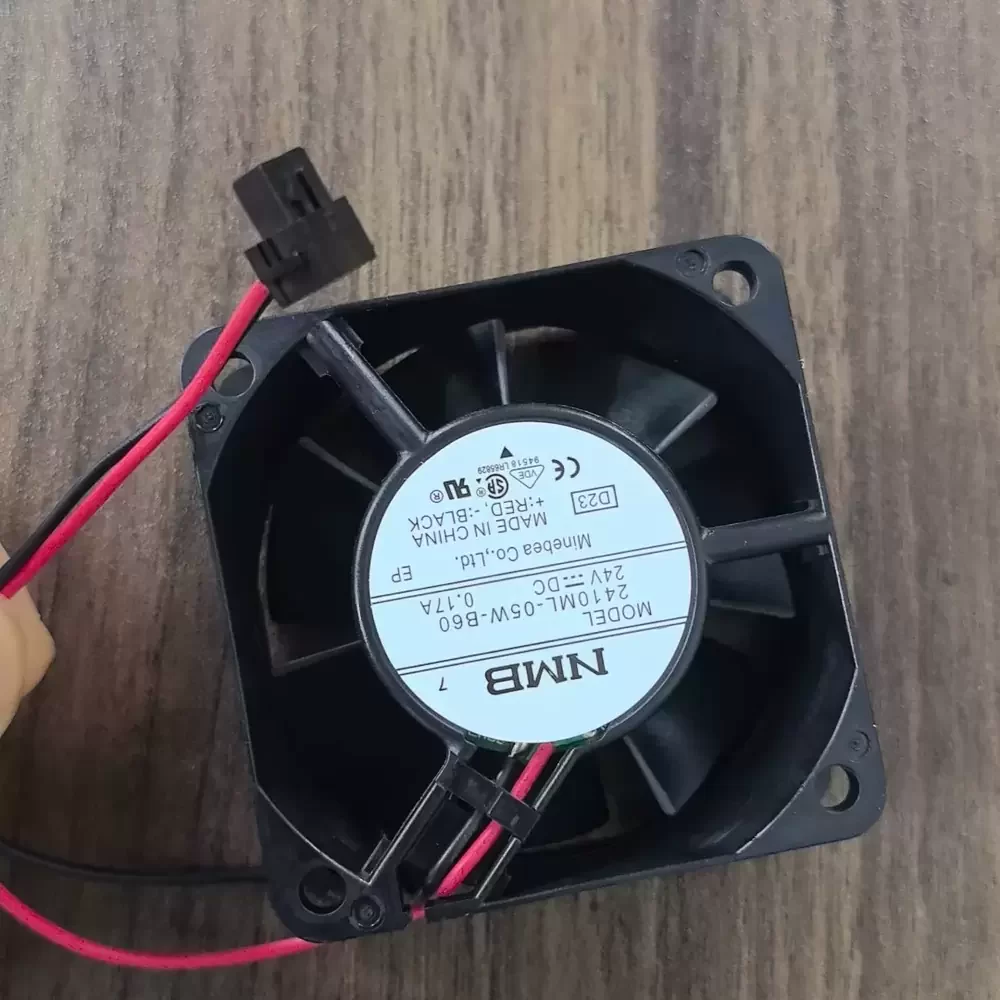

The NMB 2410ML-05W-B60-D23 is a high-efficiency DC axial fan engineered for critical thermal management in industrial electronics. Manufactured by MinebeaMitsumi, this unit integrates precision dual ball bearing architecture to minimize friction and extend operational service life under continuous load. The 60mm chassis is constructed from reinforced PBT, offering superior structural rigidity and resistance to thermal deformation. Designed with an optimized impeller geometry, it delivers a high static pressure to airflow ratio, effectively overcoming system impedance in dense enclosures. This 24VDC cooling solution ensures reliable heat dissipation, maintaining optimal operating temperatures for sensitive components.
Model Number: 2410ML-05W-B60-D23
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 12.0 – 27.6 VDC
Rated Current: 0.17 A
Input Power: 4.08 W
Rated Speed: 5300 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 25.0 CFM (42.4 m³/h / 0.71 m³/min)
Max. Static Pressure: 7.11 mmH₂O (69.7 Pa / 0.28 inH₂O)
Dimensions: 60x60x25mm
Noise Level: 38.0 dBA
Termination: 2-Wire Leads
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 60,000 Hours at 25°C
Ingress Protection: IP20
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 700VAC for 1 Second
Weight: 65 g
This robust cooling unit is specifically calibrated for demanding industrial environments, including variable frequency drives (VFDs) and power inverters where consistent airflow is paramount. The 2410ML-05W-B60-D23 excels in cooling high-density server racks and telecommunication equipment, preventing thermal throttling in mission-critical hardware. Additionally, the 2410ML-05W-B60-D23 is widely utilized in CNC control cabinets and medical instrumentation, providing a stable thermal envelope for precision electronics requiring continuous duty cycles.
