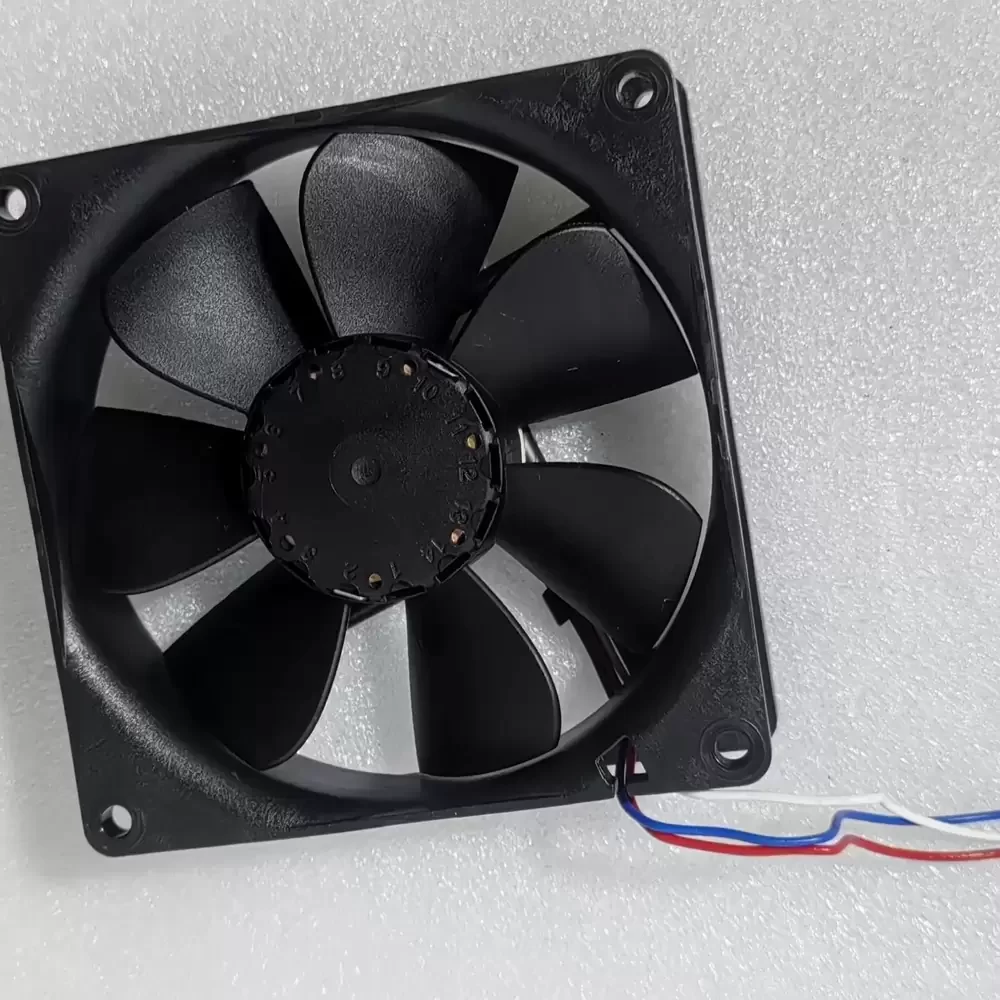

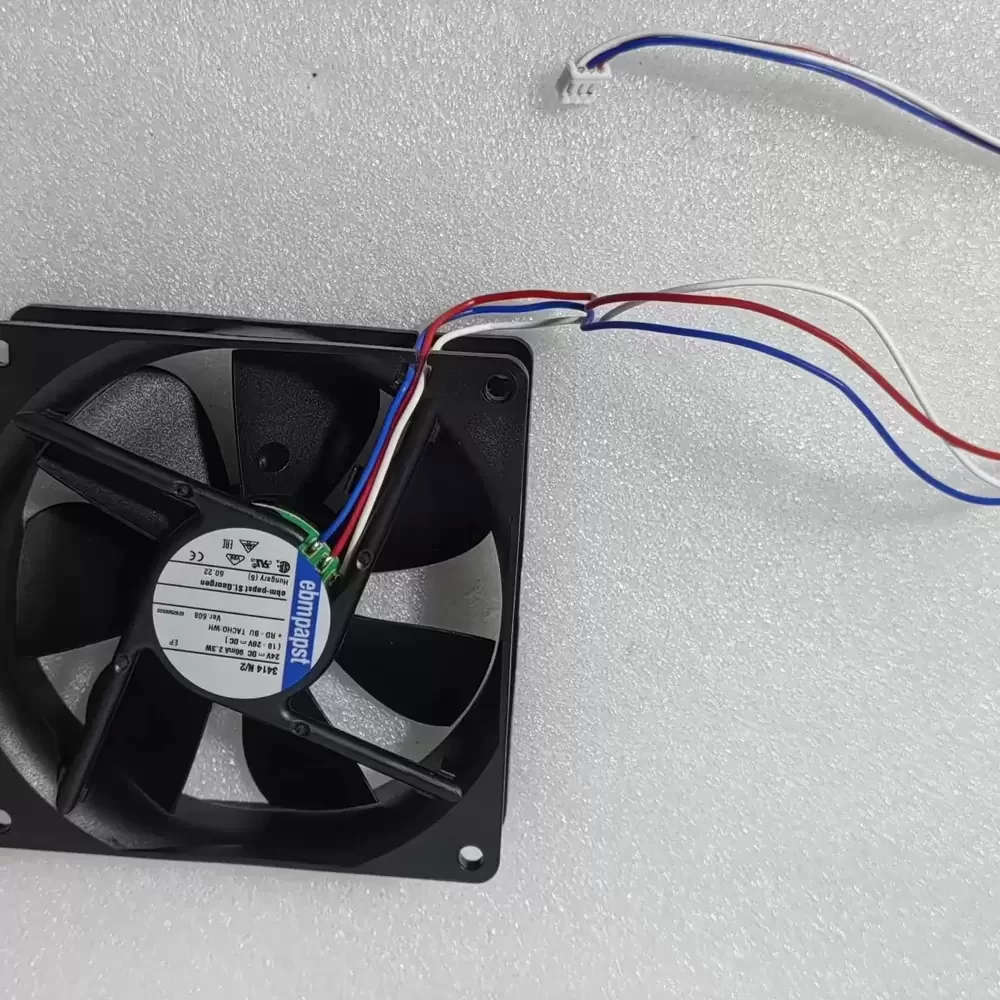

3414N/2-608 ebm-papst 24VDC 2.3W 92x92x25mm DC Axial Fan

Description

ebm-papst 3414N/2-608 is a 92 x 92 x 25.4 mm DC axial fan operating at a nominal 24 VDC and 2.3 W, delivering an airflow capacity of 82 m³/h (49 CFM). Constructed with a fiberglass-reinforced PBT plastic housing and PA impeller, this unit integrates a precision ball bearing system. The fan features a 3-wire interface with an open collector tachometer output for speed monitoring, alongside fully integrated commutation electronics that provide electronic protection against reverse polarity, blocking, and overloading.

3414N/2-608 Specifications
Model Number: 3414N/2-608
Part number： 9292506608
Brand: ebm-papst
Product Category: DC Axial Fan
Nominal Voltage: 24 VDC
Operating Voltage Range: 18 to 28 VDC
Nominal Current: 96 mA
Power Consumption: 2.3 W
Airflow: 82 m³/h (49 CFM)
Fan Speed: 2700 RPM
Acoustic Noise Level: 32 dBA
Bearing Type: Ball Bearing
Dimensions: 92 x 92 x 25.4 mm
Weight: 100 g
Housing Material: Fiberglass-reinforced PBT Plastic
Impeller Material: Fiberglass-reinforced PA Plastic
Connection Type: 3-Wire Leads
Tachometer Output: Open Collector
Operating Temperature Range: -20 °C to 70 °C
Motor Protection: Reverse polarity, blocking, and overloading
Approvals: UL, CSA, VDE, RoHS Compliant

3414N/2-608 Applications
Primary applications include integration into analytical laboratory equipment, specifically Thermo Fisher scientific instruments requiring precise thermal management. Deployed within industrial control cabinets, telecom base stations, and automated diagnostic machinery to ensure stable operating temperatures for sensitive electronic components.
