Description

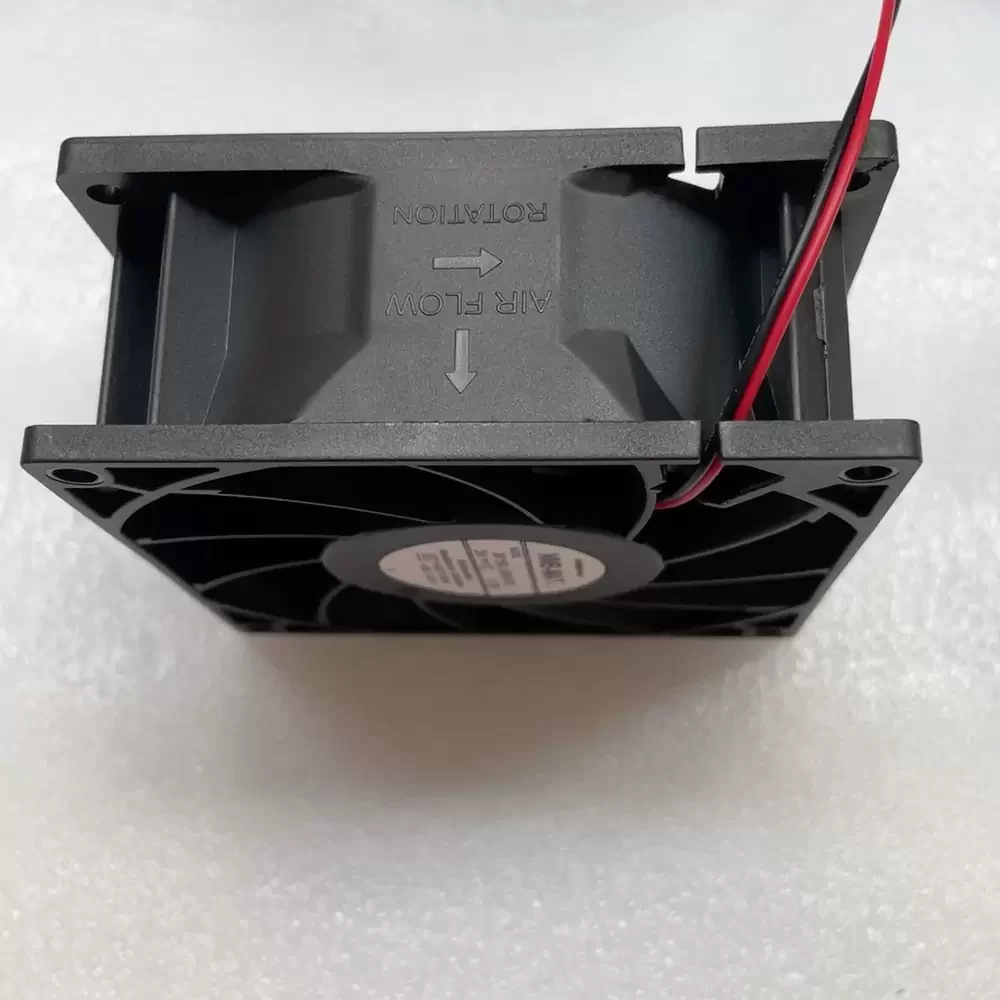

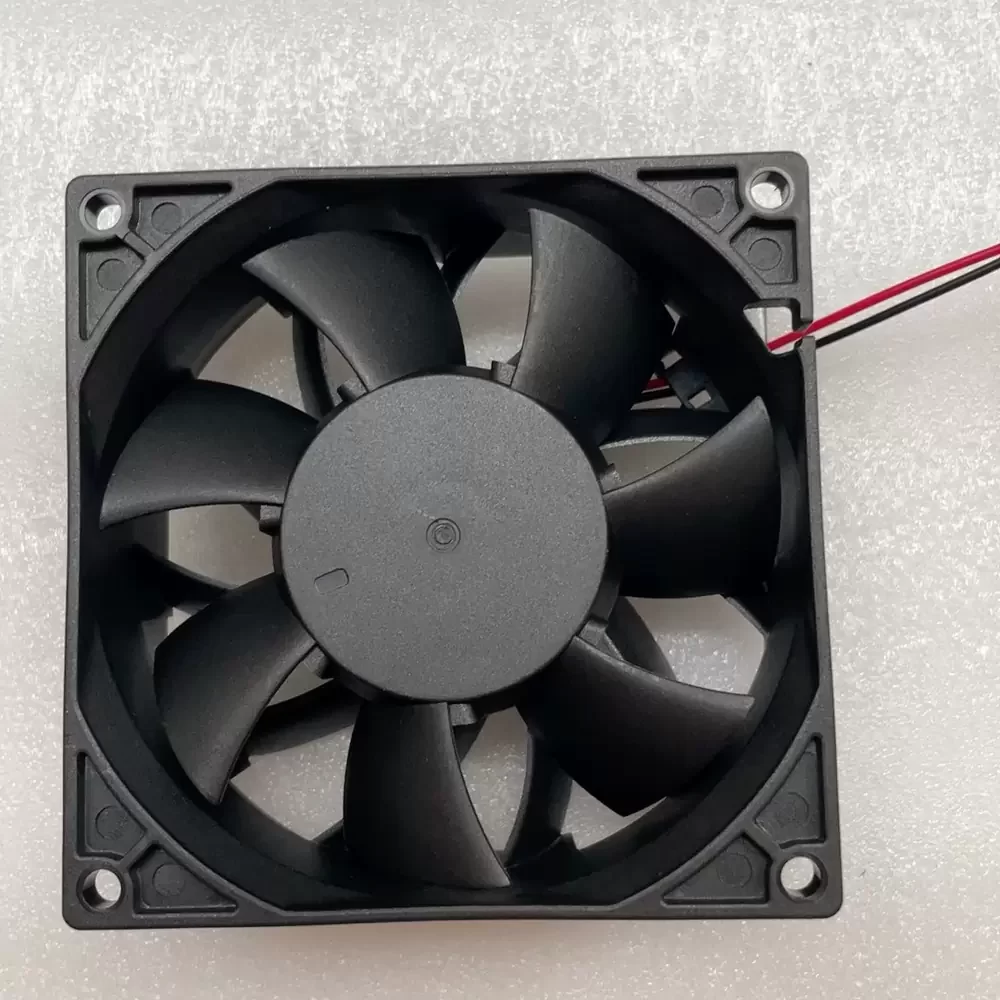

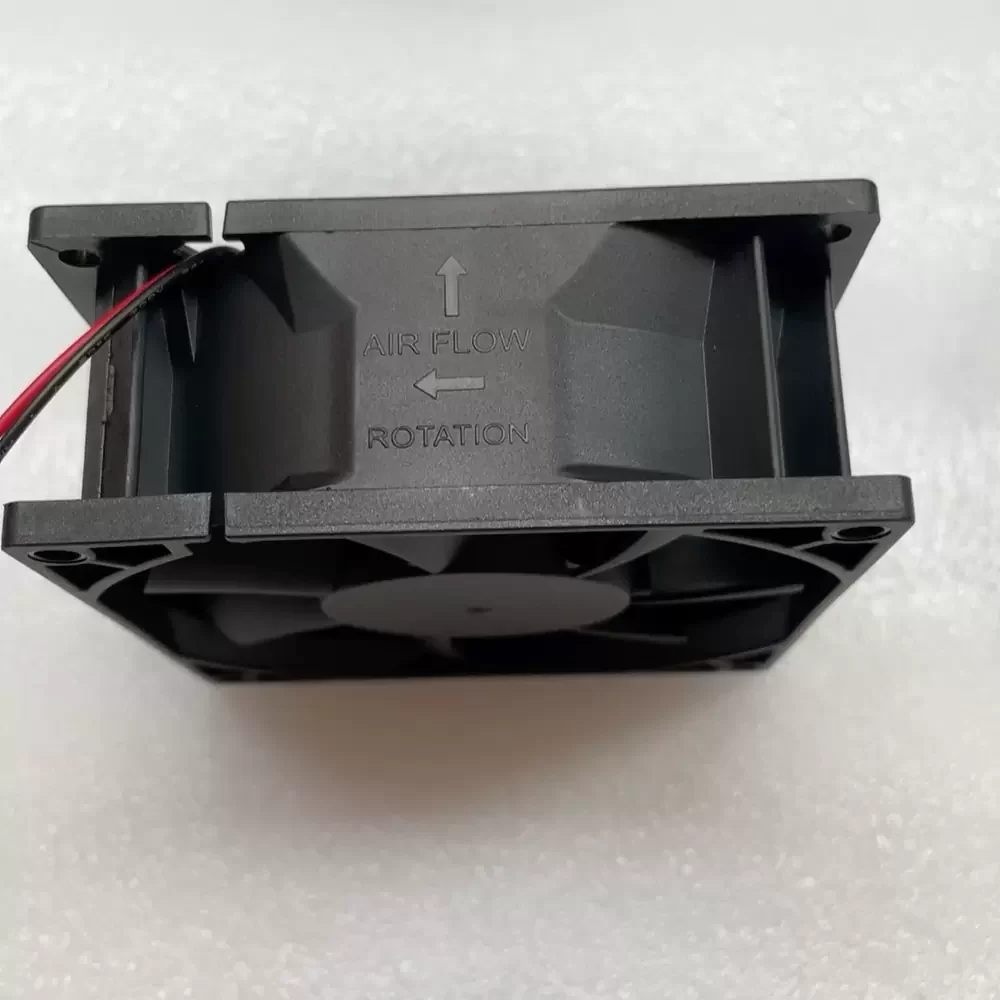

The NMB-MAT 3615KL-05W-B70-EQ1 is a precision-engineered axial fan designed for critical thermal management in high-density industrial environments. Utilizing advanced Dual Ball Bearing technology, this unit ensures minimal friction and extended operational longevity under continuous high-speed loads. The 92mm frame features an optimized impeller geometry that maximizes static pressure while maintaining structural rigidity, effectively overcoming high thermal impedance in dense enclosures. Operating at a rated 24VDC with a significant current draw of 0.70A, it delivers robust airflow performance suitable for variable frequency drives and server chassis. The construction adheres to strict manufacturing tolerances, utilizing UL94V-0 rated materials to ensure safety and reliability in demanding thermal applications.
Model Number: 3615KL-05W-B70-EQ1
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: Axial Cooling Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.70 A
Power Consumption: 16.8 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 130.0 CFM (220.8 m³/h / 3.68 m³/min)
Max. Static Pressure: 19.0 mmH₂O (186.3 Pa / 0.75 inH₂O)
Dimensions: 92x92x38mm
Weight: 260 g
Life Expectancy: 100,000 Hours @ 25°C
Noise Level: 56.5 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)

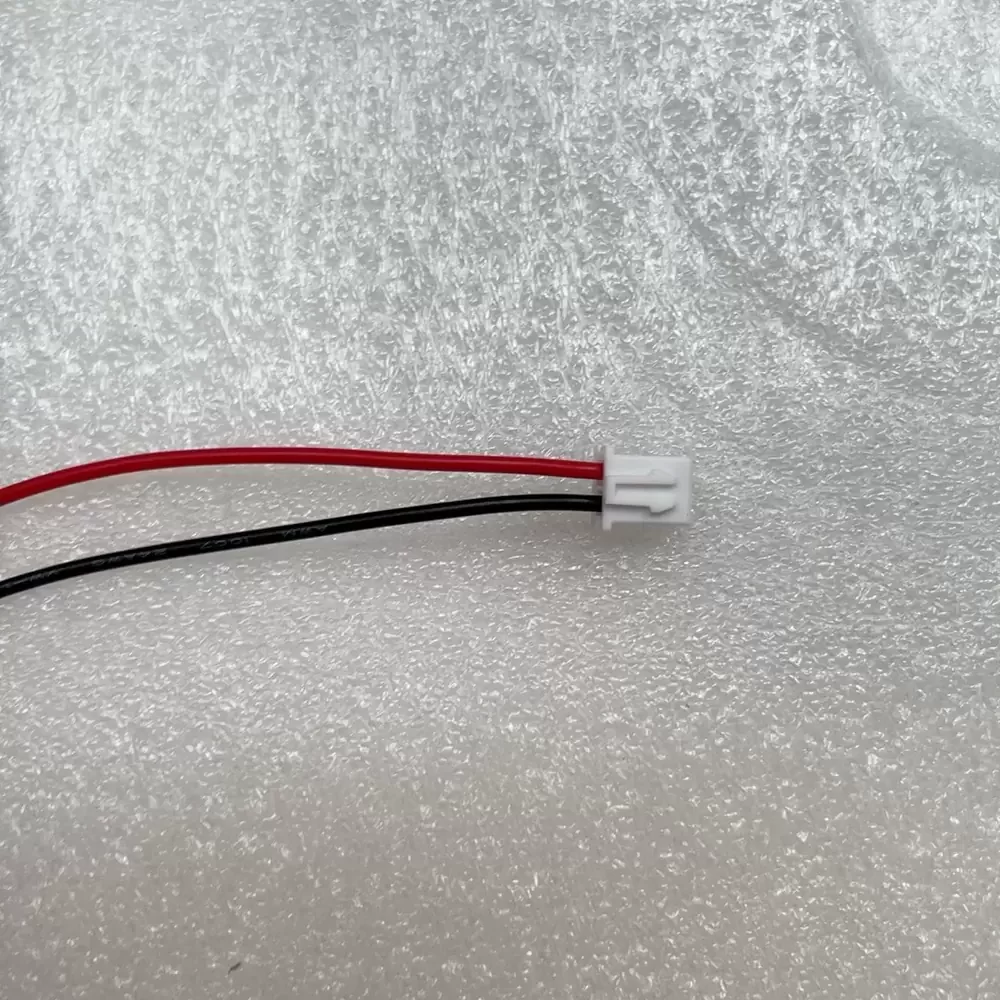

Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Resistance: 10M Ω min. @ 500VDC
Dielectric Strength: 700VAC for 1 Sec
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Mounting Orientation: Any
This high-performance cooling solution is specifically engineered for deployment in variable frequency drive (VFD) inverters and high-density server racks where sustained airflow is paramount. The 3615KL-05W-B70-EQ1 excels in industrial automation cabinets, providing necessary cooling to prevent thermal throttling in sensitive electronic components. Additionally, the 3615KL-05W-B70-EQ1 is utilized in telecommunications equipment and CNC machinery, ensuring operational stability by efficiently dissipating heat generated during continuous duty cycles.
