Description
The ebm-papst 4114ENHU-180 is a robust Axial Fan engineered for demanding industrial environments requiring rigorous thermal management and environmental resilience. Featuring an advanced DC motor architecture, this unit optimizes aerodynamic throughput while maintaining exceptional structural rigidity under high-static pressure loads. The design incorporates a fully encapsulated stator providing IP68 ingress protection, significantly lowering thermal impedance in harsh, moisture-rich, or dusty operating conditions. Its precision-balanced impeller ensures consistent airflow delivery, making it a critical component for systems demanding high reliability and longevity. The fan utilizes durable ball bearing mechanisms to sustain performance across a wide voltage range of 12-25V, ensuring stable operation even during power fluctuations.

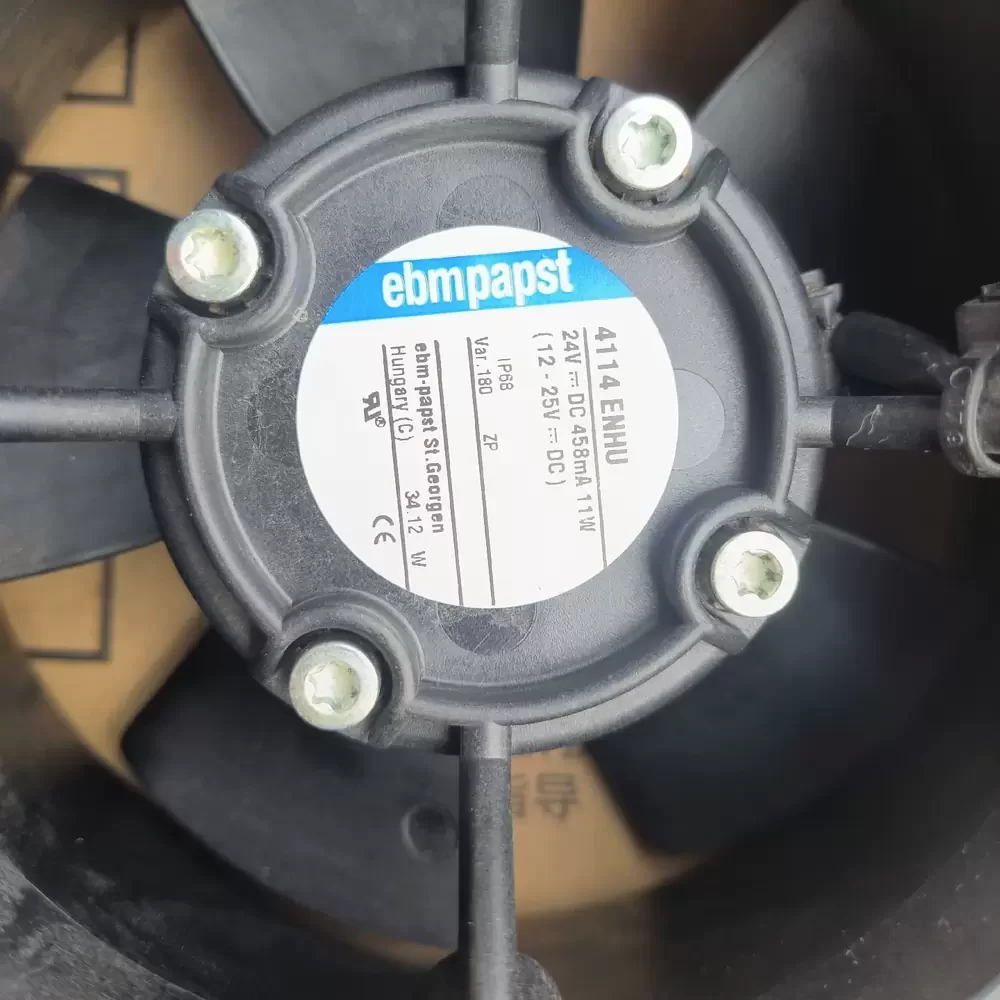

Model Number: 4114ENHU-180
Brand: ebm-papst
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 12.0 – 25.0 VDC
Rated Current: 458 mA (0.458 A)
Power Consumption: 11 W
Dimensions: 119 x 119 x 38 mm
Ingress Protection: IP68 (Dust Tight, Waterproof)
Bearing Type: Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Fiberglass-reinforced PA Plastic (UL 94 V-0)
Air Flow: Approx. 105 CFM (178 m³/h)
Speed: High Speed Performance
Termination: Lead Wires
Operating Temperature: -20°C to +70°C
Motor Protection: Reverse Polarity, Locked Rotor Protection
Mounting: Flange Mount
Weight: Approx. 390 g
Designed for resilience, the 4114ENHU-180 excels in applications exposed to moisture, dust, and particulate matter, such as outdoor telecommunications cabinets and marine-grade electronics. This fan is frequently integrated into CNC machinery cooling systems and industrial automation enclosures where wash-down capabilities are required. The 4114ENHU-180 ensures continuous operation in server racks located in non-climate-controlled environments, providing critical airflow to prevent thermal throttling in sensitive power supplies and solar inverters.
