Description

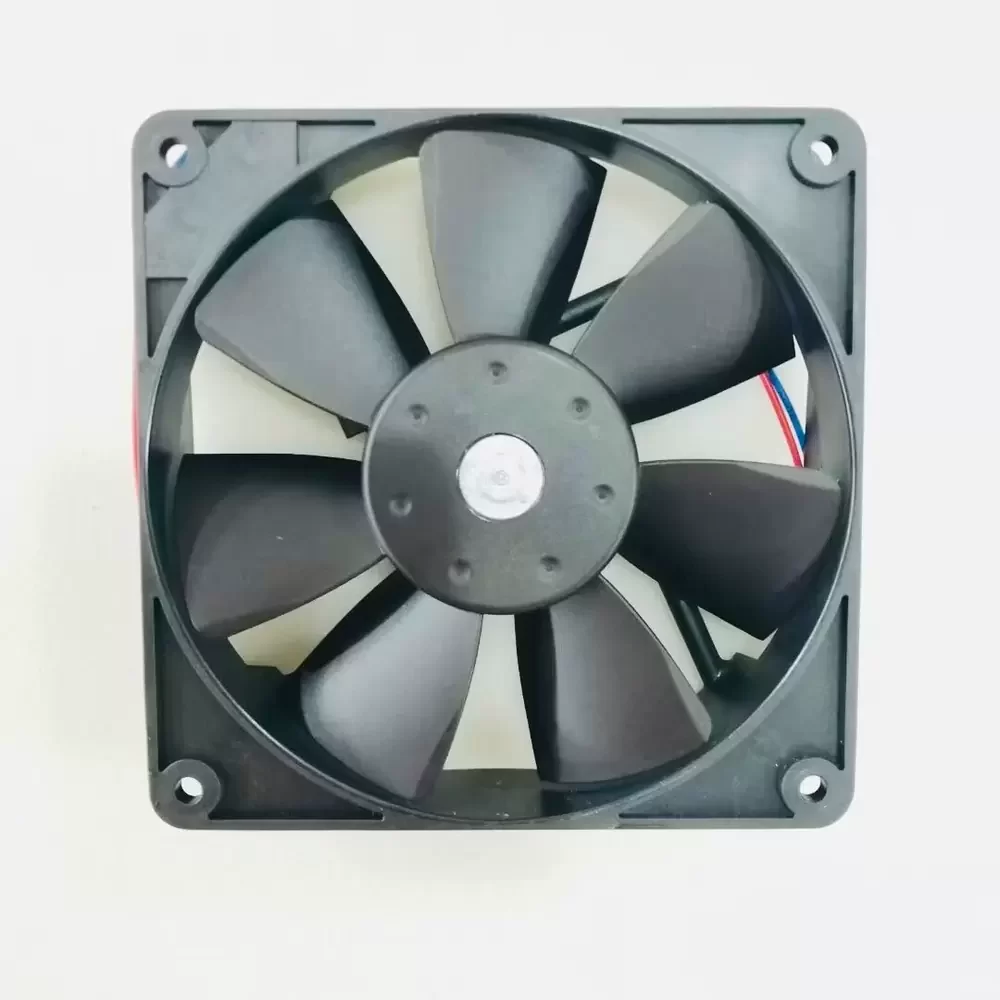

The ebmpapst 4412FGM is a precision-engineered DC Axial Fan designed for optimal thermal management in compact electronic enclosures. Utilizing advanced Sintec sleeve bearing technology, this unit ensures low-noise operation while maintaining structural rigidity under continuous load. The aerodynamic impeller design minimizes turbulence, enhancing airflow efficiency and reducing thermal impedance within the system. Engineered with a fiberglass-reinforced plastic housing (PBT), the 4412FGM delivers reliable performance with a nominal power consumption of 3W, making it an ideal solution for applications requiring a balance between static pressure and volumetric flow.
Model Number: 4412FGM
Brand: ebmpapst
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 6.0 – 13.0 VDC
Rated Current: 250 mA
Power Input: 3.0 W
Rated Speed: 2400 RPM
Bearing Type: Sintec Sleeve Bearing
Max. Air Flow: 82.4 CFM (140 m³/h)
Max. Static Pressure: 4.8 mmH₂O (47 Pa / 0.19 inH₂O)
Dimensions: 119 x 119 x 25 mm
Weight: 175 g
Noise Level: 32 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PA Plastic (UL94V-0)
Operating Temperature: -20 to +75 °C
Life Expectancy: 60,000 Hours (at 40°C)
Termination: 2 Wire Leads (AWG 24, TR 64)
Motor Protection: Reverse Polarity Protected, Impedance Protected
Ingress Protection: IP20
Direction of Rotation: Clockwise (viewed toward rotor)
Approvals: VDE, CSA, UL, CE
The 4412FGM is specifically engineered for critical cooling applications in telecommunications equipment, server rack ventilation, and industrial automation control panels. Its compact profile allows for seamless integration into power supply units and medical diagnostic devices where space is at a premium. By maintaining consistent airflow, the 4412FGM prevents thermal throttling in sensitive electronics, ensuring long-term reliability in 24/7 operational environments.
