Description
The ebmpapst 4656ZH is a robust AC Axial Fan engineered for demanding industrial environments requiring superior thermal management and structural rigidity. Featuring a high-efficiency external rotor shaded-pole motor, this unit delivers consistent airflow with optimized static pressure capabilities. The construction utilizes a die-cast aluminum housing and a metal impeller, ensuring exceptional durability and resistance to thermal stress. Designed for high-temperature operations, the 4656ZH minimizes thermal impedance while maintaining operational stability under continuous loads. Its aerodynamic profile reduces turbulence, making it an ideal solution for systems where reliability and longevity are paramount, particularly in harsh operating conditions.

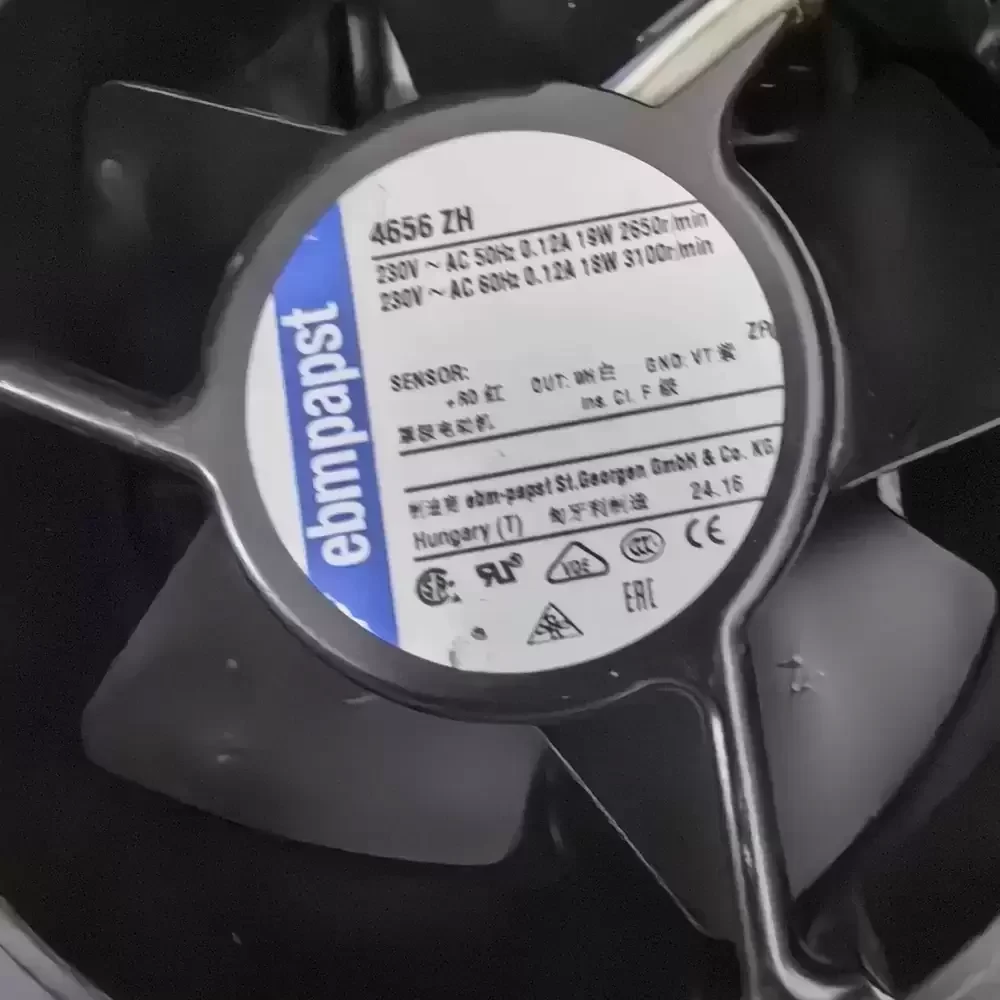

Model Number: 4656ZH
Brand: ebmpapst
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Voltage Range: 207 – 253 VAC
Rated Current: 0.12 / 0.12 A
Power Input: 19 / 18 W
Rated Speed: 2650 / 3100 RPM
Max. Air Flow: 100.0 CFM (170 m³/h)
Max. Static Pressure: 0.35 inH₂O (88 Pa)
Bearing Type: Ball Bearing
Dimensions: 119 x 119 x 38 mm
Housing Material: Die-Cast Aluminum
Impeller Material: Sheet Steel, painted black
Operating Temperature: -40 to +75 °C
Life Expectancy: 40,000 Hours @ 40°C
Weight: 0.54 kg
Termination: 2 Flat Plugs 2.8 x 0.5 mm
Motor Protection: Impedance Protected
Direction of Rotation: Clockwise, viewed toward rotor
Mounting Orientation: Any
Approvals: VDE, CSA, UL, CE
The 4656ZH is specifically engineered for industrial applications where heat dissipation and rugged construction are critical. Common deployment scenarios include cooling control cabinets in steel manufacturing, ventilation in welding equipment, and thermal regulation in heavy-duty power supplies. The all-metal design of the 4656ZH allows it to withstand harsh operating environments found in CNC machinery and server rack assemblies exposed to elevated ambient temperatures. Additionally, this model is frequently utilized in telecommunications infrastructure and medical devices requiring reliable, continuous air movement.
