Description

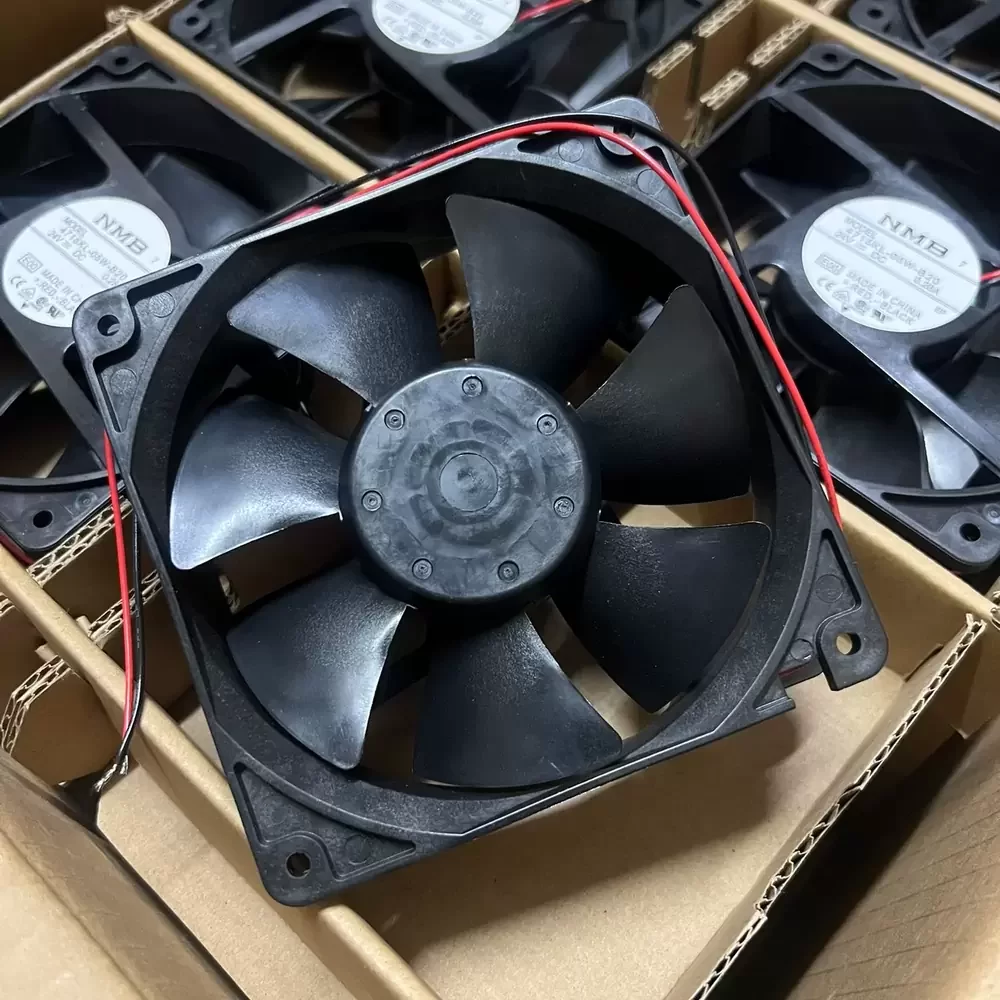

The NMB 4715KL-05W-B20-E00 is a precision-engineered DC Axial Fan designed for critical thermal management in industrial environments. Manufactured by MinebeaMitsumi, this unit utilizes an advanced double ball bearing architecture to minimize friction and extend operational service life under continuous load. The aerodynamic impeller design optimizes static pressure capabilities while maintaining low acoustic signatures, ensuring efficient heat dissipation. Constructed with high-grade materials to enhance structural rigidity, the fan delivers consistent airflow performance, effectively reducing thermal impedance in high-density electronic enclosures and power conversion systems.
Model Number: 4715KL-05W-B20-E00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.28 A
Input Power: 6.72 W
Rated Speed: 2600 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 88.2 CFM (150 m³/h / 2.5 m³/min)
Max. Static Pressure: 5.6 mmH₂O (54.9 Pa / 0.22 inH₂O)
Dimensions: 119 x 119 x 38 mm
Weight: 260 g
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 38.0 dB(A)
Housing Material: Reinforced Plastic (UL94V-0)
Impeller Material: Reinforced Plastic (UL94V-0)

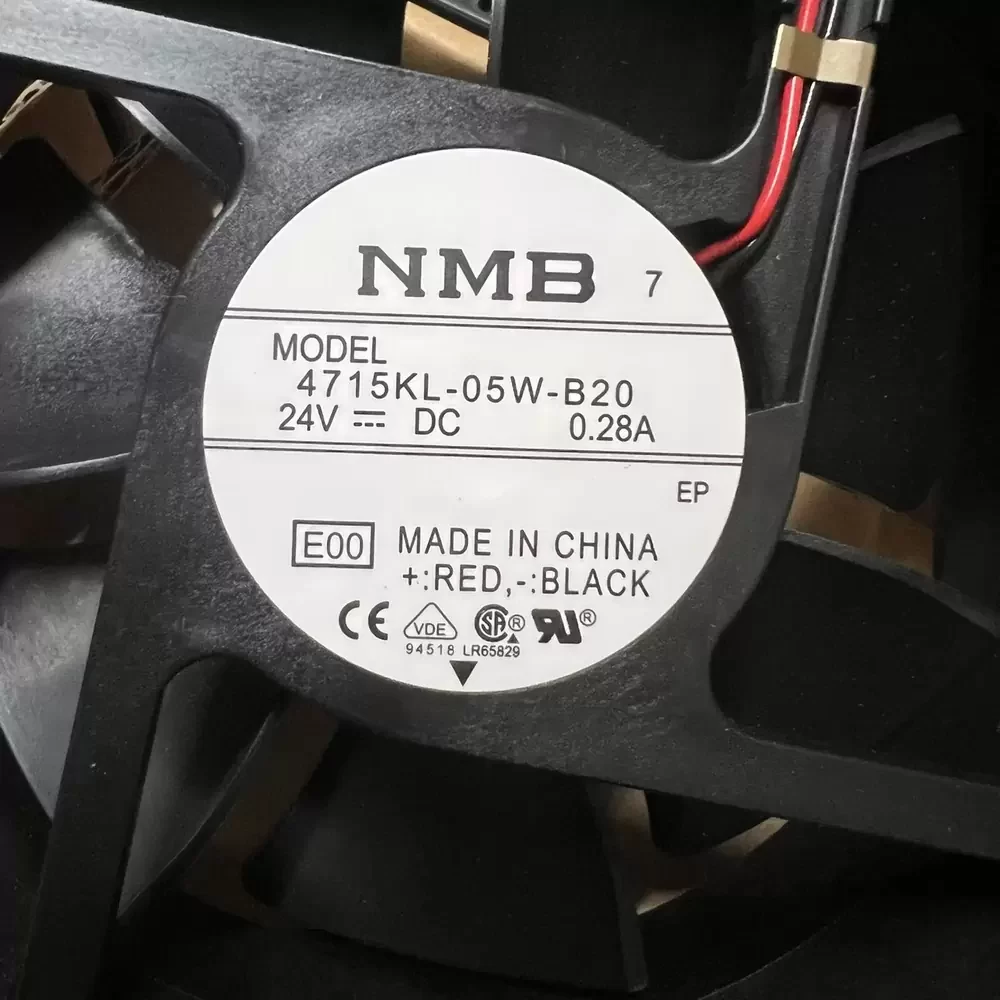

Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Protection: Locked Rotor Protection, Reverse Polarity Protection
Mounting Orientation: Any
This cooling solution is specifically engineered for demanding industrial applications, including variable frequency drive (VFD) inverters and elevator control systems. The 4715KL-05W-B20-E00 ensures reliable thermal regulation within server racks and telecommunication cabinets where continuous operation is mandatory. By maintaining optimal operating temperatures, the 4715KL-05W-B20-E00 protects sensitive electronic components from overheating, making it an ideal choice for CNC machinery and automation control panels requiring robust ventilation.
