Description

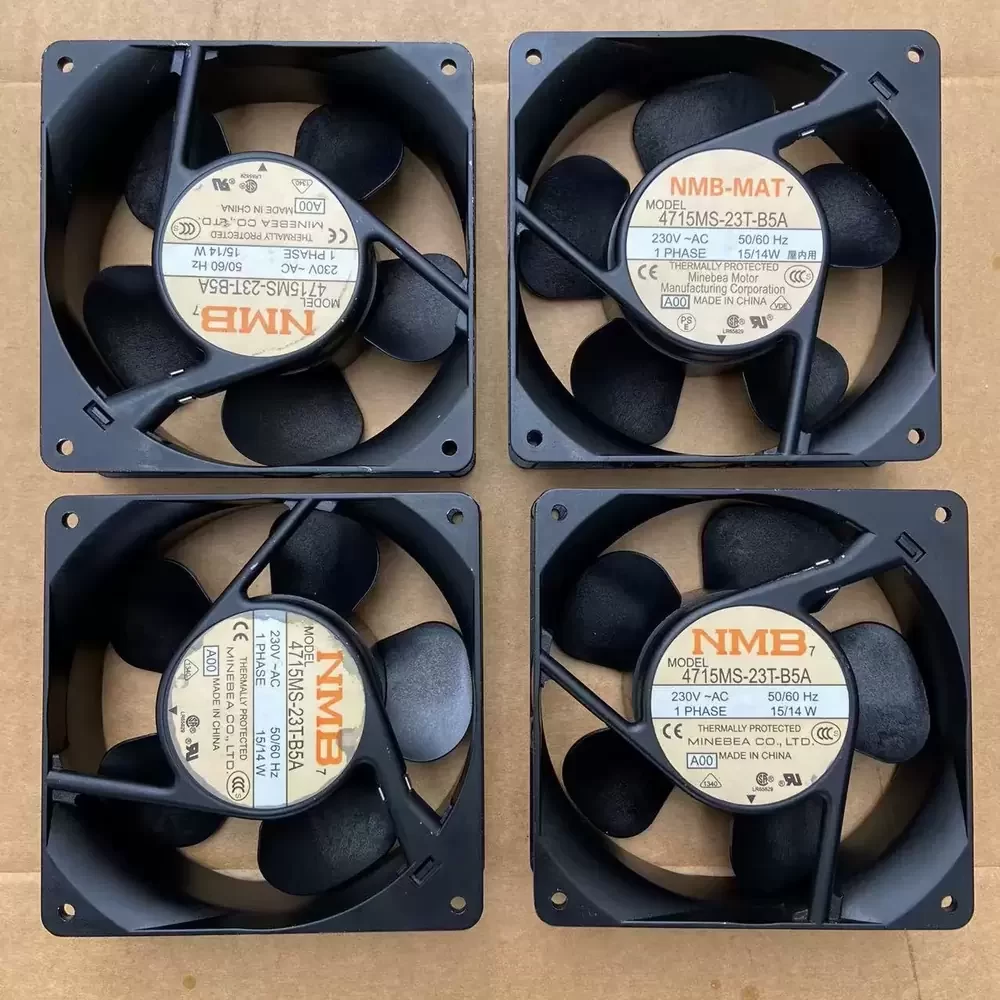

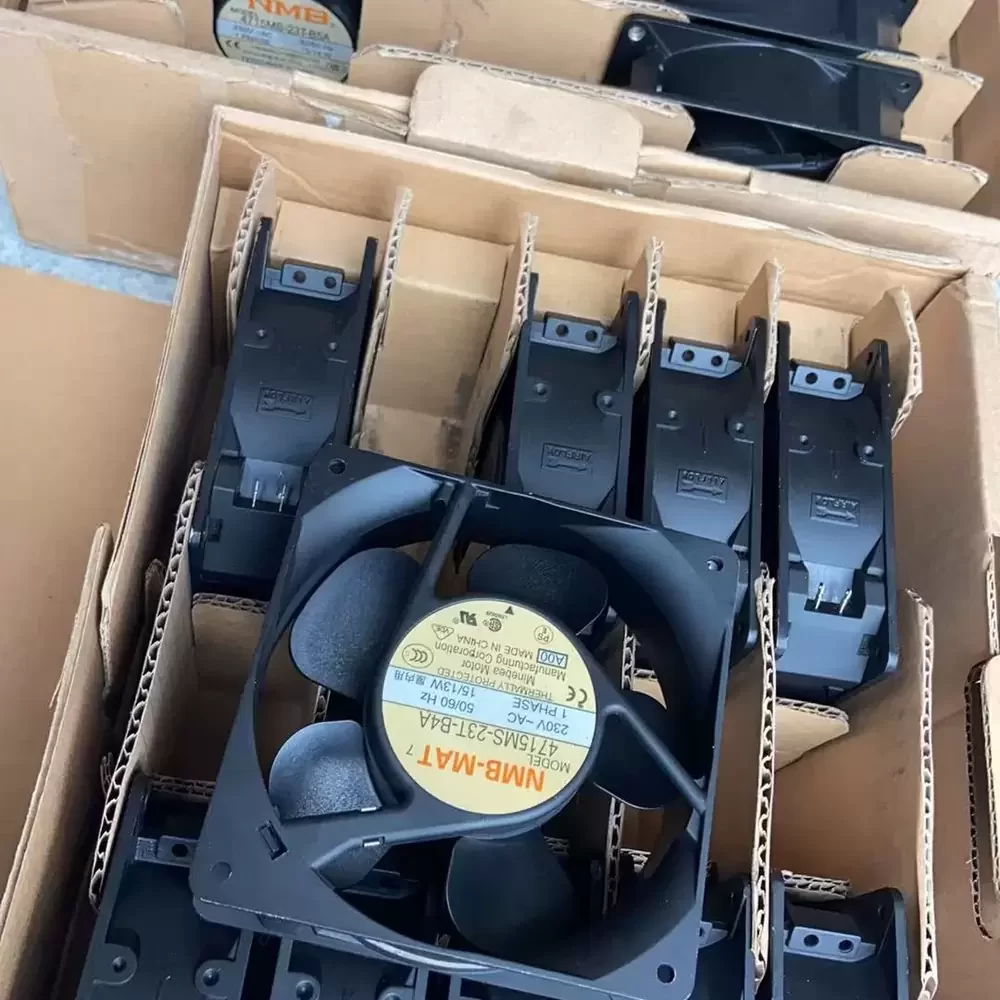

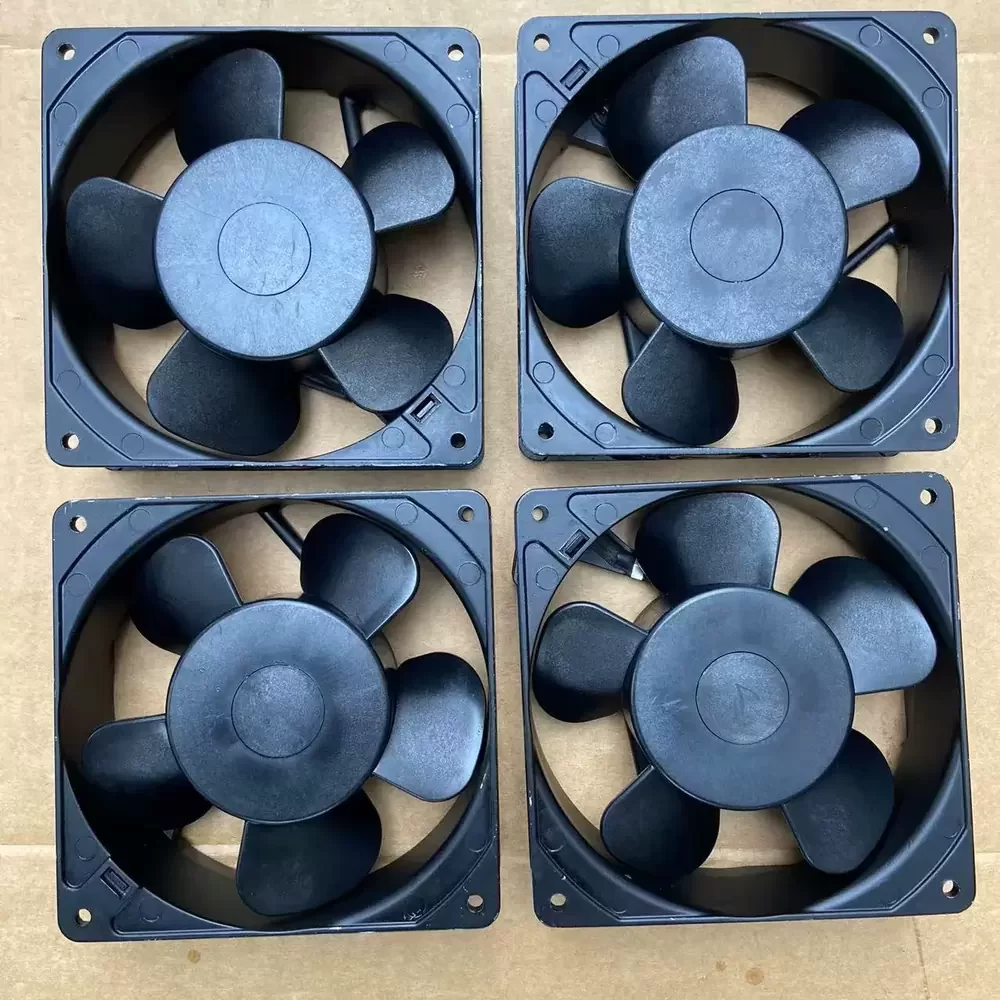

The NMB-MAT 4715MS-23T-B5A-A00 is a robust AC Axial Fan engineered for high-reliability industrial cooling applications. This unit utilizes a precision-wound shaded pole induction motor housed within a die-cast aluminum frame, ensuring superior structural rigidity and thermal dissipation under continuous operation. Featuring a dual ball bearing architecture, the fan delivers consistent aerodynamic performance while minimizing frictional wear, resulting in an extended service life. The impeller is designed to optimize airflow dynamics, reducing turbulence and thermal impedance within enclosed systems. It operates efficiently on 230V AC single-phase power, making it suitable for diverse global power grids requiring stable thermal management solutions.
Model Number: 4715MS-23T-B5A-A00
Brand: NMB-MAT (Minebea)
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Voltage Range: 200 – 240 VAC
Input Power: 15 / 14 W
Rated Current: 0.11 / 0.10 A
Rated Speed: 2600 / 2900 RPM
Max. Air Flow: 102.0 CFM (2.89 m³/min)
Max. Static Pressure: 7.5 mmH₂O (73.5 Pa / 0.30 inH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 119 x 119 x 38 mm
Weight: 550 g
Noise Level: 37 / 41 dB(A)
Frame Material: Aluminum Die-Cast
Impeller Material: Polycarbonate (UL94V-0)
Termination: 2-Terminal (Faston #110)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ω min. at 500VDC
Dielectric Strength: 1500 VAC for 1 minute
Motor Protection: Impedance Protection
Life Expectancy: 100,000 Hours (at 25°C)
Mounting Orientation: Any
Phase: Single Phase
Designed for rigorous industrial environments, the 4715MS-23T-B5A-A00 is frequently deployed in factory automation control panels and server rack cooling systems where consistent airflow is critical. The 4715MS-23T-B5A-A00 excels in maintaining optimal operating temperatures for CNC machinery electronics, telecommunications power supplies, and medical instrumentation, ensuring component longevity and system stability.
