Description

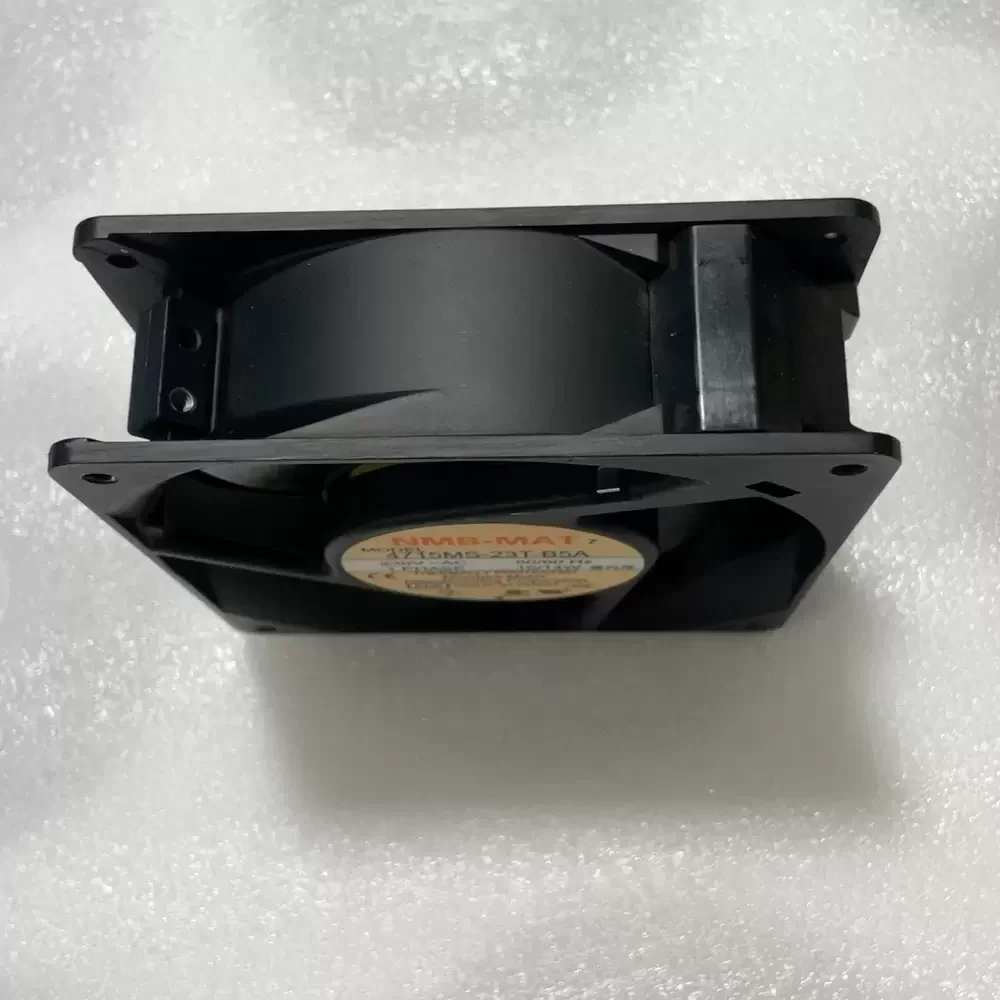

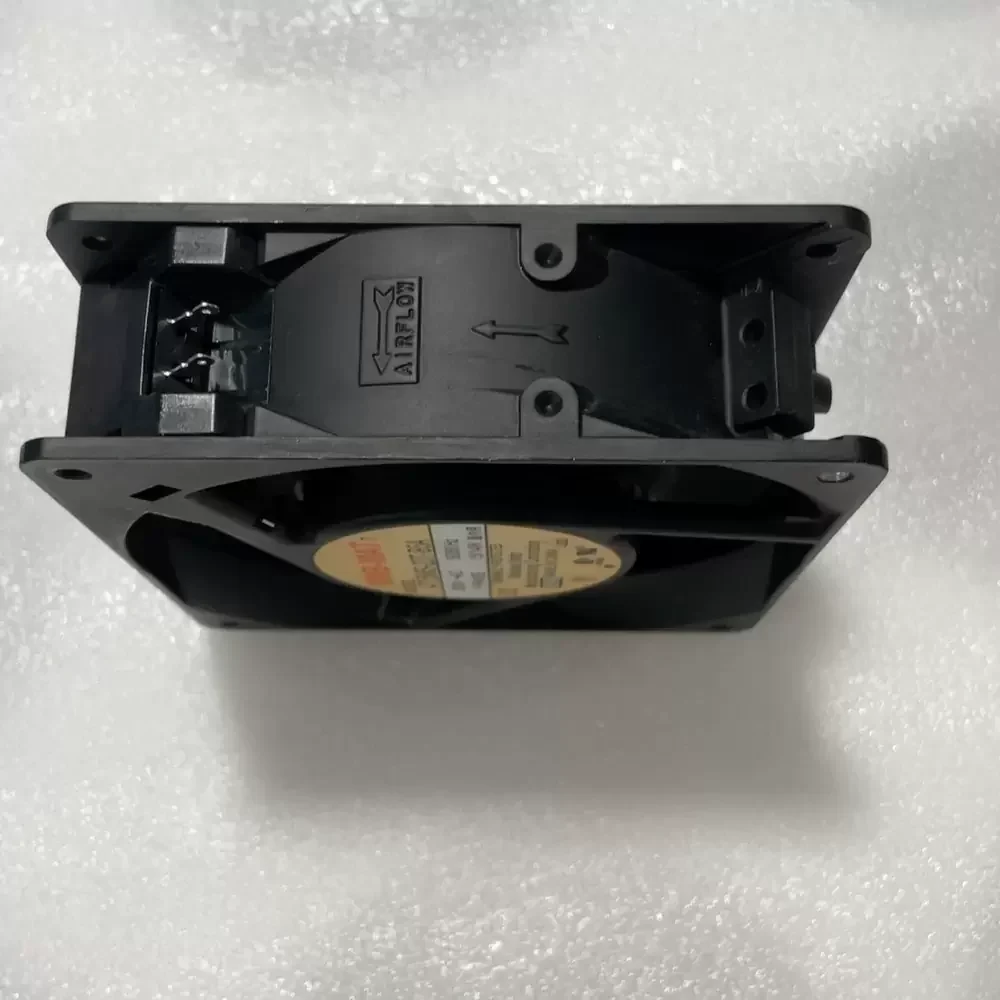

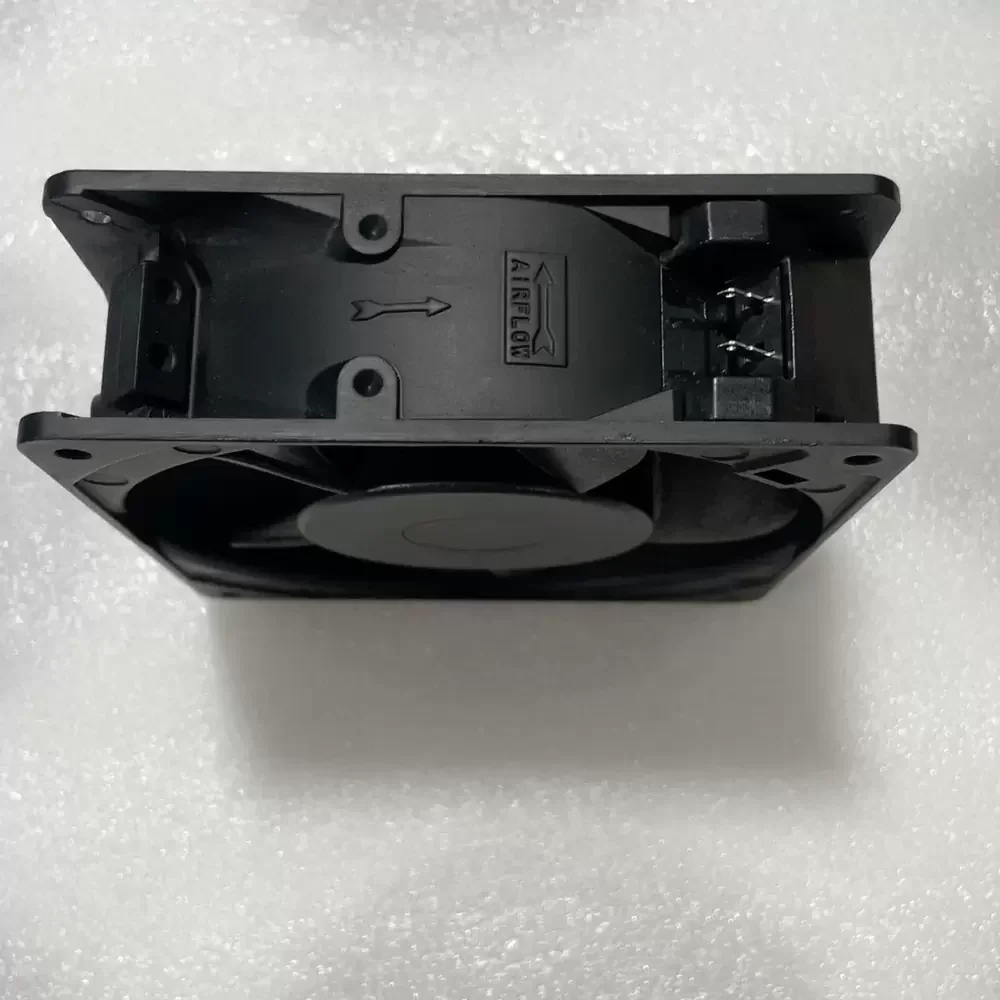

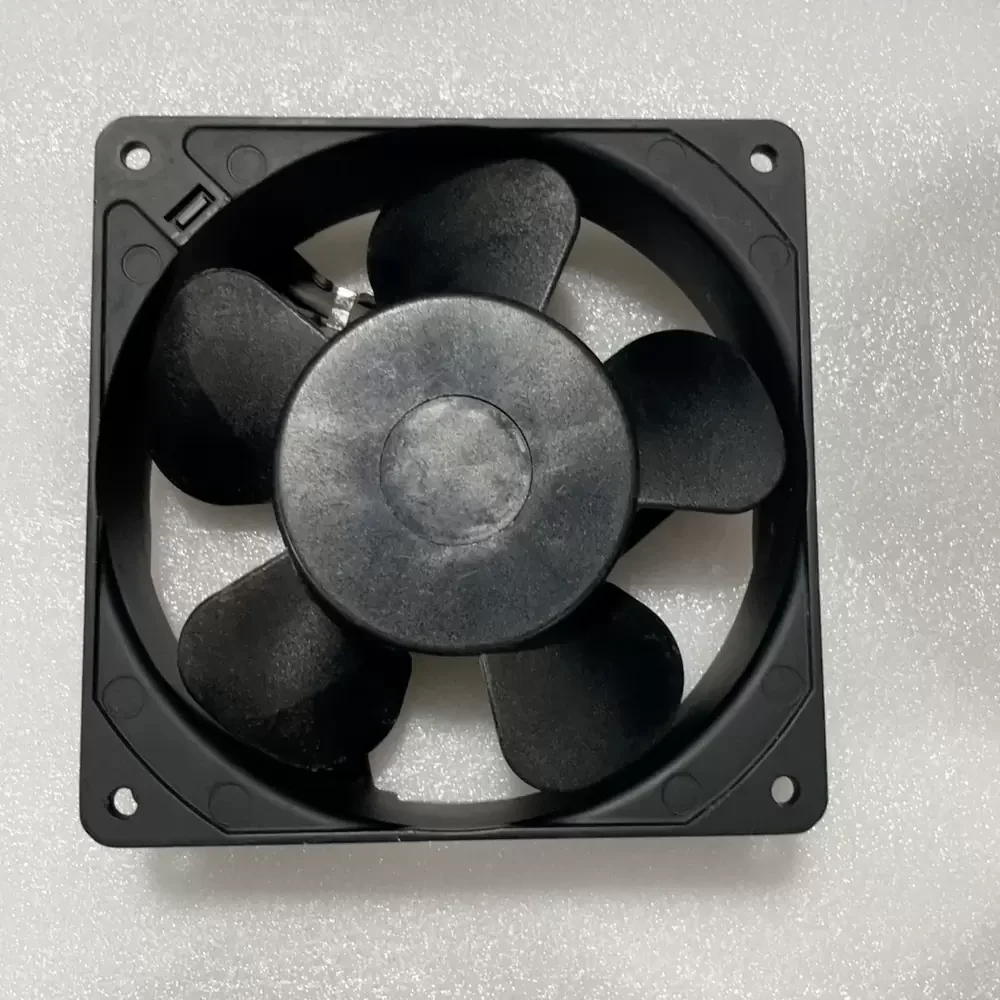

The NMB-MAT 4715MS-23T-B5A-A05 is a robust AC axial fan engineered for high-reliability industrial cooling applications. Utilizing a precision double ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous duty cycles. The shaded pole induction motor is housed within a rigid aluminum die-cast frame, providing superior structural integrity and effective thermal dissipation. Its aerodynamic impeller design optimizes airflow efficiency while maintaining acoustic stability. Designed for 230VAC operation, the 4715MS-23T-B5A-A05 delivers consistent performance in demanding environments, characterized by low thermal impedance and high resistance to vibration, making it an ideal component for critical thermal management systems.
Model Number: 4715MS-23T-B5A-A05
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Phase: 1 Phase
Input Power: 15.0 / 14.0 W
Rated Current: 0.10 / 0.09 A
Rated Speed: 2600 / 2900 RPM
Max. Air Flow: 88.2 / 102.0 CFM (2.50 / 2.90 m³/min)
Max. Static Pressure: 6.5 / 7.5 mmH₂O (63.7 / 73.5 Pa)
Bearing Type: Precision Ball Bearing
Noise Level: 37 / 41 dB(A)
Dimensions: 119mm x 119mm x 38mm
Weight: 550 g
Frame Material: Aluminum Die-Cast
Impeller Material: Polycarbonate (Black, UL94V-0)
Termination: 2 Flat Terminals (Faston #110)
Motor Protection: Impedance Protection
Insulation Resistance: 10M Ω or over with a DC500V Megger
Dielectric Withstand Voltage: AC 1800V 3s
Operating Temperature: -10°C to +70°C (Non-Condensing)
Storage Temperature: -40°C to +70°C
Life Expectancy: 100,000 Hours (at 25°C)
Mounting Orientation: Any
This cooling solution is specifically calibrated for integration into high-density server racks, telecommunications cabinets, and industrial automation enclosures. The 4715MS-23T-B5A-A05 excels in maintaining optimal operating temperatures for power supply units and CNC control panels where consistent airflow is critical. By mitigating heat accumulation, the 4715MS-23T-B5A-A05 ensures the reliability of sensitive electronic components in factory automation and medical instrumentation setups.
