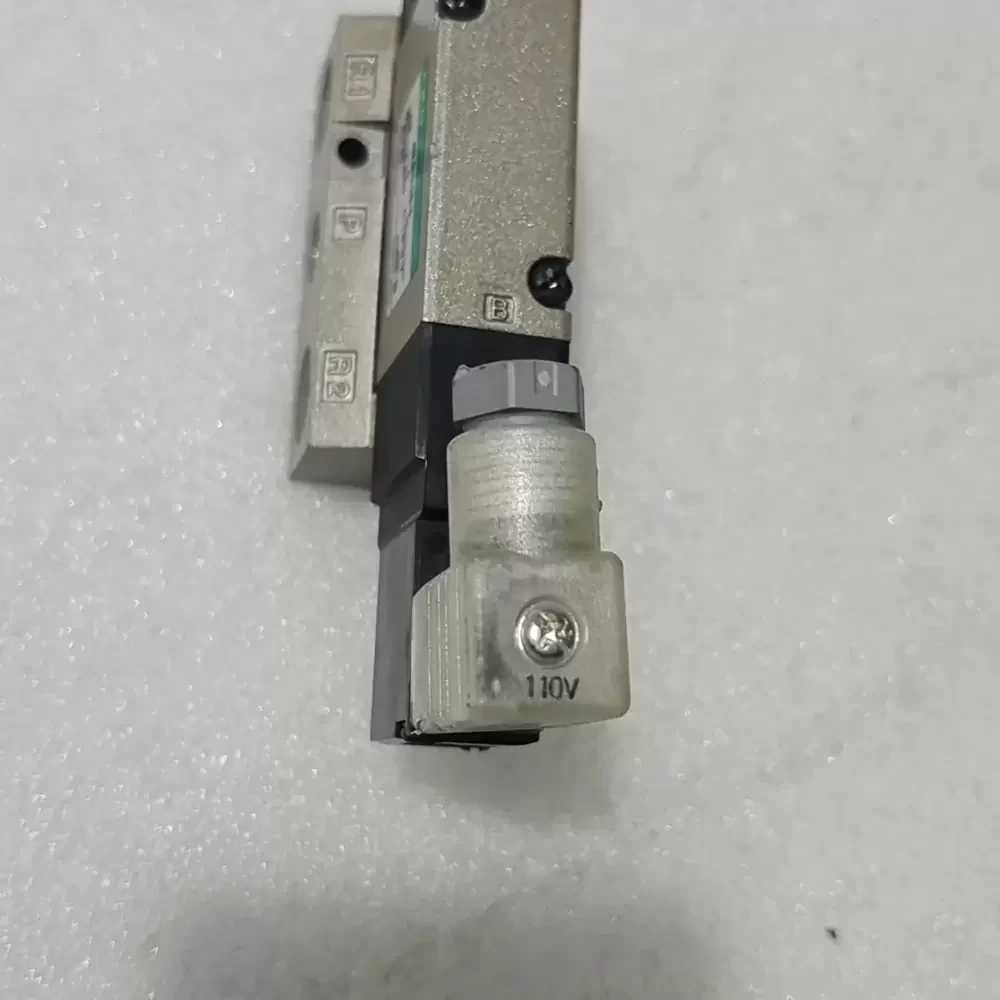

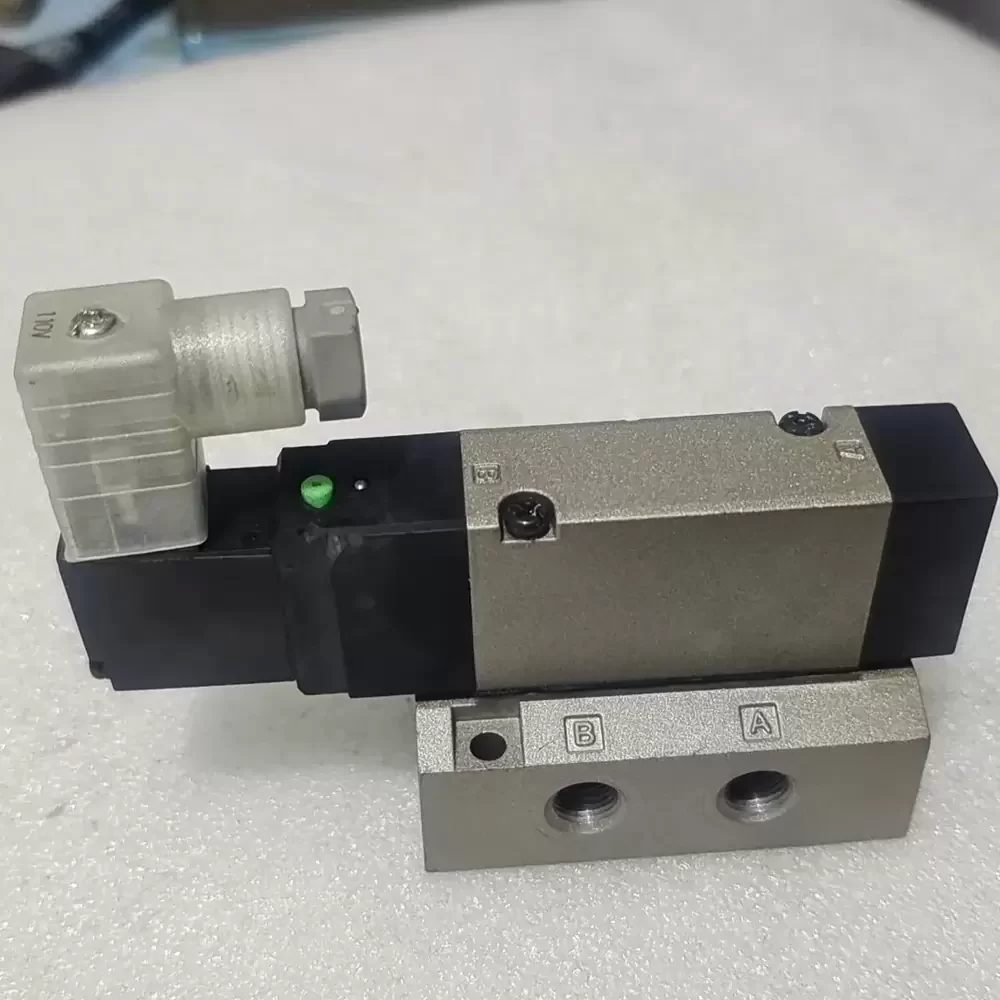

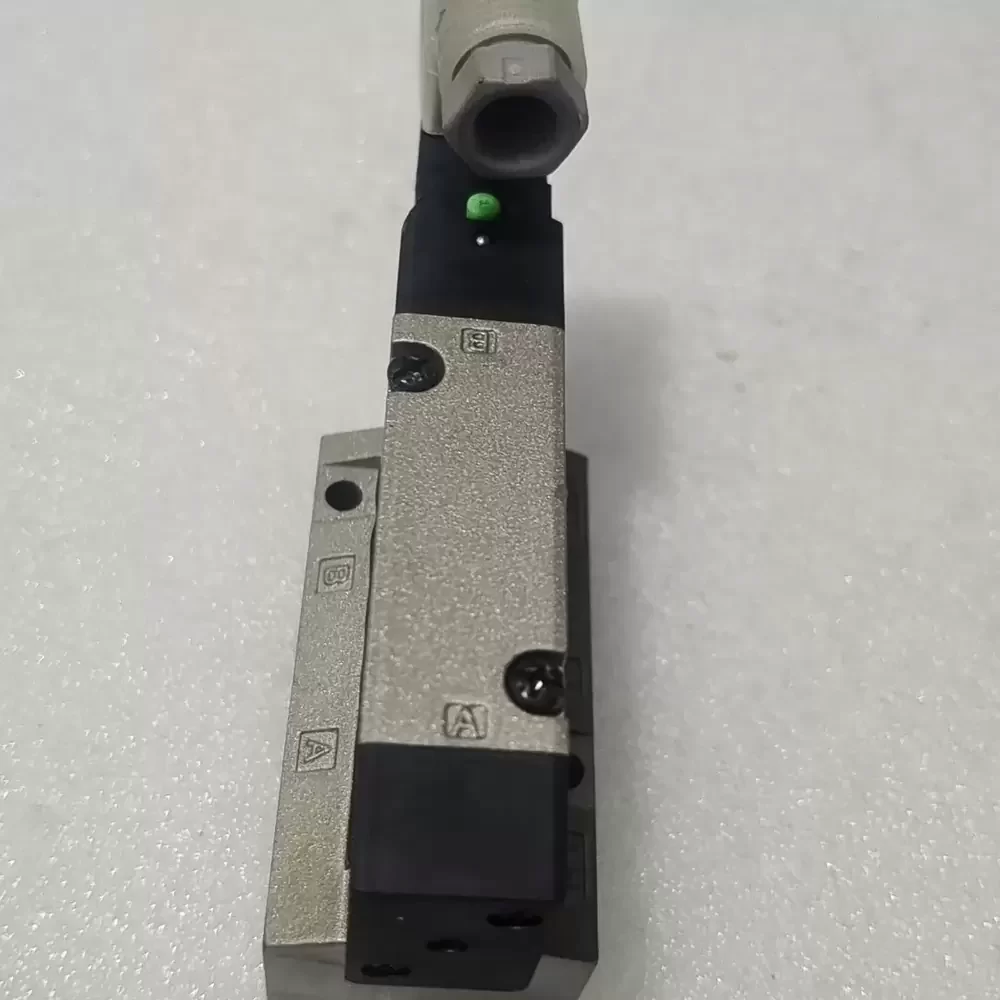

4KB210-L CKD 110VAC 0.7MPa Pilot-Operated 5-Port Solenoid Valve

Description

CKD 4KB210-L is a pilot-operated 5-port solenoid valve featuring a 110 VAC nominal voltage, a maximum working pressure of 0.70 MPa, and a 2-position single solenoid configuration. Engineered with a soft spool mechanism, this unit operates exclusively with compressed air and requires no external lubrication. The structural design incorporates a dust-proof enclosure, ensuring resilience against environmental particulates, while maintaining operational stability across an ambient temperature range of -5 to 50 °C. Additional mechanical characteristics include a vibration resistance of 50 m/s² and a shock resistance of 300 m/s², delivering consistent directional flow control under dynamic mechanical stress.

4KB210-L Specifications
Model Number: 4KB210-L
Brand: CKD
Product Category: Pilot-Operated 5-Port Solenoid Valve
Valve Type: Soft Spool Valve
Solenoid Position: 2-Position Single

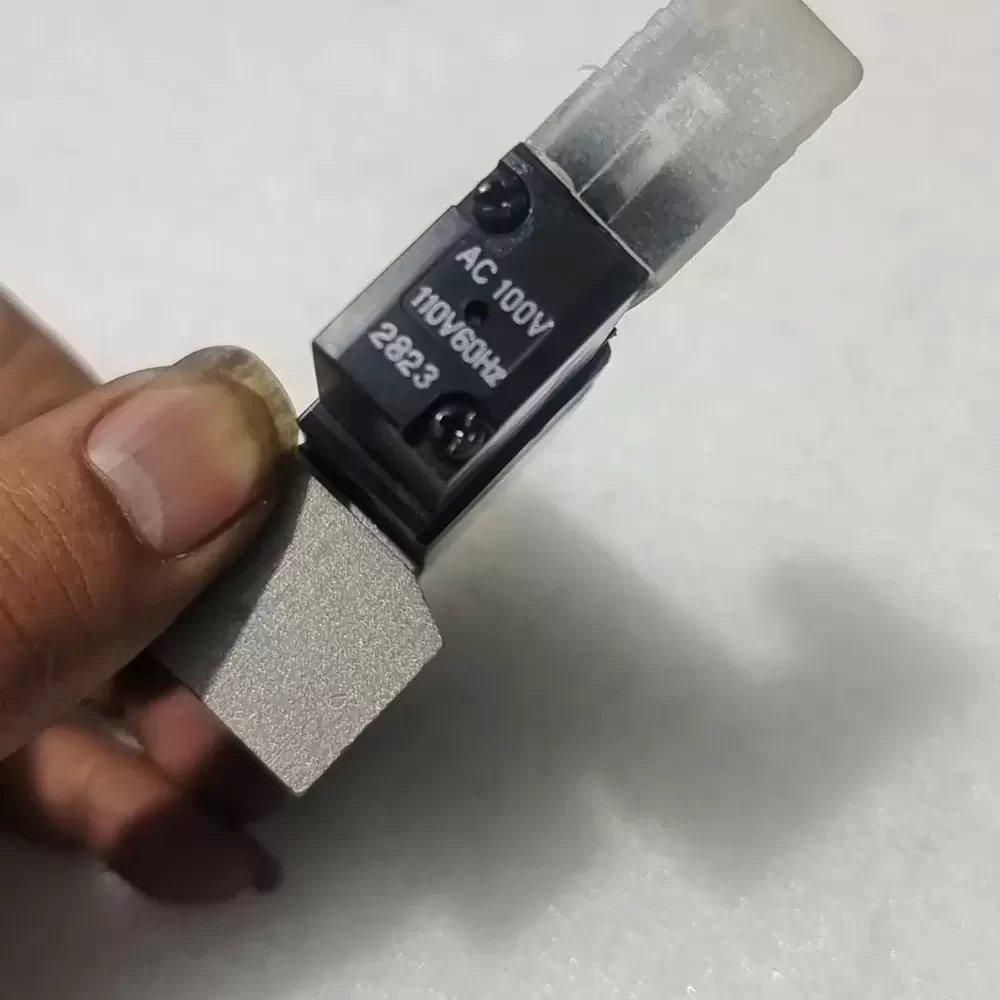

Nominal Voltage: 110 VAC (50 Hz / 60 Hz)
Working Fluid: Compressed Air
Maximum Working Pressure: 0.70 MPa
Proof Pressure: 1.05 MPa
Ambient Temperature Range: -5 to 50 °C (No Freezing)
Fluid Temperature Range: 5 to 50 °C
Lubrication: Not Required
Degree of Protection: Dust-Proof Enclosure
Vibration Resistance: 50 m/s² or less
Shock Resistance: 300 m/s² or less
Electrical Connection: L-Type (Without lead wire, with indicator lamp)

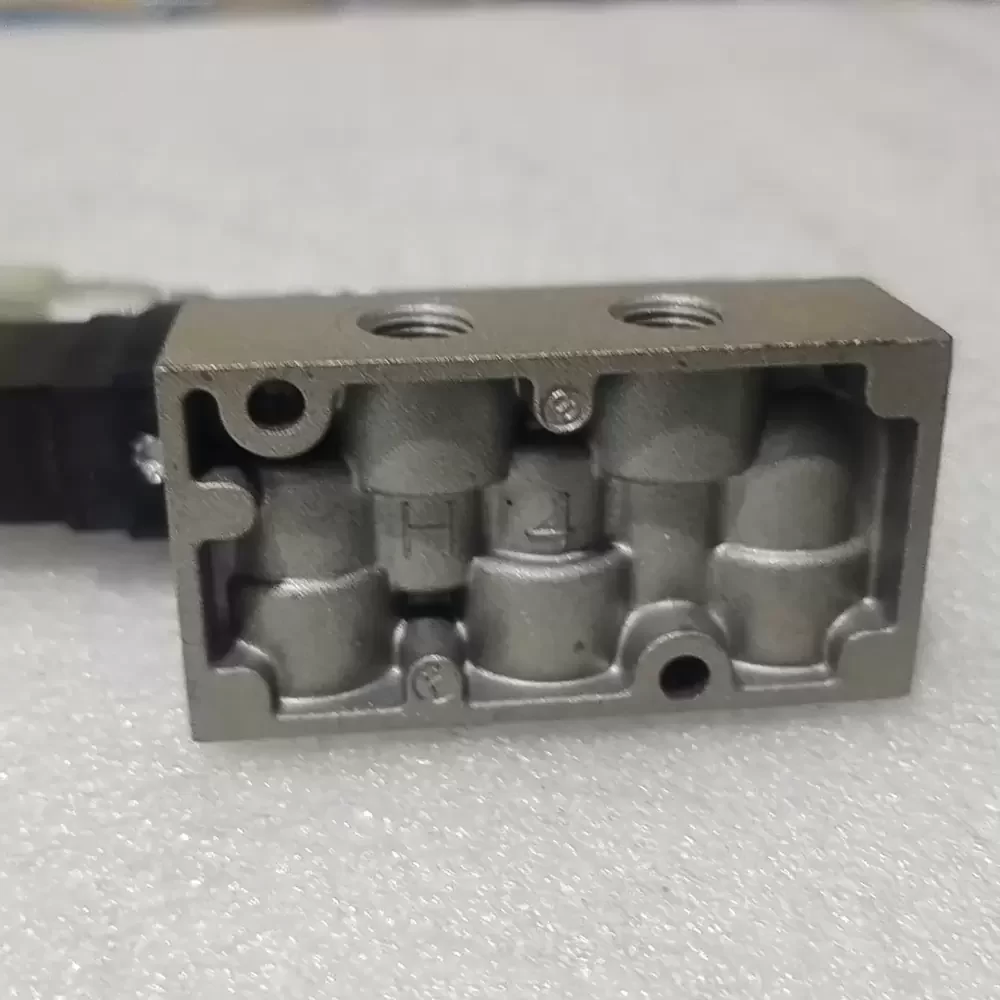

Port Size Compatibility: Rc1/8 or Rc1/4

4KB210-L Applications
Primary applications include integration into automated pneumatic control panels, CNC machining centers, and injection molding equipment. Deployed within industrial robotics and packaging machinery to provide precise directional air control for pneumatic cylinders and actuators.
