Description

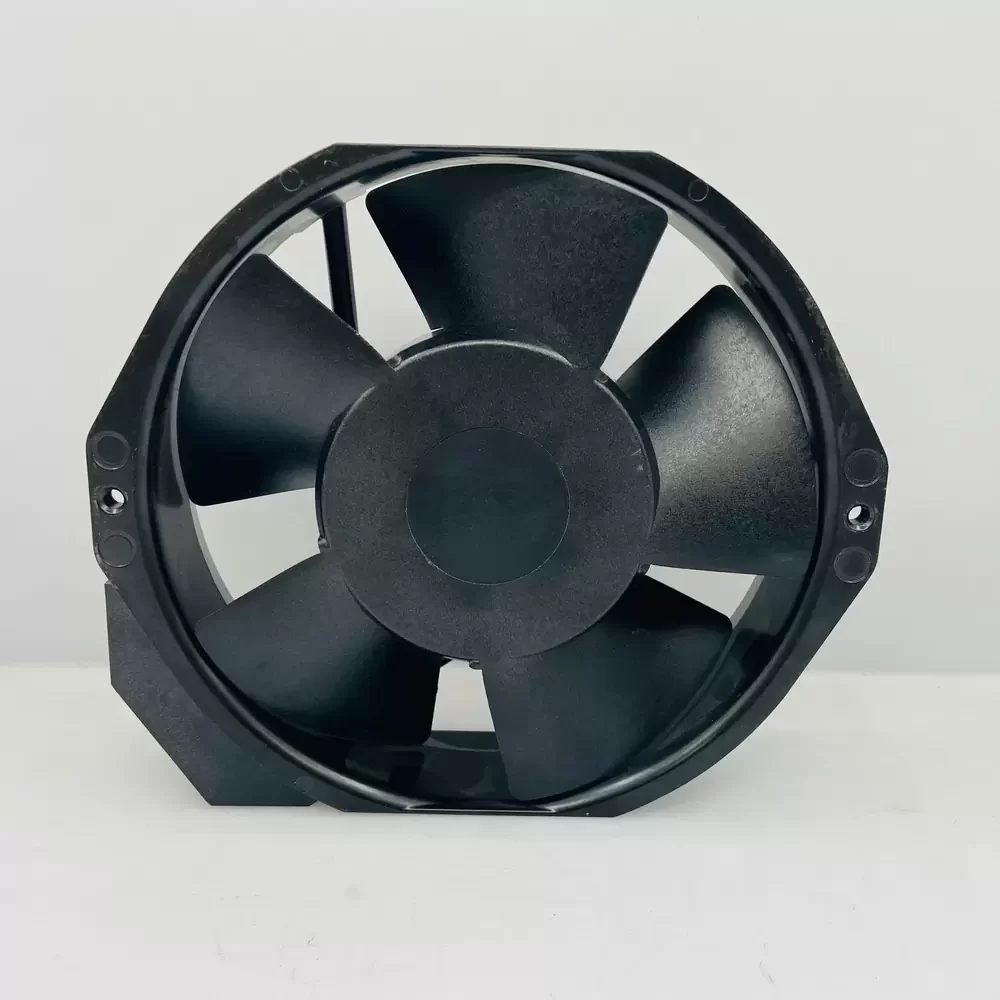

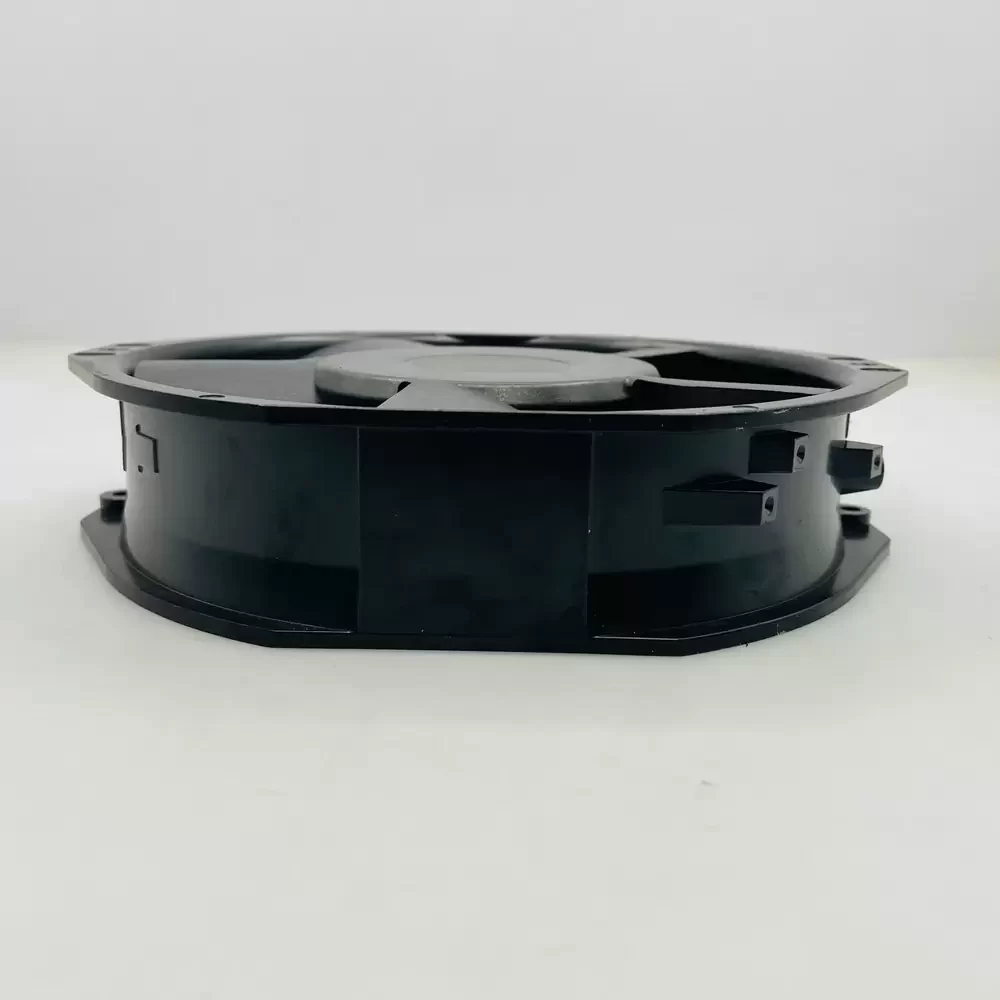

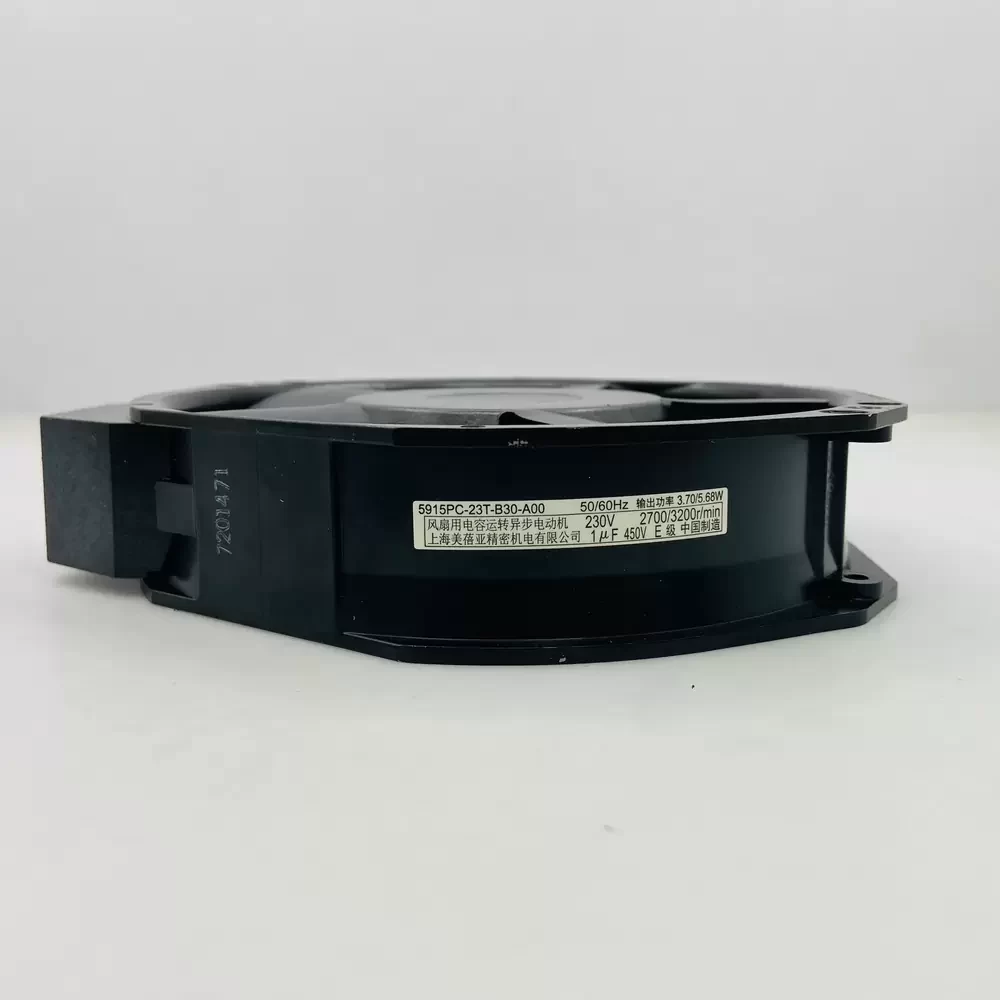

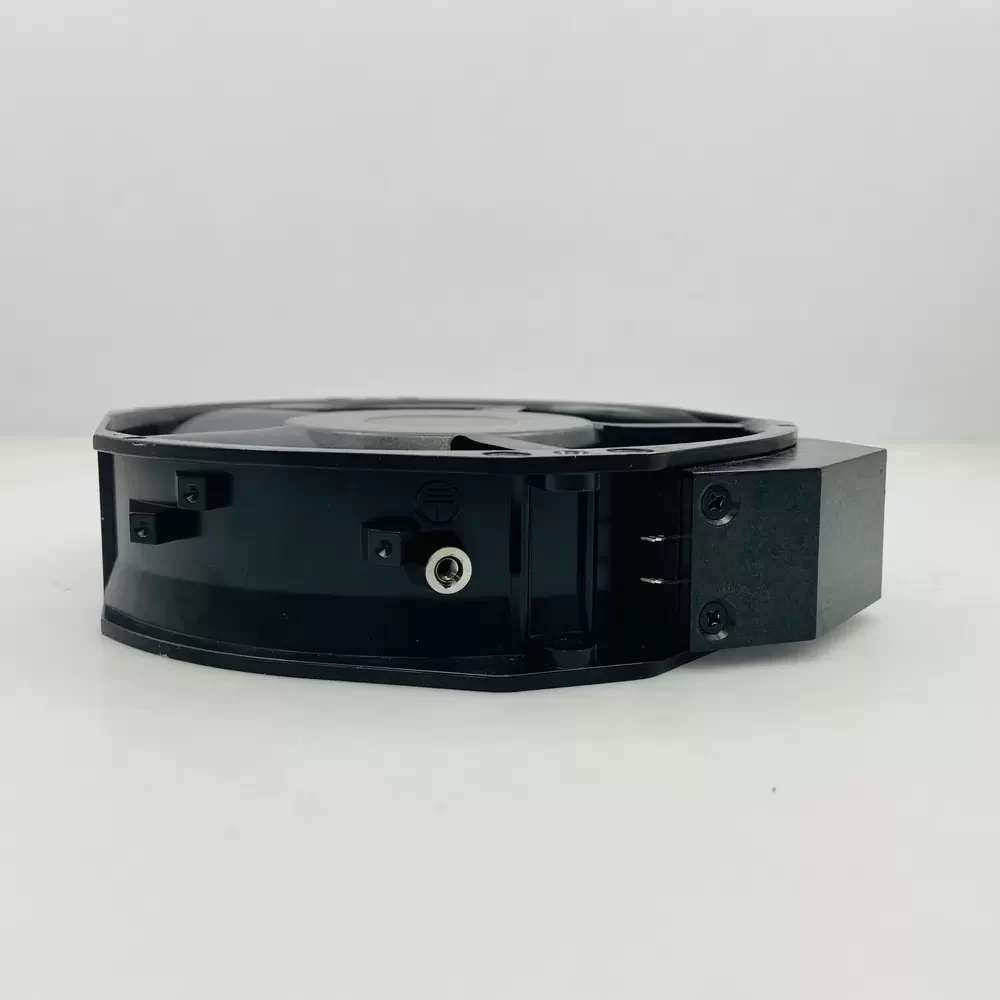

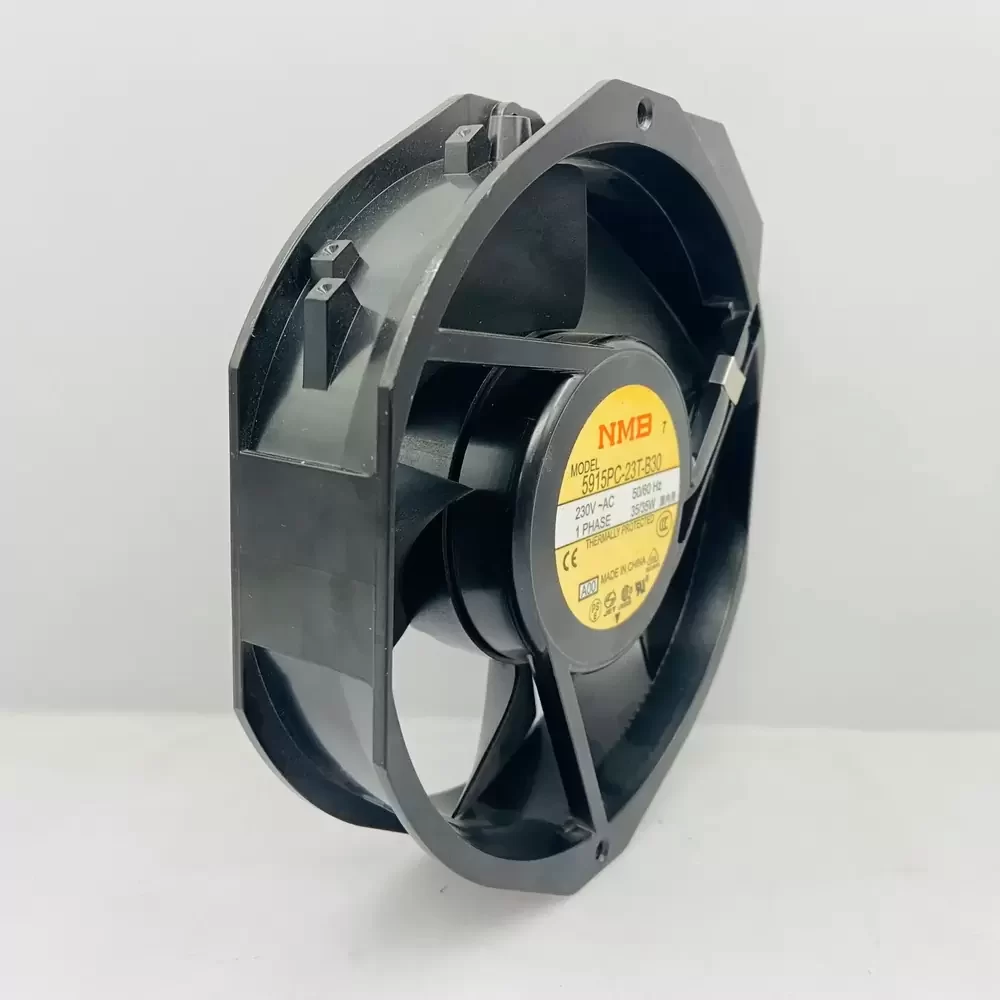

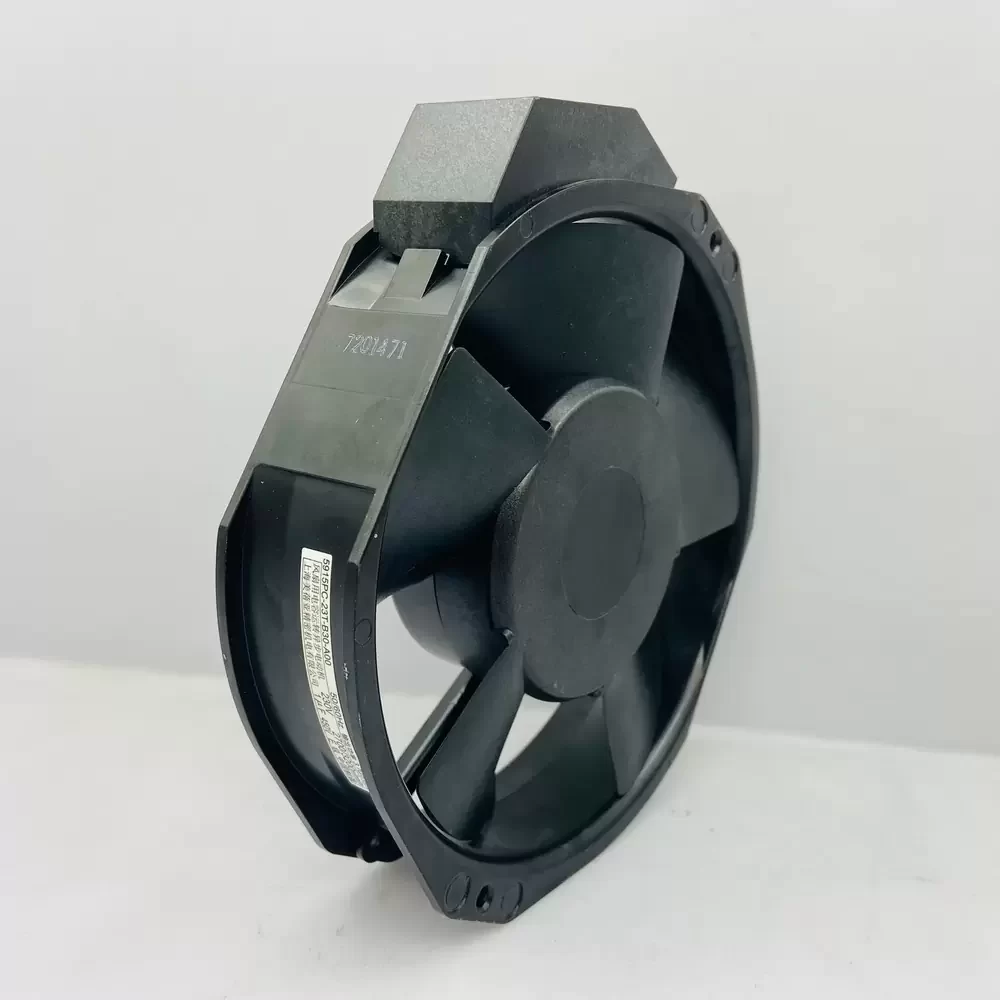

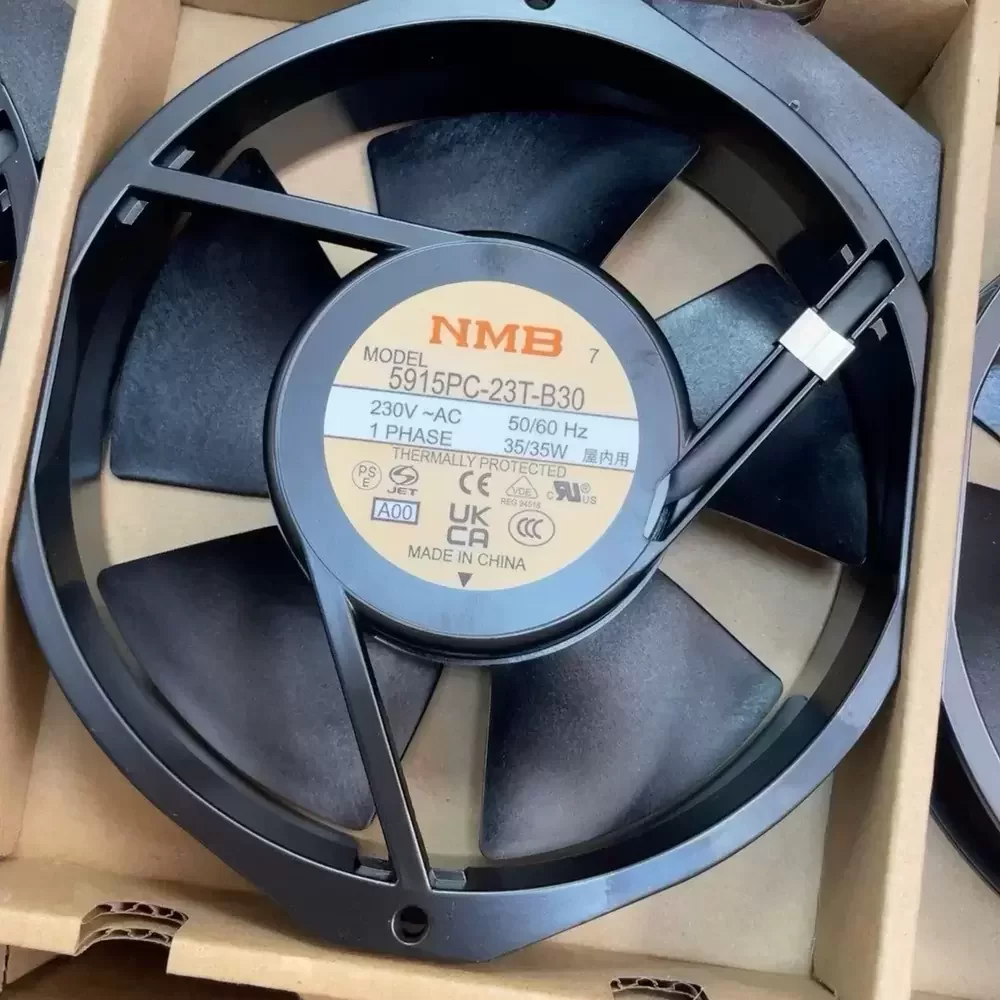

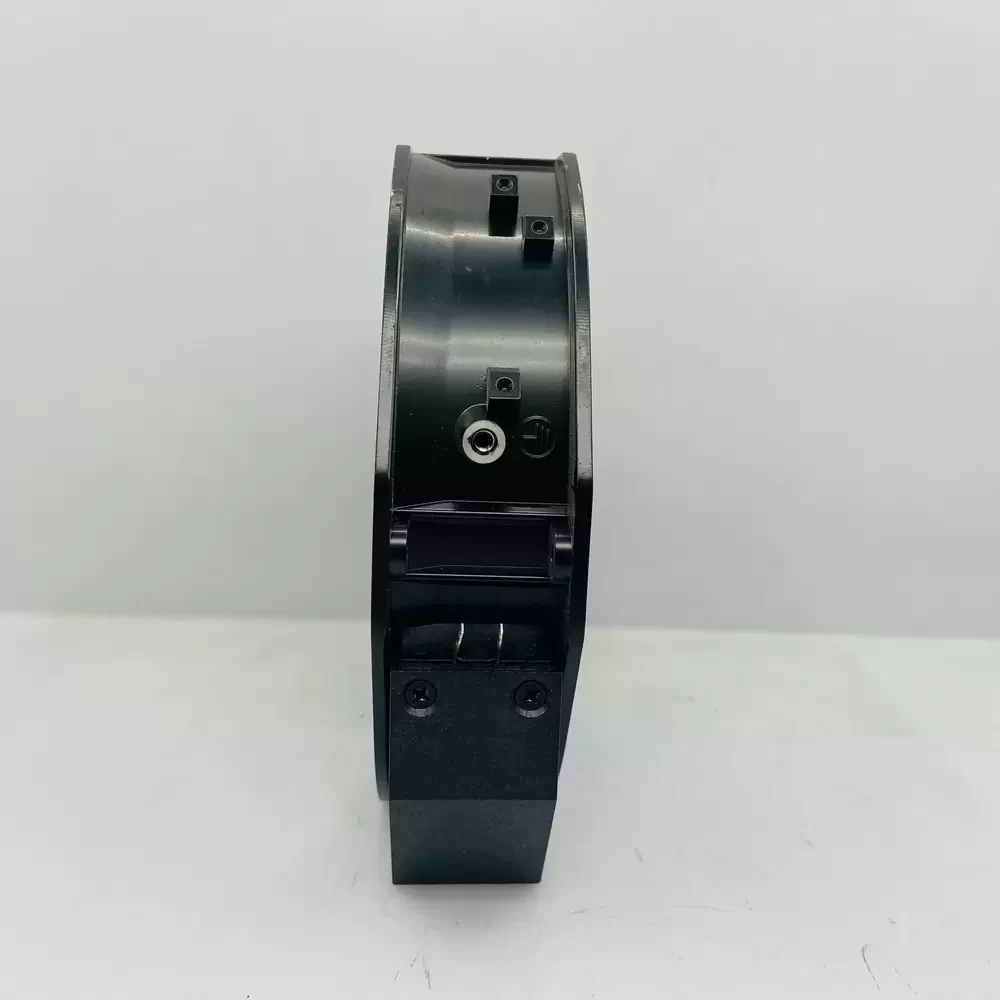

The NMB-MAT 5915PC-23T-B30-A00 is a robust AC Axial Fan engineered for high-reliability industrial thermal management. Utilizing a shaded pole induction motor and precision ball bearing architecture, this unit ensures consistent airflow delivery and reduced mechanical friction over extended operational lifecycles. The 172mm aluminum die-cast housing provides superior structural rigidity and heat dissipation, while the polycarbonate impeller is balanced for aerodynamic efficiency. Designed with impedance protection to prevent motor burnout, the 5915PC-23T-B30-A00 maintains optimal thermal impedance in demanding environments, making it a staple for critical cooling applications requiring durability and stable static pressure performance.
Model Number: 5915PC-23T-B30-A00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Input Power: 35 / 35 W
Rated Current: 0.18 / 0.16 A
Rated Speed: 2700 / 3200 RPM
Max. Air Flow: 176.0 / 212.0 CFM (5.0 / 6.0 m³/min)
Max. Static Pressure: 137.0 / 157.0 Pa (0.55 / 0.63 inH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 172mm x 150mm x 38mm
Weight: 800 g
Termination: 2-Terminal (Faston #110)
Housing Material: Aluminum Die-Cast
Impeller Material: Polycarbonate (Black, UL94V-0)
Noise Level: 52 / 56 dB(A)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Motor Protection: Impedance Protection
Insulation Resistance: 10M Ω or over with a DC500V Megger
Dielectric Strength: AC 1800V 3s
Life Expectancy: 50,000 Hours (25°C)
Mounting Orientation: Any
This high-performance cooling solution is specifically calibrated for installation in industrial control cabinets, server racks, and power supply units where heat dissipation is critical. The 5915PC-23T-B30-A00 excels in factory automation environments, providing necessary airflow for CNC machinery and variable frequency drives. Additionally, the 5915PC-23T-B30-A00 is frequently utilized in telecommunications enclosures and medical instrumentation, ensuring sensitive electronics operate within safe thermal limits despite continuous duty cycles.
