Description

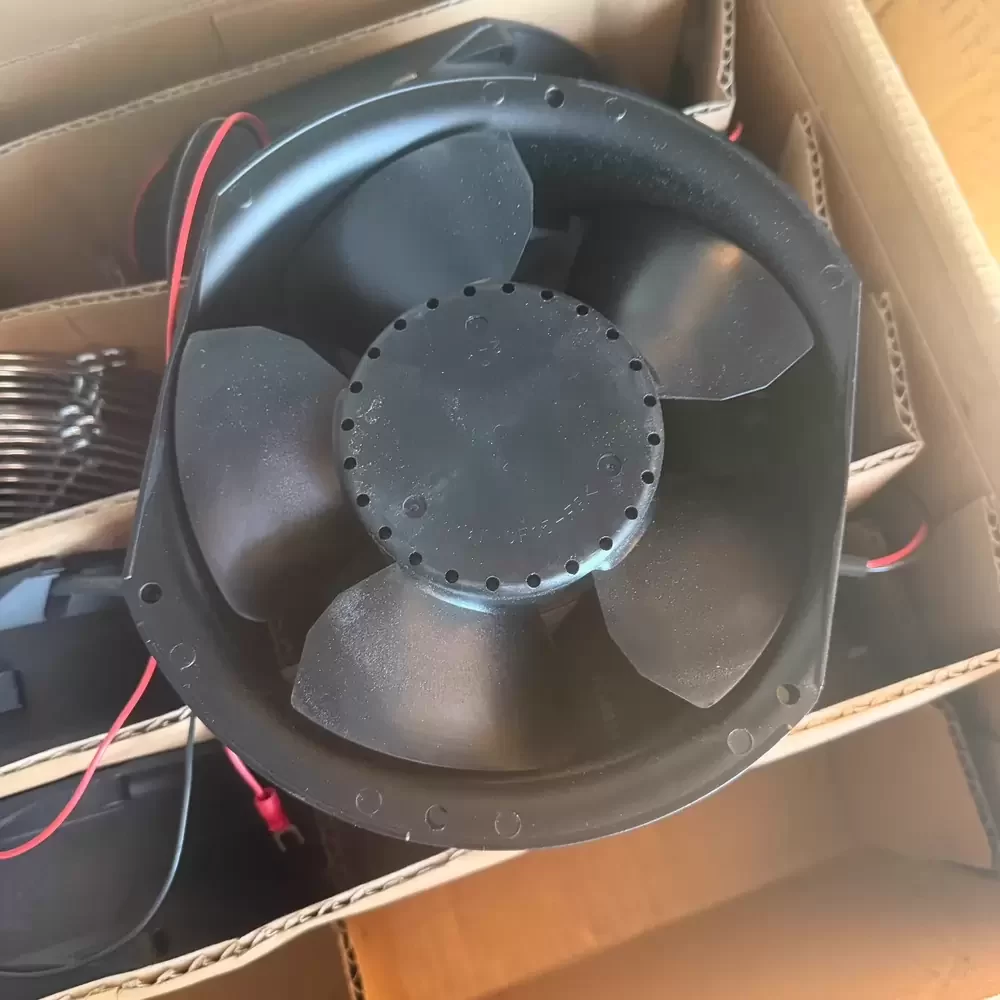

The NMB-MAT 5920PL-05W-B70-D00 is a high-performance DC Axial Fan engineered for rigorous industrial environments requiring superior thermal management and structural rigidity. Utilizing MinebeaMitsumi’s advanced dual ball bearing architecture, this unit is designed to minimize frictional coefficients and ensure extended operational longevity under continuous high-load conditions. The aerodynamic impeller geometry is optimized to deliver high-volume airflow while maintaining static pressure stability, effectively reducing thermal impedance within dense electronic enclosures. Housed in a robust aluminum die-cast frame, the 5920PL-05W-B70-D00 offers exceptional durability and vibration resistance, making it a critical component for systems where reliability and efficient heat dissipation are paramount.
Model Number: 5920PL-05W-B70-D00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 12.0 – 27.6 VDC
Rated Current: 1.25 A
Power Input: 30.0 W
Rated Speed: 3350 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 265 CFM (7.5 m³/min)
Max. Static Pressure: 18.5 mmH₂O (181 Pa / 0.73 inH₂O)
Dimensions: 172mm x 150mm x 51mm
Weight: 850 g
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 63.0 dB(A)
Frame Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-0)
Ingress Protection: IP20 (Standard)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 3-Wire Lead (Red +, Black -, White Sensor)
Sensor Type: Tachometer / Locked Rotor Signal (D00)
Safety Certifications: UL, CSA, TUV, CE
Mounting Orientation: Any
Designed for mission-critical applications, the 5920PL-05W-B70-D00 is widely deployed in high-density server racks, telecommunications infrastructure, and industrial automation cabinets where sustained cooling is essential. Its high-static pressure capabilities make it particularly effective for forcing air through restrictive filters and heat sinks in CNC machinery and medical instrumentation. The 5920PL-05W-B70-D00 ensures optimal operating temperatures for sensitive power electronics and rectifiers, preventing thermal throttling and extending the lifespan of integrated hardware components.
