Description

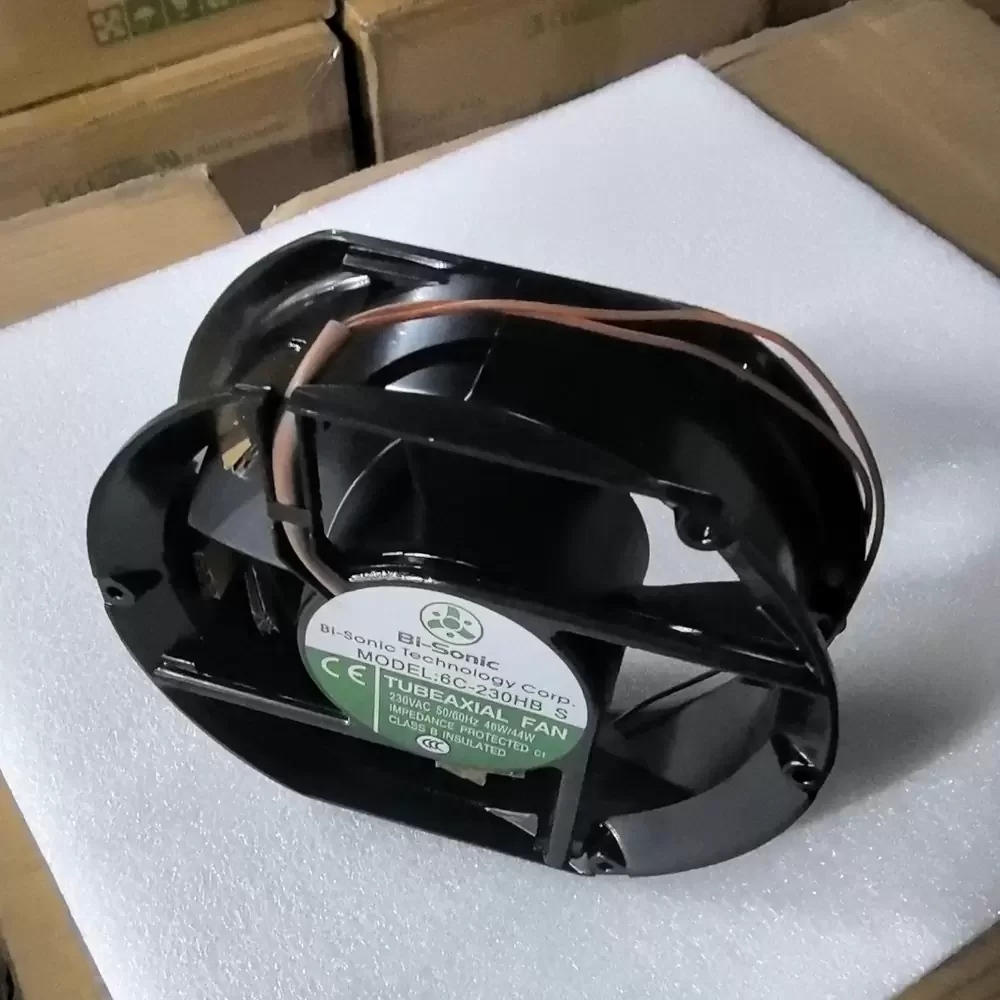

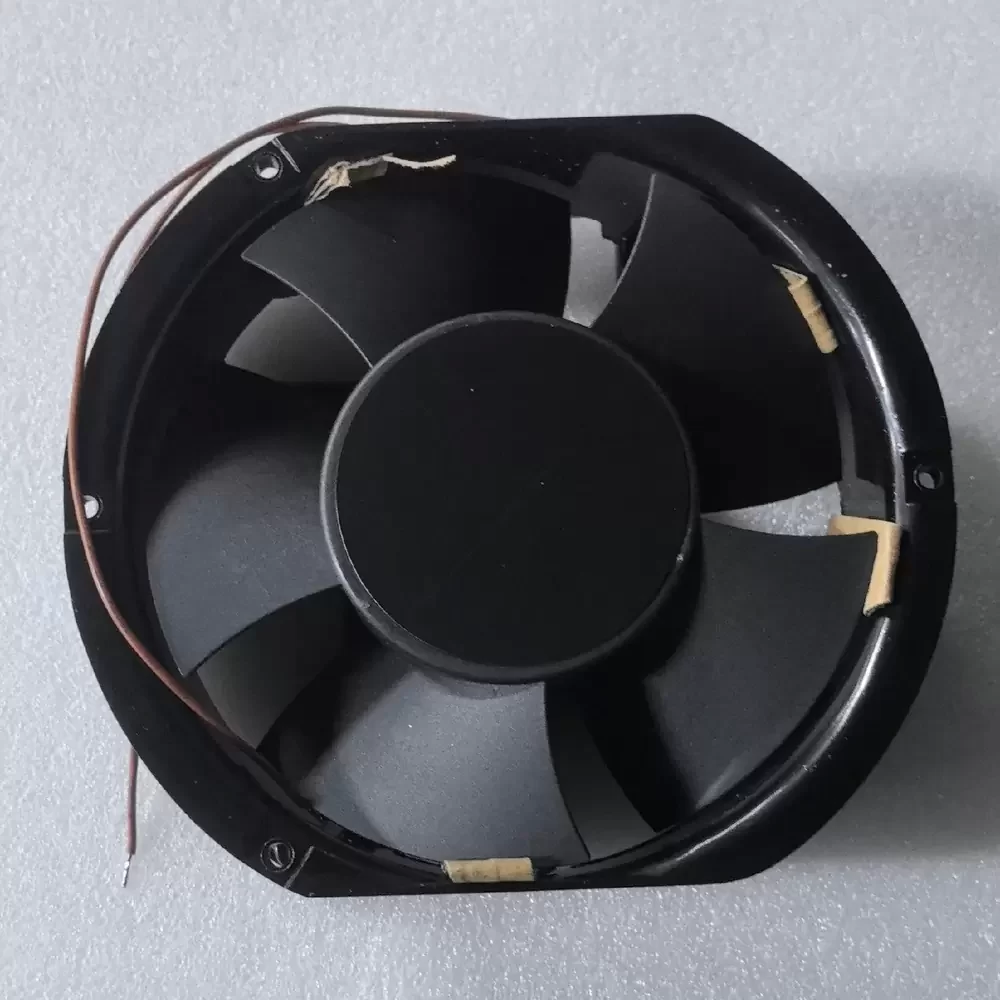

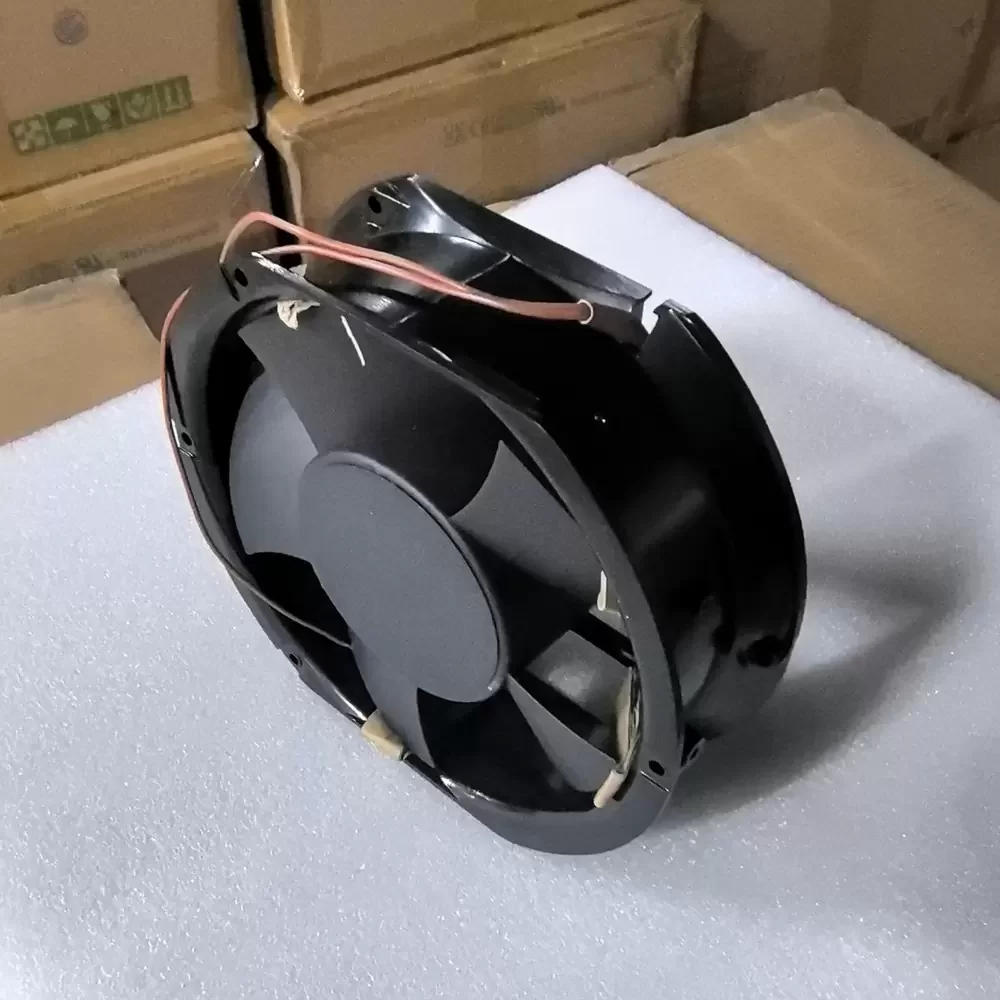

The Bi-Sonic 6C-230HB S is a robust AC Axial Fan engineered for high-demand industrial thermal management. Utilizing a durable Ball Bearing system, this unit ensures longevity and consistent performance under continuous operation. The 172mm frame houses an aerodynamically optimized impeller designed to maximize static pressure while maintaining efficient airflow dynamics. Operating at 230VAC, the motor features Class B insulation, providing superior thermal resistance and electrical safety. The die-cast aluminum housing offers exceptional structural rigidity and heat dissipation properties, making it ideal for harsh environments requiring reliable cooling solutions with low thermal impedance.
Model Number: 6C-230HB S
Brand: Bi-Sonic
Product Type: AC Axial Fan
Rated Voltage: 230VAC
Frequency: 50/60 Hz
Input Power: 46W / 44W
Rated Speed: 2800 / 3100 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 210 CFM / 240 CFM
Max. Static Pressure: 0.65 inH₂O / 0.79 inH₂O
Dimensions: 172mm x 150mm x 51mm
Frame Material: Die-Cast Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Insulation Class: Class B
Noise Level: 55 dBA
Operating Temperature: -10°C to +70°C
Termination: Lead Wires / Terminals
Life Expectancy: 50,000 Hours at 25°C
Designed for versatility, the 6C-230HB S excels in industrial cabinet cooling and server rack ventilation. Its robust construction makes the 6C-230HB S suitable for power supply units, welding machines, and instrumentation panels where consistent airflow is critical for component longevity and system stability.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
