Description

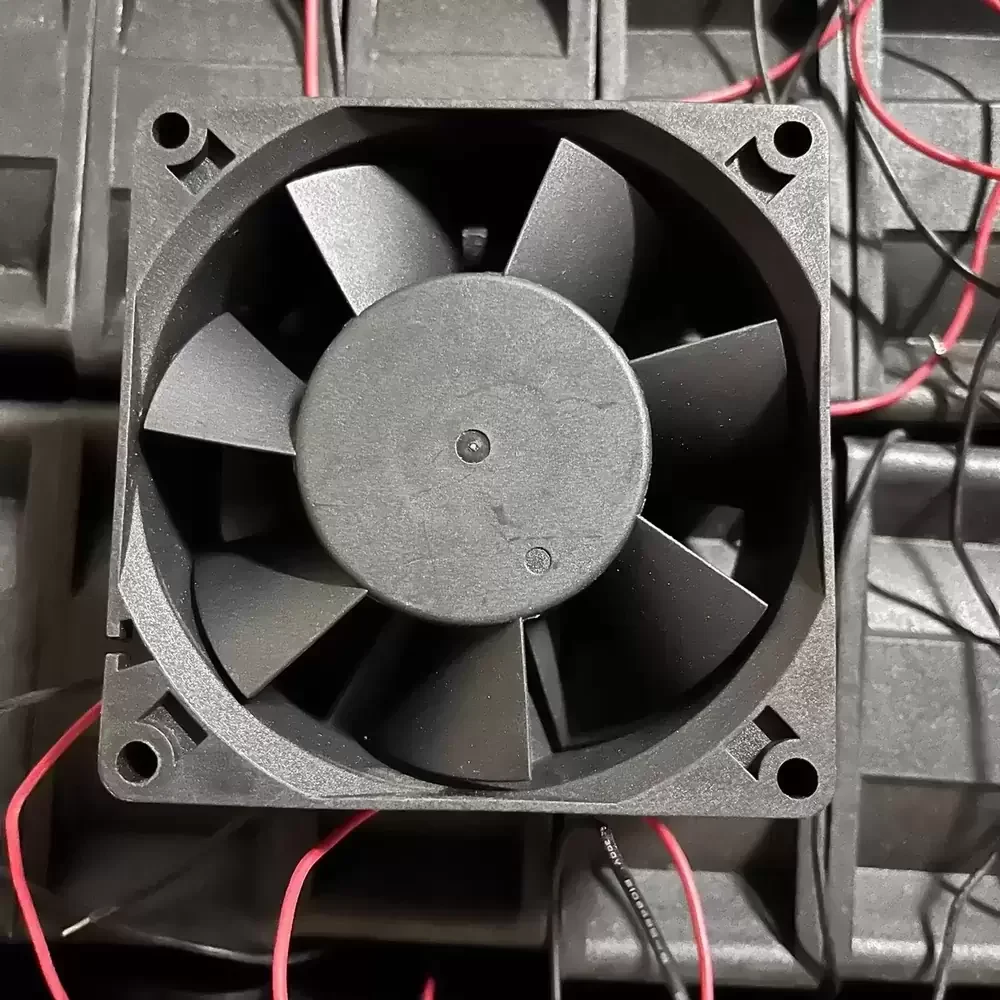

The T&T 8038HH24B-PD1 is a high-performance Axial Fan engineered for demanding industrial cooling applications requiring elevated static pressure capabilities. This unit features a robust DC motor architecture integrated with a precision Dual Ball Bearing system, ensuring reduced friction and extended operational longevity under continuous load. The 38mm frame depth allows for an optimized impeller geometry, significantly enhancing aerodynamic efficiency and thermal impedance management. Designed with structural rigidity in mind, the housing withstands vibration and thermal stress, making it an ideal solution for high-density electronic enclosures where airflow resistance is a critical factor.
Model Number: 8038HH24B-PD1
Brand: T&T
Product Type: DC Axial Fan
Rated Voltage: 24V DC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.60 A
Power Consumption: 14.4 W
Rated Speed: 5700 RPM (Nominal)
Bearing Type: Dual Ball Bearing
Max. Air Flow: 84.1 CFM (142.8 m³/h / 2.38 m³/min)
Max. Static Pressure: 16.5 mmH₂O (161.8 Pa / 0.65 inH₂O)
Dimensions: 80 x 80 x 38 mm
Weight: 175 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 48.5 dB(A)
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Motor Protection: Locked Rotor Protection, Polarity Protection
Mounting Orientation: Any
The T&T 8038HH24B-PD1 is specifically calibrated for environments where component density restricts natural convection, such as in 2U server racks and telecommunications switching equipment. Engineers frequently deploy the 8038HH24B-PD1 in industrial automation control panels and power supply units where consistent forced air cooling is mandatory to prevent thermal throttling. Its high static pressure profile also makes it suitable for heat exchanger systems and medical instrumentation requiring reliable thermal dissipation.
