Description

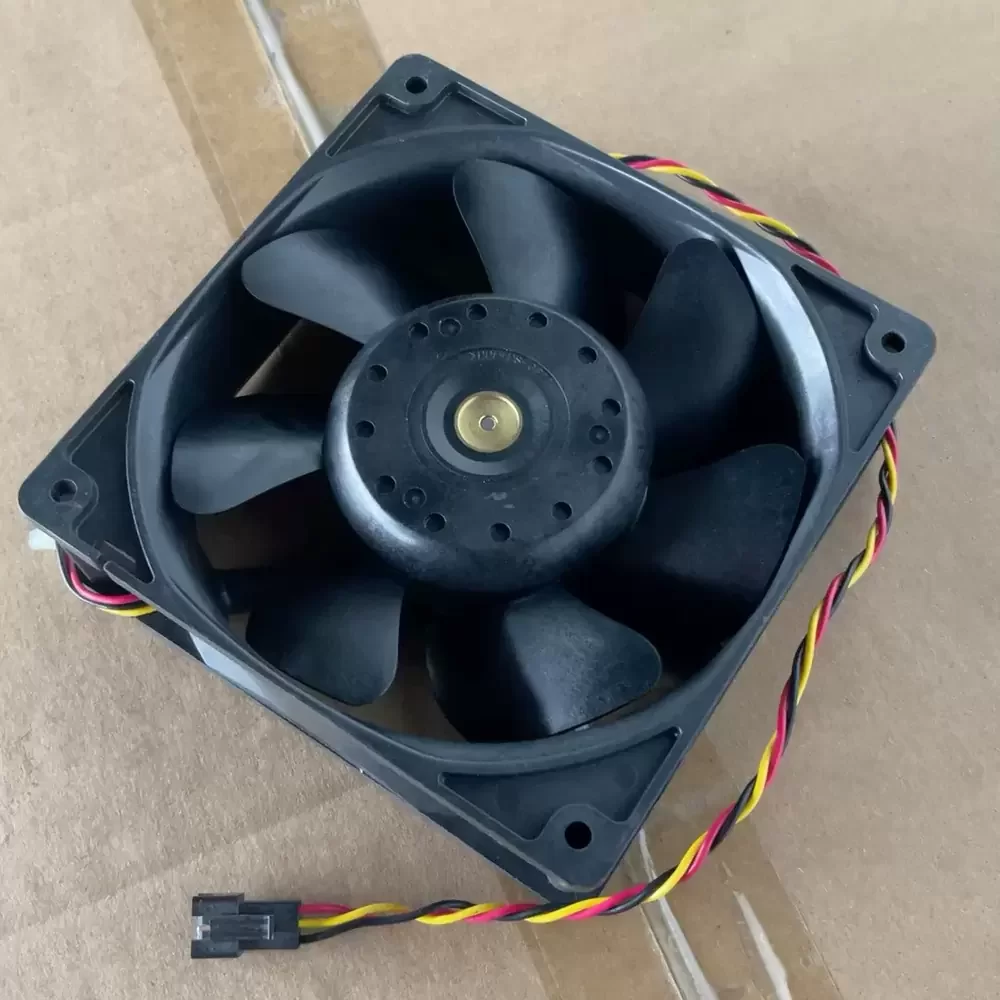

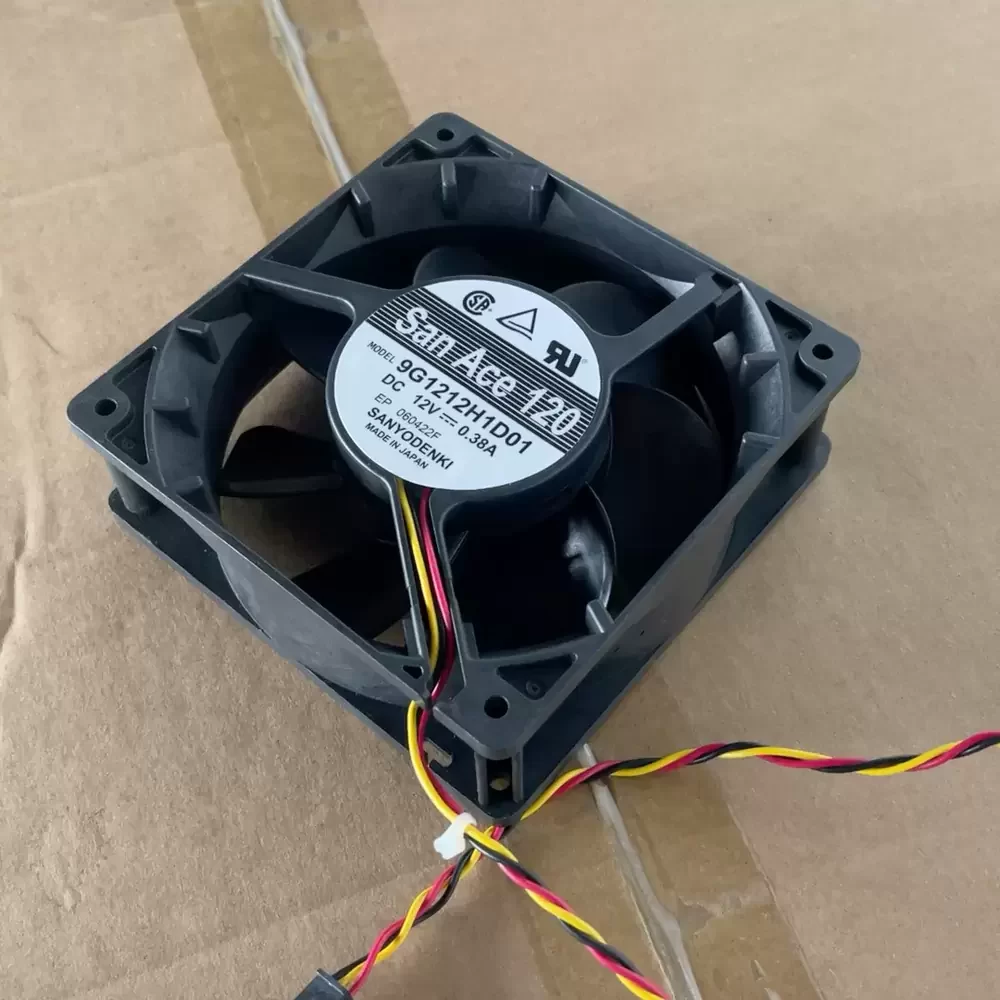

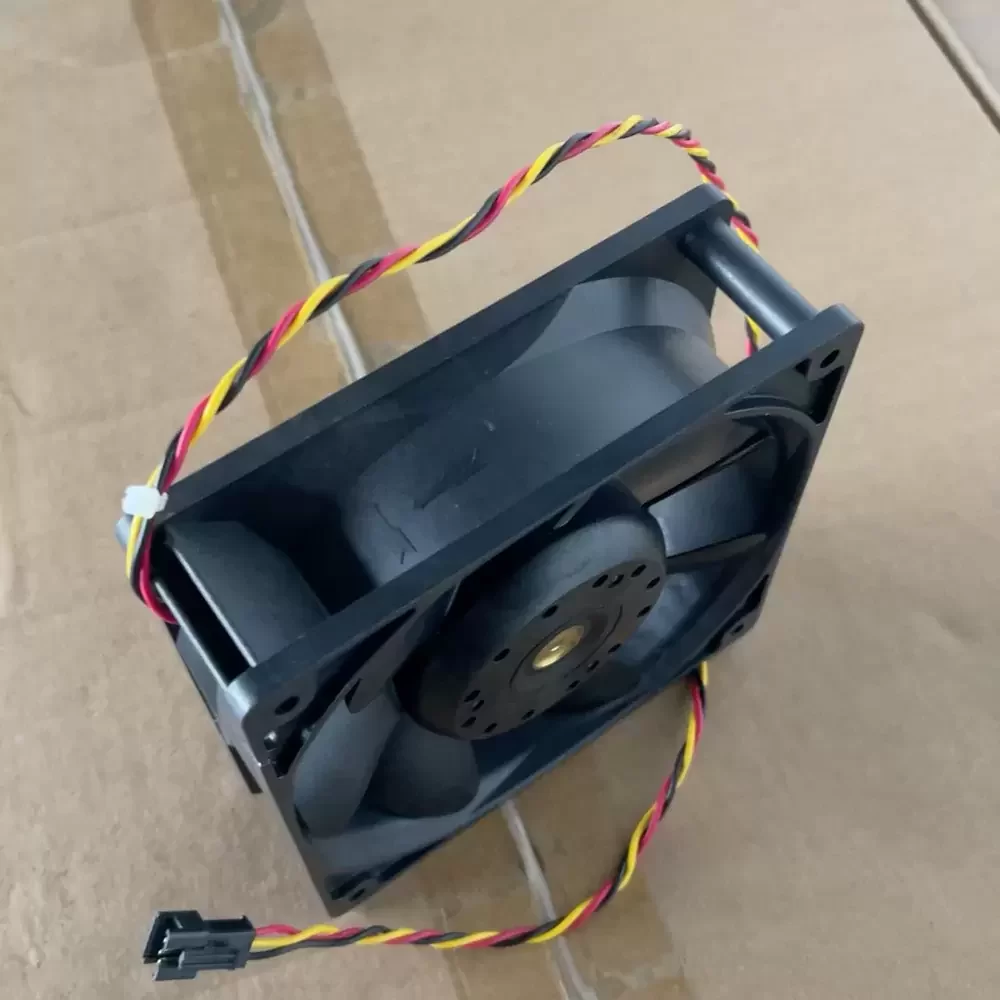

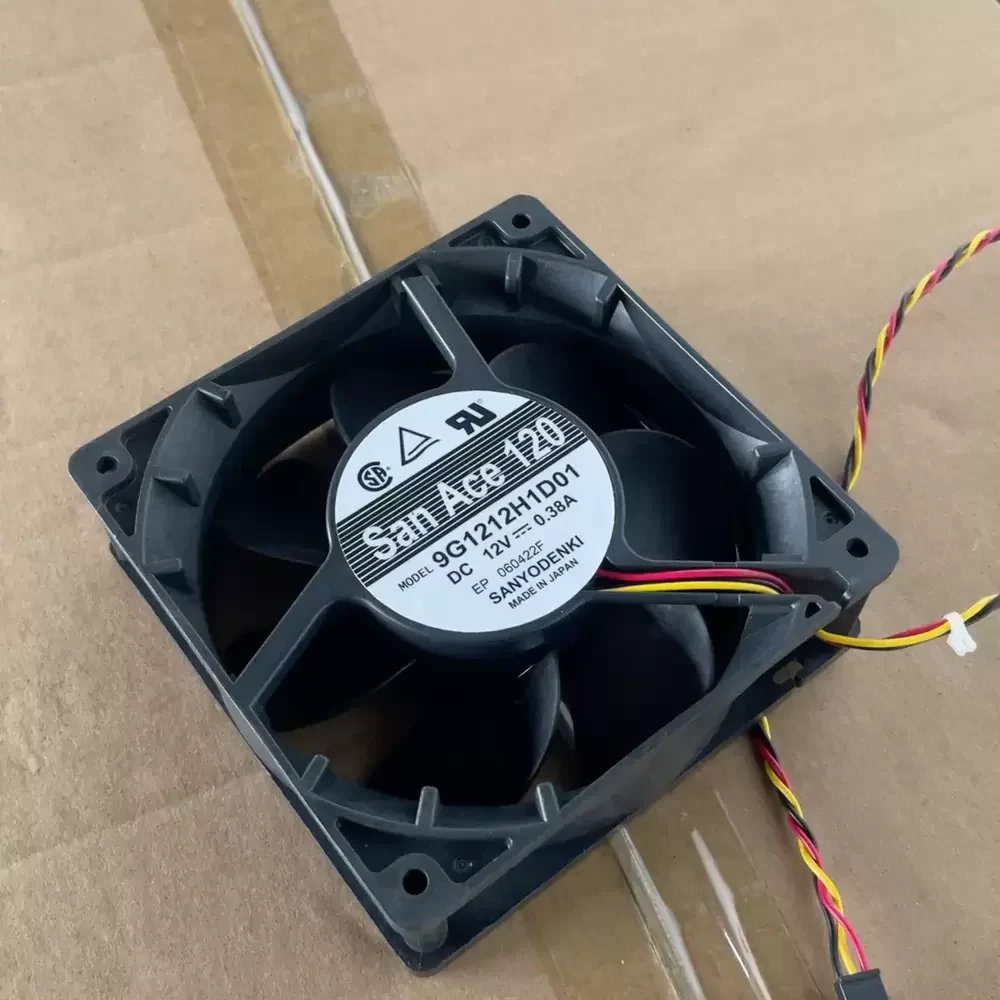

The Sanyo Denki 9G1212H1D01 is a robust DC Axial Fan engineered for critical industrial thermal management and high-reliability cooling applications. Part of the distinguished San Ace 120 series, this 12VDC unit features a precision dual ball bearing architecture that ensures exceptional rotational stability, reduced friction, and extended service life under continuous operation. The fan utilizes an aerodynamically optimized impeller design to deliver a high volume of airflow while maintaining structural rigidity and minimizing acoustic noise. Equipped with a Locked Rotor Sensor (D01), it provides essential feedback signals for system monitoring, ensuring optimal thermal impedance control in dense electronic enclosures.
Model Number: 9G1212H1D01
Brand: Sanyo Denki
Series: San Ace 120 (9G Type)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.38 A
Power: 4.56 W
Rated Speed: 2600 RPM
Max. Air Flow: 98.8 CFM (2.8 m³/min)
Max. Static Pressure: 6.4 mmH₂O (62.7 Pa / 0.25 inH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 120x120x38mm
Weight: 290 g
Life Expectancy: 40,000 hrs @ 60°C
Termination: 3-Wire (Lead Wire)
Sensor Type: Locked Rotor Sensor
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10 to +70°C
Mounting Orientation: Any
The 9G1212H1D01 is specifically calibrated for demanding industrial environments, making it a primary choice for cooling variable frequency drives (inverters) and heavy-duty power supply units. Its superior airflow-to-pressure ratio allows the 9G1212H1D01 to effectively dissipate heat in industrial computers (IPC) and automation control cabinets, ensuring component stability and preventing thermal throttling in restricted spaces.
