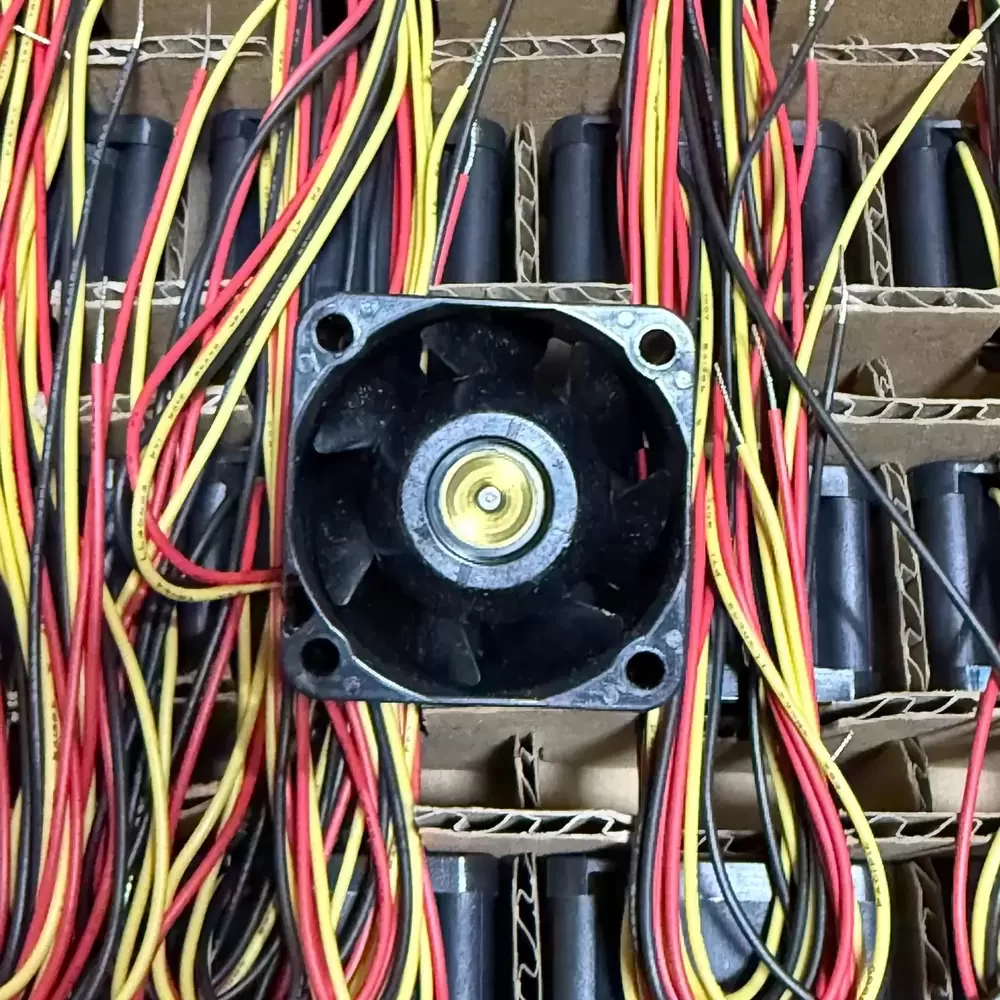

9GV0312G301 Sanyo Denki 12VDC 0.40A 38x38x28mm Axial Fan

Description

Sanyo Denki 9GV0312G301 is a 38 x 38 x 28 mm axial fan operating at 12 VDC with a rated current of 0.40 A and a maximum airflow of 17.3 CFM. The unit features a dual ball bearing system and a plastic frame and impeller rated UL 94V-0 for flame retardancy. It delivers a maximum static pressure of 280 Pa at a rotational speed of 13500 RPM. The electrical interface consists of a 3-wire lead wire system with a pulse sensor for speed monitoring. Internal protection includes locked rotor burnout protection and reverse polarity protection.

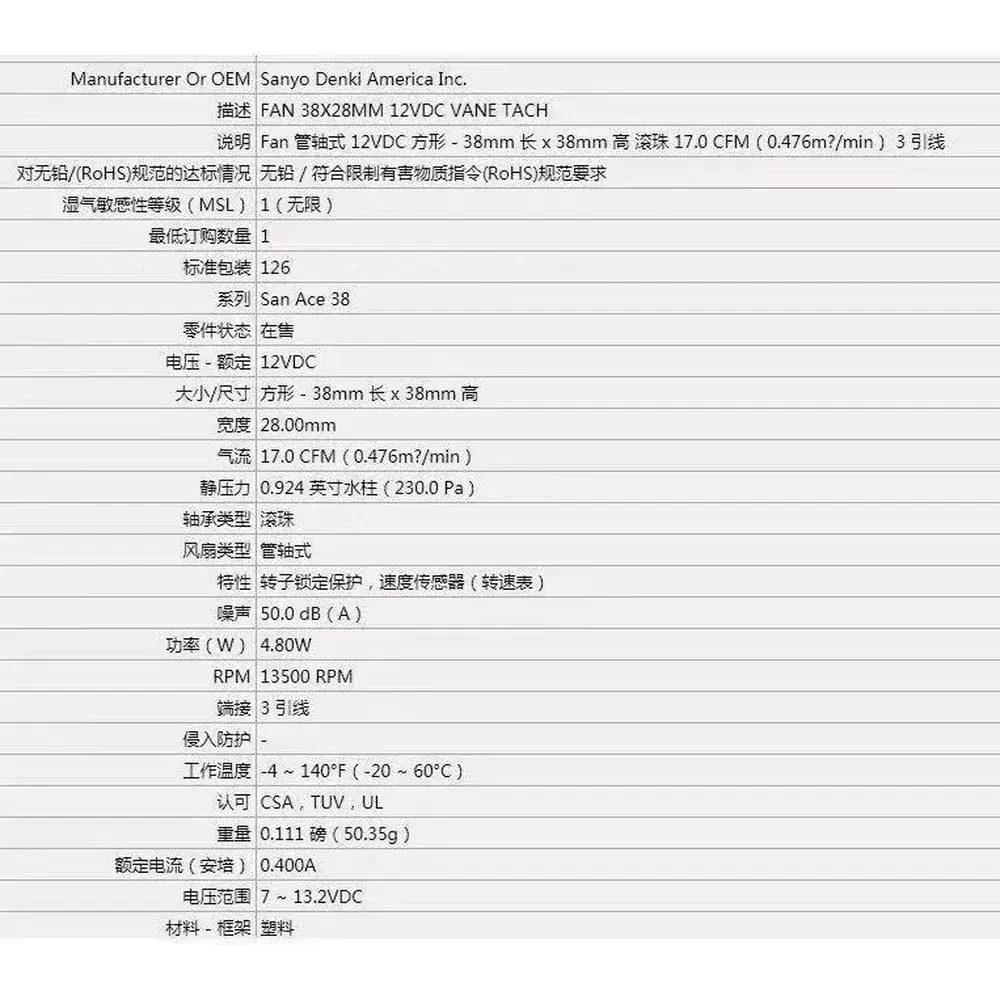

9GV0312G301 Specifications
Model: 9GV0312G301
Brand: Sanyo Denki
Series: San Ace 38
Frame Size: 38 x 38 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 0.40 A
Rated Input: 4.8 W
Rated Speed: 13500 RPM
Max Airflow: 0.49 m3/min (17.3 CFM)
Max Static Pressure: 280 Pa (1.12 inchH2O)
Sound Pressure Level: 48 dB (A)
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Expected Life: 40000 hours at 60 °C
Bearing Type: Dual Ball Bearing
Sensor Type: Pulse Sensor
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-1)

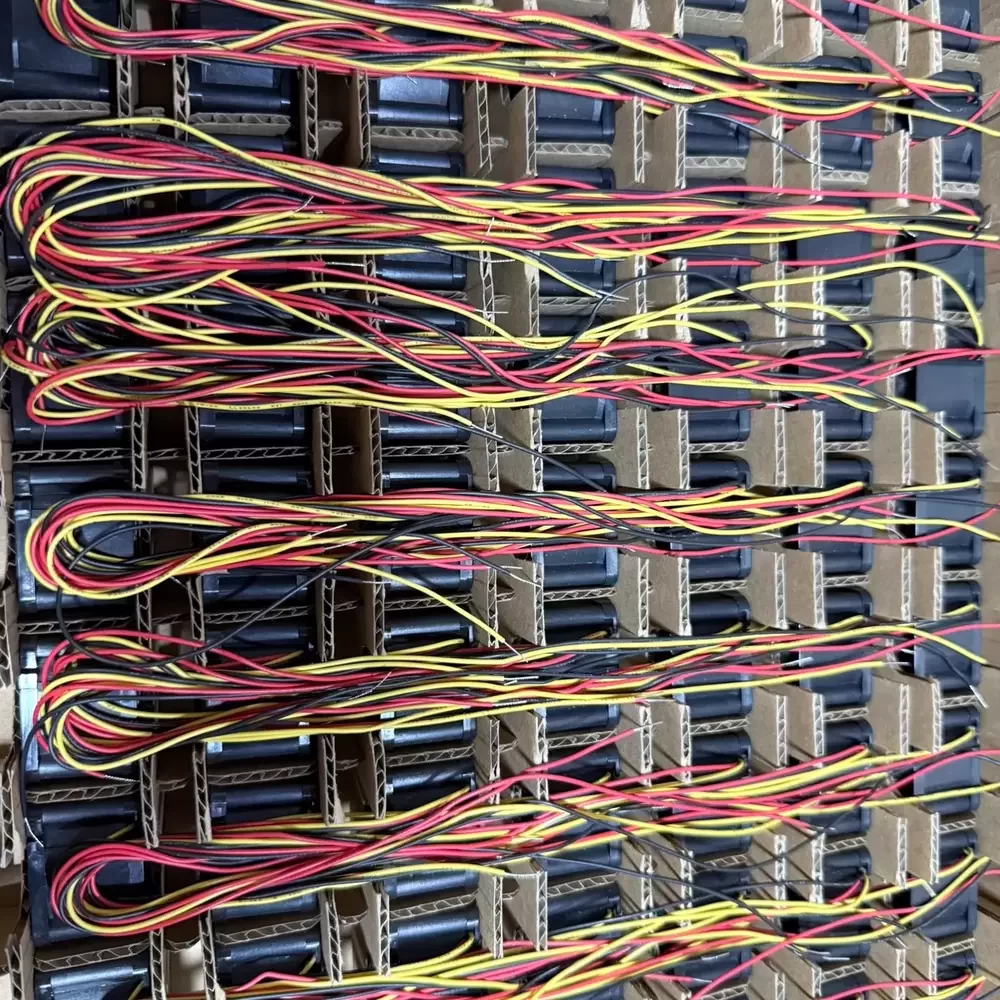

Lead Wire: Red (+), Black (-), Yellow (Sensor)
Mass: 50 g
Dielectric Strength: 50/60 Hz, 500 VAC, for 1 minute
Insulation Resistance: 10 MΩ or more with a 500 VDC megger
Approvals: UL, CSA, TUV, CE, RoHS

9GV0312G301 Applications
Primary applications include integration into 1U server chassis, high-density telecommunications switching equipment, and compact power supply units. Deployed within industrial workstations and network storage arrays requiring high static pressure for localized component cooling.
