Description

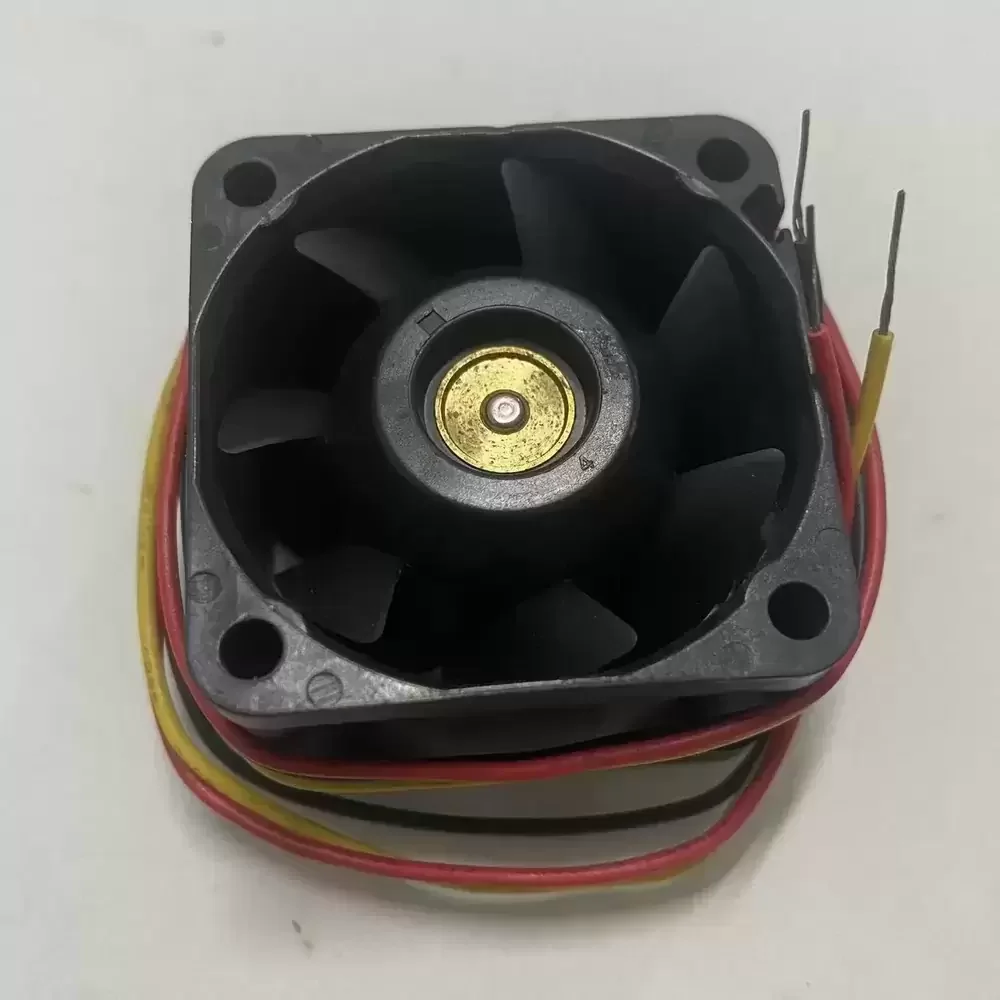

The Sanyo Denki 9GV0412K3D01 is a high-static pressure DC axial fan belonging to the renowned San Ace 40 9GV Guide Vane series. Engineered for environments requiring exceptional aerodynamic performance, this unit utilizes specialized guide vanes integrated into the frame struts to straighten airflow, significantly reducing turbulence and increasing static pressure capabilities compared to standard axial designs. The motor architecture features a robust DC drive system supported by precision dual ball bearings, ensuring structural rigidity and consistent operation under high thermal loads. With a compact 40mm form factor and high-power density, this fan is optimized to overcome high system impedance while maintaining efficient thermal transport.
Model Number: 9GV0412K3D01
Brand: Sanyo Denki
Product Type: DC Axial Fan (Guide Vane Series)
Rated Voltage: 12 VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.84 A
Rated Power: 10.08 W
Rated Speed: 18000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 26.5 CFM (45.0 m³/h / 0.75 m³/min)
Max. Static Pressure: 55.1 mmH₂O (540 Pa / 2.17 inH₂O)
Dimensions: 40 x 40 x 28 mm
Weight: 53 g
Life Expectancy: 40,000 Hours (at 60°C)
Noise Level: 56 dB(A)
Frame Material: Plastics (Flammability: UL94V-0)
Impeller Material: Plastics (Flammability: UL94V-0)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +70°C
Sensor Type: Locked Rotor Sensor (D01)
Protection: Locked Rotor Protection, Reverse Polarity Protection
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
Insulation Resistance: 10 MΩ or more at 500 VDC
Lead Wire: Red (+), Black (-), Yellow (Sensor)
The 9GV0412K3D01 is specifically designed for high-density electronic applications where space is limited but airflow resistance is high. Common deployment scenarios include 1U server racks, telecommunications switching equipment, and compact power supplies where components are tightly packed. The high static pressure generated by the 9GV0412K3D01 ensures that cool air is effectively forced through dense heatsinks and restricted chassis channels, preventing thermal throttling in mission-critical hardware.
