Description

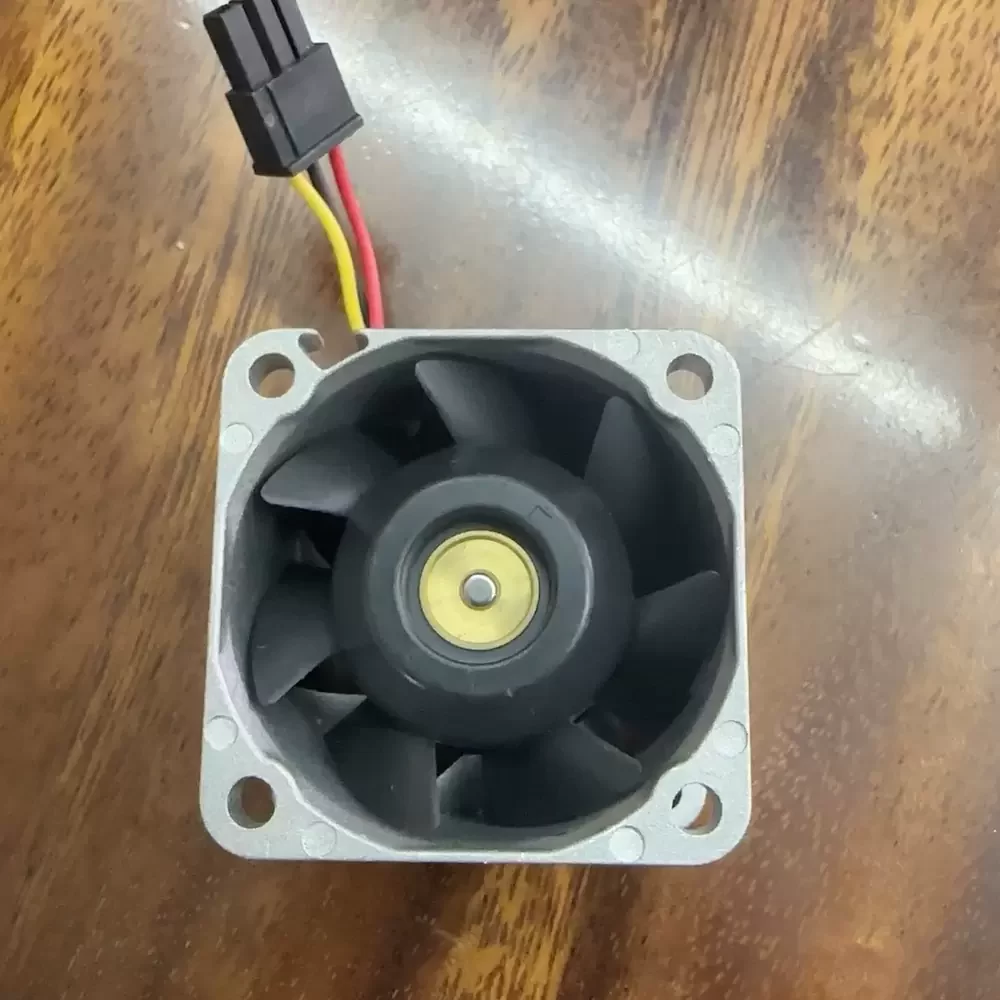

The Sanyo Denki 9L0412H308 is a precision-engineered axial cooling fan designed for environments demanding exceptional structural rigidity and thermal resilience. Featuring a robust aluminum die-cast frame, this unit minimizes vibration-induced noise while acting as a secondary heat sink, enhancing overall thermal impedance management. The motor assembly utilizes a dual ball bearing architecture to ensure operational stability under elevated temperatures and continuous duty cycles. Its aerodynamic impeller design optimizes airflow efficiency relative to its compact footprint, making it a critical component for industrial systems requiring sustained reliability and extended service life in harsh operating conditions.
Model Number: 9L0412H308
Brand: Sanyo Denki (San Ace)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.15 A
Power Consumption: 1.8 W
Rated Speed: 9500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 10.95 CFM (18.6 m³/h / 0.31 m³/min)
Max. Static Pressure: 6.6 mmH₂O (64.7 Pa / 0.26 inH2O)
Dimensions: 40 x 40 x 28 mm

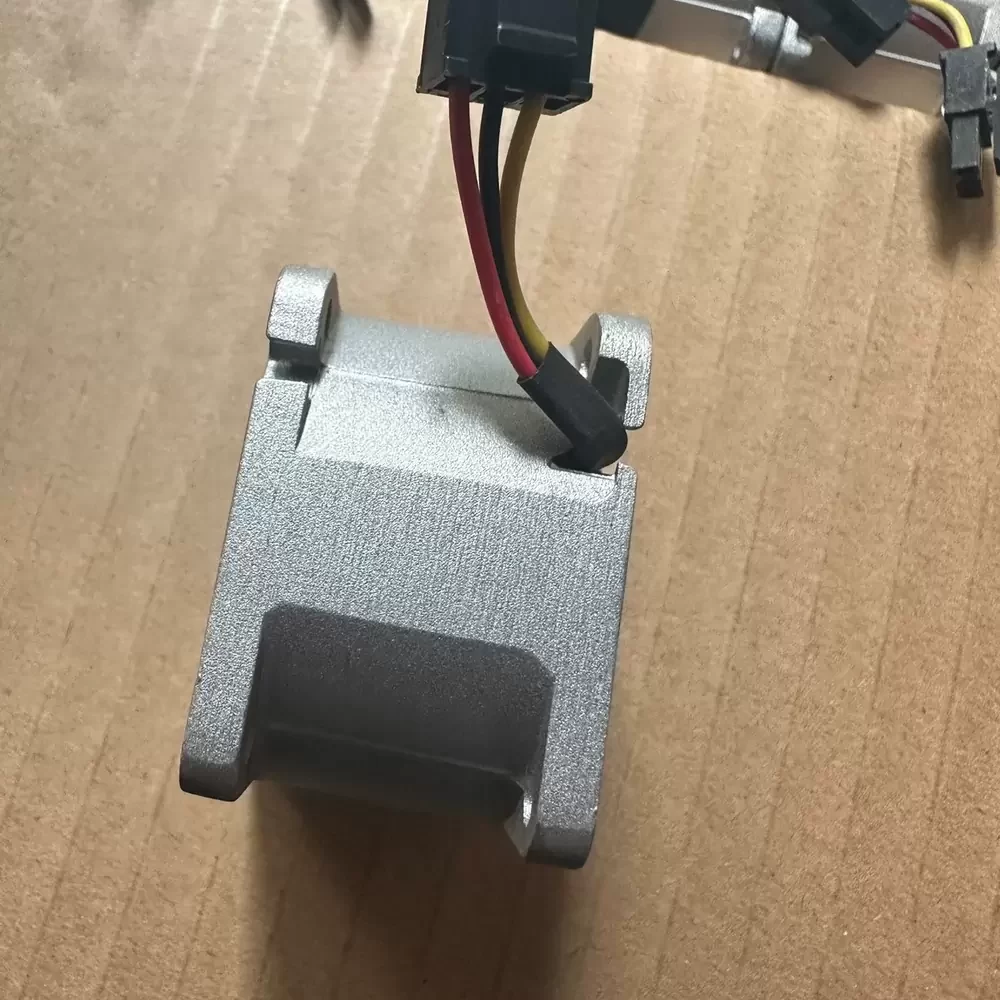

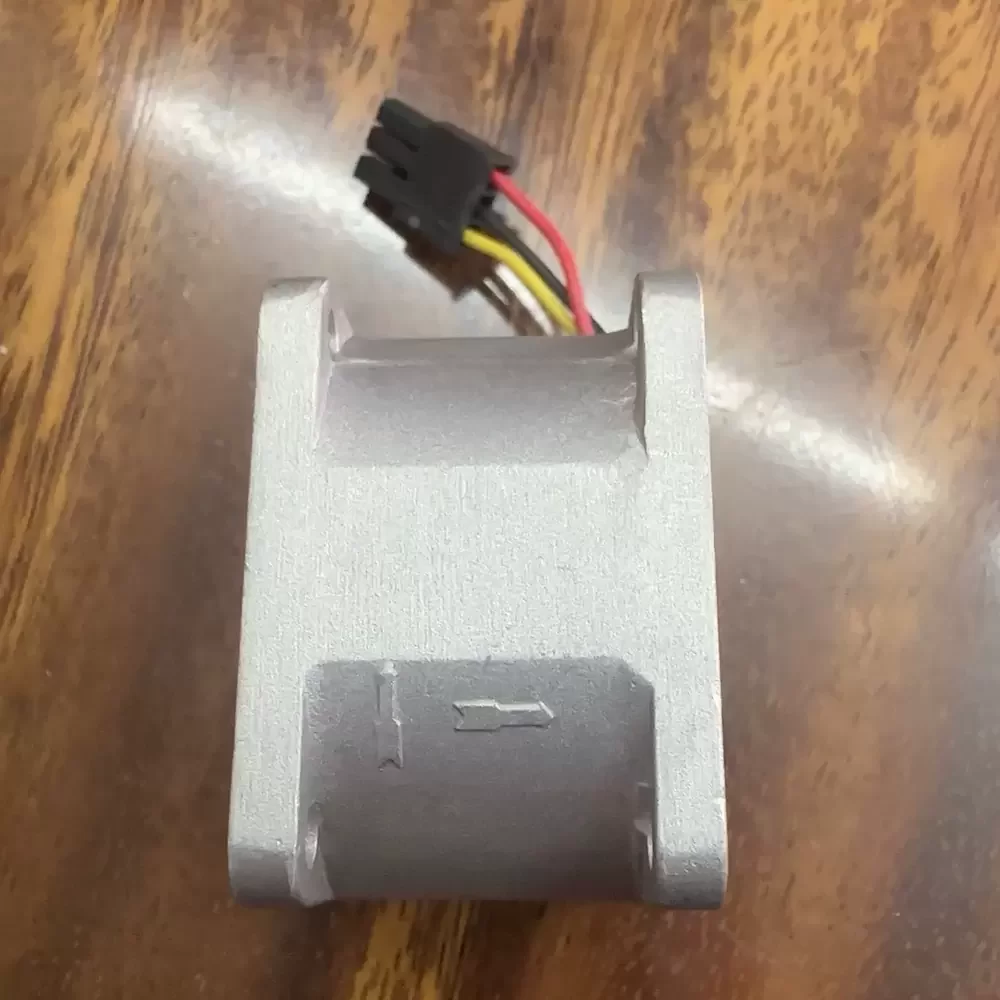

Frame Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-0)
Noise Level: 39 dB(A)
Life Expectancy: 100,000 Hours (at 60°C)
Operating Temperature: -10°C to +70°C
Storage Temperature: -30°C to +70°C
Termination: Lead Wires (Red +, Black -, Yellow Sensor)
Speed Control: Tachometer Output (Optional)
Ingress Protection: IP4X
Insulation Resistance: 10MΩ at 500VDC
Dielectric Strength: 500VAC for 1 minute
Motor Protection: Locked Rotor Protection; Reverse Polarity Protection
Weight: 55 g
This robust cooling solution is specifically engineered for high-density industrial applications where space is constrained but thermal loads are significant. The 9L0412H308 is frequently integrated into 1U server racks, telecommunications power supplies, and compact industrial automation controllers. Its aluminum construction makes the 9L0412H308 particularly suitable for medical instrumentation and optical devices where electromagnetic interference and vibration must be strictly controlled alongside temperature regulation.
