Description

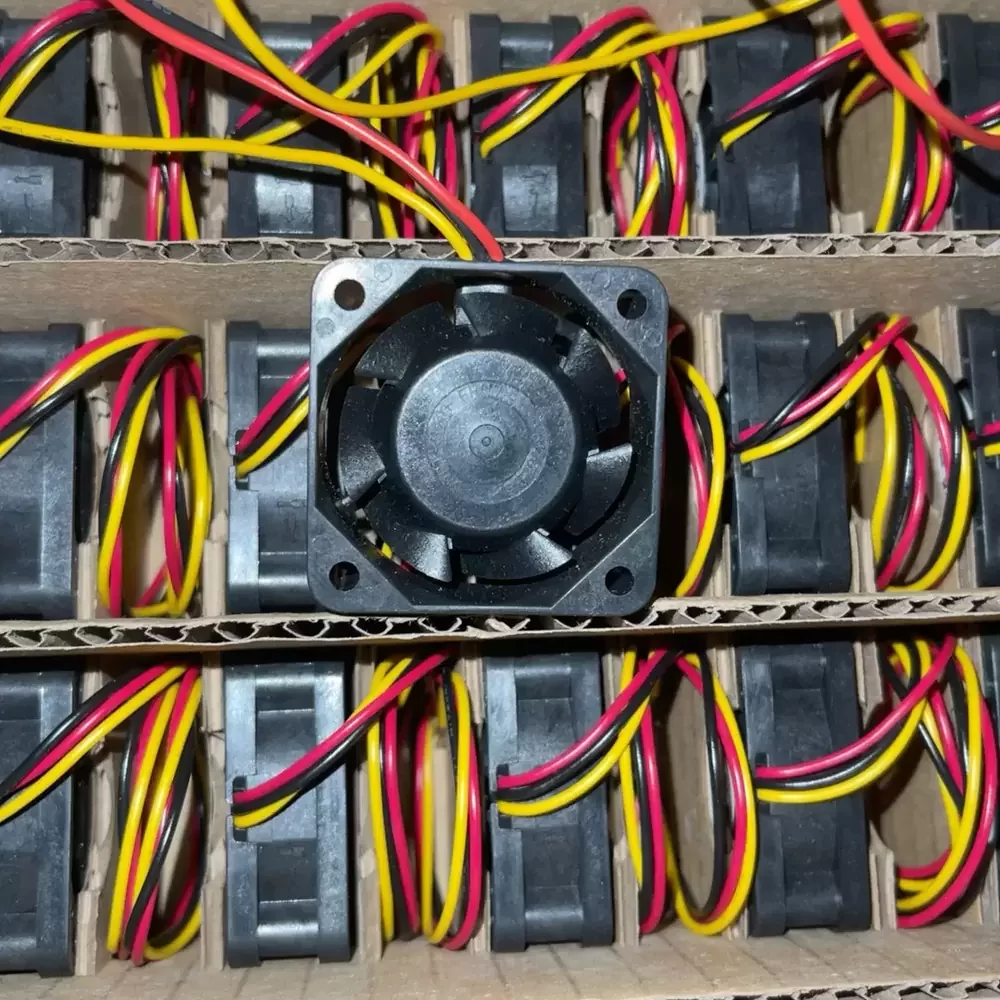

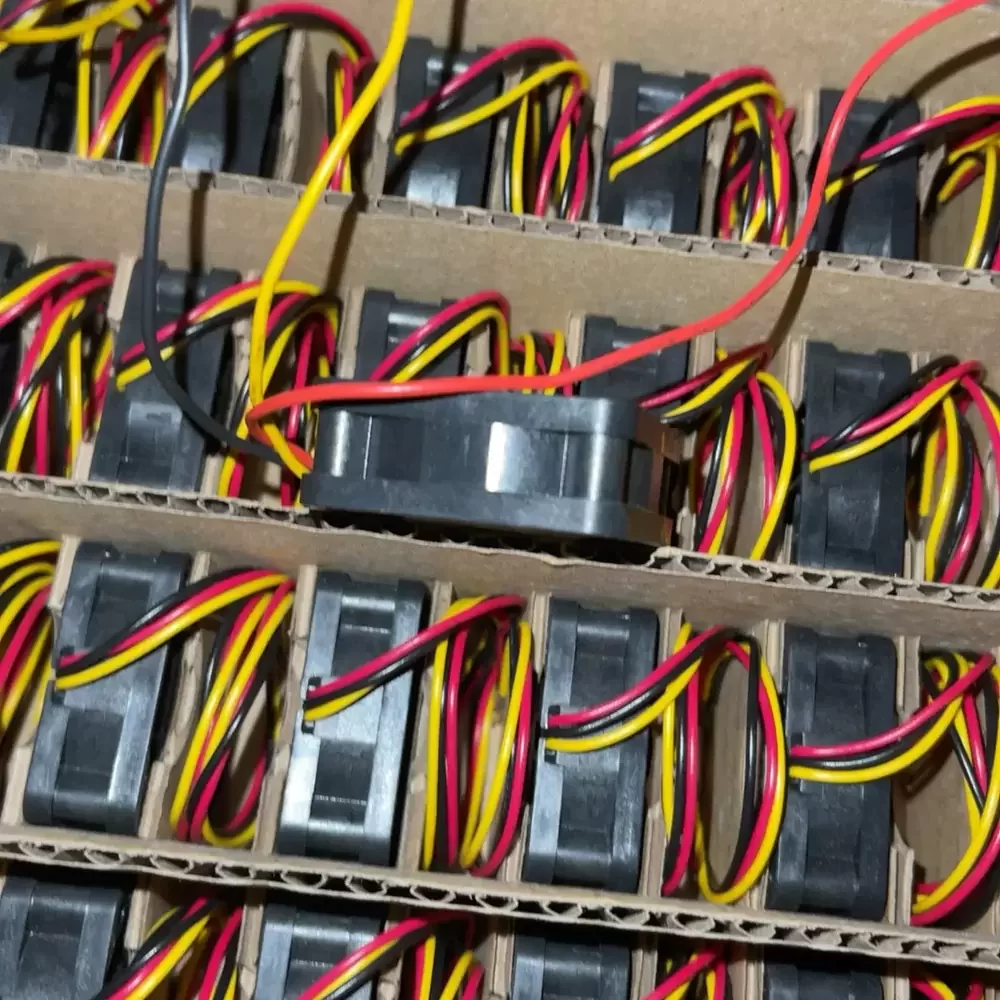

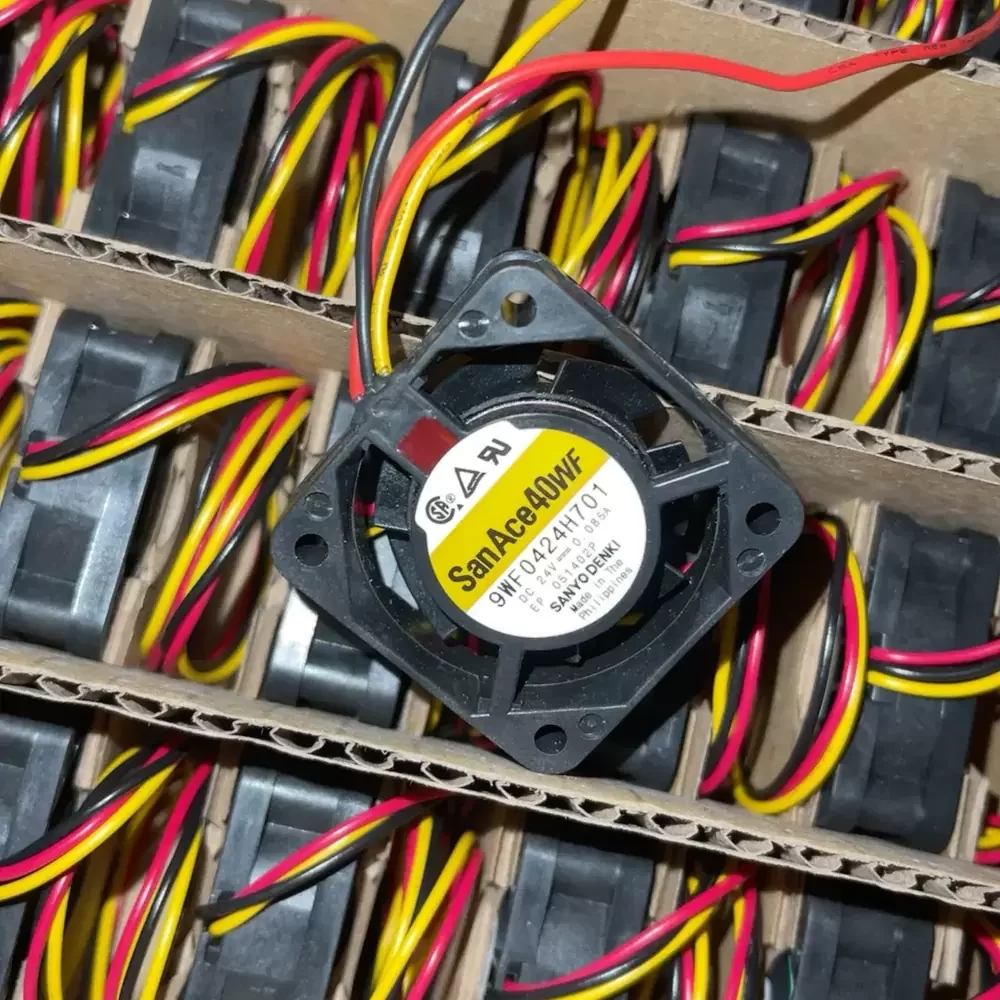

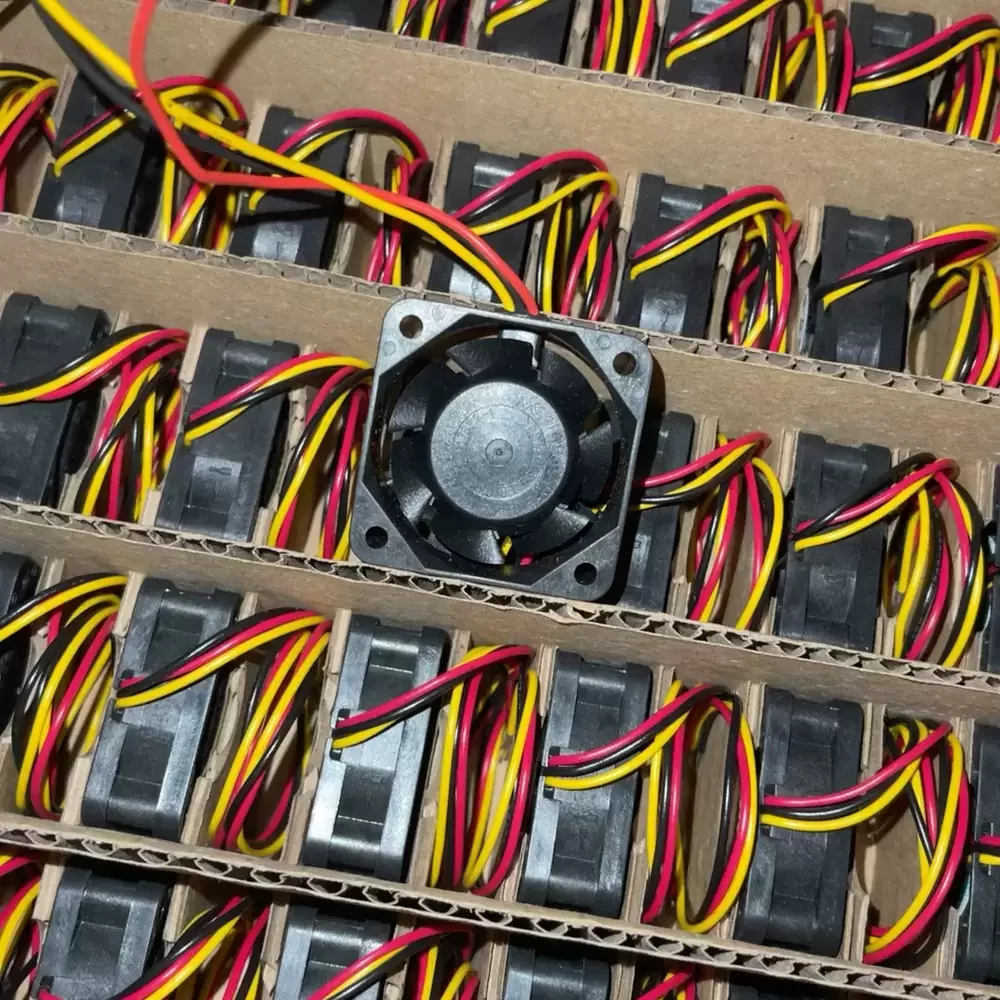

The Sanyo Denki 9WF0424H701 is a precision-engineered DC axial fan from the San Ace 40WF series, designed for harsh industrial environments requiring IP68-rated protection against oil mist, dust, and water. This unit utilizes a robust dual ball bearing system to ensure rotational stability and extended service life under high thermal stress. Featuring an optimized impeller geometry, the fan delivers high static pressure while maintaining a compact 40mm footprint. Its structural rigidity and advanced motor commutation minimize thermal impedance, making it an ideal solution for critical cooling applications where reliability is paramount.
Model Number: 9WF0424H701
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 40WF (Oil Proof)
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.11 A
Input Power: 2.64 W
Rated Speed: 13100 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 9.18 CFM (0.26 m³/min)
Max. Static Pressure: 0.44 inH₂O (110 Pa)
Noise Level: 42 dB(A)
Dimensions: 40x40x20mm
Weight: 50 g
Ingress Protection: IP68 (Dust/Water/Oil Proof)
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -20 to +70°C
Life Expectancy: 40000 Hours (60°C)
Protection: Locked Rotor Protection, Reverse Polarity Protection
Termination: Lead Wires
The 9WF0424H701 is specifically engineered for deployment in rigorous industrial settings where contaminants such as cutting fluids and oil mist are prevalent. Common integration points include CNC machine controllers, industrial inverters, and servo amplifiers requiring consistent thermal management in sealed or semi-exposed enclosures. Additionally, the 9WF0424H701 serves effectively in telecommunications equipment and compact power supply units, ensuring component longevity by preventing heat accumulation in high-density electronic assemblies.
