Description

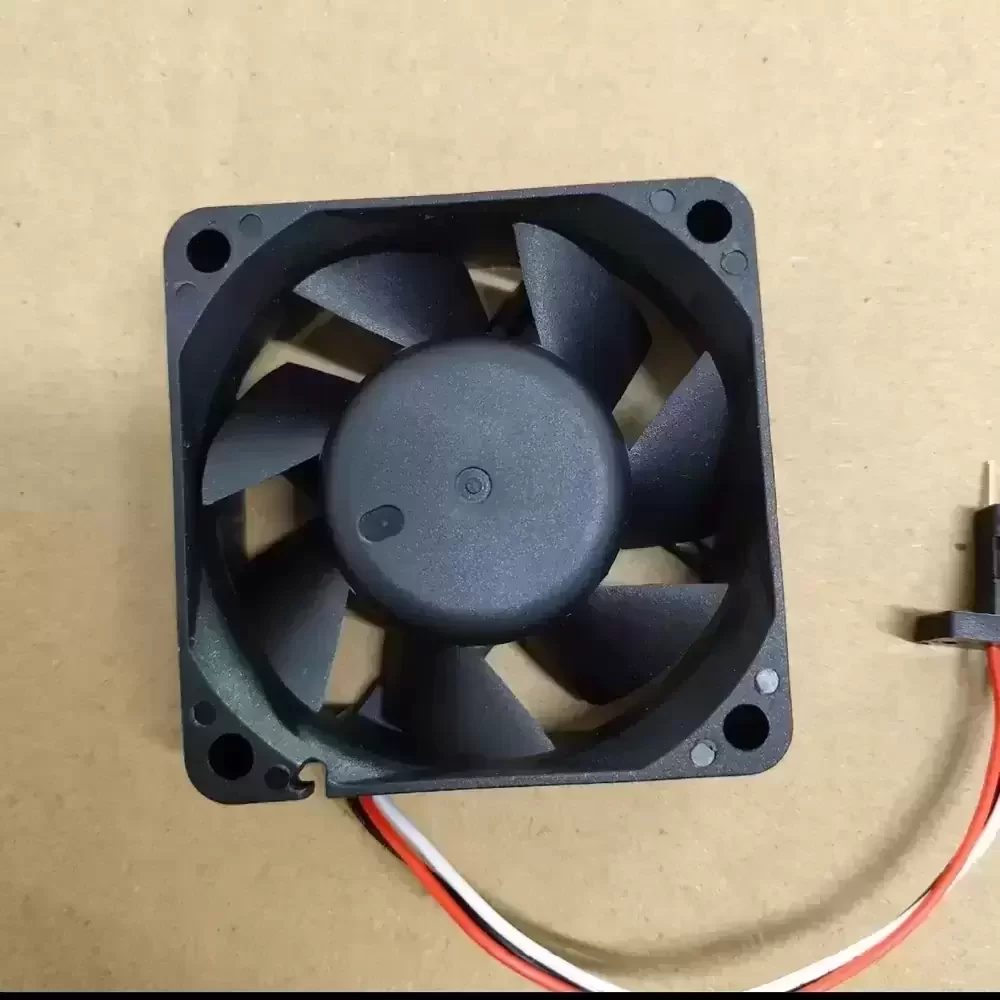

The Sanyo Denki 9WF0624H4D03 is a precision-engineered Oil Proof Axial Fan designed for harsh industrial environments requiring robust ingress protection. Part of the renowned San Ace 60WF series, this unit utilizes a specialized frame and impeller geometry to maintain optimal airflow while mitigating the ingress of oil mist and dust. The motor architecture features a durable ball bearing system that ensures low thermal impedance and extended operational longevity under continuous load. Its structural rigidity is reinforced to withstand vibration, making it an ideal thermal management solution for CNC machinery and servo drive cooling applications where reliability is paramount.
Model Number: 9WF0624H4D03
OEM Equivalent: FANUC A90L-0001-0508
Brand: Sanyo Denki
Product Type: Oil Proof Axial Fan
Series: San Ace 60WF
Rated Voltage: 24VDC
Operating Voltage Range: 20.4 – 27.6 VDC
Rated Current: 0.15 A
Rated Input Power: 3.6 W
Rated Speed: 6500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 23.3 CFM (0.66 m³/min)
Max. Static Pressure: 6.4 mmH₂O (62.7 Pa / 0.25 inH₂O)
Dimensions: 60 x 60 x 25 mm
Termination: 3-Wire with Original Connector
Sensor Type: Pulse Sensor (Tachometer)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Ingress Protection: Oil Proof (Designed for Oil Mist Environments)
Operating Temperature: -10 to +70°C
Life Expectancy: 40,000 Hours (60°C)
Safety Protection: Locked Rotor Protection, Reverse Polarity Protection
Weight: 110 g
This cooling unit is specifically engineered for industrial automation equipment, frequently serving as a direct replacement for the FANUC A90L-0001-0508 in servo amplifiers and spindle drives. The 9WF0624H4D03 excels in CNC machining centers where oil mist is prevalent, protecting internal electronics from thermal saturation. Additionally, the 9WF0624H4D03 is utilized in robotics controllers, power supplies, and compact industrial cabinets requiring reliable heat dissipation in contaminated environments.
