Description

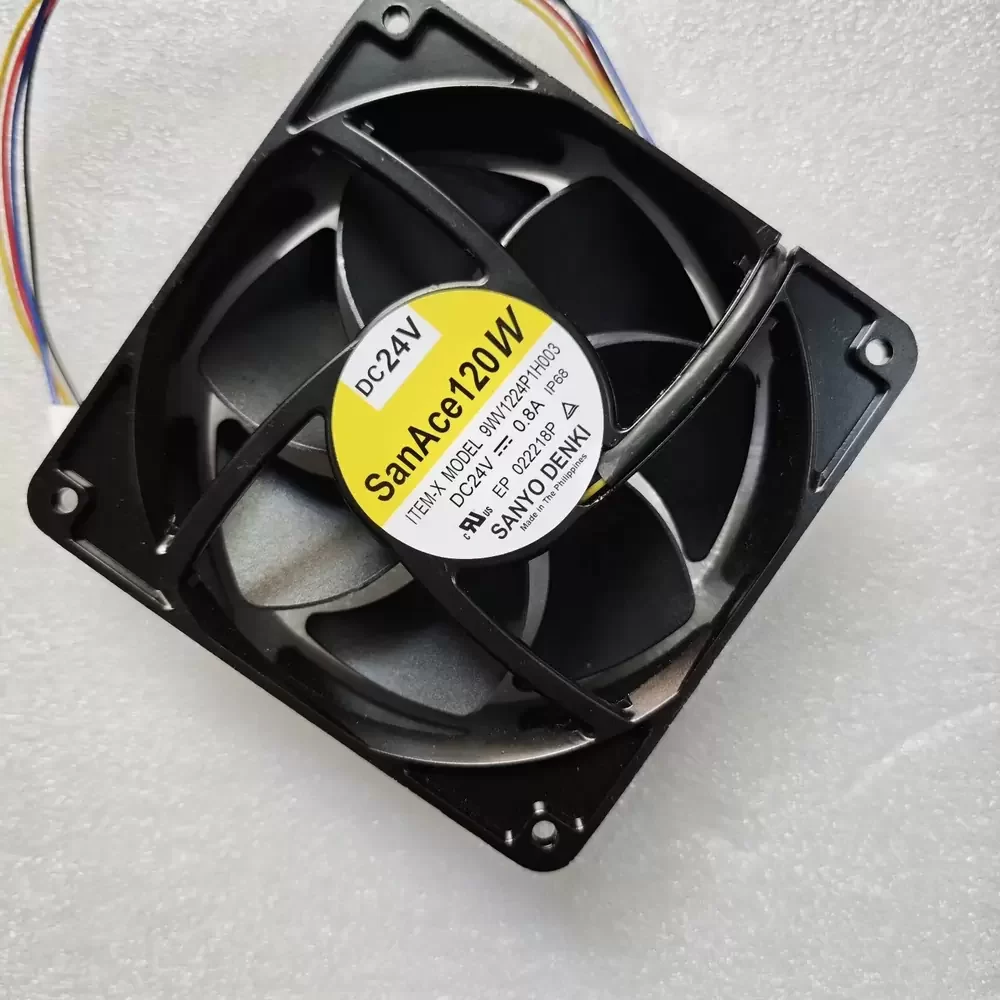

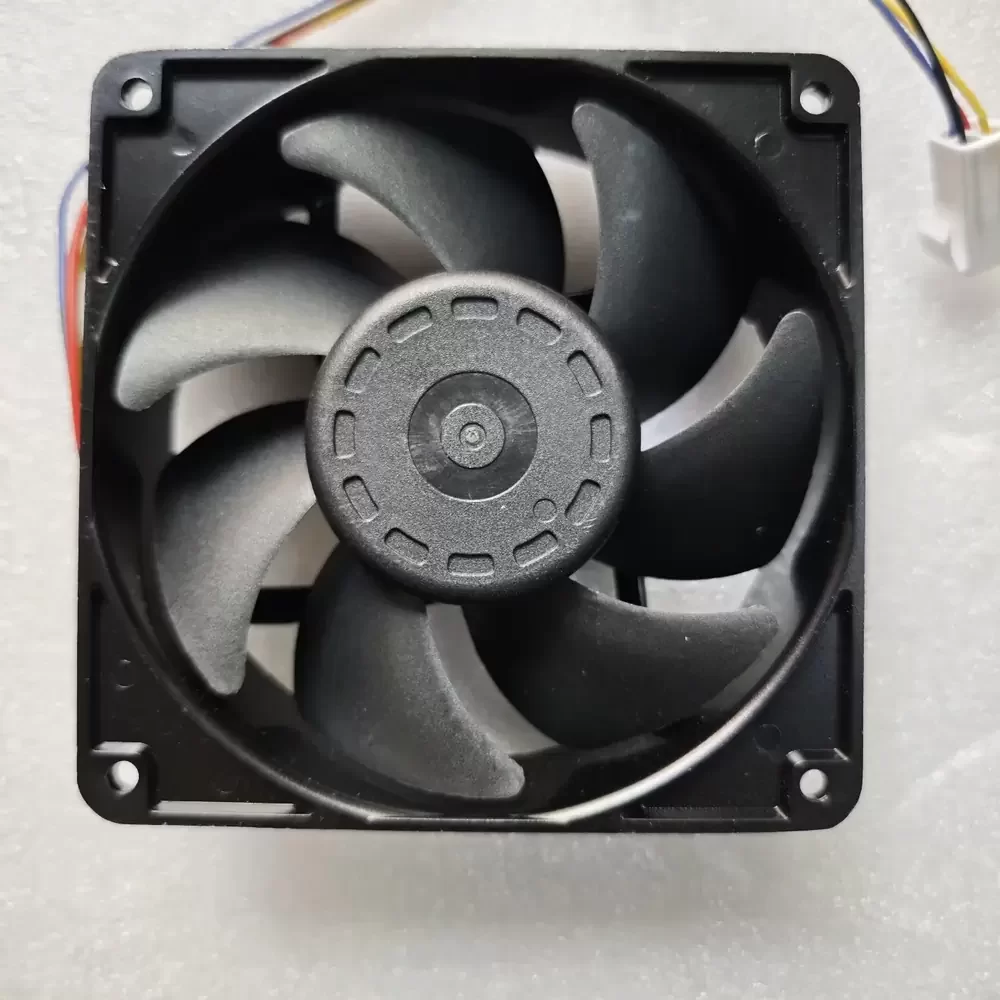

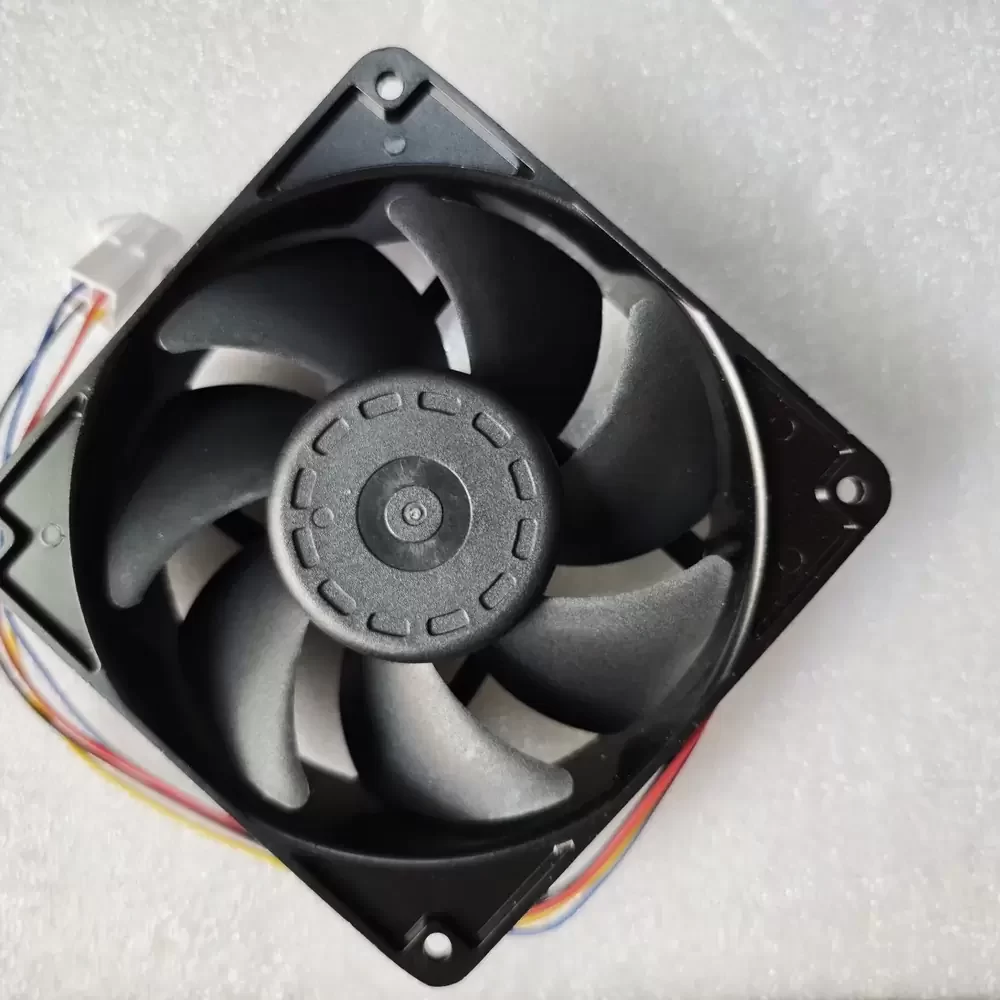

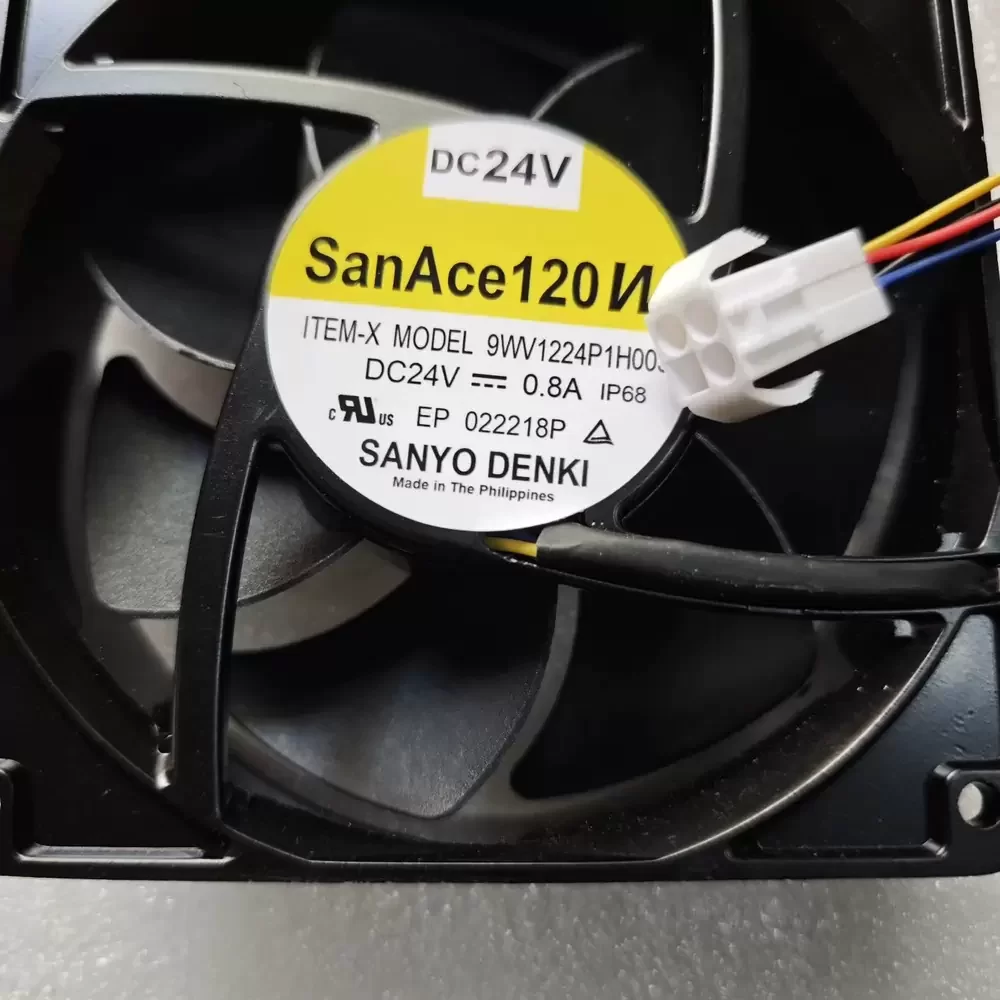

The Sanyo Denki 9WV1224P1H003 is a robust Axial Fan designed for harsh industrial environments, belonging to the renowned San Ace 120W series. Engineered with a highly efficient DC motor and precision dual ball bearing architecture, this unit ensures exceptional longevity and reduced thermal impedance under continuous operation. The fan features an IP68 ingress protection rating, offering superior resistance against water jets and dust infiltration, making it ideal for outdoor or contaminated settings. Its aerodynamic impeller design optimizes airflow while maintaining structural rigidity, delivering reliable cooling performance where standard fans fail.
Model Number: 9WV1224P1H003
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 120W
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.8 A
Rated Power: 19.2 W
Rated Speed: 3600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 128 CFM (3.62 m³/min)
Max. Static Pressure: 14.5 mmH₂O (142 Pa / 0.57 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 460 g
Ingress Protection: IP68 (Water/Dust Proof)
Noise Level: 48 dB(A)
Frame Material: Aluminum Die-cast
Impeller Material: Plastic (UL94V-1)
Termination: 4-Wire Leads
Speed Control: PWM (Pulse Width Modulation)
Operating Temperature: -25°C to +70°C
Storage Temperature: -30°C to +70°C
Life Expectancy: 60,000 Hours (at 60°C)
Safety Protection: Current Blocking Function, Reverse Polarity Protection
Mounting Orientation: Any
Designed for demanding applications, the 9WV1224P1H003 excels in environments requiring stringent water and dust resistance. Common deployments include outdoor telecommunications cabinets, solar power inverters, and industrial automation equipment exposed to the elements. The 9WV1224P1H003 is also frequently utilized in CNC machinery and large-scale LED signage cooling, where reliability under ingress stress is critical for system longevity.
