Description

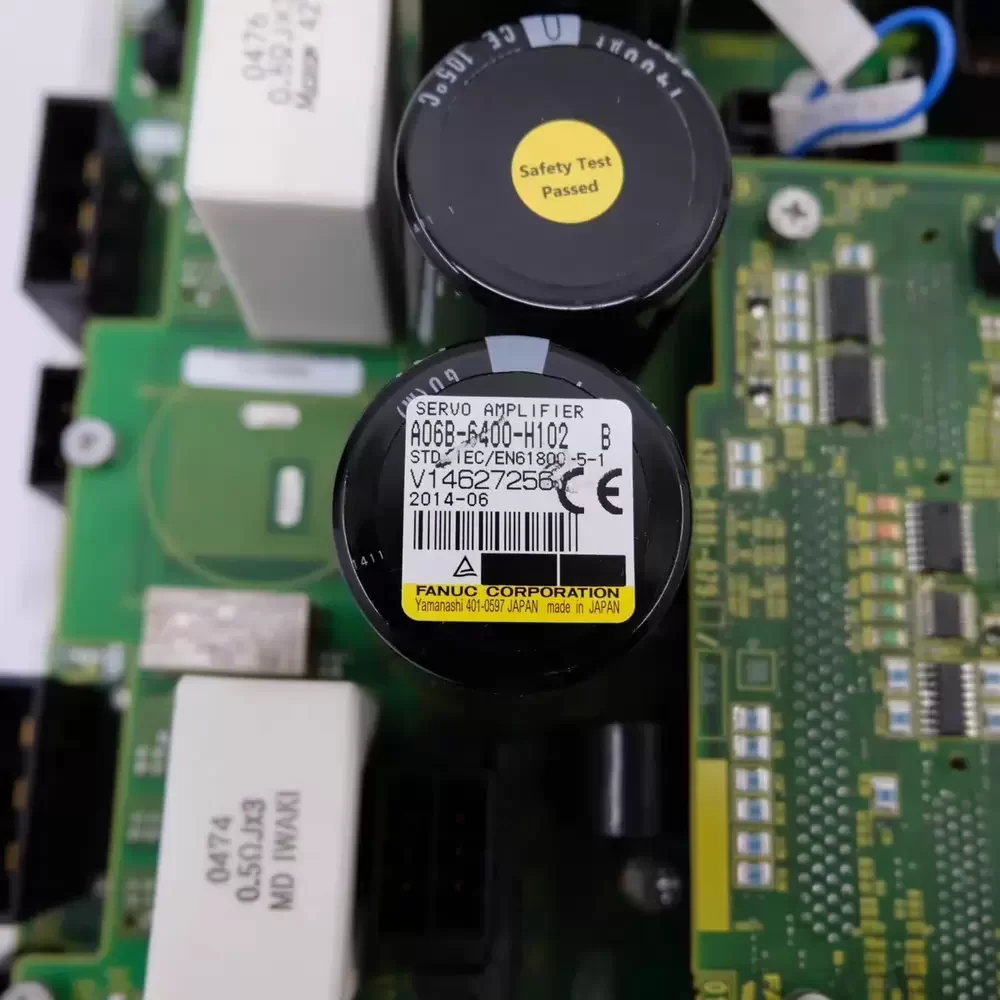

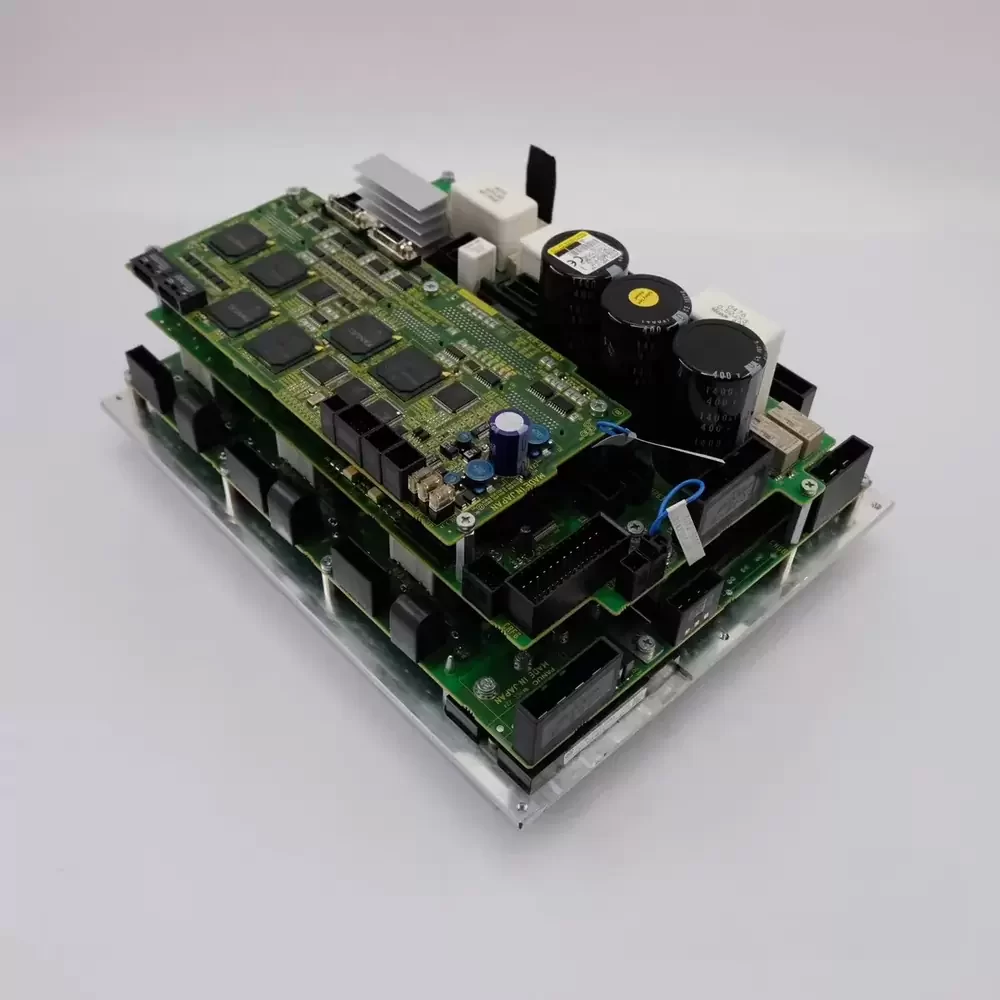

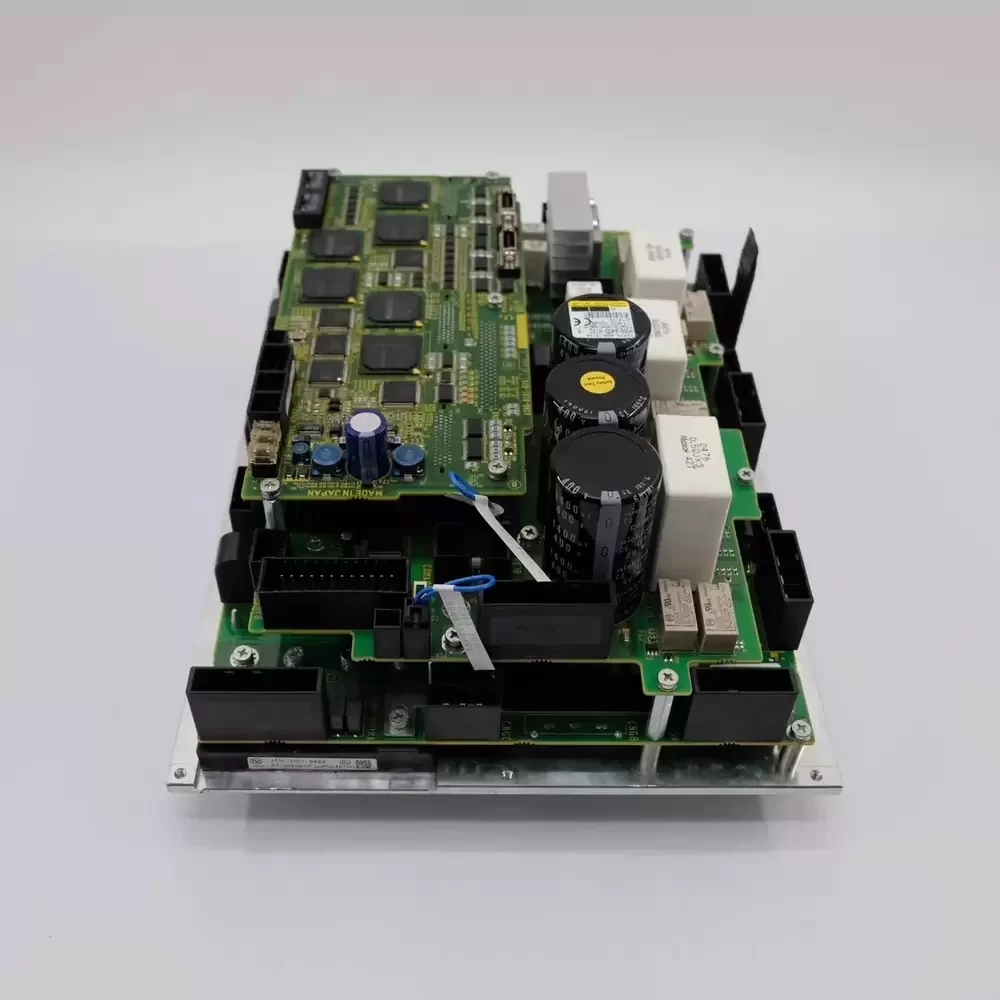

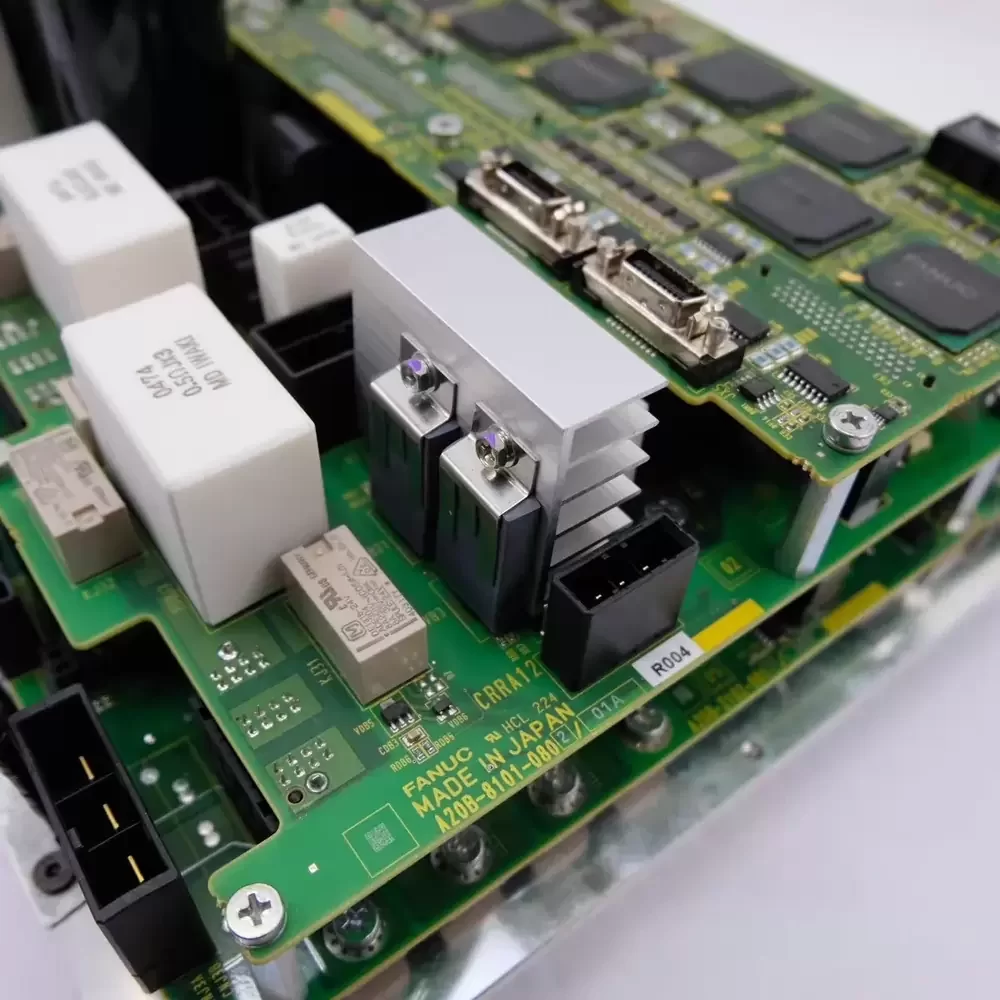

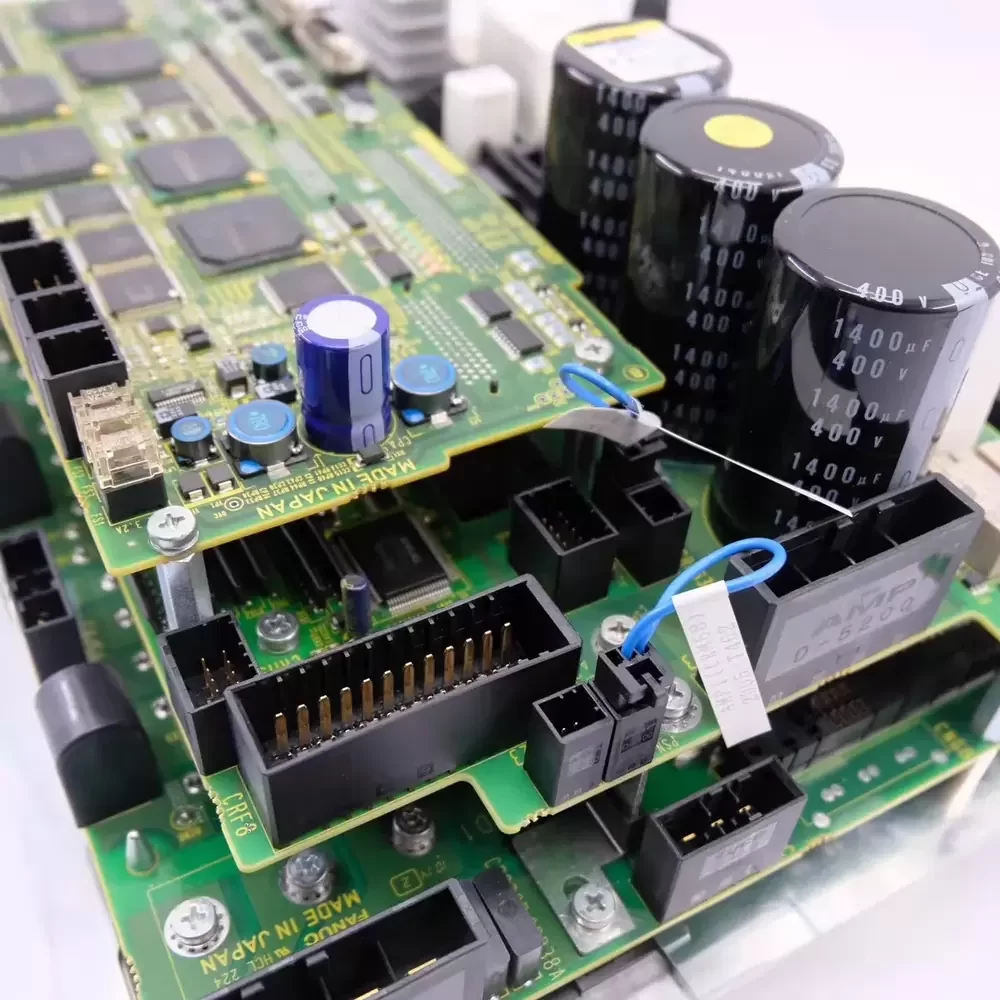

The FANUC A06B-6400-H102 is a six-axis servo amplifier operating at 230 VAC, weighing 16.85 lbs, and featuring an optical fiber interface. Engineered with an IP20-rated enclosure and Class C electrical insulation, this panel-mounted drive module supports simultaneous multi-axis synchronization. It functions reliably within a 0 to 60 °C temperature range and up to 80 % non-condensing humidity, ensuring stable power delivery and precise motion control across complex automated architectures.
A06B-6400-H102 Specifications
Model Number: A06B-6400-H102
Brand: FANUC
Product Category: Servo Amplifier / Drive Module
Input Voltage: 200 to 230 VAC
Axes Supported: 6
Interface Type: Optical Fiber
Mounting Configuration: Panel Mount
Weight: 16.85 lbs (7.65 kg)
Operating Temperature: 0 to 60 °C
Operating Humidity: Up to 80 % (Non-Condensing)
Maximum Operating Altitude: 1000 m
Enclosure Rating: IP20
Insulation Class: Class C
Certifications/Standards: CE
Compatible Controllers: R-30iB, R-30iB Plus
Supported Robot Series: R-1000iA, R-2000iB, M-710iC, M-420iA, M-421iA, M-3iA
A06B-6400-H102 Applications
Primary applications include integration into FANUC R-30iB and R-30iB Plus robotic controllers for multi-axis synchronization. Deployed within automated assembly lines, welding stations, and material handling systems utilizing R-1000iA, R-2000iB, and M-710iC series robotic arms. Utilized extensively in high-precision industrial robotics requiring coordinated six-axis motion control and real-time optical fiber feedback.
