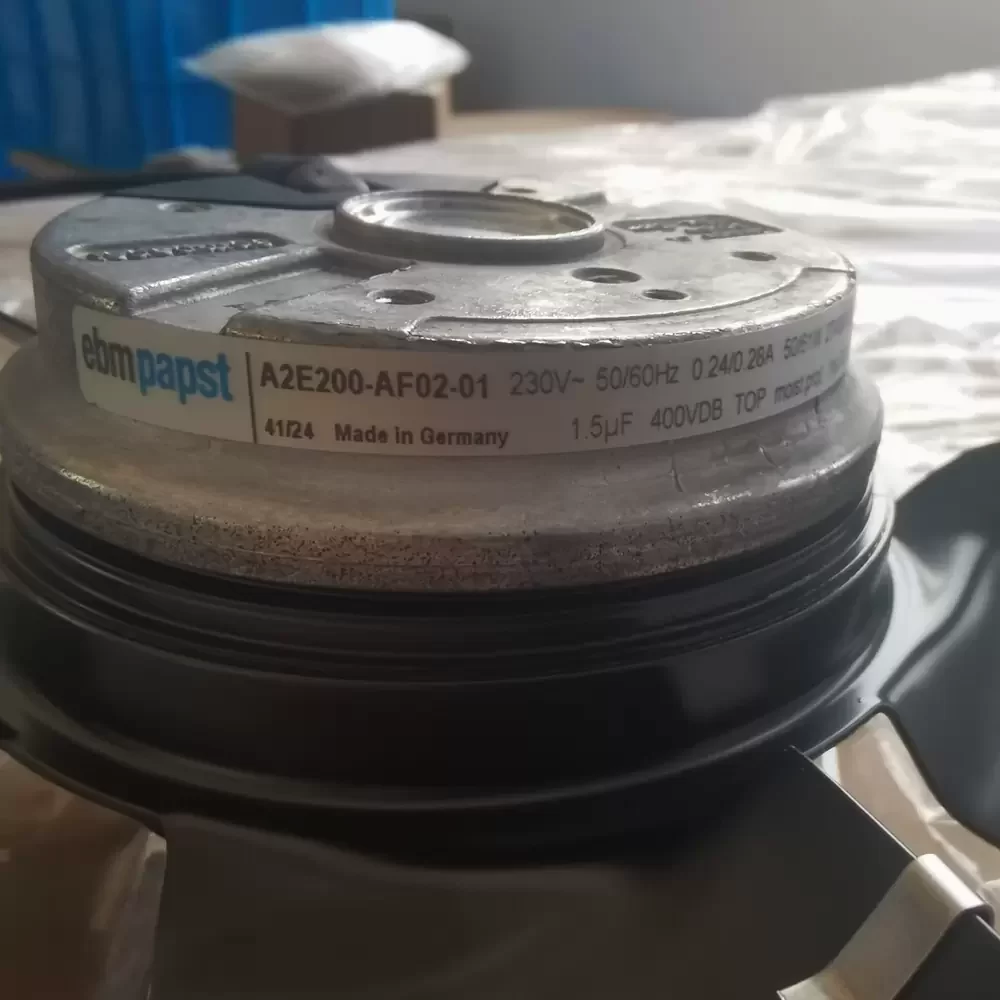

A2E200-AF02-01 ebmpapst 230VAC 200mm AC Axial Fan

Description

The ebmpapst A2E200-AF02-01 is a precision-engineered AC axial fan designed for critical thermal management in industrial environments. Utilizing an advanced external rotor motor architecture (M2E068-BF), this unit delivers superior aerodynamic efficiency while maintaining a compact footprint. The 7-blade sheet steel impeller is dynamically balanced to minimize vibration and noise, ensuring operational stability under high static pressure loads. Constructed with robust materials to withstand thermal stress, the A2E200-AF02-01 offers optimized thermal impedance and structural rigidity. It is specifically calibrated for continuous duty cycles, making it an ideal solution for pitch motor cooling and high-demand ventilation systems requiring reliable air displacement.

Model Number: A2E200-AF02-01
Brand: ebmpapst
Product Type: AC Axial Fan
Motor Type: External Rotor AC Motor (M2E068-BF)
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.24 A (50Hz) / 0.28 A (60Hz)
Power Consumption: 50 W (50Hz) / 61 W (60Hz)
Rated Speed: 2740 RPM (50Hz) / 3120 RPM (60Hz)
Bearing Type: Ball Bearing
Max. Air Flow: 580 CFM (985 m³/h)
Impeller Diameter: 200mm
Blade Material: Sheet steel, coated black
Number of Blades: 7
Direction of Rotation: Counter-clockwise (seen on rotor)
Insulation Class: B
Ingress Protection: IP44
Motor Protection: Thermal Overload Protector (TOP) wired internally
Capacitor: Required (typically 1.5µF / 400V)
Operating Temperature: -25°C to +75°C
Mounting Orientation: Any
Weight: 2.0 kg
Origin: Germany
Condition: New/Unused

This high-performance cooling solution is widely utilized in renewable energy sectors, specifically for wind turbine pitch motor cooling systems where reliability is paramount. The A2E200-AF02-01 excels in regulating temperatures within enclosed control cabinets, industrial automation drives, and power electronics stacks. Engineers frequently deploy the A2E200-AF02-01 in CNC machinery and heavy-duty ventilation setups to prevent thermal throttling, ensuring equipment longevity in harsh operational environments.
