Description

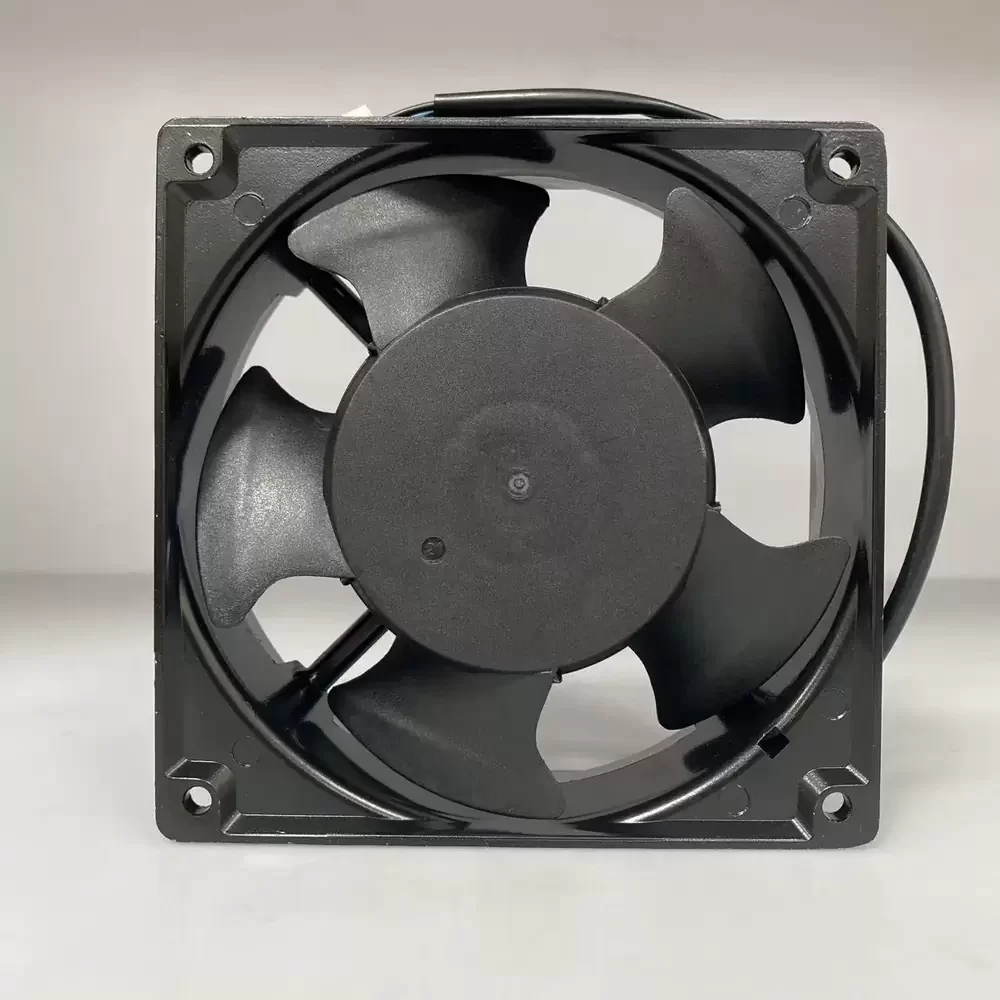

The ADDA AA1282DB-AW is a robust AC Axial Fan engineered for industrial thermal management and continuous duty cycles. Utilizing an induction motor architecture optimized for 220-240VAC operation, this unit delivers consistent airflow with high structural rigidity thanks to its die-cast aluminum frame construction. The system features a precision Double Ball Bearing configuration, which significantly reduces friction coefficients and enhances longevity under continuous operation. Designed with Class B insulation, the motor ensures thermal stability while the aerodynamic impeller geometry minimizes turbulence, optimizing the ratio between static pressure and volumetric flow for critical cooling applications. The unit offers reliable performance with specific impedance protection against motor burnout.

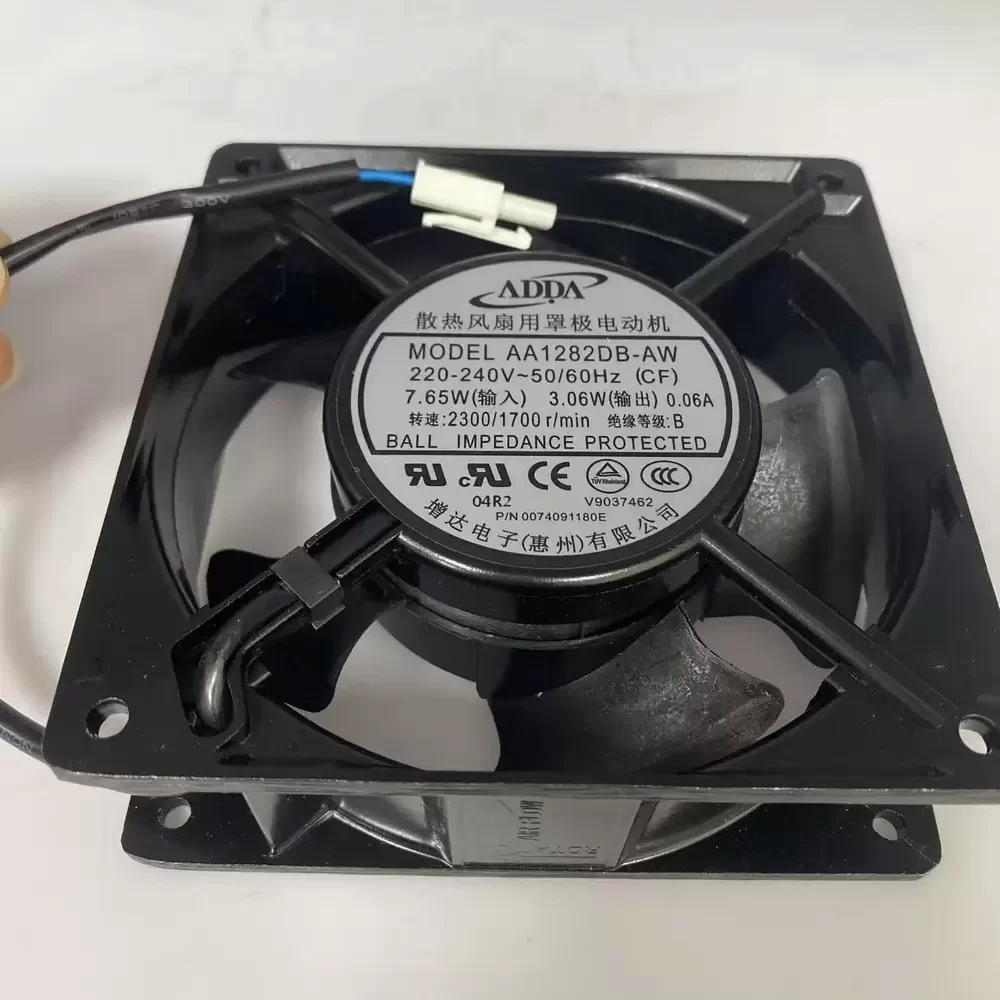

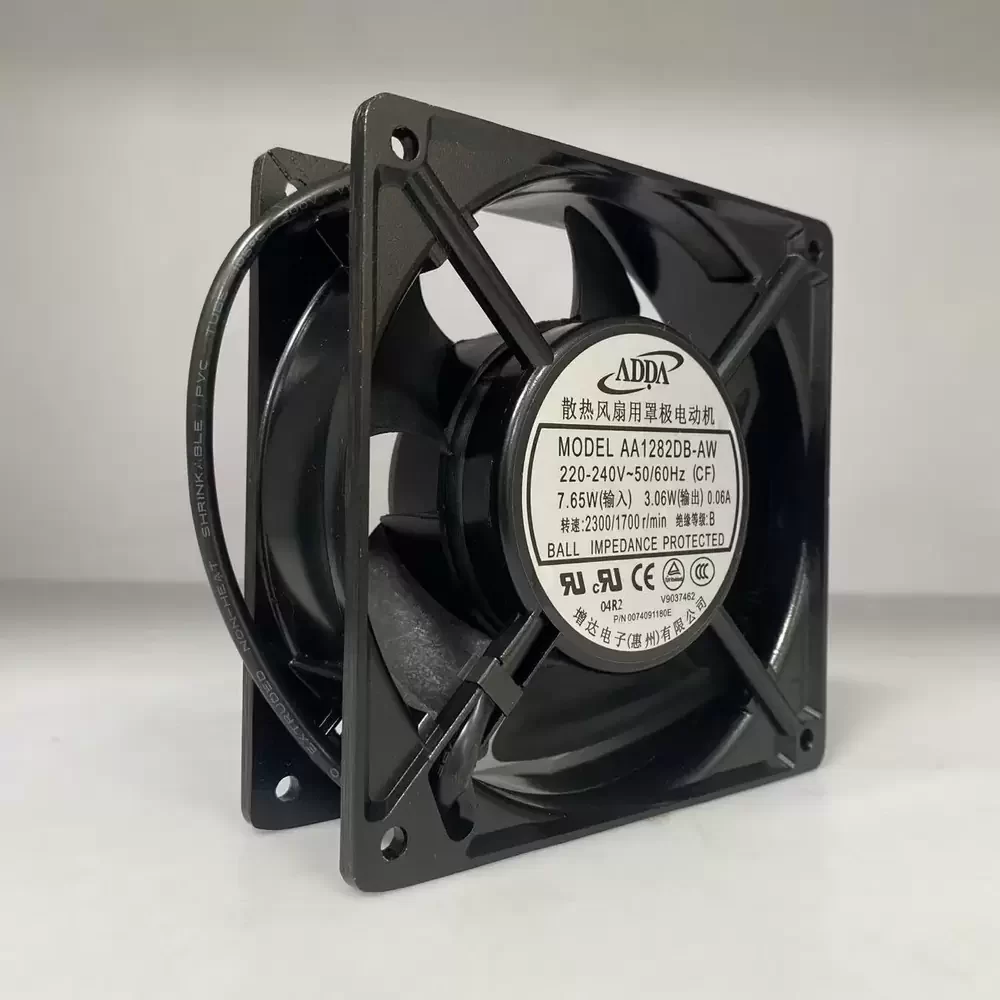

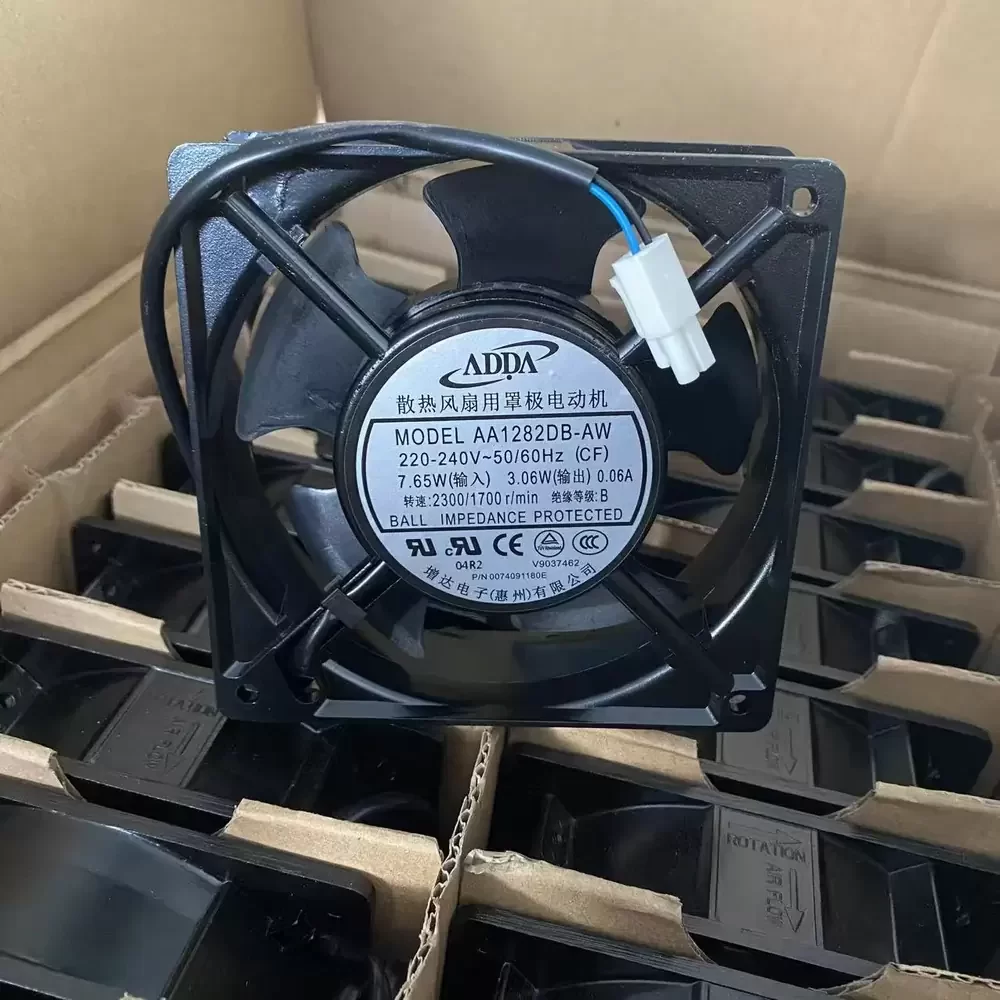

Model Number: AA1282DB-AW
Brand: ADDA
Product Type: AC Axial Fan
Rated Voltage: 220-240 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.06 A
Input Power: 7.65 W
Output Power: 3.06 W
Rated Speed: 1700 / 2300 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 80.0 CFM (135.9 m³/h / 2.26 m³/min)
Max. Static Pressure: 6.35 mmH₂O (62.27 Pa / 0.25 inH₂O)

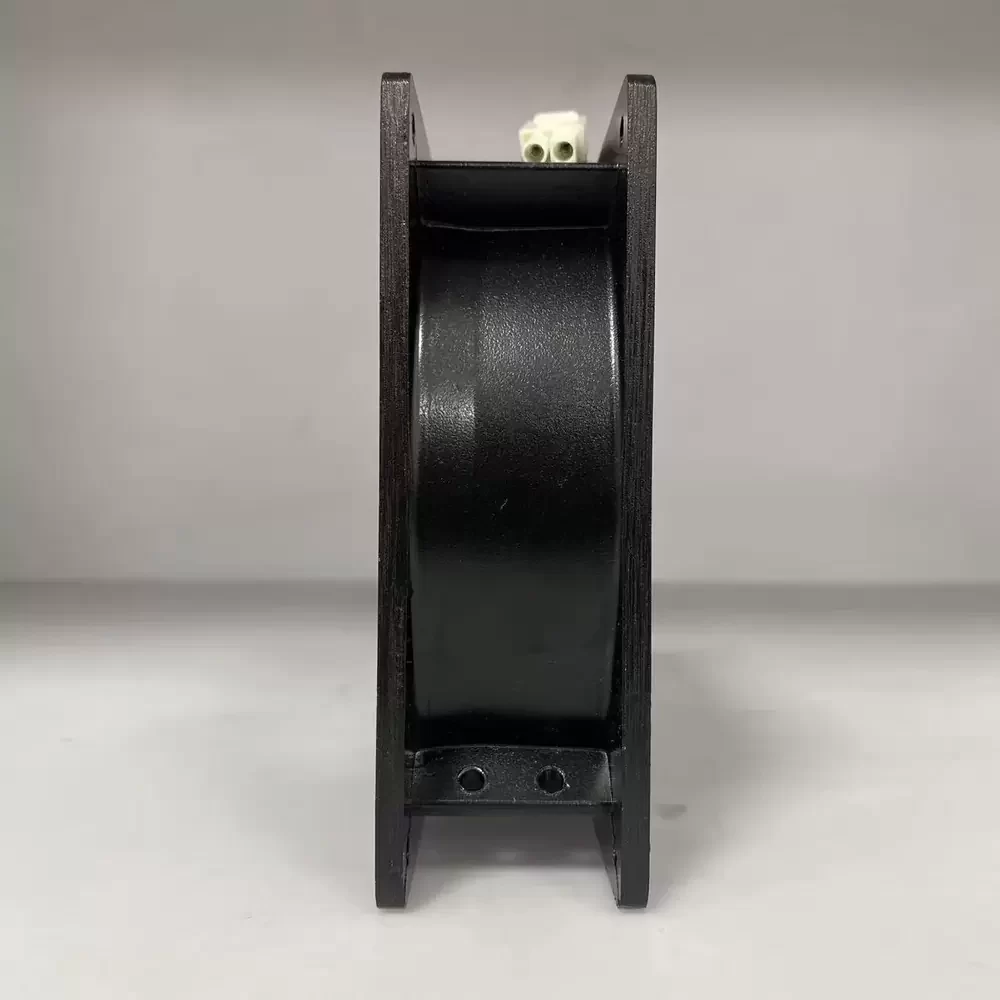

Dimensions: 120 x 120 x 38 mm
Frame Material: Die-Cast Aluminum
Impeller Material: PBT (UL94V-0)
Insulation Class: Class B
Noise Level: 44.0 dB(A)
Weight: 550 g
Life Expectancy: 50,000 Hours at 40°C
Operating Temperature: -10°C to +70°C
Termination: Lead Wires
Ingress Protection: IP20
Safety Certifications: CE, TUV, UL, cUL
This cooling solution is specifically calibrated for high-reliability environments such as elevator control systems, industrial automation equipment, and server cabinet ventilation. The AA1282DB-AW provides the necessary thermal dissipation required to maintain optimal operating temperatures in enclosed electronics, preventing thermal throttling and component degradation. Integrators frequently deploy the AA1282DB-AW in CNC machinery and telecommunications racks where consistent AC-powered air exchange is mandatory for system stability.
