Description
The ADDA AA9252HB-AT is a precision-engineered AC Axial Fan designed for robust thermal management in industrial environments. Utilizing a high-efficiency AC motor architecture paired with a durable Double Ball Bearing system, this unit ensures minimized friction and extended operational longevity. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, effectively reducing thermal impedance within high-density enclosures. Engineered for continuous operation, the AA9252HB-AT delivers reliable cooling performance, making it an essential component for maintaining system stability under varying load conditions.
Model Number: AA9252HB-AT
Brand: ADDA
Product Type: AC Axial Fan
Rated Voltage: 220-240 VAC
Frequency: 50 / 60 Hz
Input Power: 4.17 W
Rated Speed: 2000 / 2400 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 30.0 / 36.0 CFM (51.0 / 61.2 m³/h)
Max. Static Pressure: 0.12 / 0.15 inH₂O (3.05 / 3.81 mmH₂O)

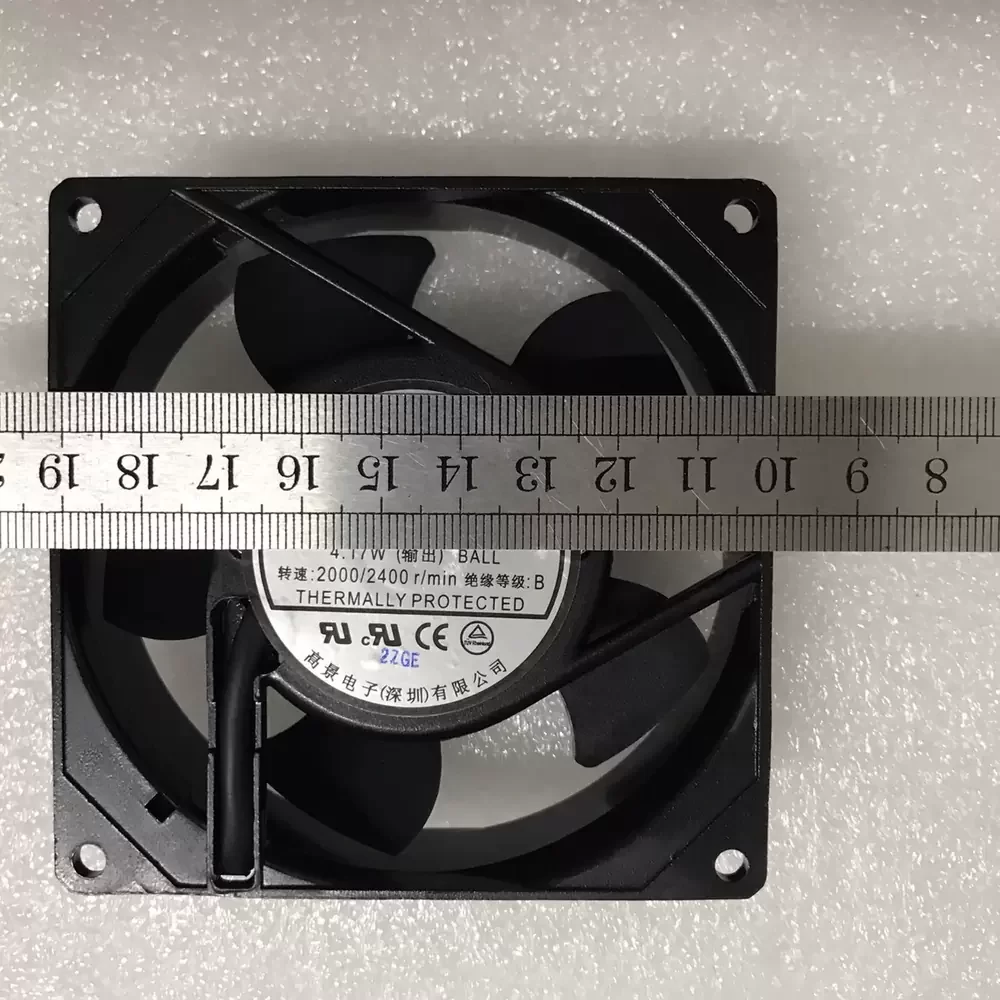

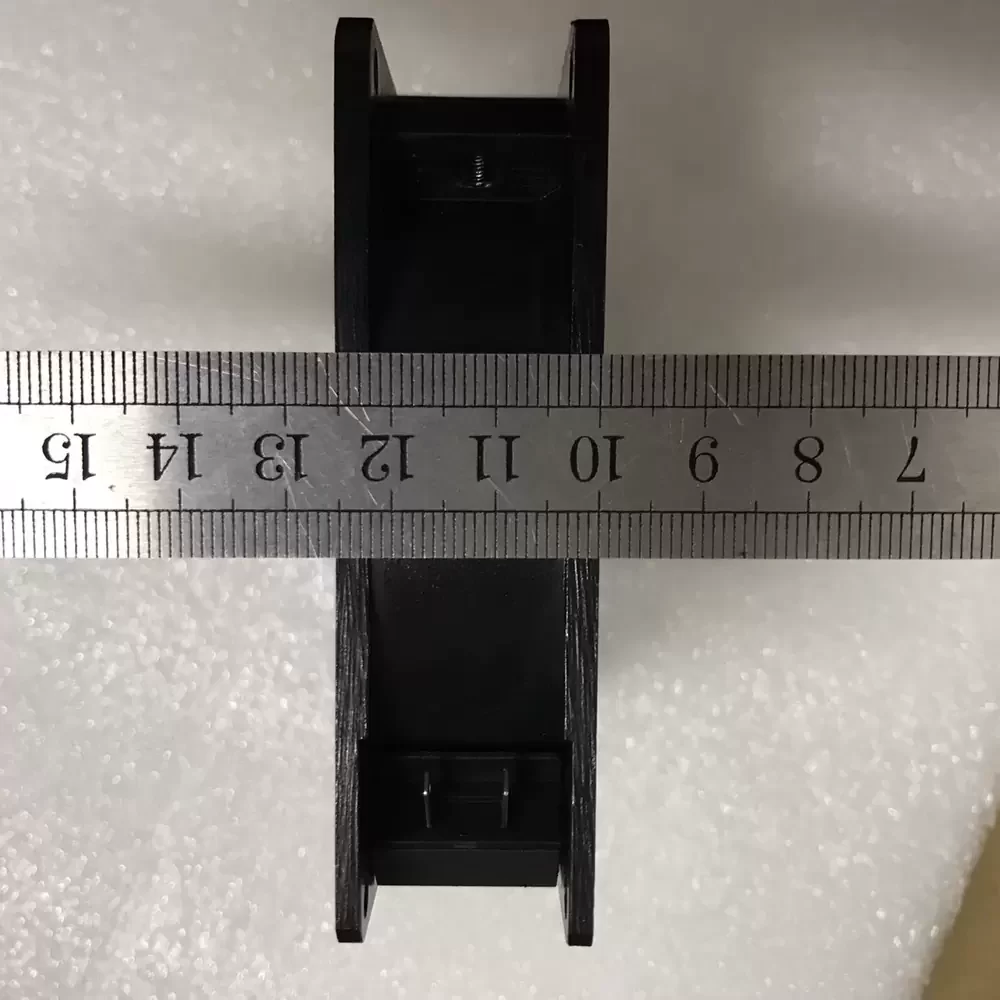

Dimensions: 92 x 92 x 25 mm
Weight: 280 g
Noise Level: 32.0 / 36.0 dB-A
Frame Material: Die-Cast Aluminum
Impeller Material: PBT (UL94V-0)
Termination: Terminals (Flat Pin)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 50,000 Hours at 40°C
Motor Type: Single Phase Induction Motor
Protection: Impedance Protected
Mounting Orientation: Any
The AA9252HB-AT is engineered for critical cooling applications requiring consistent airflow and long-term reliability. Common deployments include industrial control cabinets, server rack ventilation systems, and power supply cooling units where space is constrained but thermal dissipation is mandatory. The AA9252HB-AT is also frequently utilized in telecommunications equipment and medical instrumentation, ensuring sensitive electronics operate within safe temperature ranges to prevent thermal throttling or component failure.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
