Description

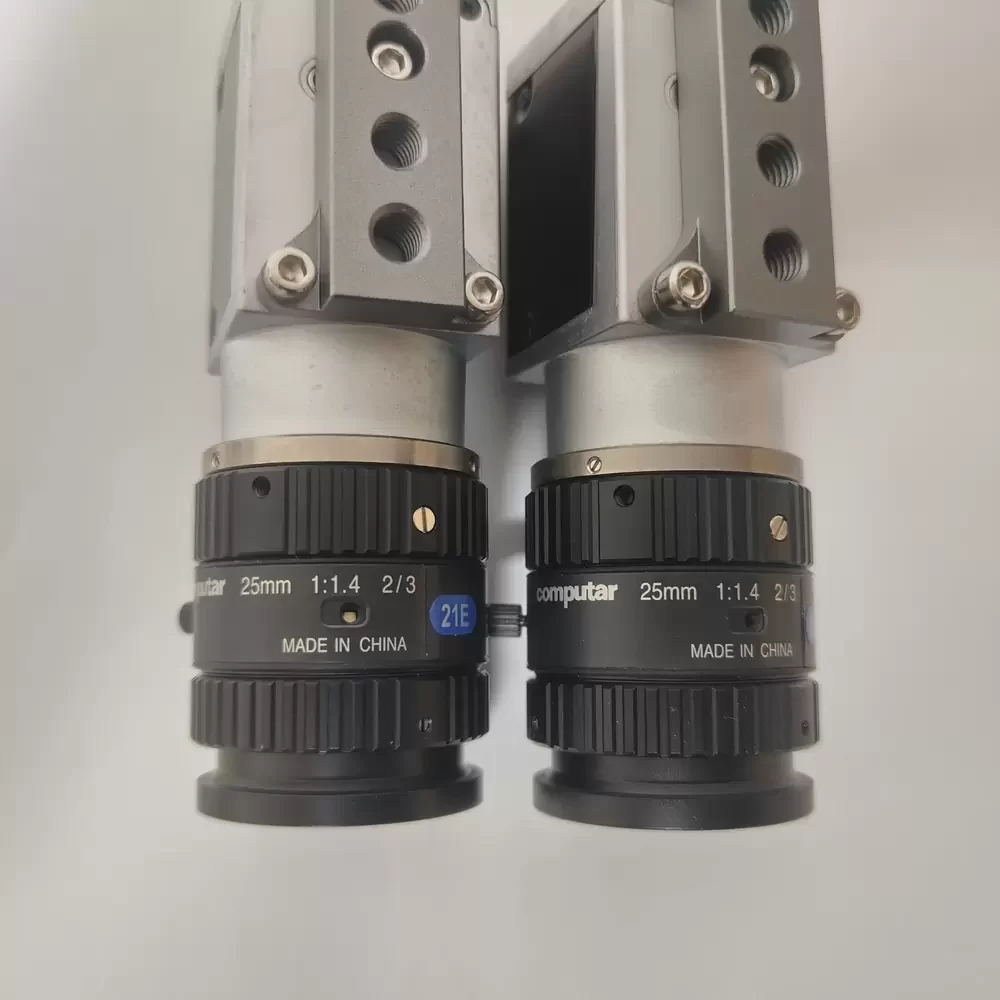

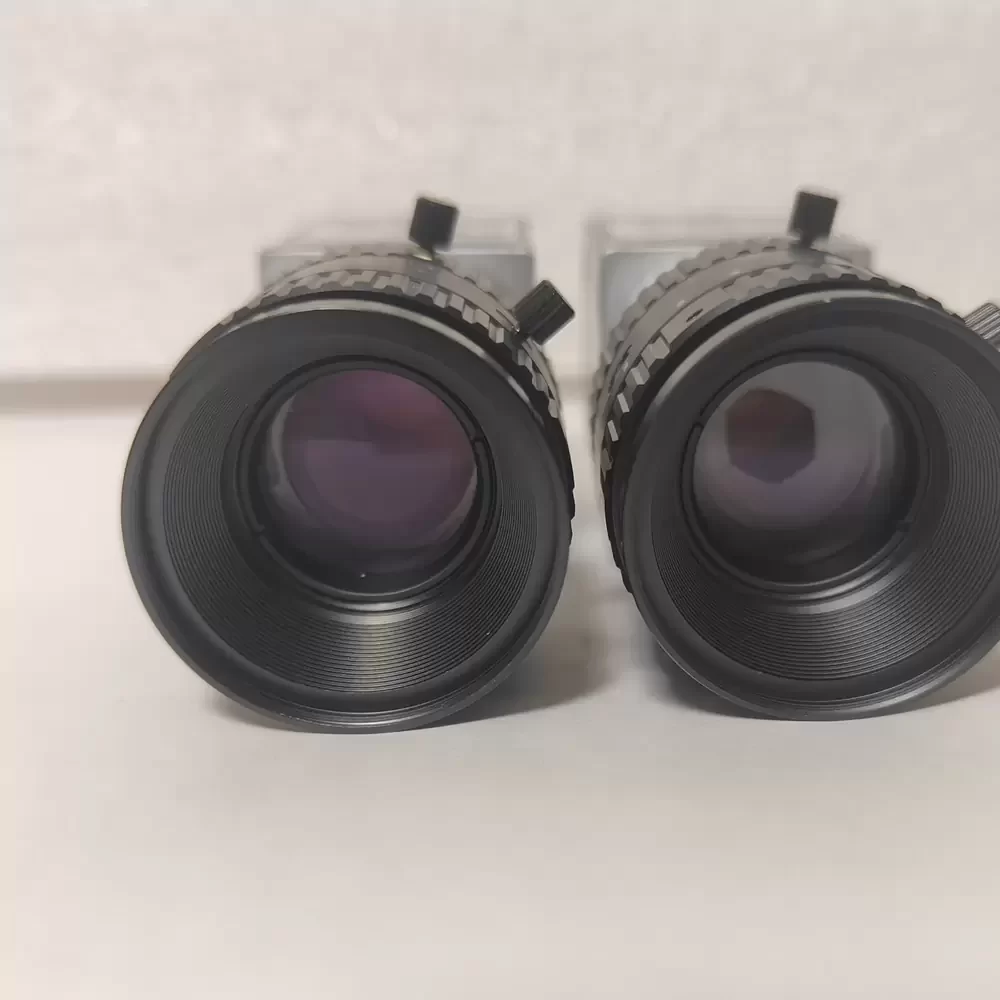

Basler acA2500-14gm 5 MP 14 fps GigE industrial camera features a 1/2.5″ ON Semiconductor MT9P031 CMOS sensor with a 2592 x 1944 pixel resolution and 2.2 µm x 2.2 µm pixel size. The hardware assembly includes a Computar 25 mm F1.4 manual iris lens mounted via a standard C-mount interface. The camera housing measures 29 mm x 29 mm x 42 mm and utilizes a rolling shutter mechanism with global reset release. Power is supplied via Power over Ethernet (PoE) or a 6-pin Hirose connector supporting 12 VDC. Data transmission is handled through a Gigabit Ethernet interface compliant with GigE Vision and GenICam standards.
acA2500-14gm Specifications
Model: acA2500-14gm
Brand: Basler
Sensor: ON Semiconductor MT9P031
Sensor Type: CMOS
Sensor Format: 1/2.5″
Resolution: 2592 x 1944 px (5 MP)
Frame Rate: 14 fps
Pixel Size: 2.2 µm x 2.2 µm
Shutter: Rolling Shutter
Interface: GigE (1000 Mbit/s)
Lens Mount: C-mount
Lens Model: Computar M2514-MP2
Lens Focal Length: 25 mm
Lens Aperture: F1.4 – F16
Lens Format: 2/3″
Minimum Object Distance: 300 mm
Power Supply: PoE (802.3af) or 12 VDC
Power Consumption: 2.2 W (typical)
Dimensions: 29 mm x 29 mm x 42 mm
Weight: 90 g
Operating Temperature: 0 to 50 °C
Digital I/O: 1 input / 1 output
Compliance: CE, RoHS, FCC, GenICam, GigE Vision
acA2500-14gm Applications
Primary applications include integration into automated optical inspection (AOI) systems for PCB defect detection and semiconductor wafer metrology. Deployed within high-speed pharmaceutical packaging lines for label verification and robotic pick-and-place units for precision component alignment.
