Description

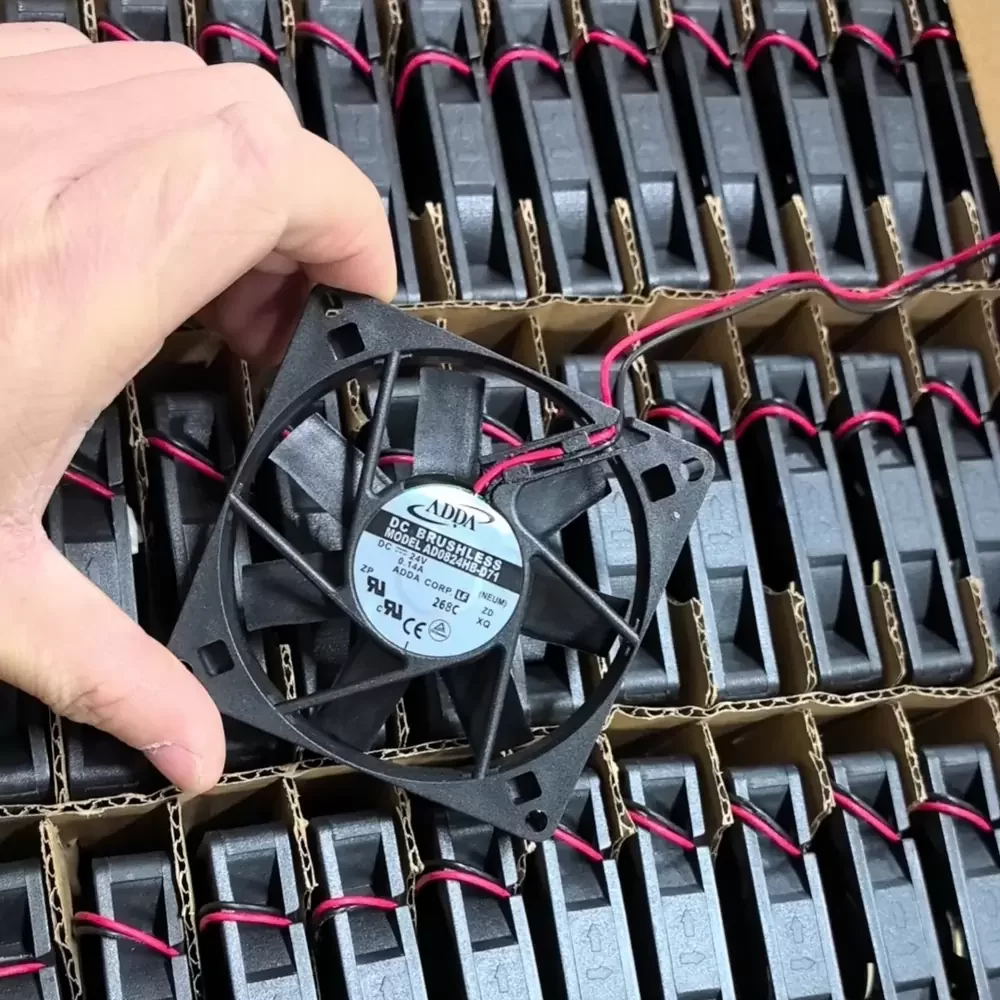

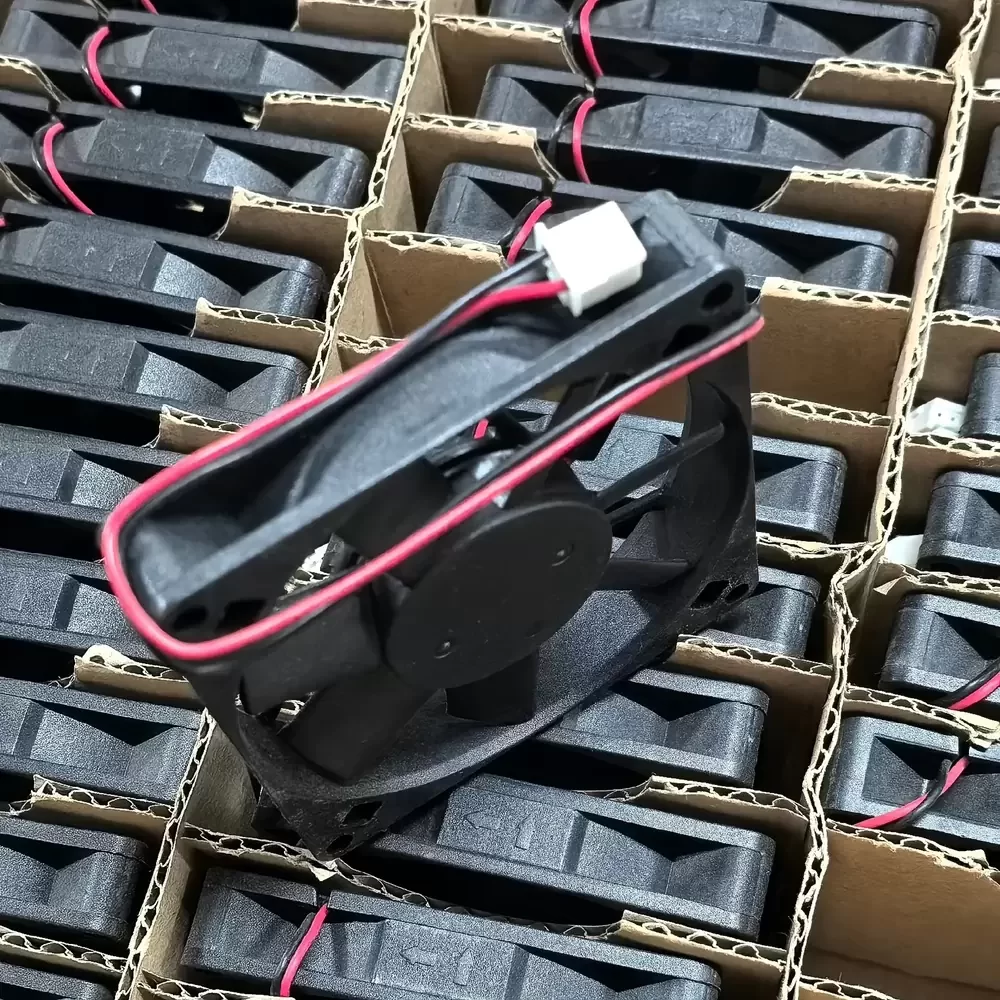

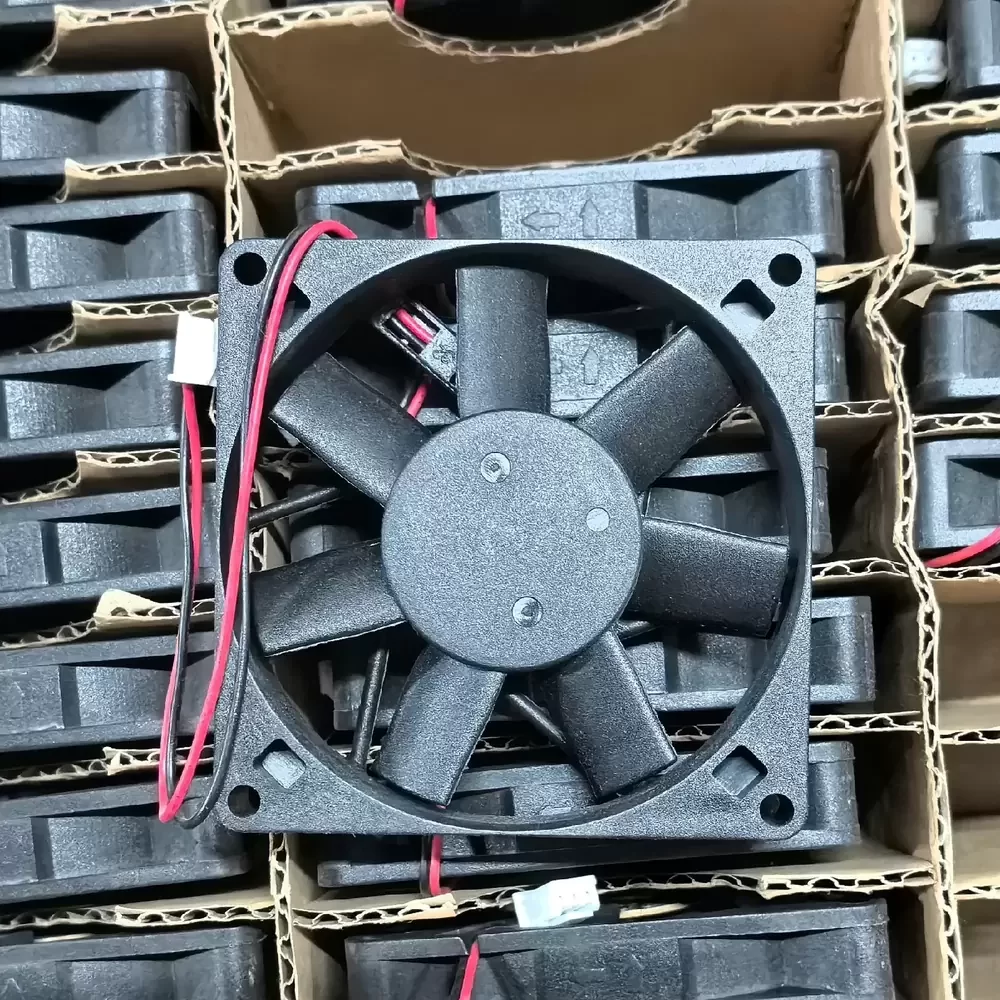

The ADDA AD0824HB-D71 is a precision-engineered DC axial fan designed for applications requiring a compact thermal management solution within a slim 15mm profile. Utilizing advanced brushless DC motor technology paired with a durable ball bearing system, this unit ensures reduced friction coefficients and extended operational longevity under continuous load. The aerodynamic impeller geometry is constructed from reinforced PBT, optimizing airflow delivery while maintaining structural rigidity against backpressure. This model effectively mitigates thermal impedance in high-density electronic enclosures, offering a reliable balance between acoustic performance and volumetric efficiency.
Model Number: AD0824HB-D71
Brand: ADDA Corporation
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 21.6 – 26.4 VDC
Rated Current: 0.14 A
Input Power: 3.36 W
Rated Speed: 3200 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 32.0 CFM (54.37 m³/h / 0.91 m³/min)
Max. Static Pressure: 3.15 mmH₂O (30.89 Pa / 0.12 inH₂O)
Noise Level: 34.0 dB(A)
Dimensions: 80 x 80 x 15 mm
Weight: 62 g
Life Expectancy: 70,000 Hours at 40°C
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Ingress Protection: IP20
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 2-Wire Lead (Red +, Black -)
Wire Gauge: 24 AWG
Wire Length: 300 mm
Speed Control: None (Constant Speed)
Motor Protection: Impedance Protected, Reverse Polarity Protection
Safety Certifications: UL, cUL, TUV, CE, RoHS
The AD0824HB-D71 is frequently integrated into compact industrial power supplies, telecommunications equipment, and low-profile server chassis where vertical space is restricted. Its slim form factor allows for seamless installation in tight clearance areas within network switches and medical instrumentation cooling systems. Engineers rely on the AD0824HB-D71 to maintain optimal operating temperatures in 24-hour continuous duty cycles, ensuring critical component stability in automation control panels and embedded computing units.
