Description

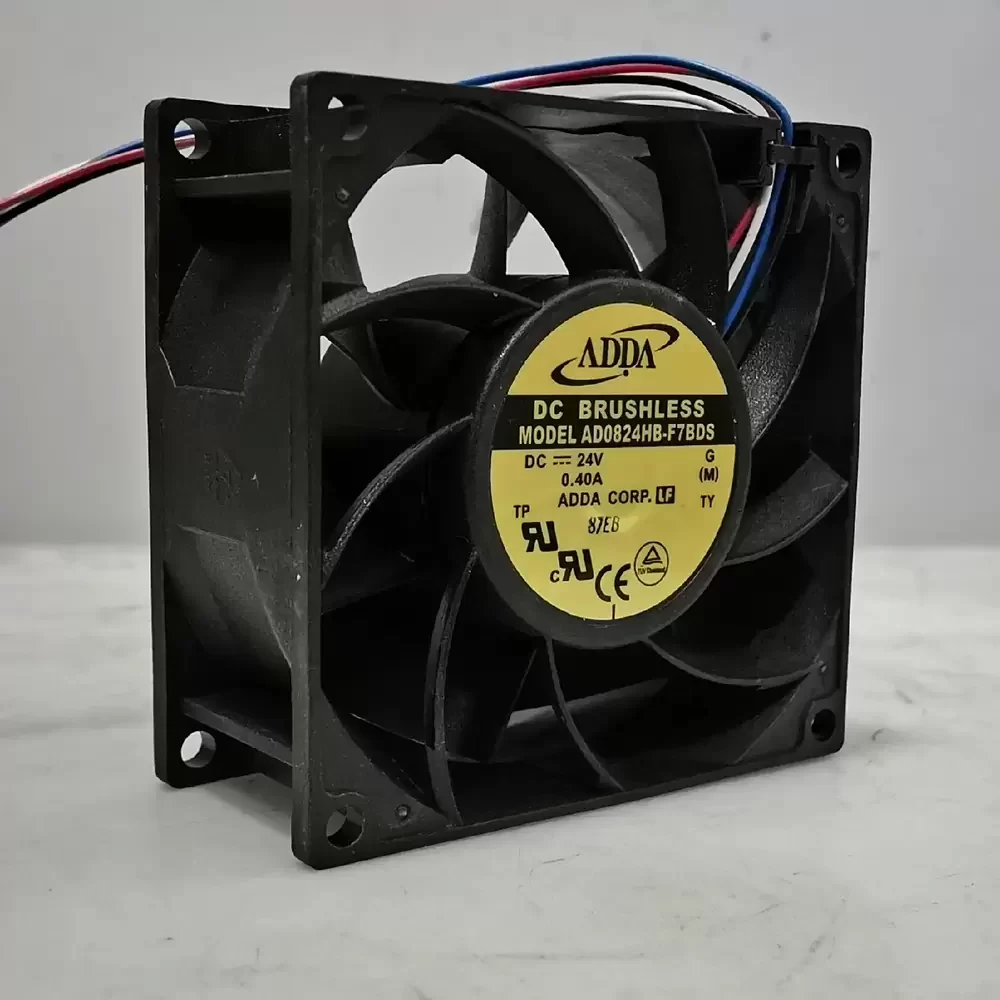

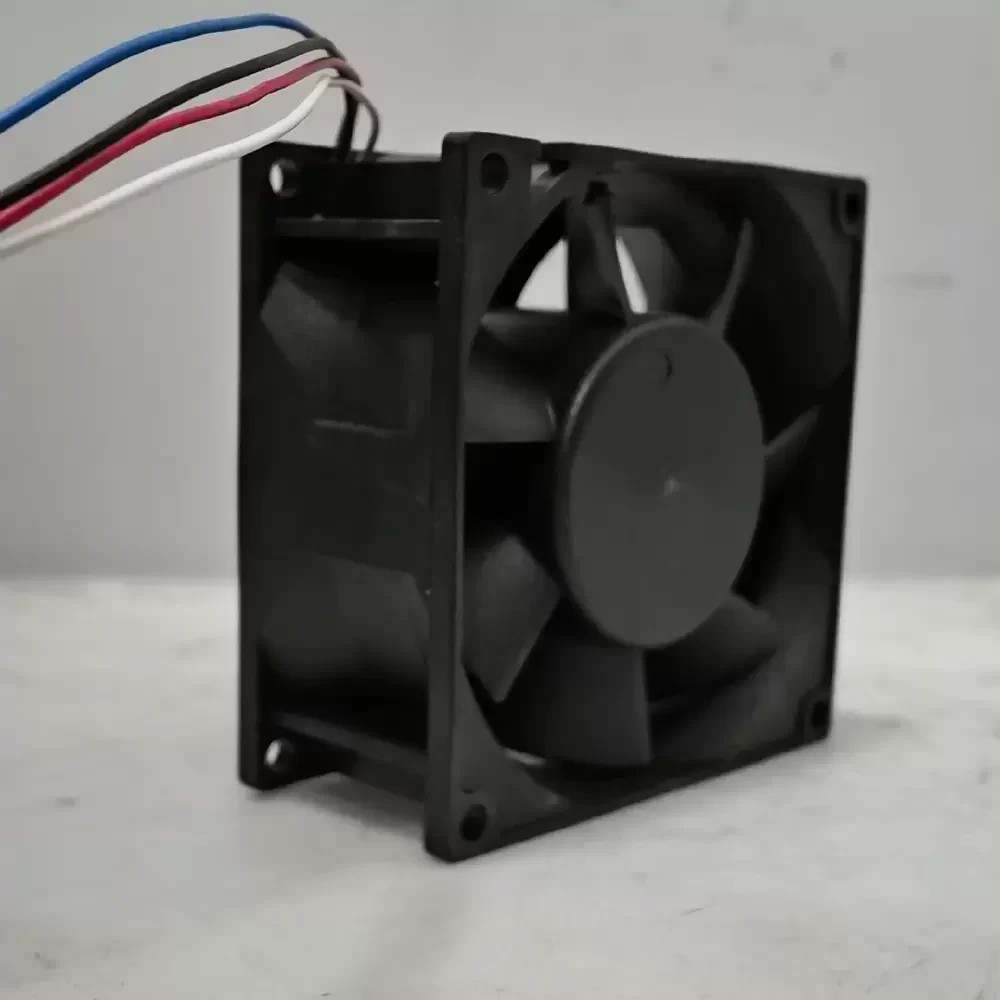

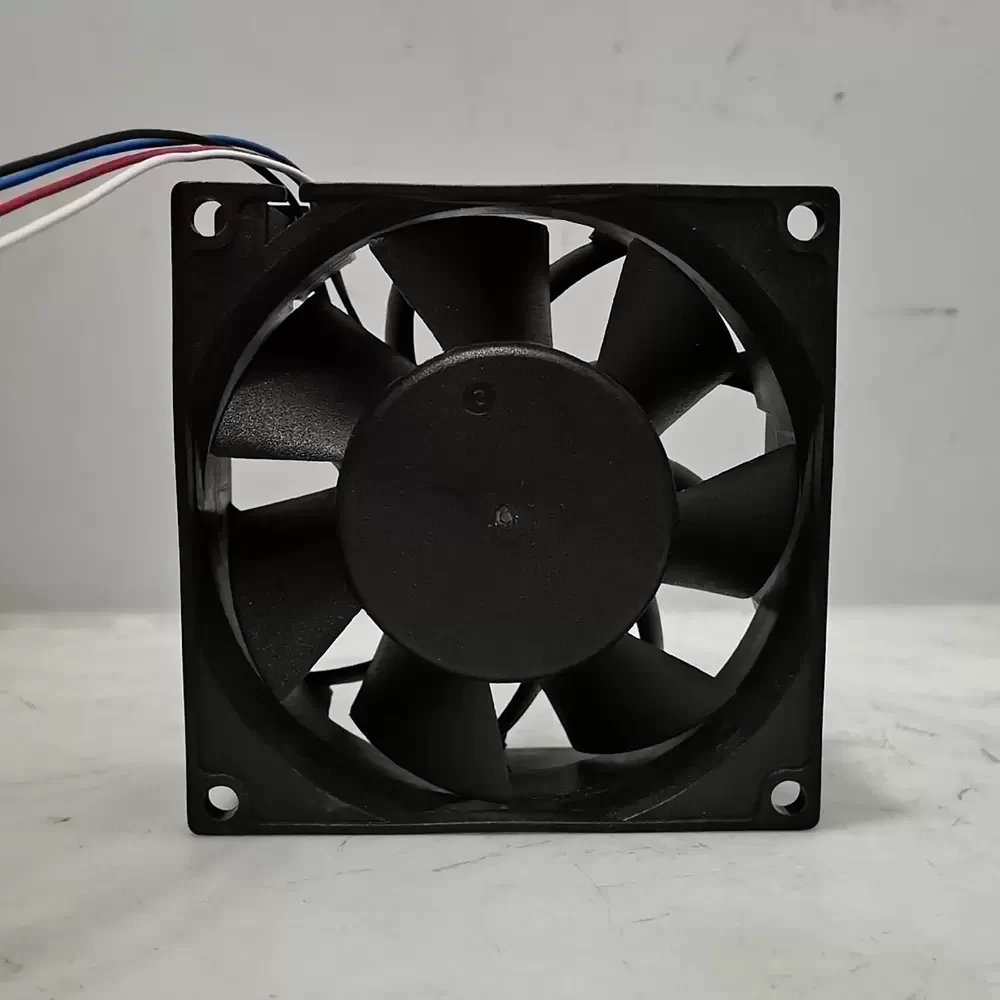

The ADDA AD0824HB-F71DS is a Axial Fan engineered for demanding thermal management environments. Utilizing a brushless DC motor architecture, this unit integrates dual ball bearing systems to minimize thermal impedance and ensure long-term structural rigidity under continuous operation. The aerodynamic impeller design is optimized for high static pressure, facilitating efficient heat dissipation in restricted airflow paths. With integrated PWM speed control and tachometer feedback, the AD0824HB-F71DS provides precise cooling modulation, making it an essential component for industrial systems requiring robust reliability and sophisticated thermal regulation.
Model Number: AD0824HB-F71DS
Brand: ADDA
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.40 A
Power: 9.6 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Dimensions: 80x80x38mm
Weight: 185 g
Life Expectancy: 70000 hours
Speed Control: PWM
Output Signal: Tachometer
Noise Level: 48.0 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4 Lead Wires
Operating Temperature: -10 to +70 C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CUL, TUV, CE
The AD0824HB-F71DS is specifically designed for integration into high-performance server racks and telecommunications infrastructure where consistent airflow is critical. In industrial CNC machinery and medical diagnostic equipment, the AD0824HB-F71DS provides the necessary static pressure to overcome internal resistance. Its robust construction ensures stability in power inverter cooling and automated control systems.
