Description

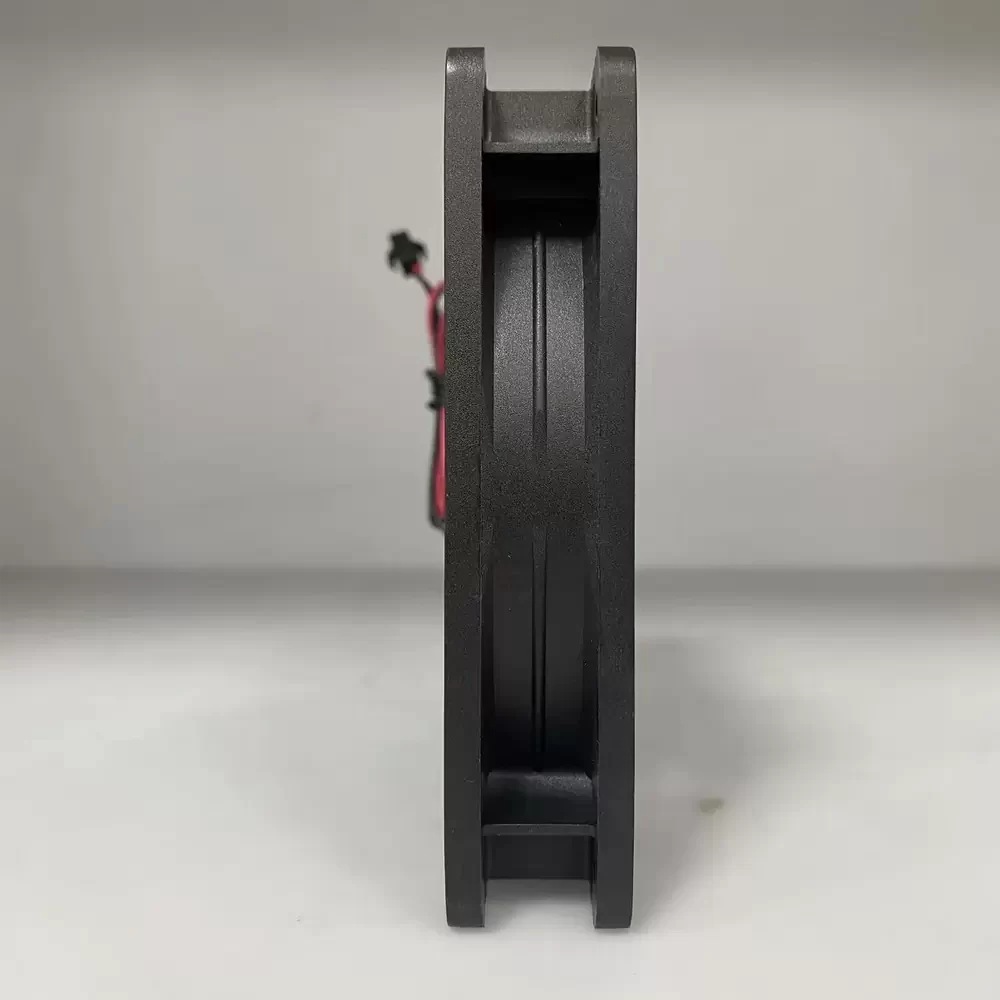

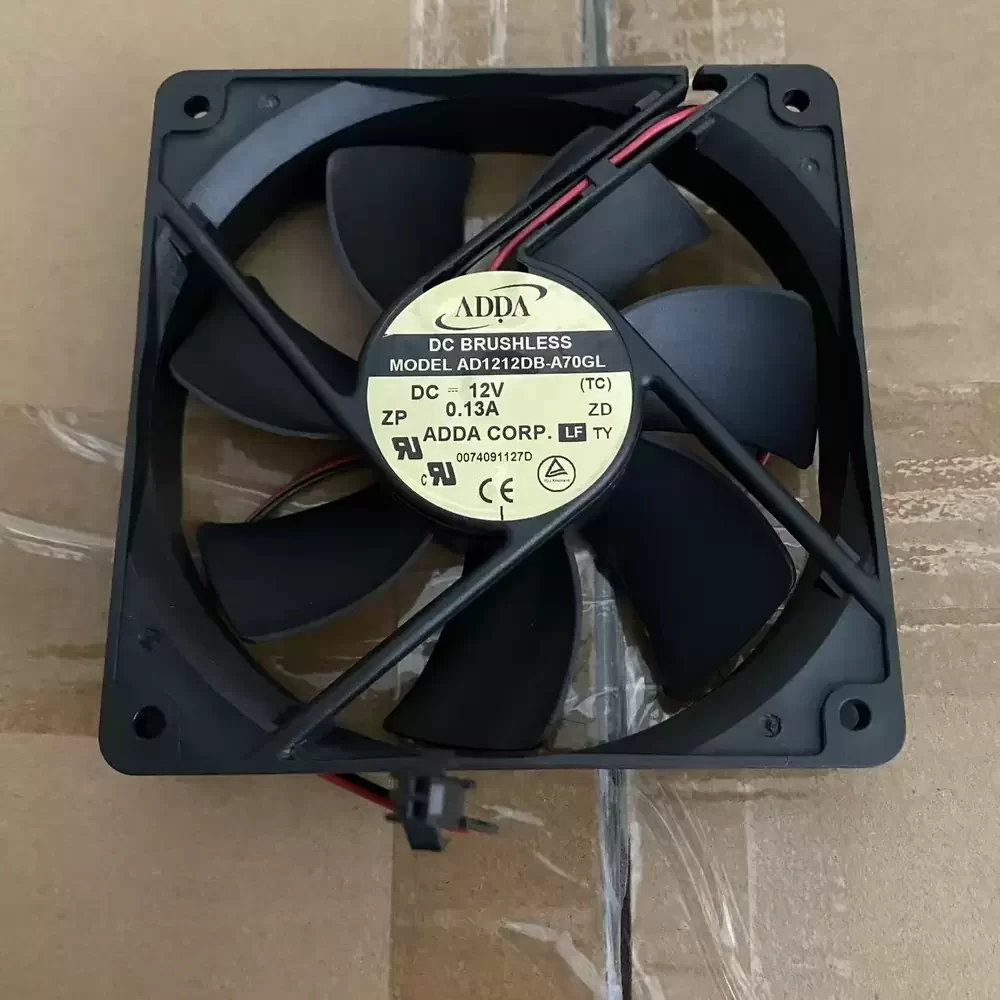

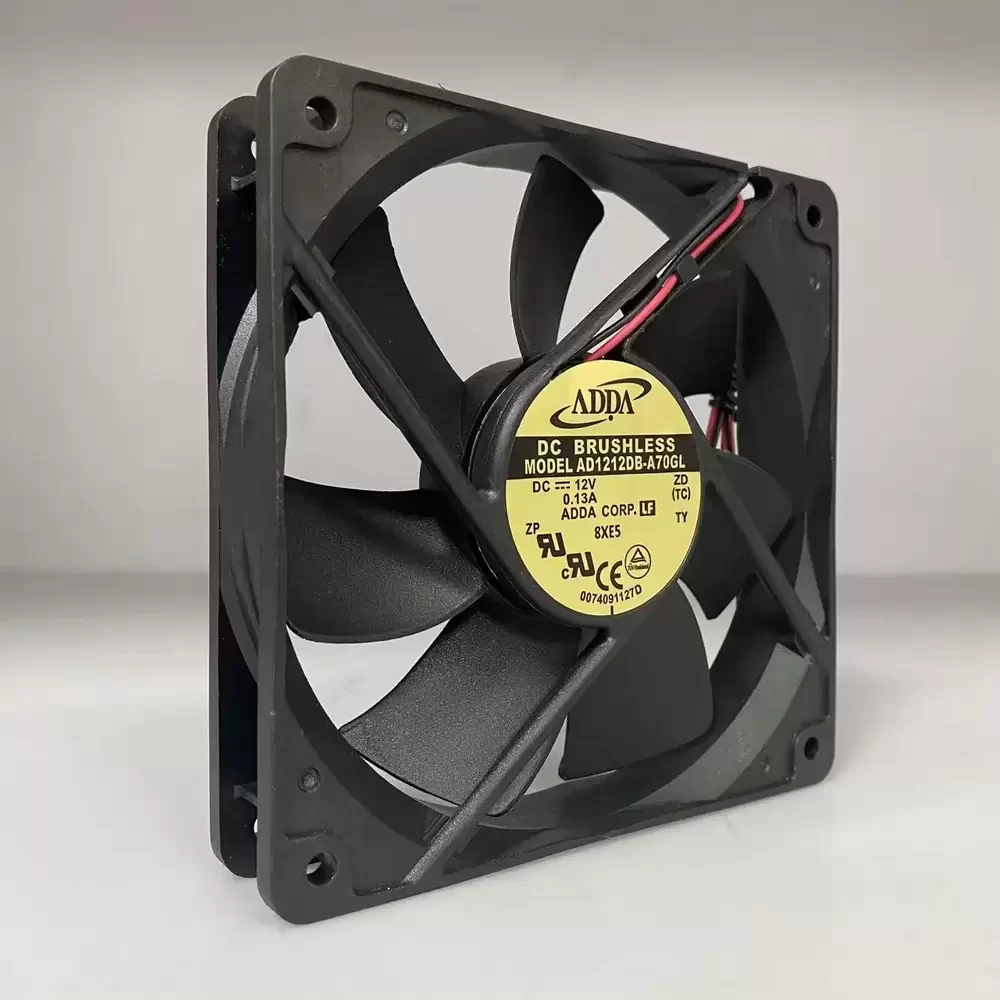

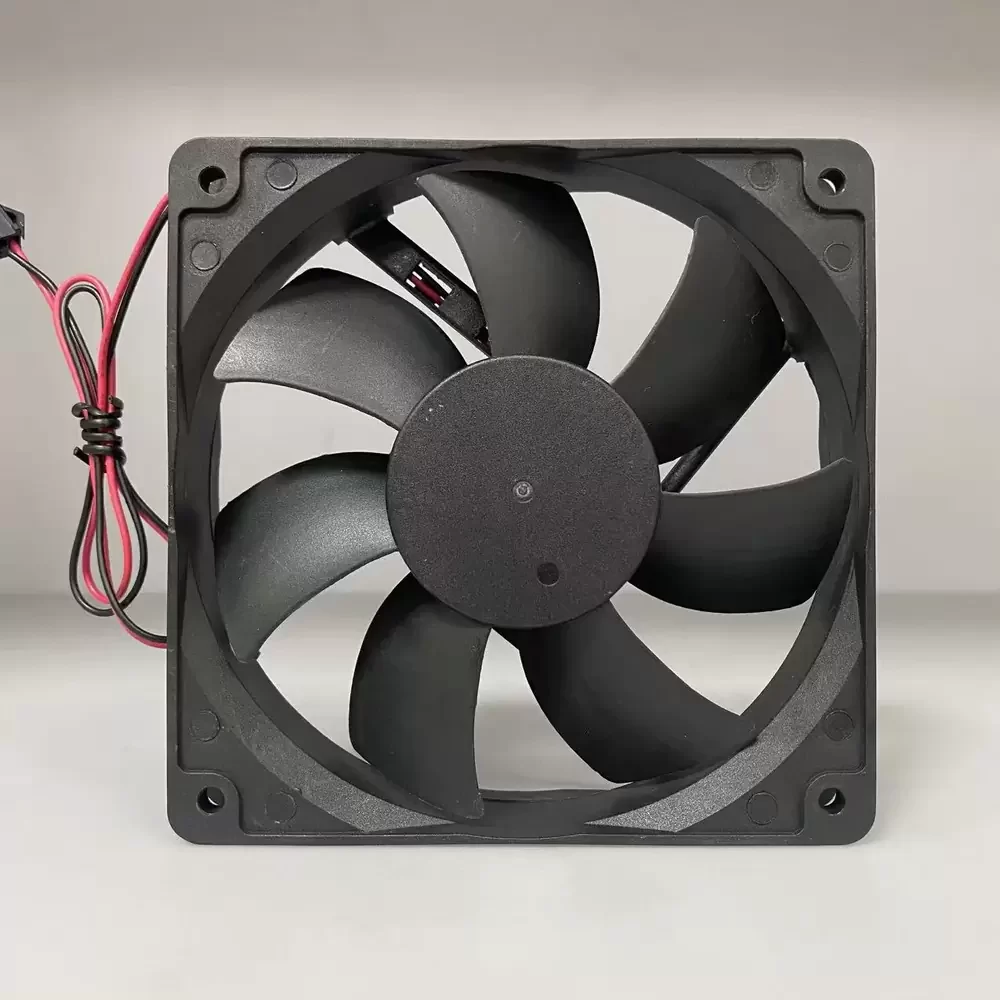

The ADDA AD1212DB-A70GL is a precision-engineered DC Axial Fan designed for optimal thermal management in industrial and electronic enclosures. Utilizing advanced Brushless DC (BLDC) motor technology combined with a robust Double Ball Bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous load. The aerodynamic impeller design reduces turbulence-induced noise while maintaining consistent static pressure, making it ideal for systems requiring a balance between airflow efficiency and acoustic performance. Constructed with high-grade thermoplastic materials, the fan offers superior structural rigidity and resistance to thermal stress, ensuring reliability in demanding environments.
Model Number: AD1212DB-A70GL
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W
Rated Speed: 1700 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 72.0 CFM (122.3 m³/h / 2.03 m³/min)
Max. Static Pressure: 3.30 mmH₂O (32.36 Pa / 0.13 inH₂O)
Dimensions: 120 x 120 x 25 mm
Weight: 156 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 34.0 dB(A)
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Certifications: UL, CUL, TUV, CE
This cooling solution is specifically engineered for integration into server chassis, industrial power supply units, and automation control cabinets where reliable heat dissipation is critical. The AD1212DB-A70GL excels in maintaining optimal operating temperatures for sensitive electronic components, preventing thermal throttling in continuous-duty cycles. Additionally, the AD1212DB-A70GL is frequently utilized in telecommunications equipment and network racks, providing consistent airflow to ensure system stability and longevity in restricted spaces.
