Description

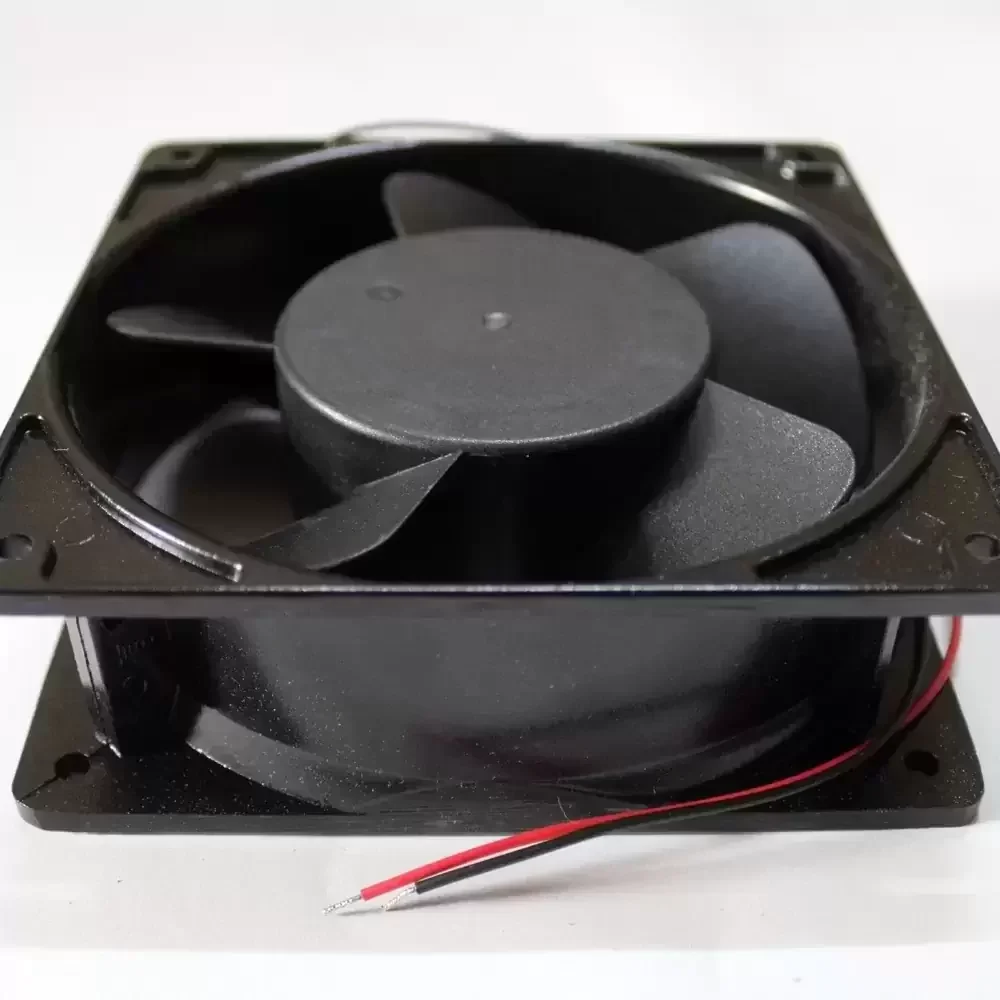

The ADDA AD1212UB-F51 is a robust industrial axial fan designed for high-demand thermal management applications requiring superior durability. Engineered with a precision ball bearing system, this unit ensures reduced friction coefficients and extended operational longevity under continuous duty cycles. The chassis features a heavy-duty aluminum die-cast frame construction, providing exceptional structural rigidity and enhanced heat dissipation properties compared to standard thermoplastic housings. Operating at a rated 12VDC with a current draw of 0.70A, this model delivers optimized airflow dynamics while maintaining a stable thermal impedance profile. The aerodynamic impeller design maximizes static pressure capabilities, making it an ideal solution for environments requiring reliable cooling performance and mechanical resilience against vibration and thermal stress.
Model Number: AD1212UB-F51
Brand: ADDA
Product Type: DC Axial Fan
Frame Material: Aluminum Die-Cast
Blade Material: Thermoplastic PBT (UL94V-0)
Bearing Type: Ball Bearing
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.70 A
Input Power: 8.40 W
Rated Speed: 3200 RPM
Max. Air Flow: 115.0 CFM (195.3 m³/h / 3.25 m³/min)
Max. Static Pressure: 9.20 mmH₂O (90.1 Pa / 0.36 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 320 g
Noise Level: 46.0 dB-A
Life Expectancy: 70,000 Hours at 40°C
Termination: 2-Wire Leads (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20 (Standard)
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Safety Certifications: UL, cUL, TUV, CE
Protection: Impedance Protected, Reverse Polarity Protection
The AD1212UB-F51 is frequently integrated into industrial automation enclosures and telecommunications infrastructure where consistent airflow is critical for system stability. Its rugged aluminum frame makes the AD1212UB-F51 particularly effective in harsh environments such as CNC machinery control panels, server racks, and high-wattage power supply units, where mechanical stress and thermal density require a ruggedized cooling solution beyond the capabilities of standard plastic fans.
