Description

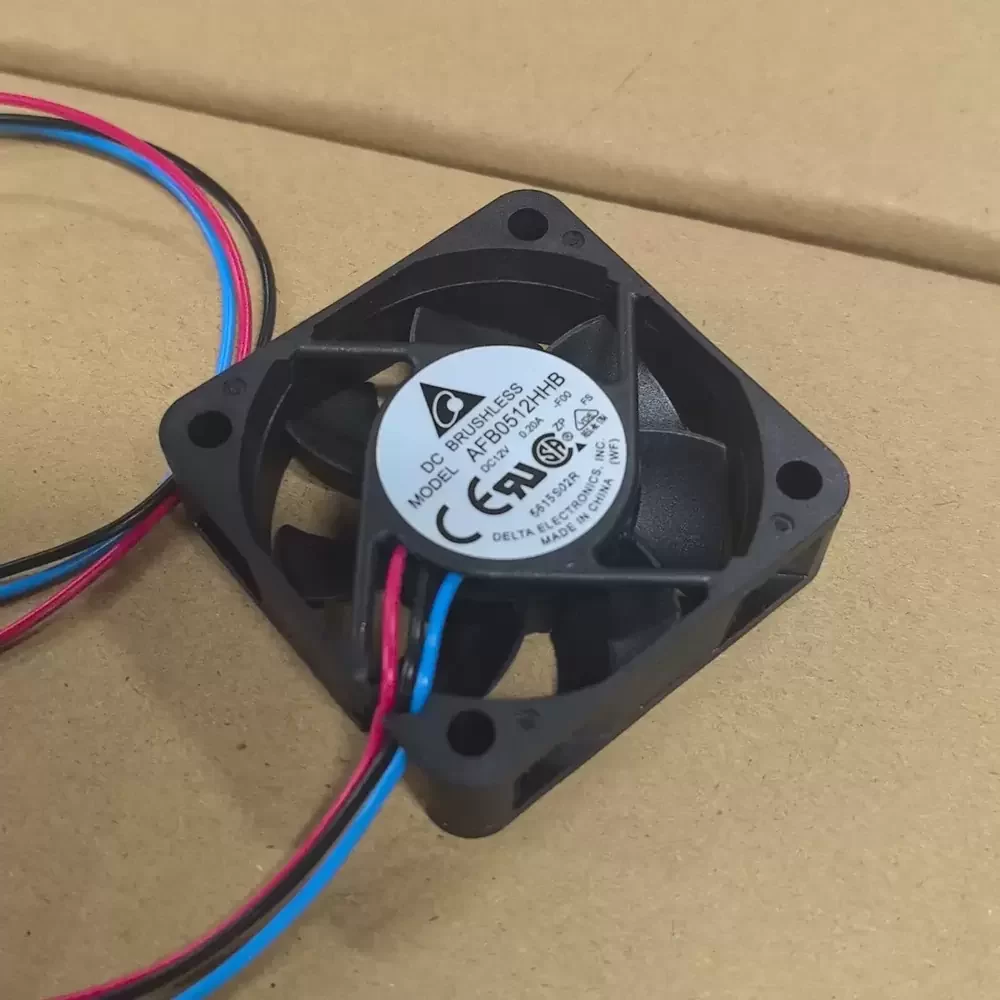

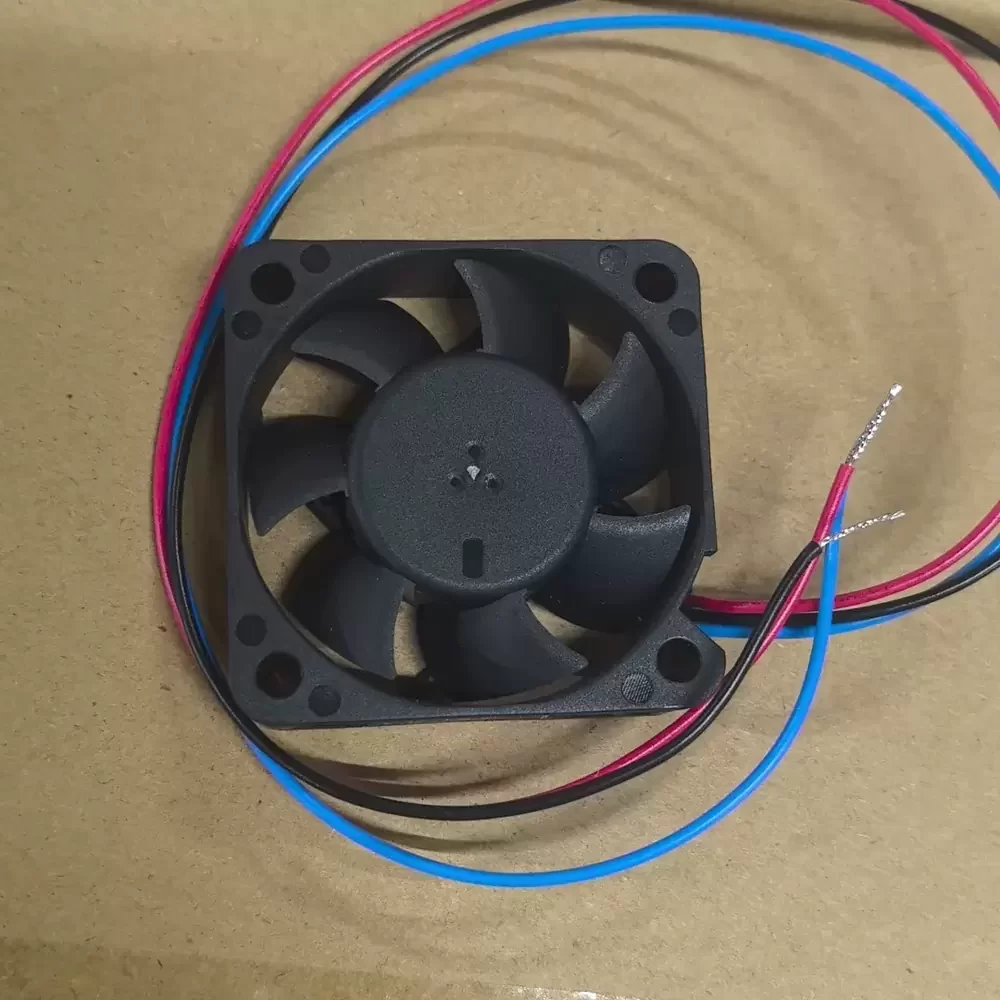

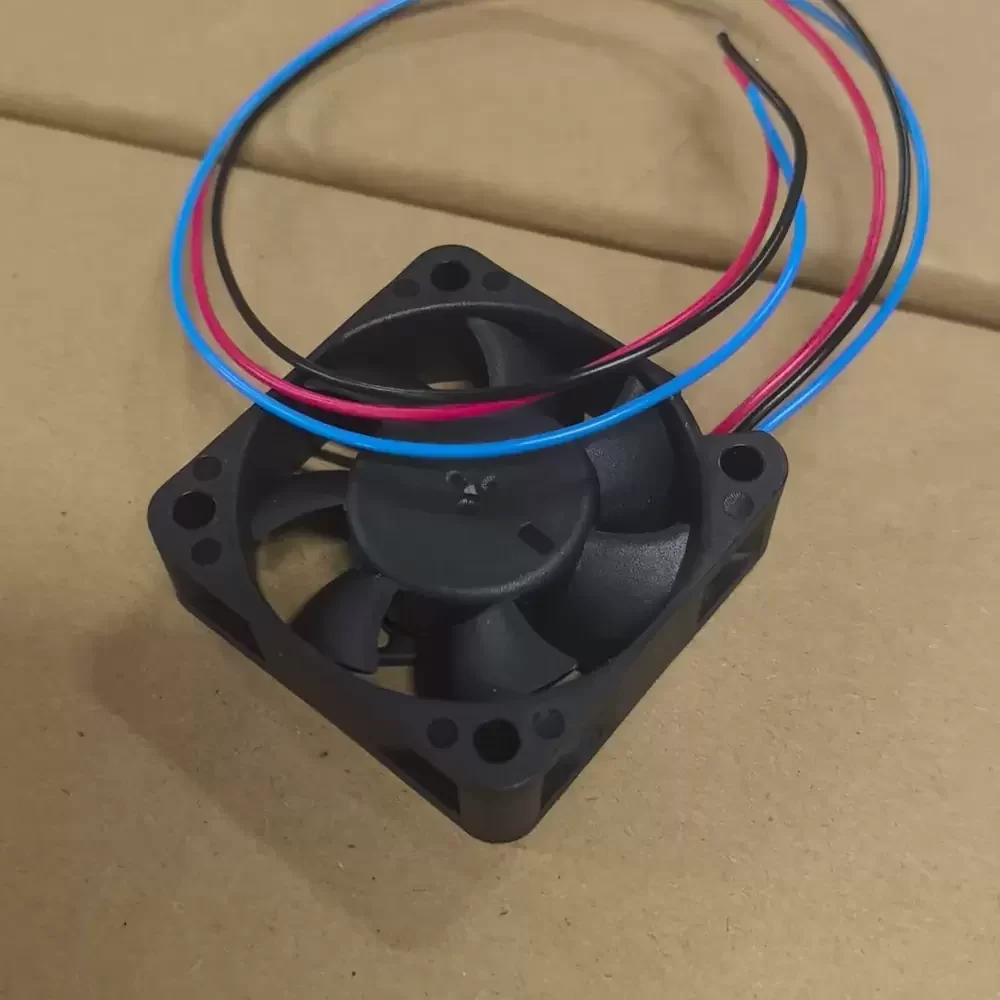

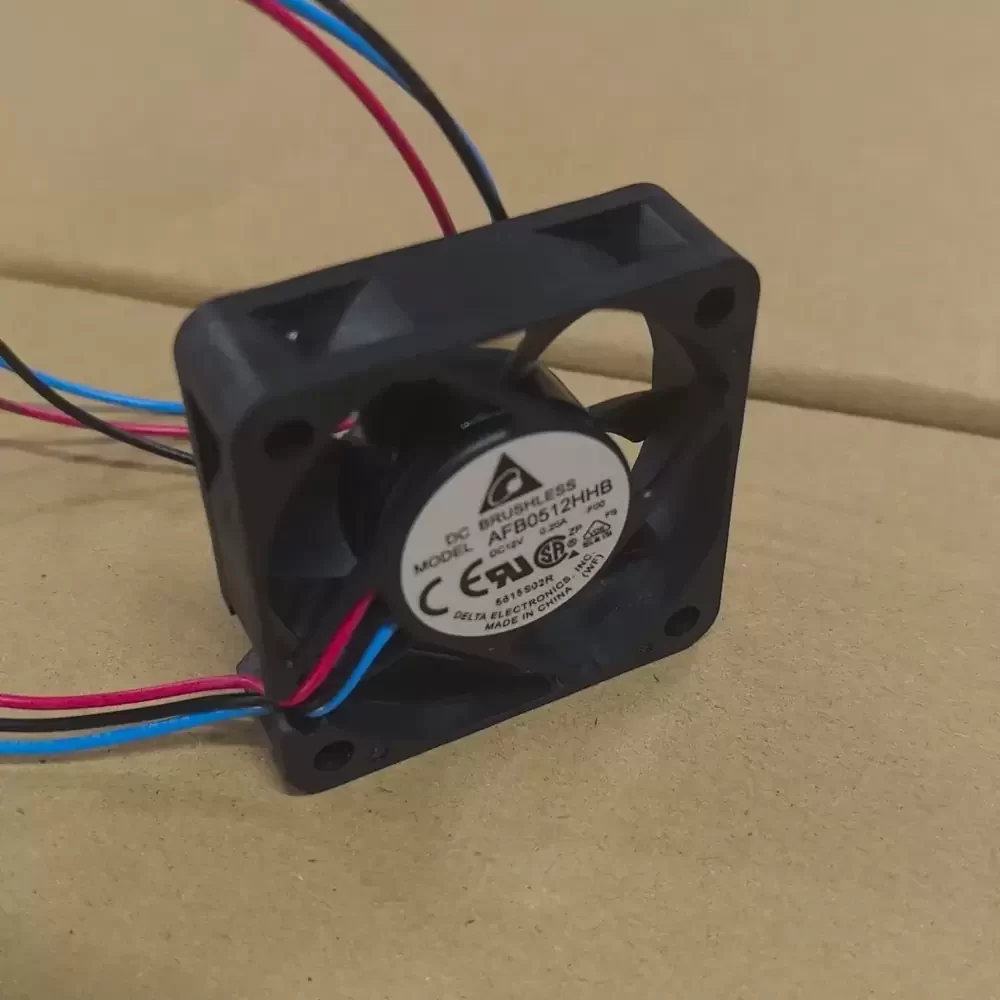

The Delta AFB0512HHB-F00 is a DC Axial Fan engineered for precision thermal management in compact industrial environments. Utilizing advanced brushless DC motor technology and a robust Dual Ball Bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design is optimized to reduce turbulence while maximizing static pressure, effectively lowering thermal impedance within high-density enclosures. Constructed with UL94V-0 rated thermoplastic, the housing offers superior structural rigidity and vibration resistance, making it an ideal solution for critical cooling applications requiring reliable airflow and signal feedback.
Model Number: AFB0512HHB-F00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.20 A
Input Power: 2.40 W
Rated Speed: 6400 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 16.24 CFM (27.59 m³/h / 0.46 m³/min)
Max. Static Pressure: 5.92 mmH₂O (58.05 Pa / 0.23 inH₂O)
Dimensions: 50 x 50 x 15 mm
Weight: 38 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: F00 (Frequency Generator/Tachometer Output)
Noise Level: 36.0 dB-A
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 3-Wire Leads (Red +, Black -, Blue Tach)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Insulation Resistance: >10 Megohm
Dielectric Strength: 500 VAC for 1 Minute
Protection: Locked Rotor Protection, Polarity Protection
Designed for high-reliability environments, the AFB0512HHB-F00 is frequently deployed in variable frequency drives (VFDs), industrial inverters, and compact server chassis where space is at a premium. Its precise speed monitoring capabilities make the AFB0512HHB-F00 suitable for network switches, telecommunications equipment, and medical instrumentation requiring active thermal regulation and fan failure detection.
