Description

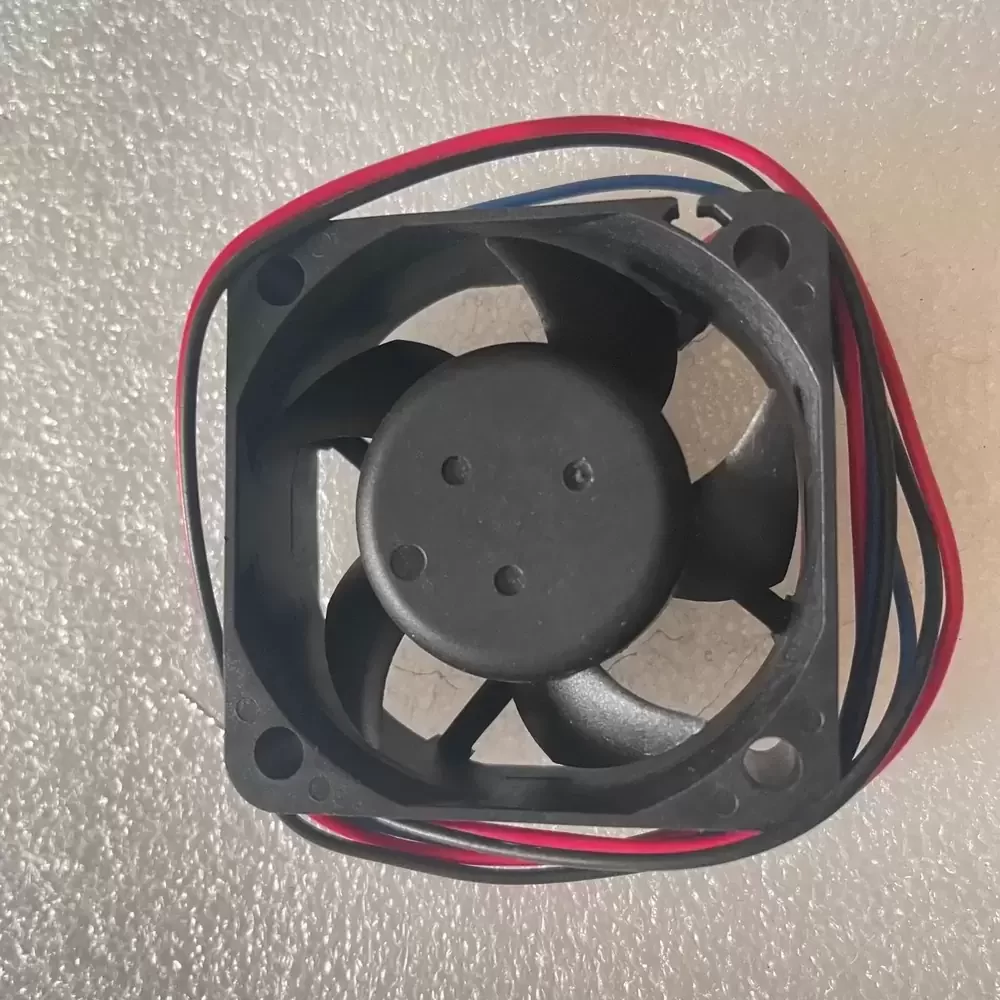

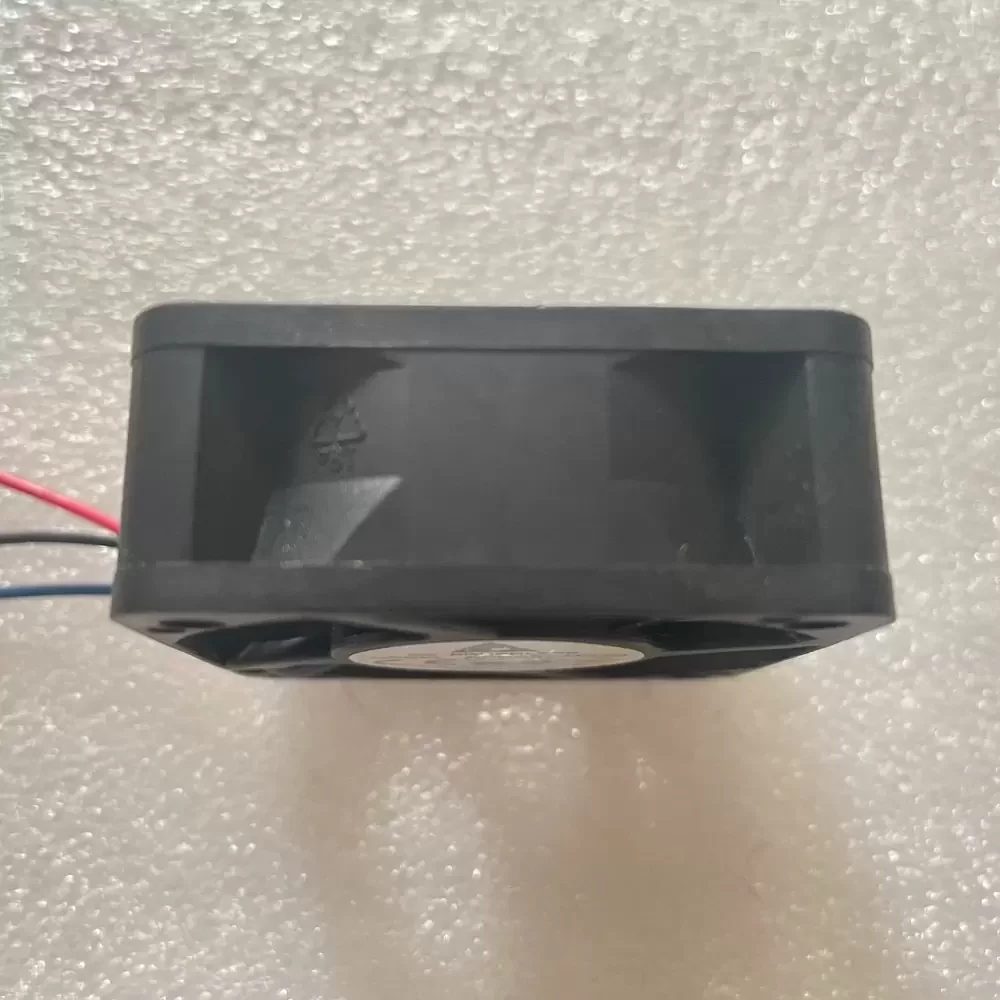

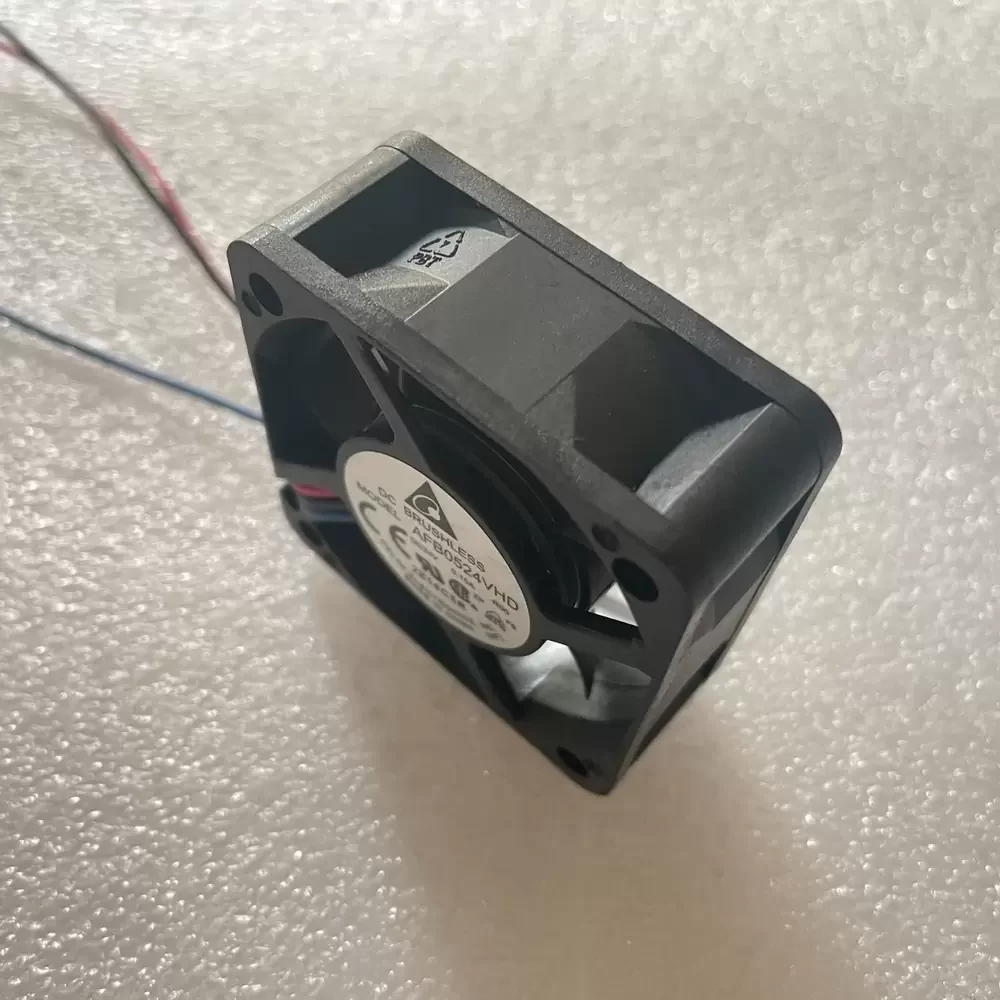

The Delta AFB0524VHD-R00 is a precision-engineered DC axial fan designed for high-reliability industrial thermal management. Utilizing Delta’s advanced brushless DC motor technology and a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, effectively reducing thermal impedance in dense electronic enclosures. Engineered for performance stability, the AFB0524VHD-R00 features a specialized Locked Rotor Sensor (R00) output, providing critical feedback for system monitoring and failure prevention in mission-critical applications.
Model Number: AFB0524VHD-R00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.15 A
Input Power: 3.60 W
Rated Speed: 6400 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 20.30 CFM (34.49 m³/h / 0.57 m³/min)
Max. Static Pressure: 7.65 mmH₂O (75.02 Pa / 0.30 inH₂O)
Dimensions: 50 x 50 x 20 mm
Weight: 38.0 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 36.5 dB-A
Speed Control / Sensor: R00 (Locked Rotor Sensor / Rotation Detector)
Termination: 3-Wire (Lead Wire)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection: Polarity Protection, Locked Rotor Protection
The AFB0524VHD-R00 is specifically calibrated for demanding industrial environments requiring consistent forced air cooling. Common applications include variable frequency drives (VFDs), industrial inverters, and compact server rack enclosures where space is limited but heat dissipation requirements are high. The integration of the rotation detector sensor makes the AFB0524VHD-R00 particularly suitable for automated machinery and CNC control systems, allowing for immediate system alerts or shutdowns in the event of fan obstruction or failure.
