Description

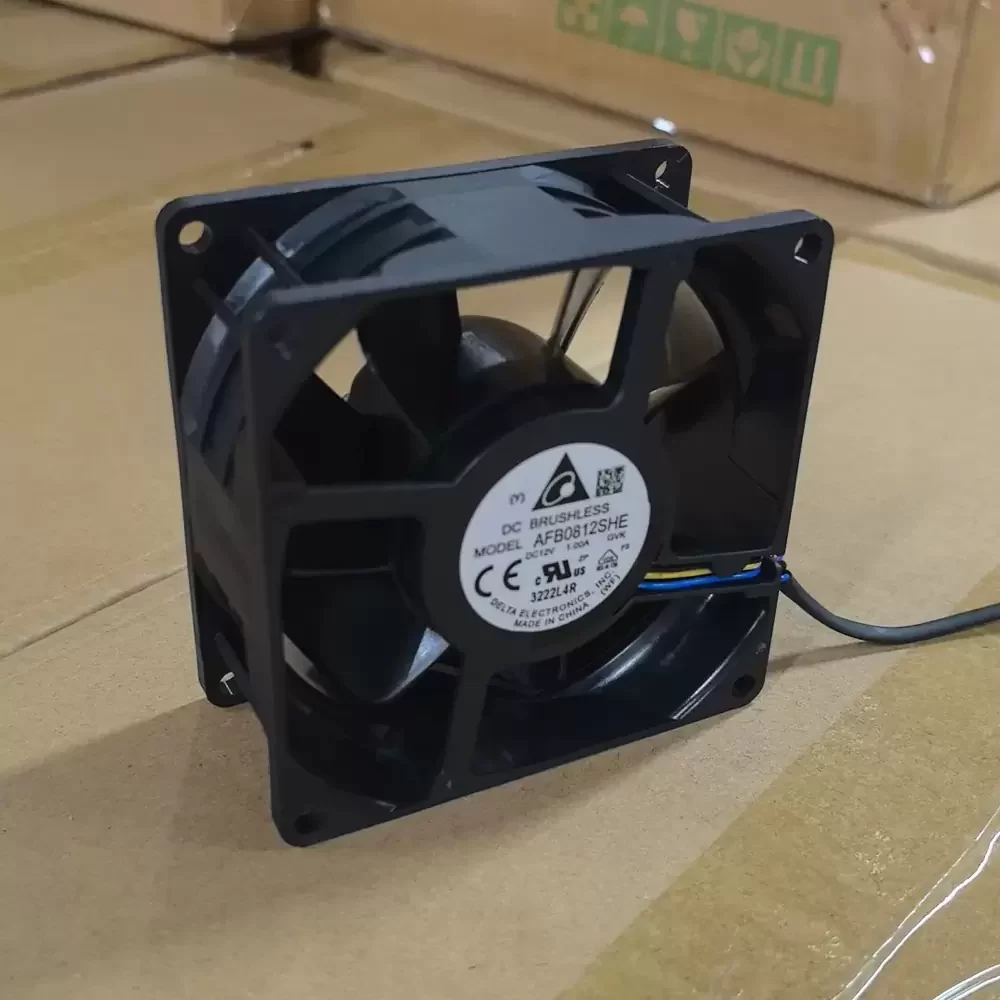

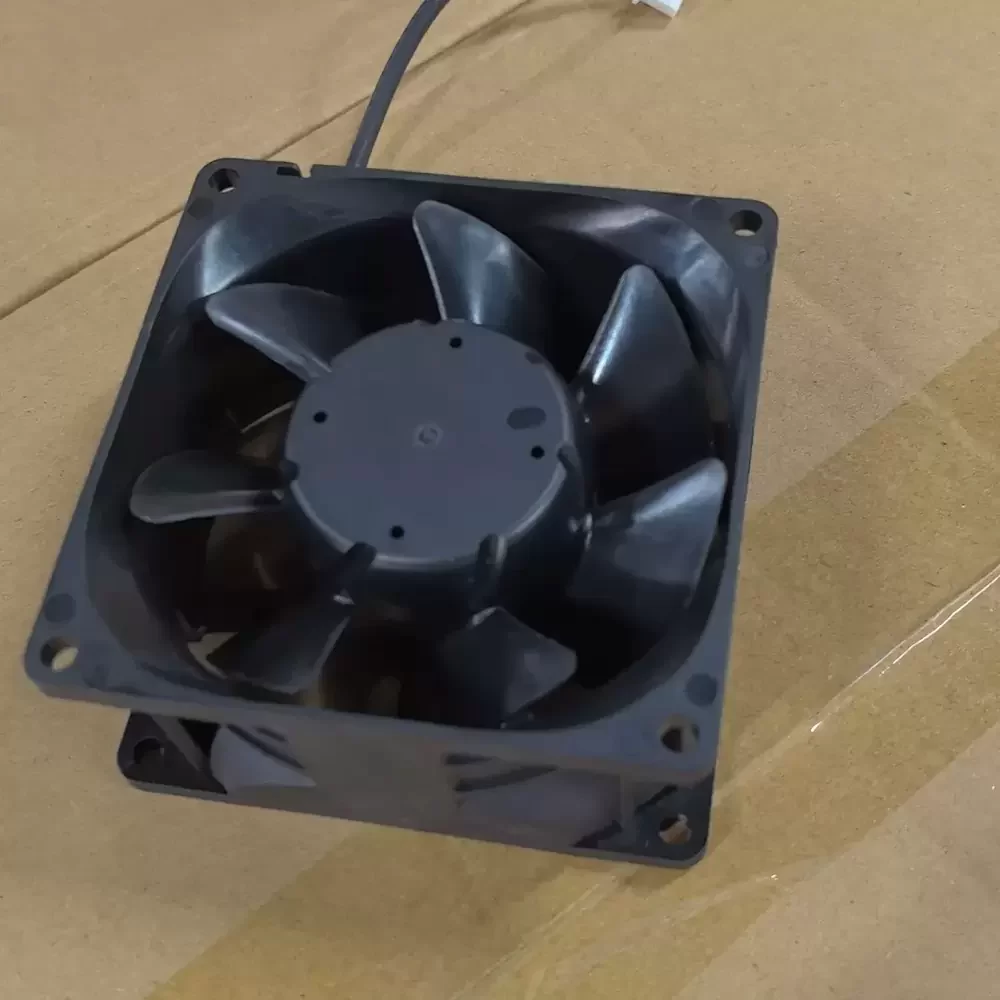

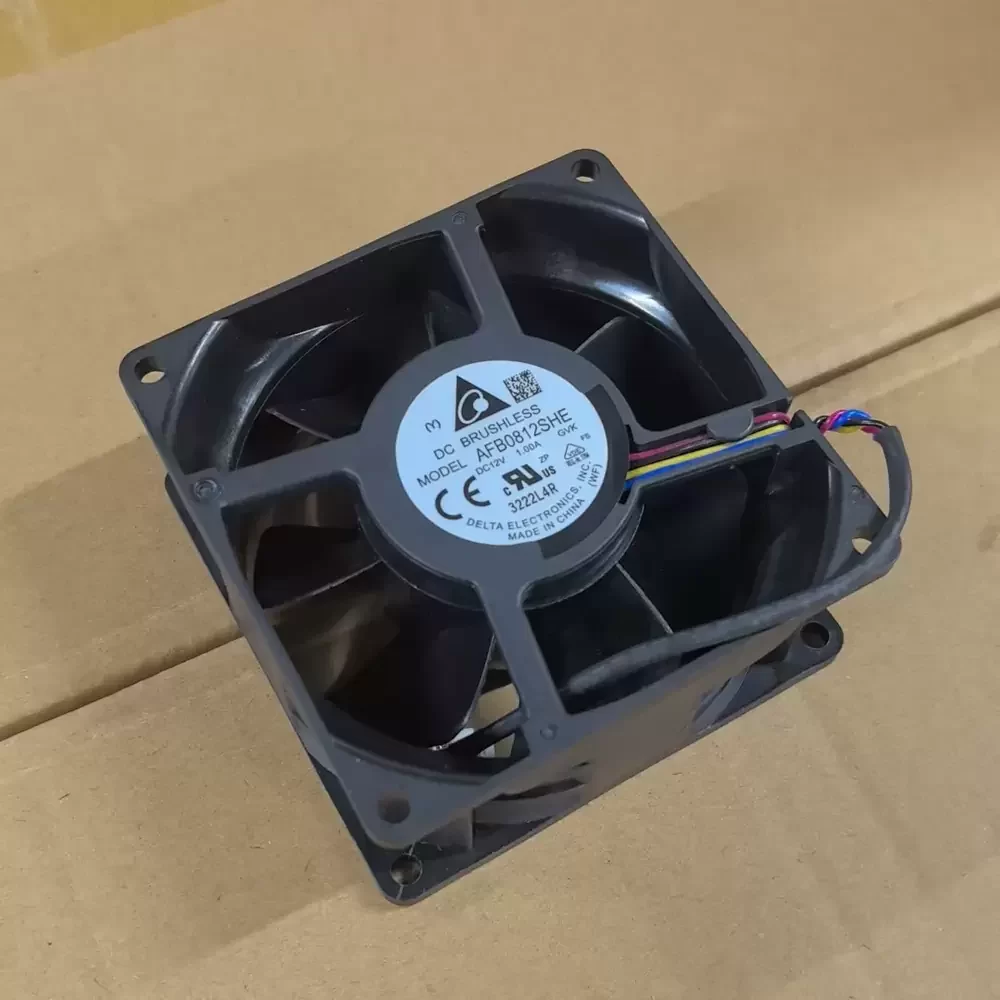

The Delta AFB0812SHE-GBK is a high-performance DC Axial Fan engineered for critical industrial thermal management applications requiring substantial airflow. Utilizing advanced DC motor technology and a robust double ball bearing architecture, this unit provides exceptional structural rigidity and sustained reliability under continuous heavy loads. The 80mm impeller design is optimized to minimize thermal impedance while delivering a massive 92.4 CFM throughput. Integrated 4-wire PWM speed control allows for precise dynamic regulation, ensuring the system maintains an optimal balance between cooling efficiency and power consumption.
Model Number: AFB0812SHE-GBK
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Rated Current: 1.00 A
Power Consumption: 12.00 W
Rated Speed: 6300 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 92.4 CFM
Max. Static Pressure: 13.81 mmH₂O (Standard specification for SHE series)
Dimensions: 80 x 80 x 38 mm
Termination: 4-Wire (Red, Black, Yellow, Blue)
Speed Control: PWM (Pulse Width Modulation)
Wire Definition: Red (+), Black (-), Yellow (Sensor/Tach), Blue (PWM)
Mounting Orientation: Any
Life Expectancy: 70,000 Hours @ 40°C
Condition: New Original
Designed for high-density electronic environments, the AFB0812SHE-GBK is a primary choice for server rack ventilation and high-performance computing clusters where component density restricts passive cooling. The AFB0812SHE-GBK is also extensively utilized in precision CNC machinery control boxes, telecommunication base stations, and industrial power supply units requiring rapid heat dissipation to prevent thermal throttling.
