Description

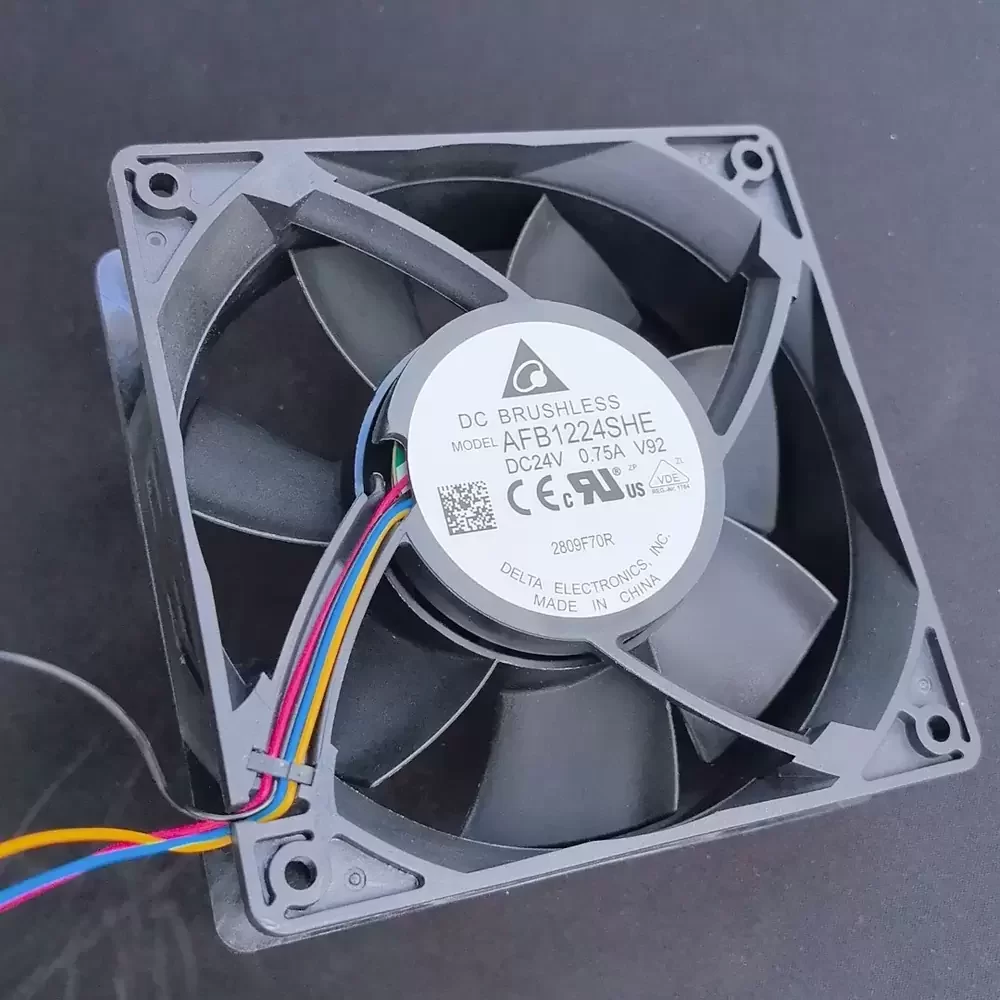

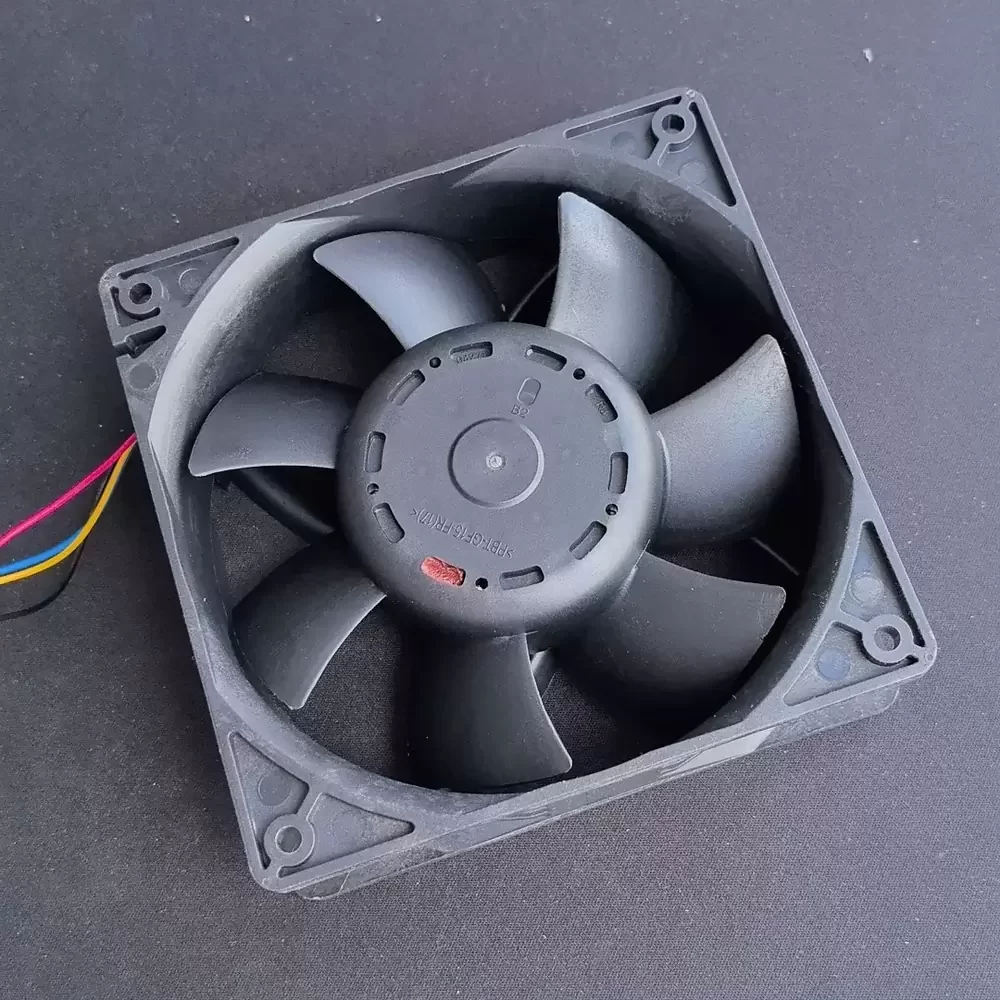

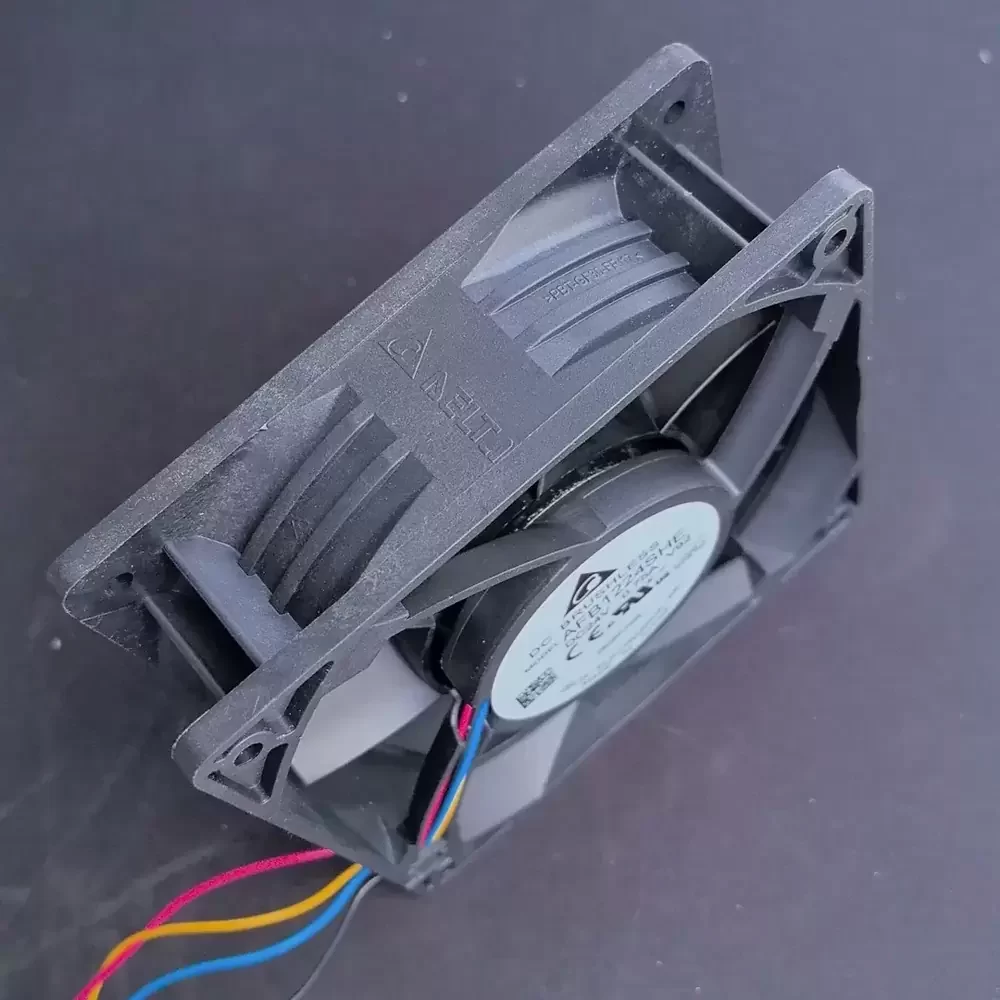

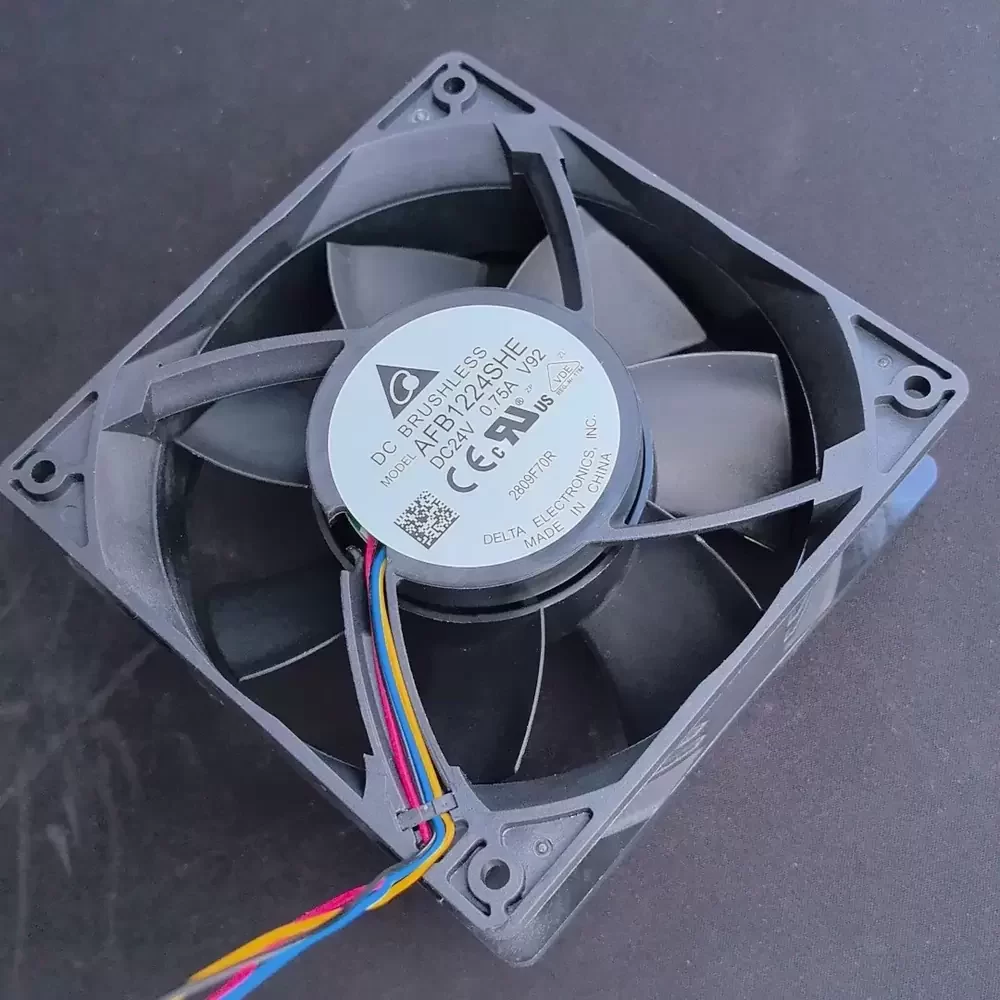

The Delta AFB1224SHE-V92 is a high-performance DC Axial Fan engineered for demanding industrial environments requiring substantial airflow and static pressure. Featuring a robust thermoplastic PBT housing and impeller, this unit utilizes advanced aerodynamic design to minimize thermal impedance while maximizing airflow efficiency. The integration of a precision Dual Ball Bearing system ensures exceptional structural rigidity and longevity, even under continuous high-speed operation. Designed with a 4-wire interface supporting PWM signal control, it offers precise speed regulation to balance cooling performance with energy consumption, making it a reliable solution for critical thermal management.
Model Number: AFB1224SHE-V92
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.75 A
Power Input: 18.0 W
Rated Speed: 3700 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 151.85 CFM (257.9 m³/h / 4.30 m³/min)
Max. Static Pressure: 14.50 mmH₂O (142.2 Pa / 0.57 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 298 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 53.0 dB-A
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire (Red: +, Black: -, Blue: Tach, Yellow: PWM)
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP20 (Standard)
Insulation Class: Class A
Safety Protection: Electronic Locked Rotor Protection
Mounting Orientation: Any
The AFB1224SHE-V92 is specifically calibrated for high-density thermal management applications, including industrial automation control cabinets, server rack cooling, and telecommunications infrastructure. Its high static pressure capabilities make the AFB1224SHE-V92 ideal for overcoming resistance in tightly packed enclosures or systems utilizing dense filtration, ensuring critical components remain within optimal operating temperature ranges.
