Description

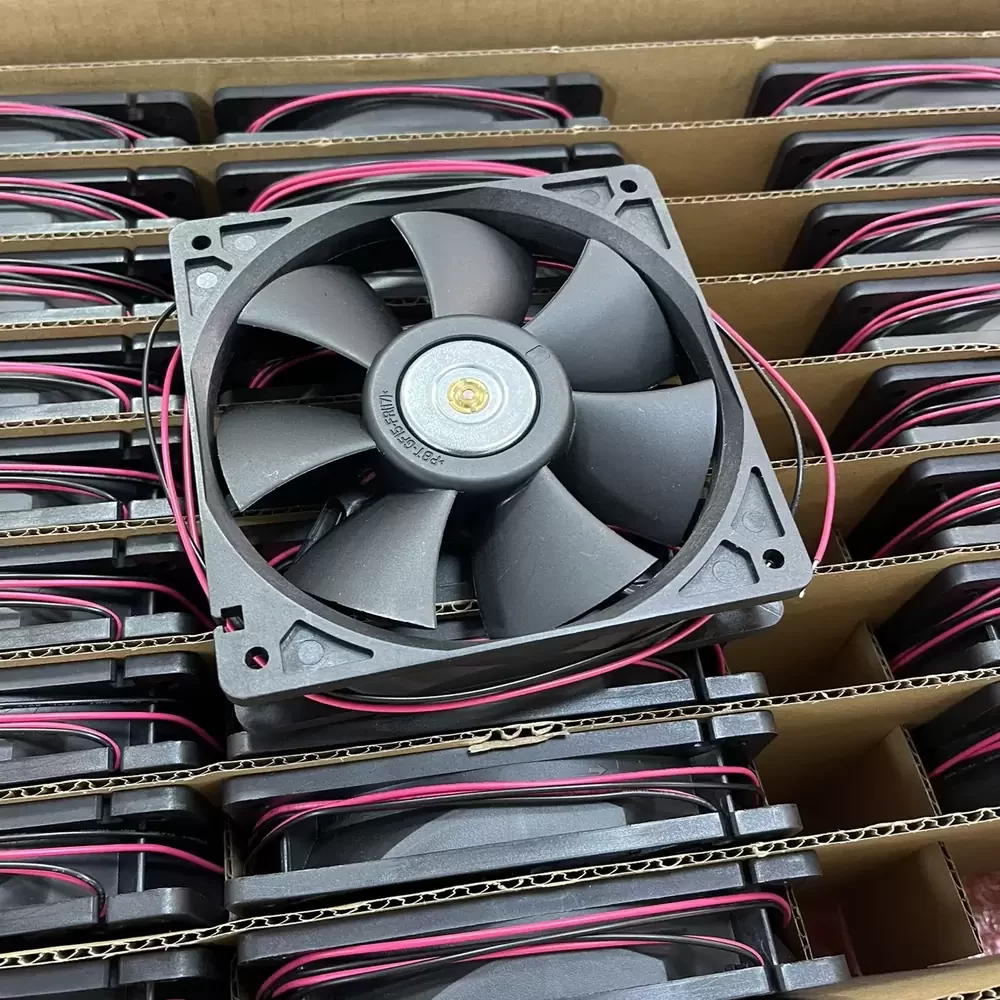

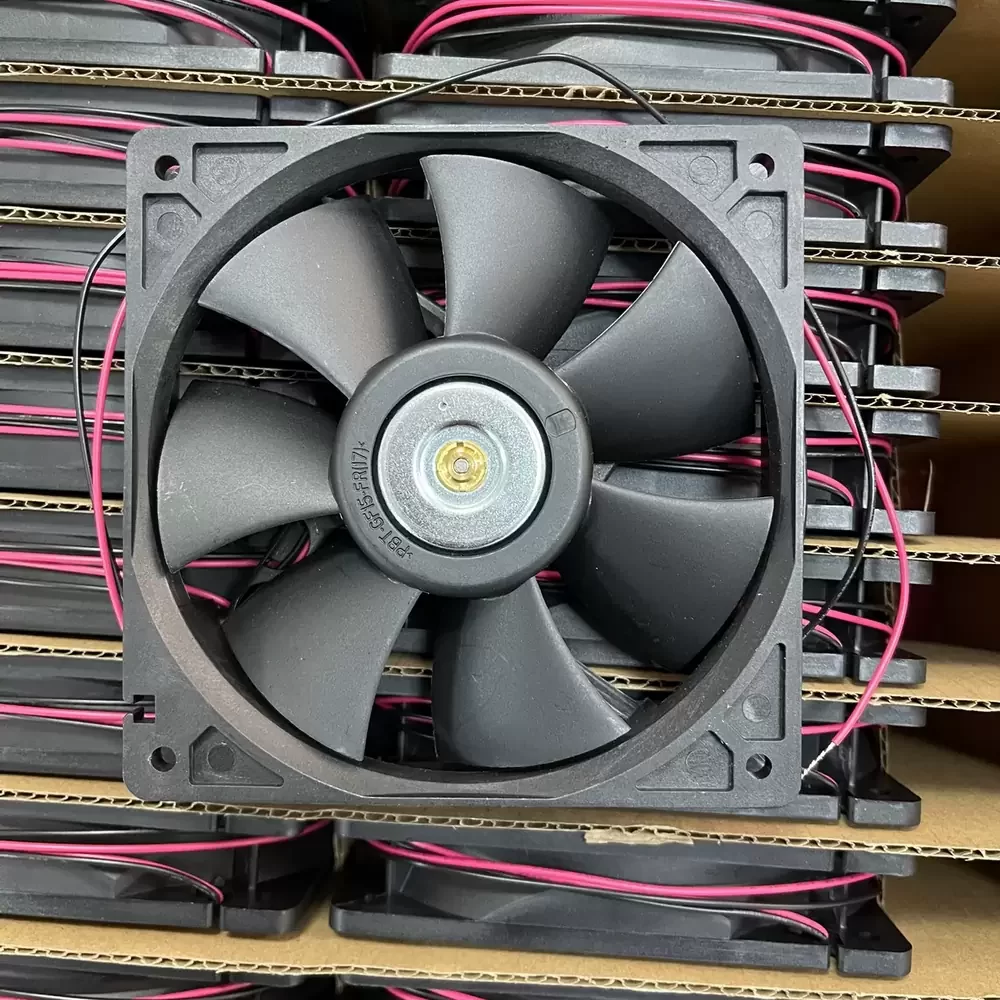

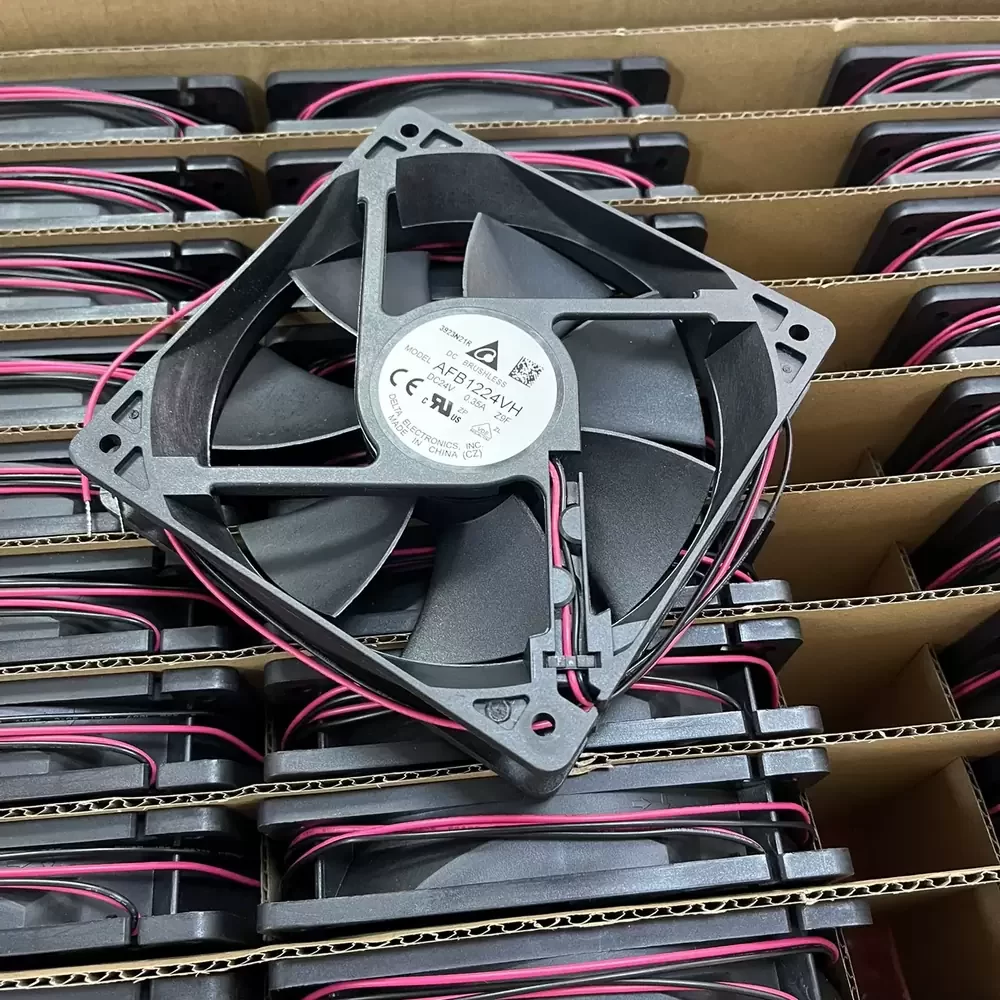

The Delta AFB1224VH-Z9F is a DC Axial Fan engineered for critical thermal management in industrial environments. Utilizing advanced Brushless DC (BLDC) motor technology combined with a precision Two Ball Bearing architecture, this unit ensures minimized friction and extended operational longevity. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, effectively reducing thermal impedance within high-density enclosures. Its robust construction adheres to strict industrial standards, providing reliable cooling performance under continuous duty cycles and demanding environmental conditions.
Model Number: AFB1224VH-Z9F
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.35 A
Input Power: 8.40 W
Rated Speed: 3100 RPM
Bearing Type: Two Ball Bearing
Max. Air Flow: 103.75 CFM (176.27 m³/h / 2.93 m³/min)
Max. Static Pressure: 9.43 mmH₂O (92.48 Pa / 0.37 inH₂O)
Dimensions: 120x120x25.4 mm
Weight: 197 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 44.5 dB-A
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire (Lead Wire)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP50 (Standard)
Insulation Class: Class A
Motor Protection: Impedance Protected; Reverse Polarity Protection
Designed for versatile integration, the AFB1224VH-Z9F serves as a critical component in server racks, industrial automation cabinets, and telecommunications infrastructure. Its high static pressure capabilities make the AFB1224VH-Z9F ideal for forcing air through dense component arrays in CNC machinery and power supply units, ensuring optimal operating temperatures are maintained to prevent thermal throttling in mission-critical hardware.
