ASB0512LB-A Delta 12VDC 50x50x15mm Low Noise Axial Fan

Description

The Delta ASB0512LB-A is a precision-engineered Axial Fan designed for compact thermal management applications requiring a balance between airflow and acoustic performance. Utilizing advanced sleeve bearing architecture, this unit ensures rotational stability and cost-effective reliability. The aerodynamic impeller design minimizes turbulence, thereby reducing operational noise while maintaining consistent air delivery. Constructed with high-grade PBT thermoplastic for structural rigidity, the fan effectively manages thermal impedance in restricted enclosures, making it an ideal solution for sensitive electronic assemblies requiring steady heat dissipation.

Model Number: ASB0512LB-A
Brand: Delta Electronics
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.11 A
Power: 1.32 W
Rated Speed: 3800 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 8.50 CFM (14.44 m³/h / 0.24 m³/min)
Max. Static Pressure: 2.30 mmH₂O (22.55 Pa / 0.09 inH₂O)
Dimensions: 50 x 50 x 15 mm
Noise Level: 24.0 dBA
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)

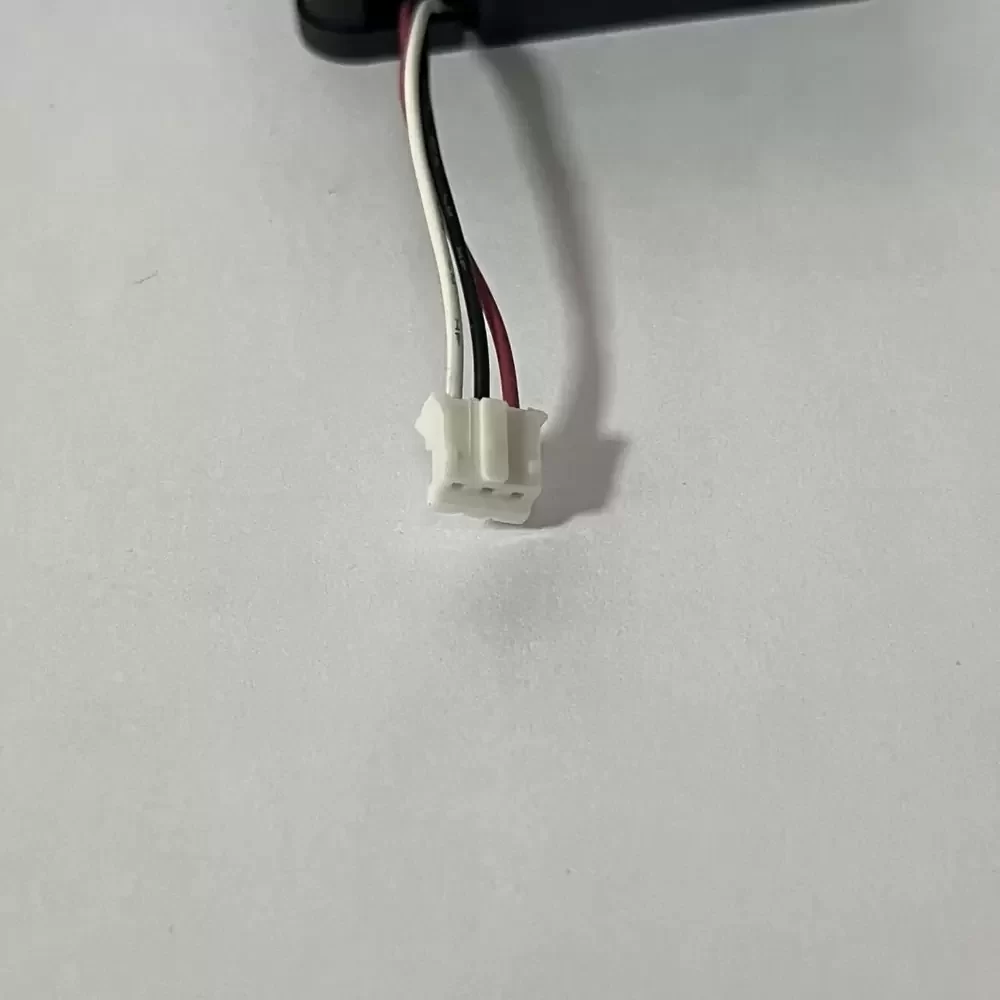

Termination: 2-Wire Lead
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 30,000 Hours at 40°C
Weight: 20 g

The ASB0512LB-A is specifically calibrated for integration into compact electronic systems where space is at a premium and noise reduction is critical. Common deployment environments include small form-factor power supplies, network switches, DVR systems, and localized cooling for chipset heatsinks. The ASB0512LB-A provides reliable thermal regulation in consumer electronics and industrial control panels, ensuring component longevity by preventing heat accumulation in dense hardware configurations.
