Description

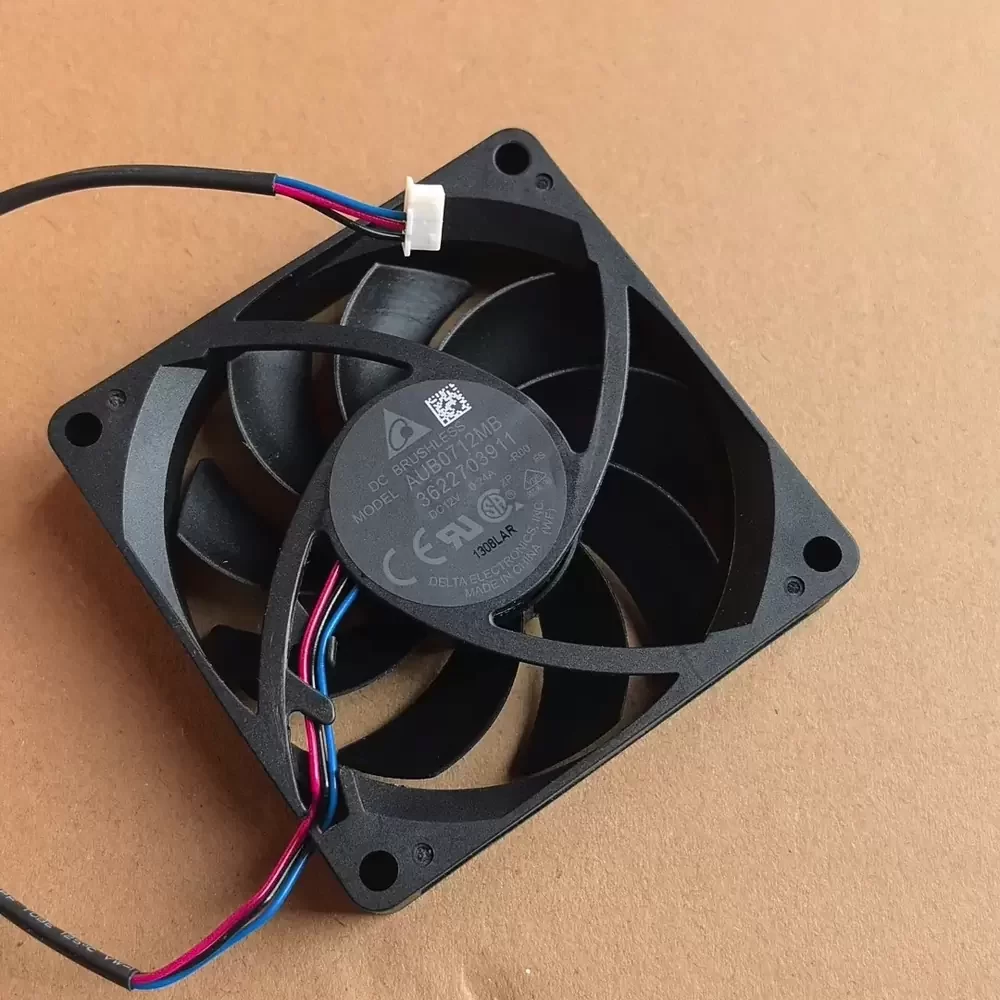

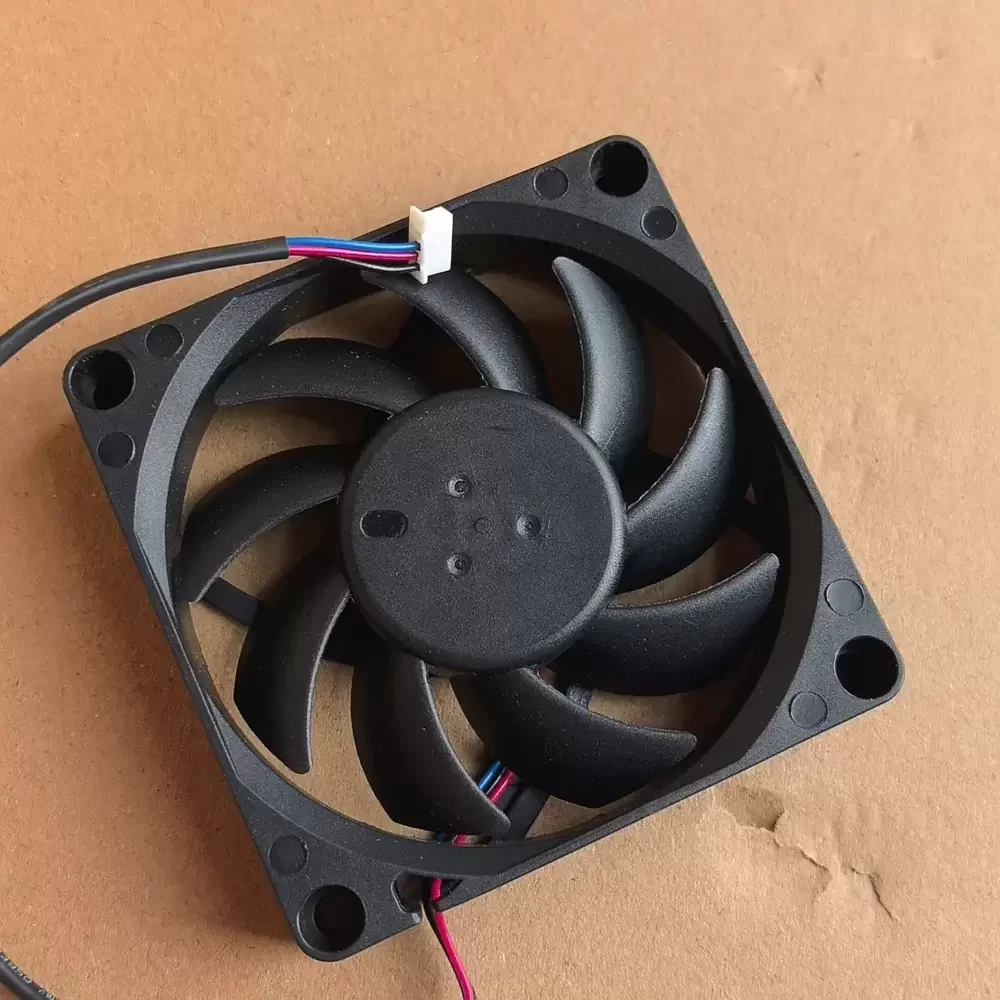

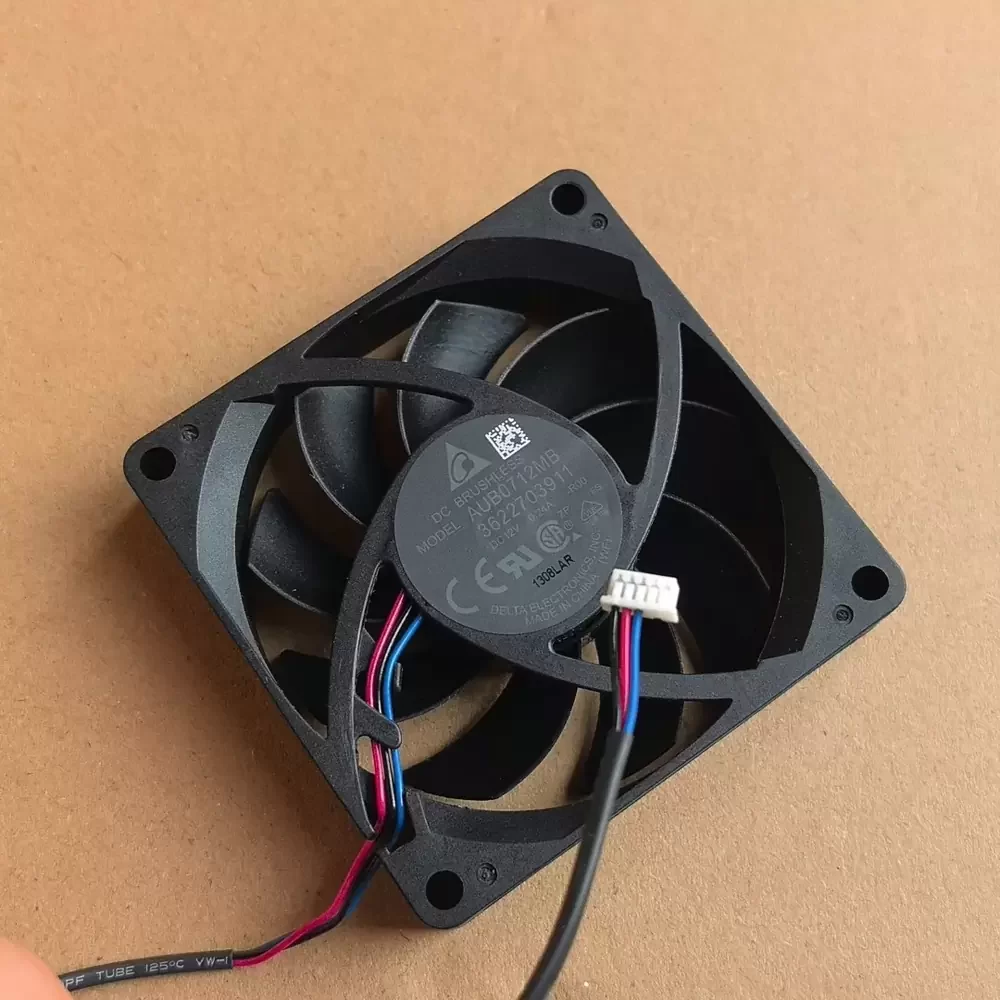

The Delta AUB0712MB-R00 is a precision-engineered axial cooling solution designed for high-reliability thermal management. Utilizing advanced DC brushless motor technology, this unit minimizes electromagnetic interference while maximizing torque efficiency. The core architecture features a robust double ball bearing system, ensuring exceptional longevity and structural rigidity even under continuous operation. Its aerodynamic impeller design optimizes the pressure-to-airflow ratio, significantly reducing thermal impedance within compact enclosures. Engineered with a specialized housing, the AUB0712MB-R00 maintains stable operation, making it an ideal component for critical industrial and computing environments requiring consistent heat dissipation.
Model Number: AUB0712MB-R00
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.24 A
Input Power: 2.88 W
Rated Speed: 3800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 28.0 CFM (47.57 m³/h / 0.79 m³/min)
Max. Static Pressure: 3.50 mmH₂O (34.32 Pa / 0.14 inH₂O)
Dimensions: 70 x 70 x 15 mm
Weight: 60 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 34.5 dB-A
Sensor Output: R00 (Rotation Detector)
Termination: 3-Wire Lead
Housing Material: Plastic PBT (UL94V-0)
Impeller Material: Plastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
The AUB0712MB-R00 is specifically engineered for integration into compact electronic enclosures where space is at a premium but airflow cannot be compromised. Common deployment scenarios include mid-sized server racks, industrial automation control panels, and precision medical instrumentation. The AUB0712MB-R00 excels in chassis cooling applications, effectively evacuating waste heat from power supplies and CPU heatsinks to prevent thermal throttling in continuous-duty telecommunications equipment.
