Description

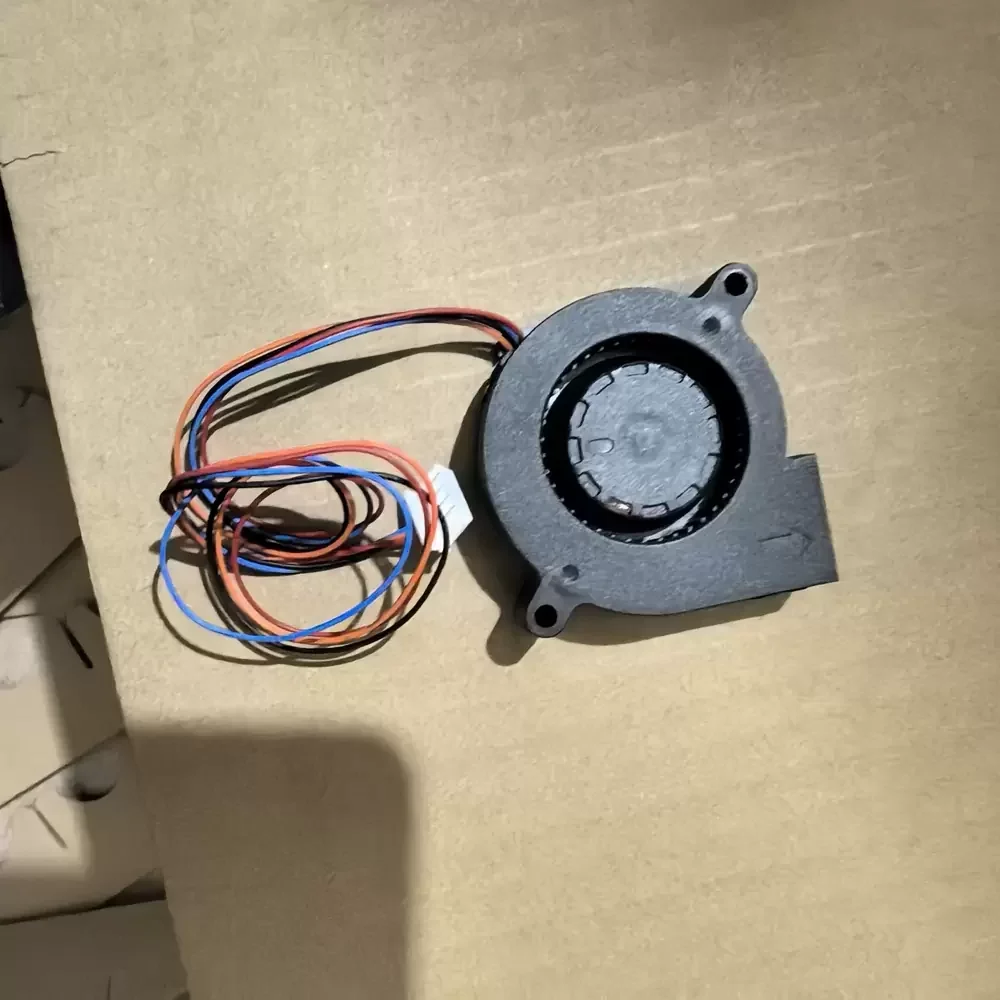

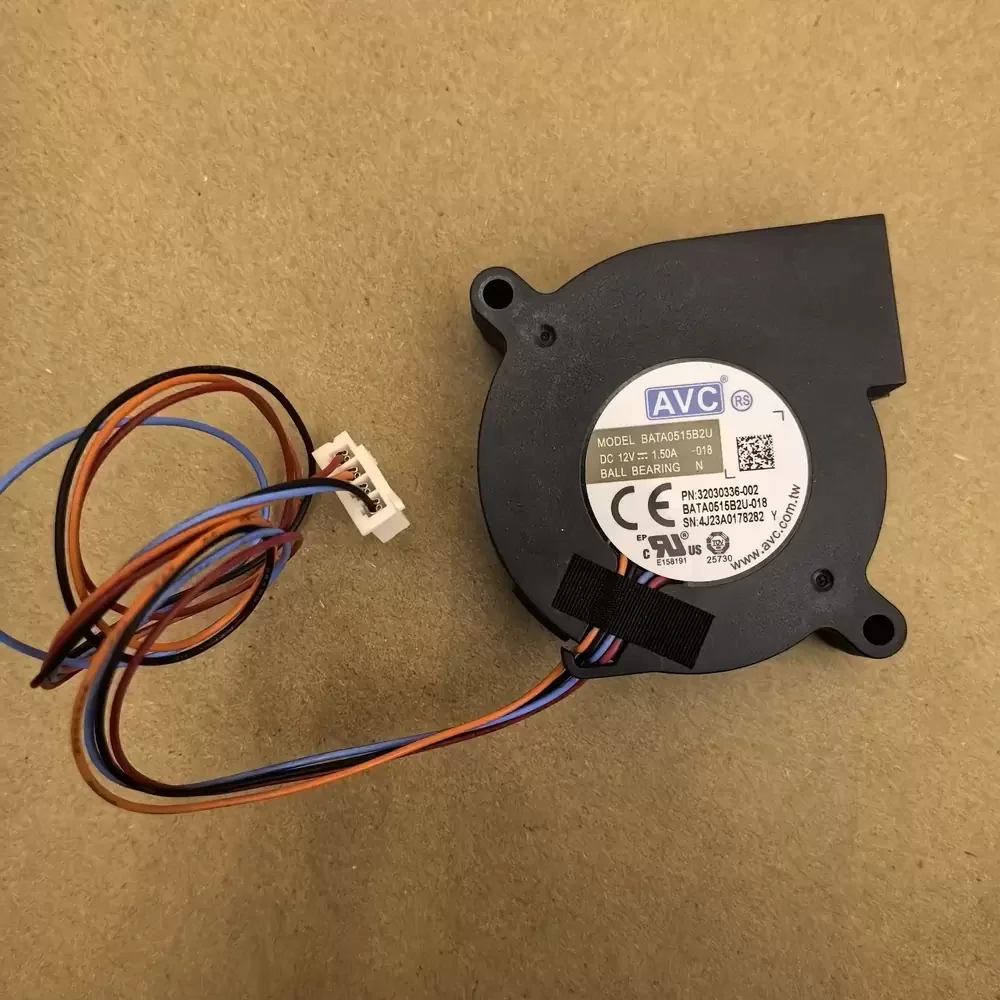

The AVC BATA0515B2U-018 is a specialized Centrifugal Blower designed for high-density thermal management applications requiring significant static pressure. Engineered with a robust DC motor and Dual Ball Bearing architecture, this unit ensures long-term structural rigidity and operational stability under high-load conditions. The aerodynamic volute design optimizes airflow delivery, overcoming high thermal impedance in restricted spaces such as 1U server racks and compact industrial enclosures. Its high-current specification indicates a performance-oriented profile suitable for critical cooling tasks.
Model Number: BATA0515B2U-018
Brand: AVC (Asia Vital Components)
Product Type: Centrifugal Blower
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 1.50 A
Power: 18.0 W
Rated Speed: 11000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 6.8 CFM (11.55 m³/h)
Max. Static Pressure: 2.85 inH₂O (710 Pa)
Dimensions: 50x50x15mm
Weight: 30g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 58.5 dB(A)
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (Frequency Generator)
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: 4-Wire Lead
Ingress Protection: IP40
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
This high-static pressure blower is specifically engineered for space-constrained environments where overcoming system resistance is paramount. The BATA0515B2U-018 is frequently utilized in 1U server chassis, blade servers, and high-performance computing clusters where directed airflow is required to cool heatsinks and processors. Additionally, the BATA0515B2U-018 serves effectively in compact 3D printers for part cooling, telecommunications equipment, and precision medical instrumentation requiring reliable forced air convection.
