Description

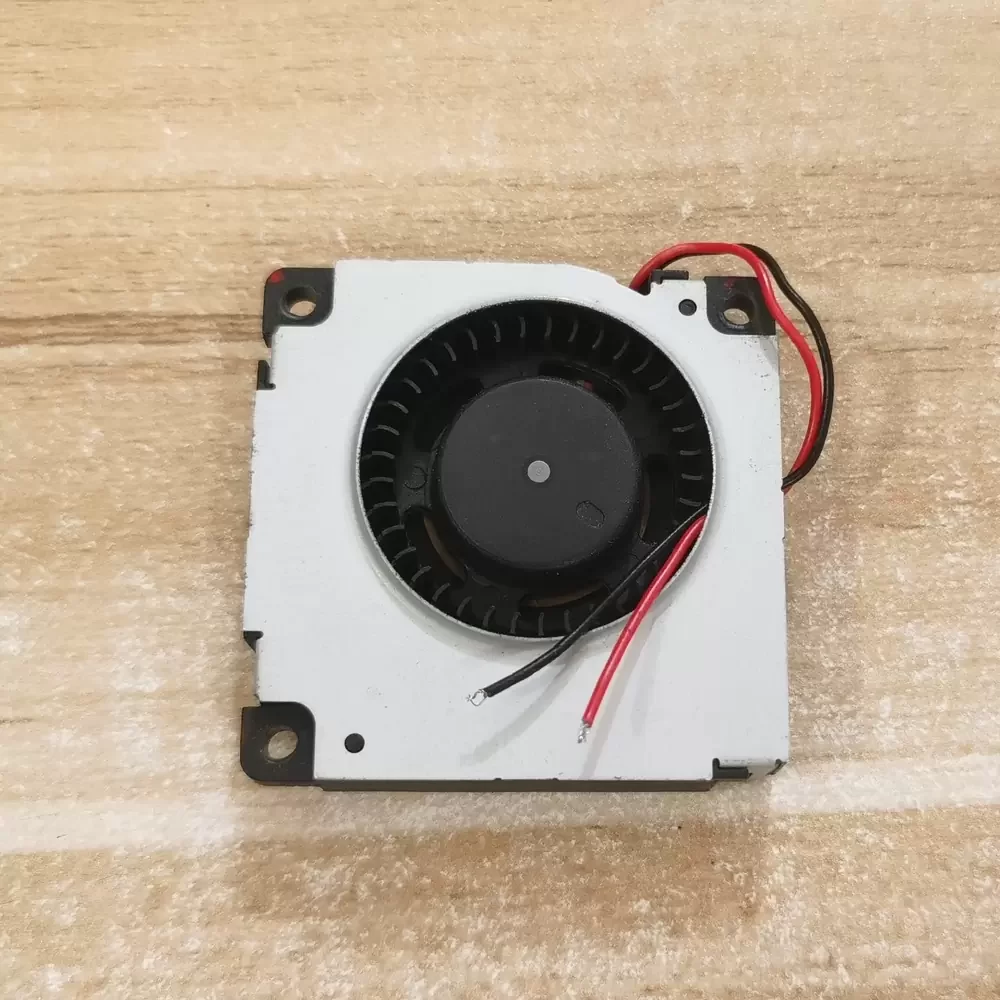

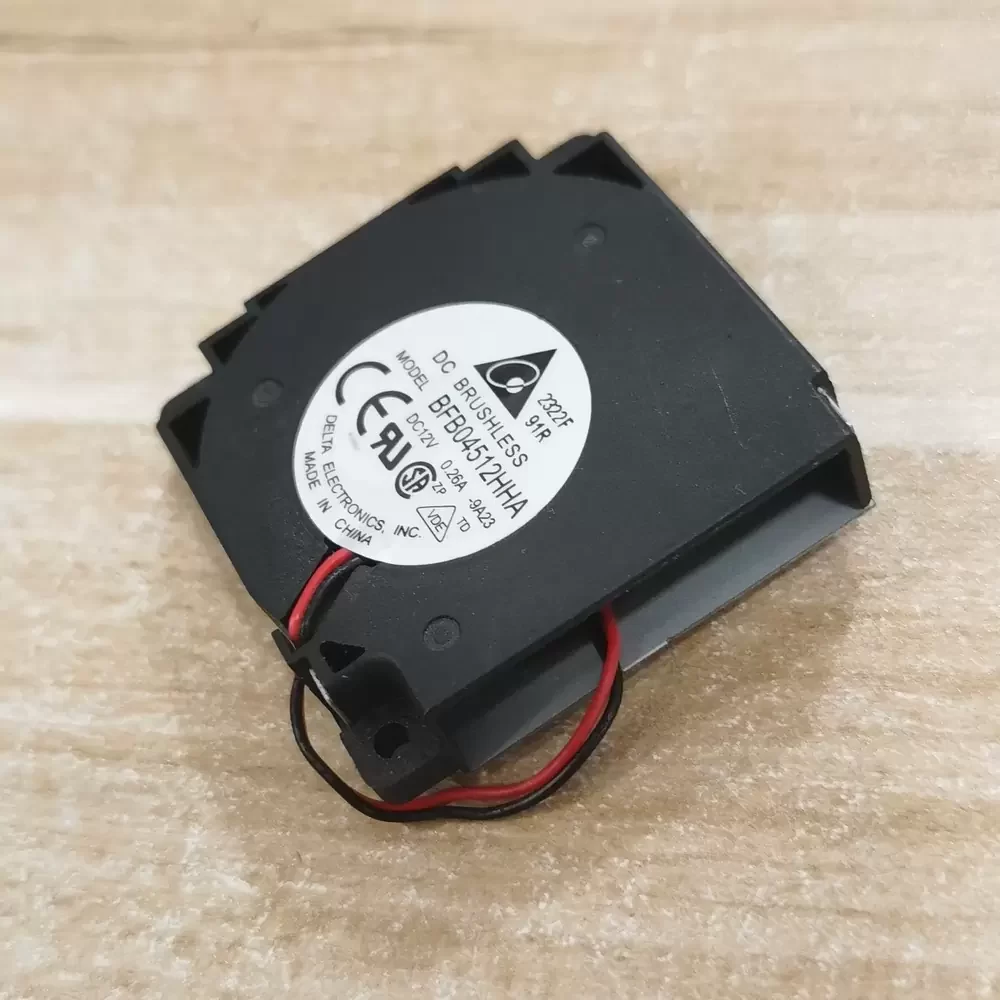

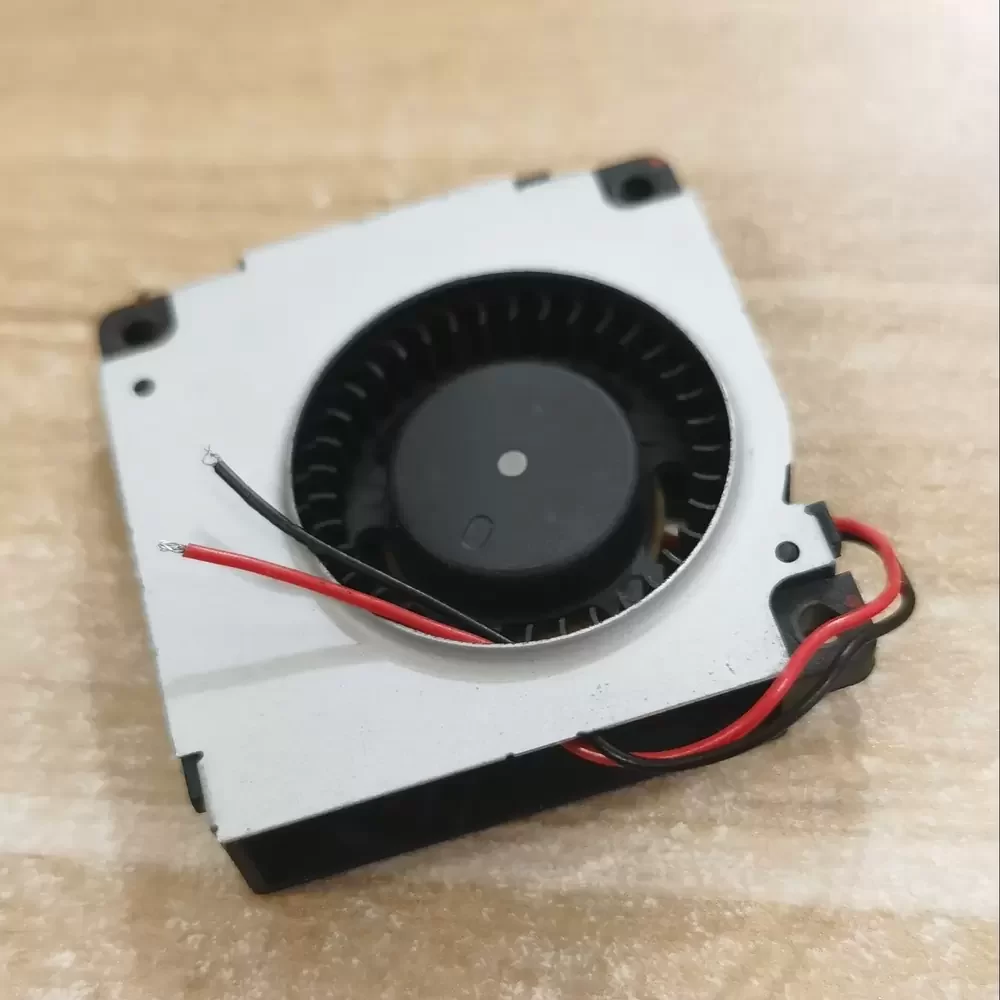

The Delta BFB04512HHA-9A23 is a DC Centrifugal Blower engineered for applications requiring concentrated airflow and high static pressure within a compact footprint. Utilizing advanced motor technology, this unit optimizes thermal impedance management while maintaining structural rigidity under operational load. The aerodynamic volute design ensures efficient air delivery, making it suitable for precision cooling in space-constrained industrial environments.
Model Number: BFB04512HHA-9A23
Brand: Delta Electronics
Product Type: DC Blower Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.26 A
Power: 3.12 W
Rated Speed: 6500 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 4.5 CFM (7.65 m³/h)
Max. Static Pressure: 14.0 mmH₂O (137 Pa)
Dimensions: 45 x 45 x 10 mm
Weight: 18 g
Life Expectancy: 50,000 Hours @ 40°C
Termination: 2-Wire Lead
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10 to 70 °C
Storage Temperature: -40 to 70 °C
Noise Level: 38.0 dB-A
Mounting Orientation: Any
The BFB04512HHA-9A23 is specifically designed for integration into compact electronic assemblies where directed cooling is critical. Common deployments include cooling chipsets in server racks, micro-projectors, and specialized medical instrumentation requiring reliable thermal dissipation. The BFB04512HHA-9A23 ensures consistent performance in CNC control modules and telecommunications equipment, effectively managing heat in high-density component layouts.
